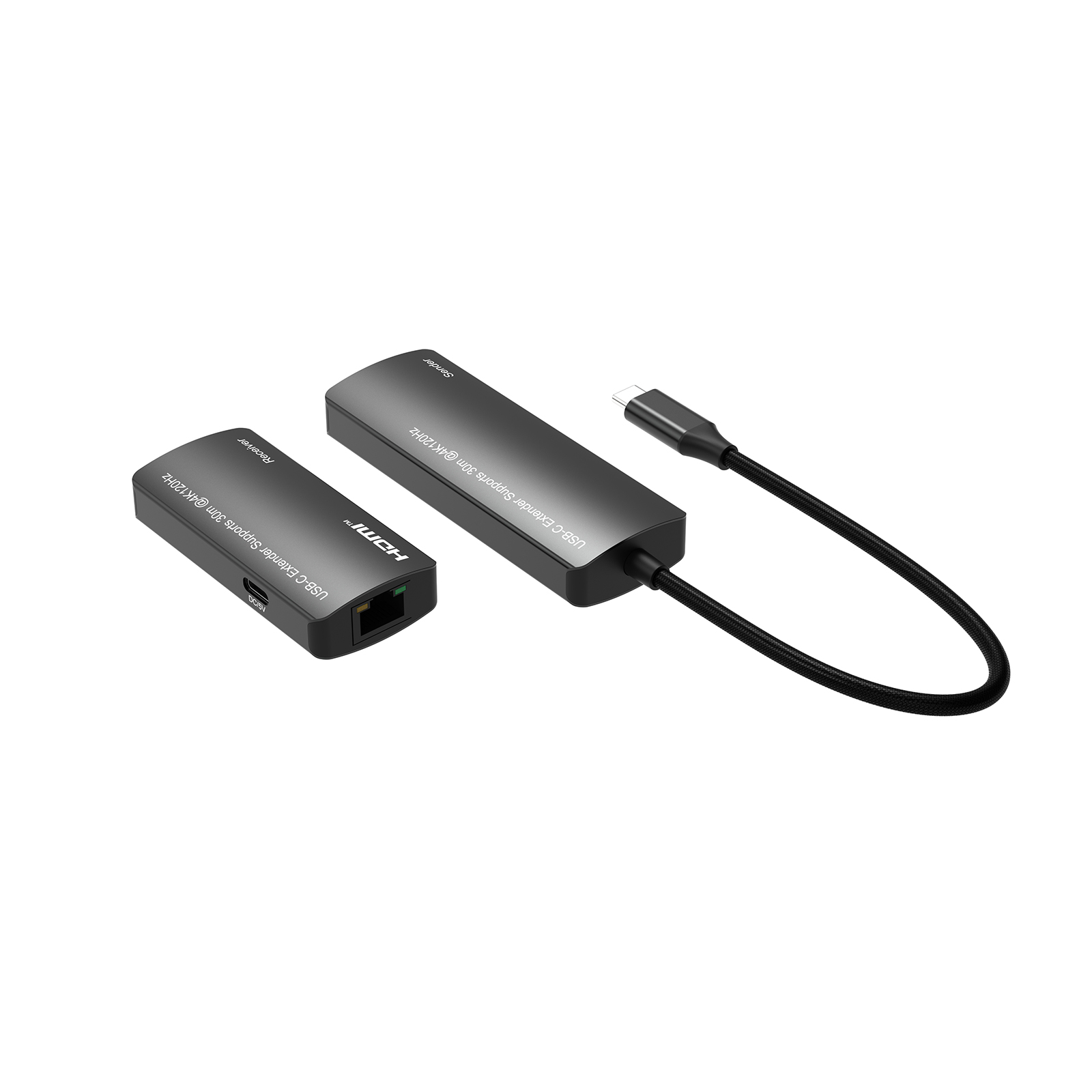

USB-C™ Extender Supports 30m at 4K@120Hz over CAT6 UTP Cable with an HDMI™ Output

Package Content


The USB-C extender is an ideal device for USB-C enable device picture extension. It extends the input of the USB-C(DP alt mode) signal to remote outputs up to 30m (132 feet), perfect for point-to-point digital signage applications that require high-quality HDMI™ video up to 4K@120Hz 4:4:4 with DSC function.

  • Support USB-C input and HDMI output.
  • Support high resolution up to 4K@120Hz YUV 4:4:4 with DSC function up to 30m (132 feet).
  • Support HDCP 2.3, HDCP 2.2 and HDCP 1.4.
  • Support High Dynamic Range (HDR) video.
  • Support EDID and HDCP bypass.
  • Support digital stream conversion (DSC) function and compatible with the DSC 1.2a.
  • Support the highest data transfer rate up to 8Gbps per channel (32Gbps for all channels).
  • TMDS clock can be up to 800MHz.
  • Support 12bit per channel (36bit all channels) deep color.
  • Support uncompressed audio such as LPCM.
  • Support compressed audio such as DTS, and Dolby Digital.
  • Support compressed audio such as DTS, and Dolby Digital(including DTS-HD Master Audio™ and Dolby TrueHD).
Input Port

  • USB-C male x 1, RJ45 x 1

Output Port

  • HDMI x 1, RJ45 x 1

Extensions Distance

  • 30m(132 feet) for 4K@120Hz 4:4:4

Interlaced Resolutions(50&60Hz)

  • 480i, 576i, 1080i

Progressive Resolutions(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@60Hz, 4K120Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 50℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • DC 5V

Power Consumption (Max)

  • TX: 4W, RX: 3.5W

Extender Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • FCC, CE, RoHS


  • TX: 90*34*14.5mm; RX: 67*34*14.5mm

Net Weight



  • Aluminium Alloy + ABS

User Manual

  • English Version

Note: Specifications are subject to change without notice.
