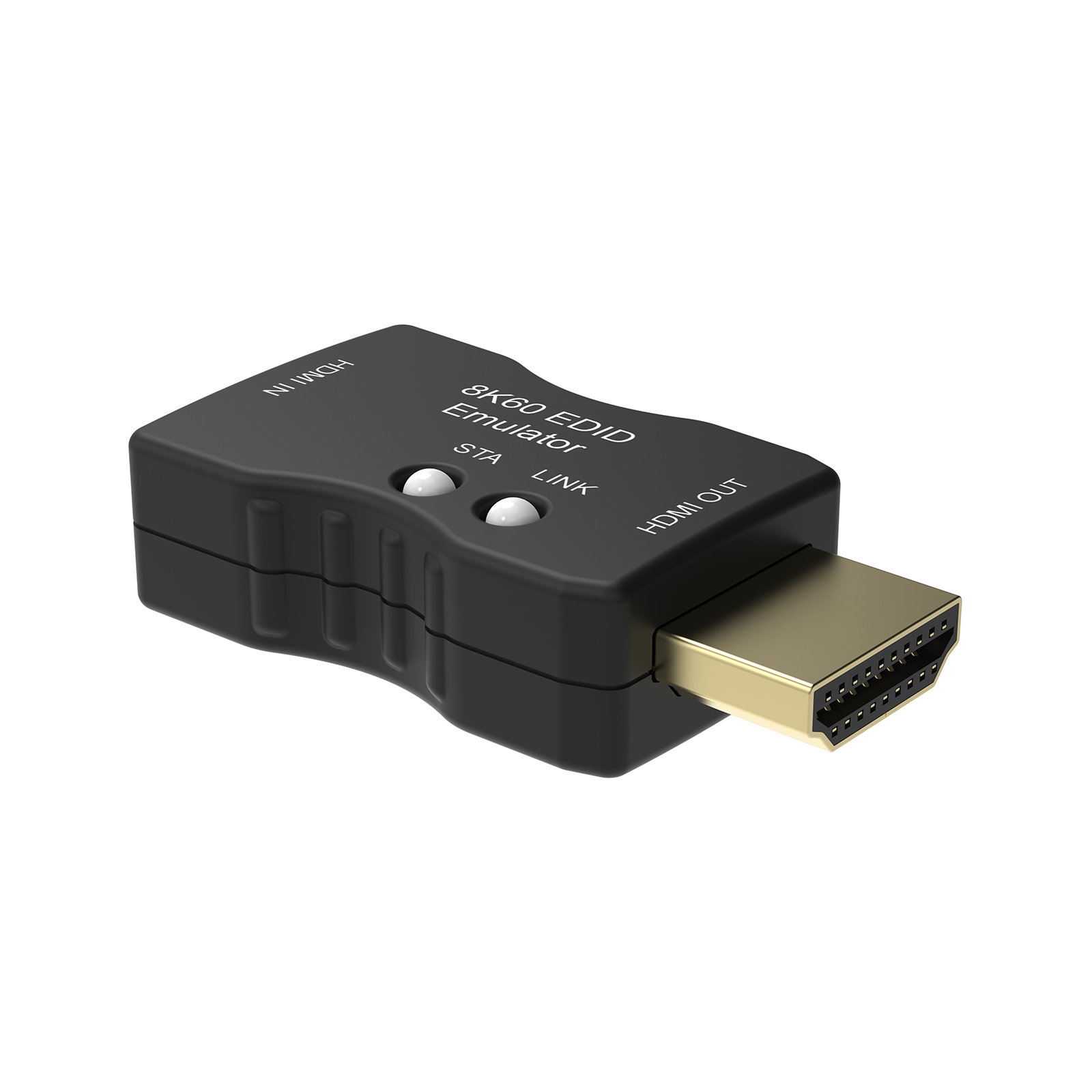

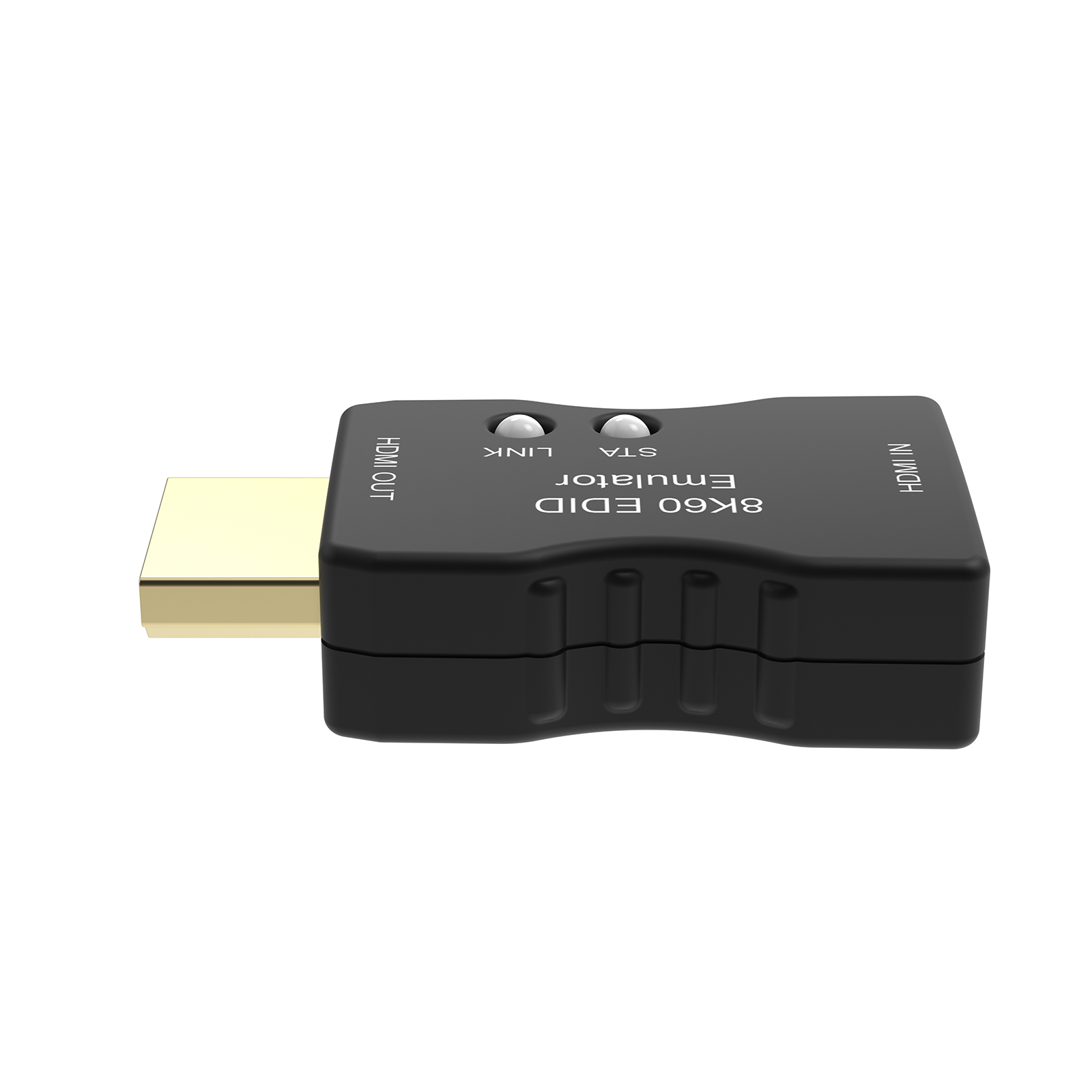

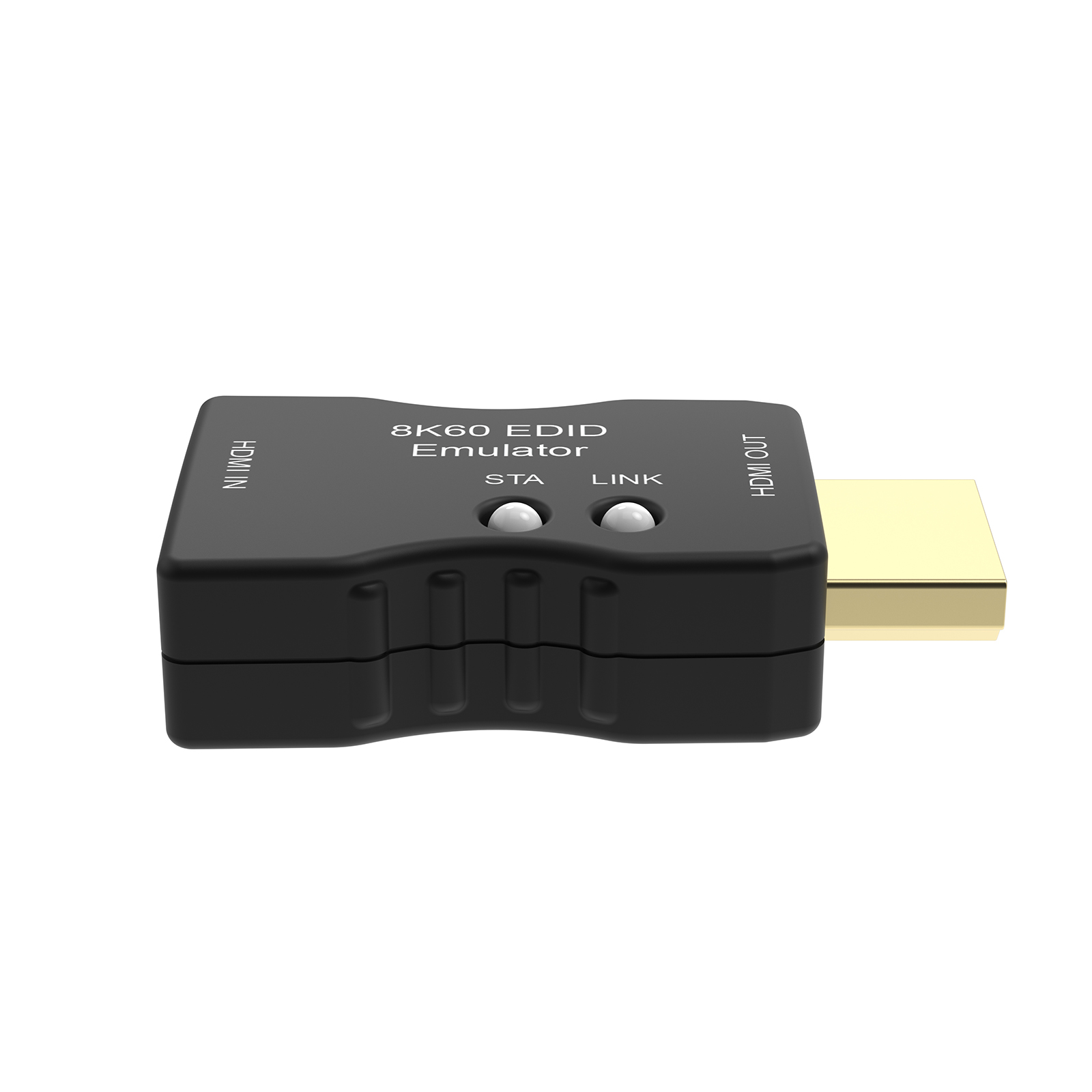

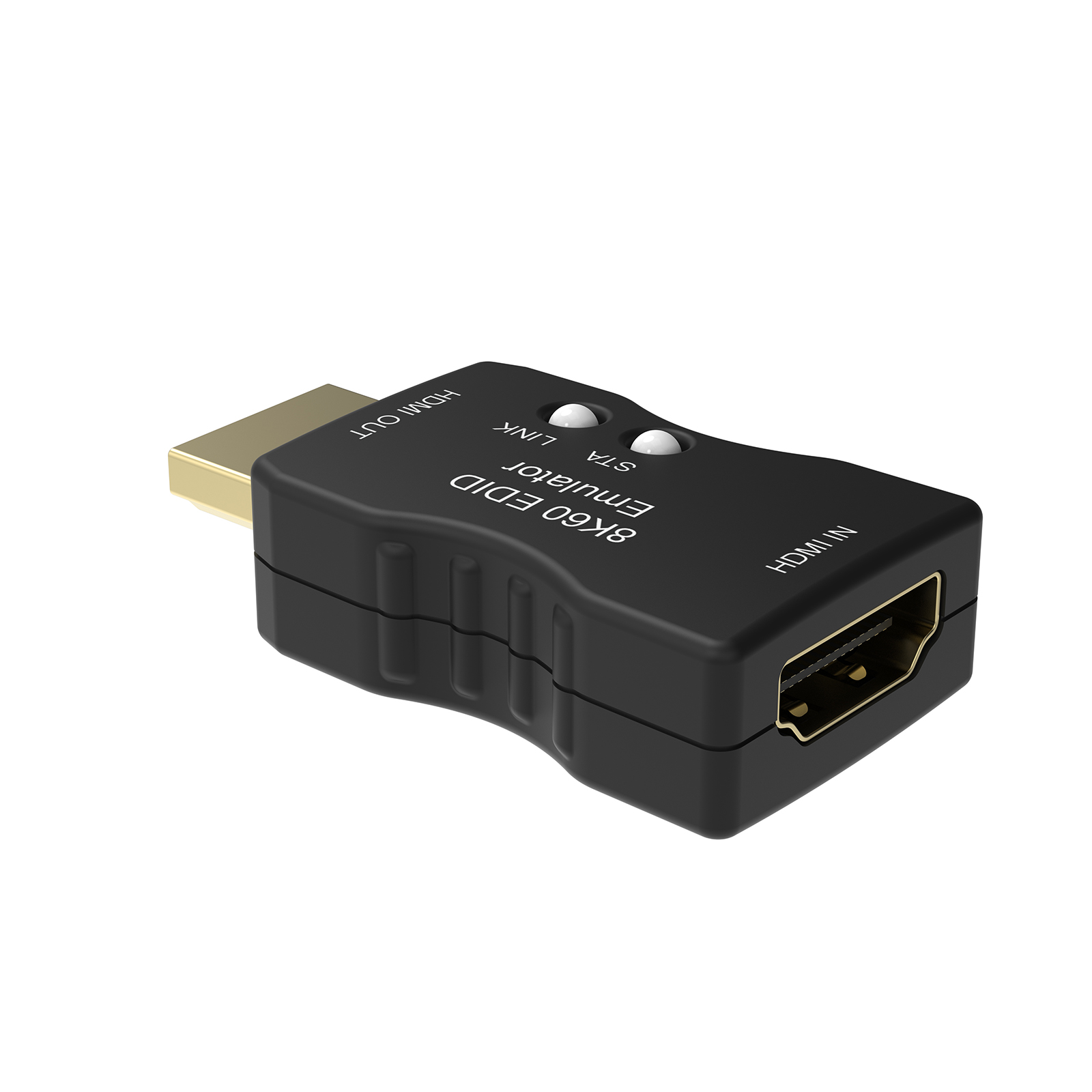

HDMI 8K@30Hz EDID Emulator with EDID Copy and Reset Function

INTRODUCTION

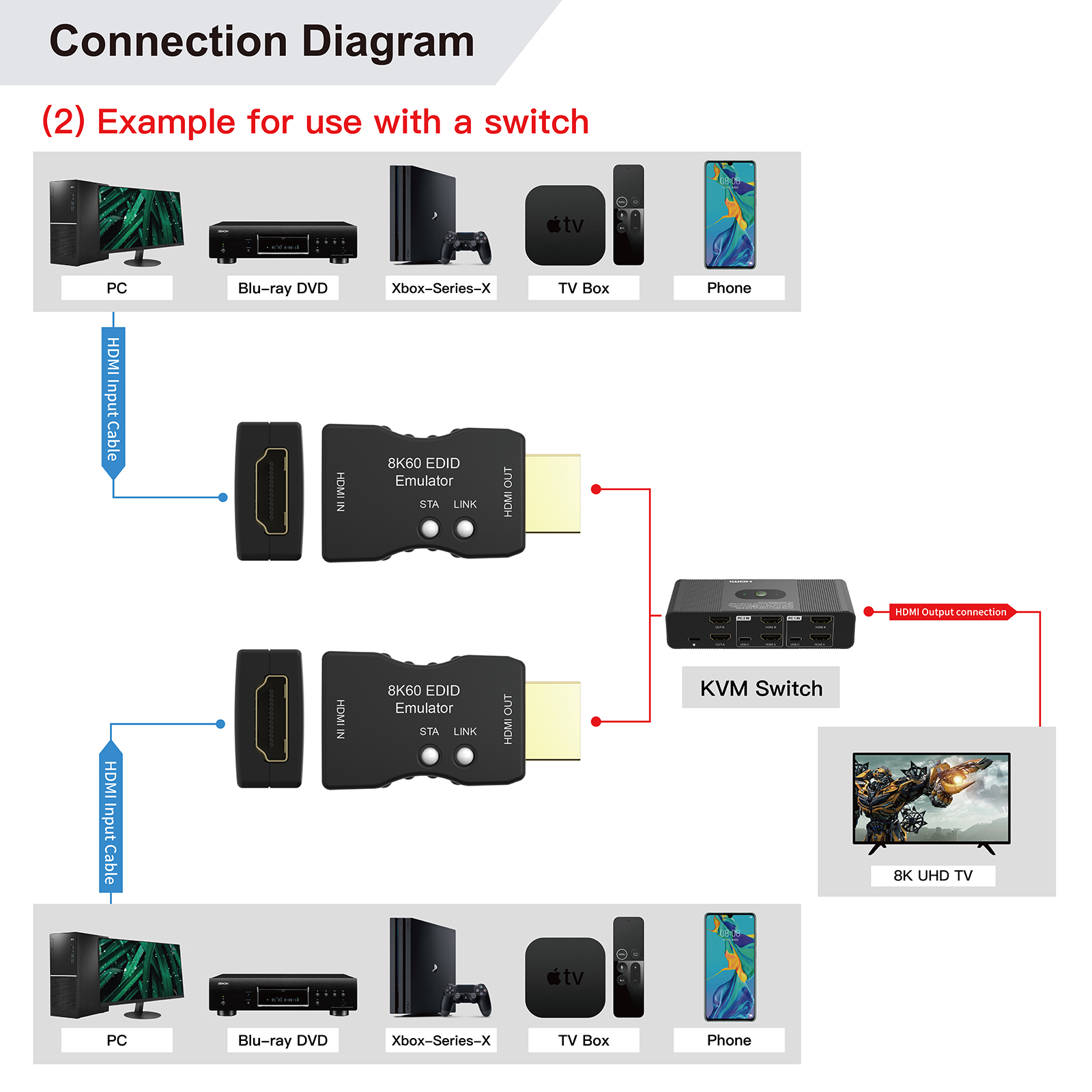

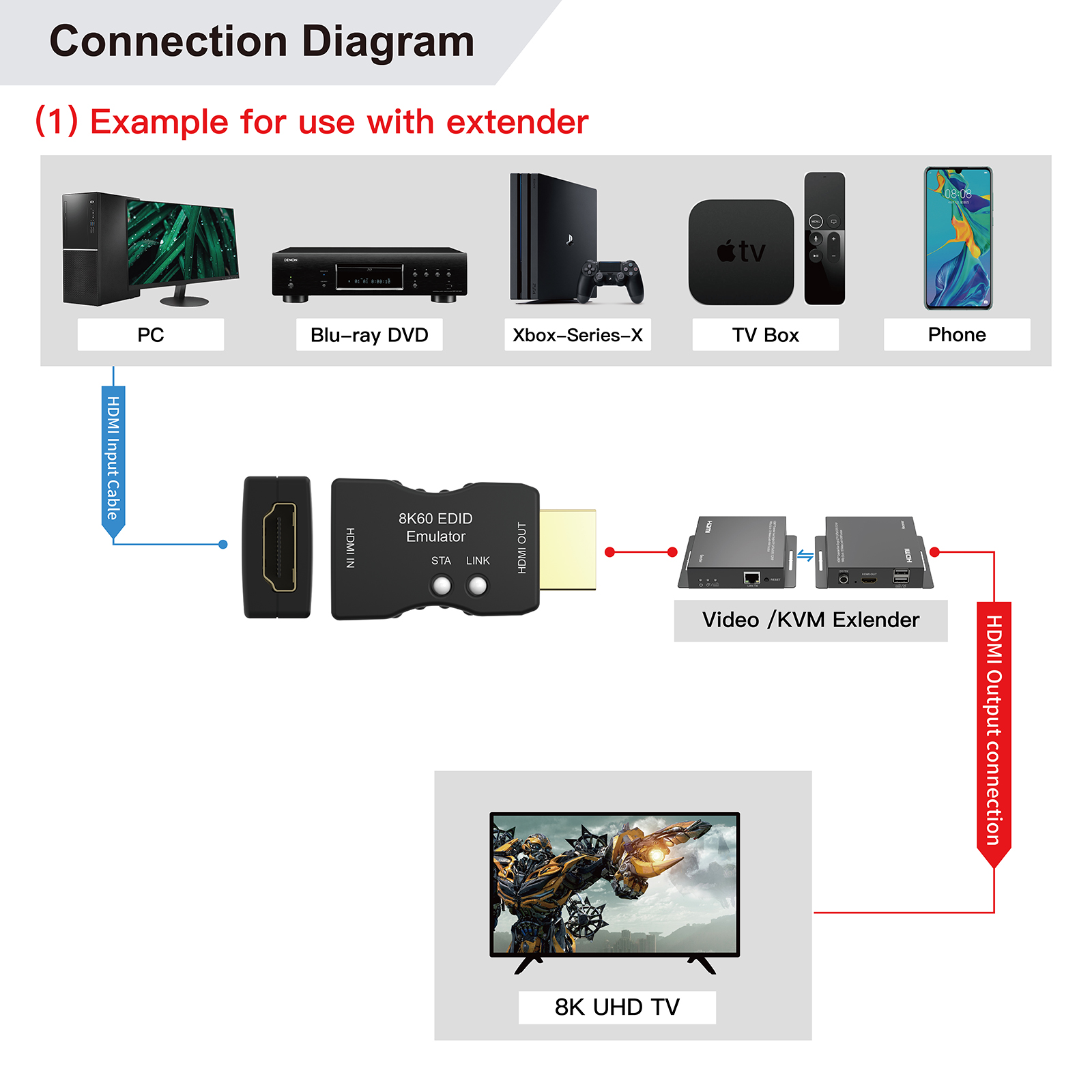

Thank you for purchasing the HDMI 2.0 EDID Emulator. This product has been designed to provide trouble-free and reliable operation. It is backed by a one-year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.This product is designed to help overcome EDID-related problems that can occur when using AV/KVM Extenders, Switchers and Splitters. It can also be used in place of a monitor to keep a PC or Server awake for remote access via IP.

FEATURES

• Contains preset EDID/DDC data for commonly used resolutions and refresh rates up to 8K@30Hz
• Support EDID copy and reset functions
• Support resolutions up to 8K@30Hz 4:2:0 8bit
• Support 3D video formats
• Support HDCP 2.3, backward compatible with HDCP 2.2 and 1.4
• Support 600MHz/6.0Gbps per channel bandwidth (18Gbps all channels)
• Support 12bit per channel (36bit all channels) deep color
• Support Consumer Electronics Control(CEC)
• Support High Dynamic Range(HDR)
• Support uncompressed audio formats such as LPCM
• Support compressed audio formats such as DTS and Dolby Digital
• Support EDID storage, data retained after power off
• Powered via HDMI source interface

SPECIFICATIONS
