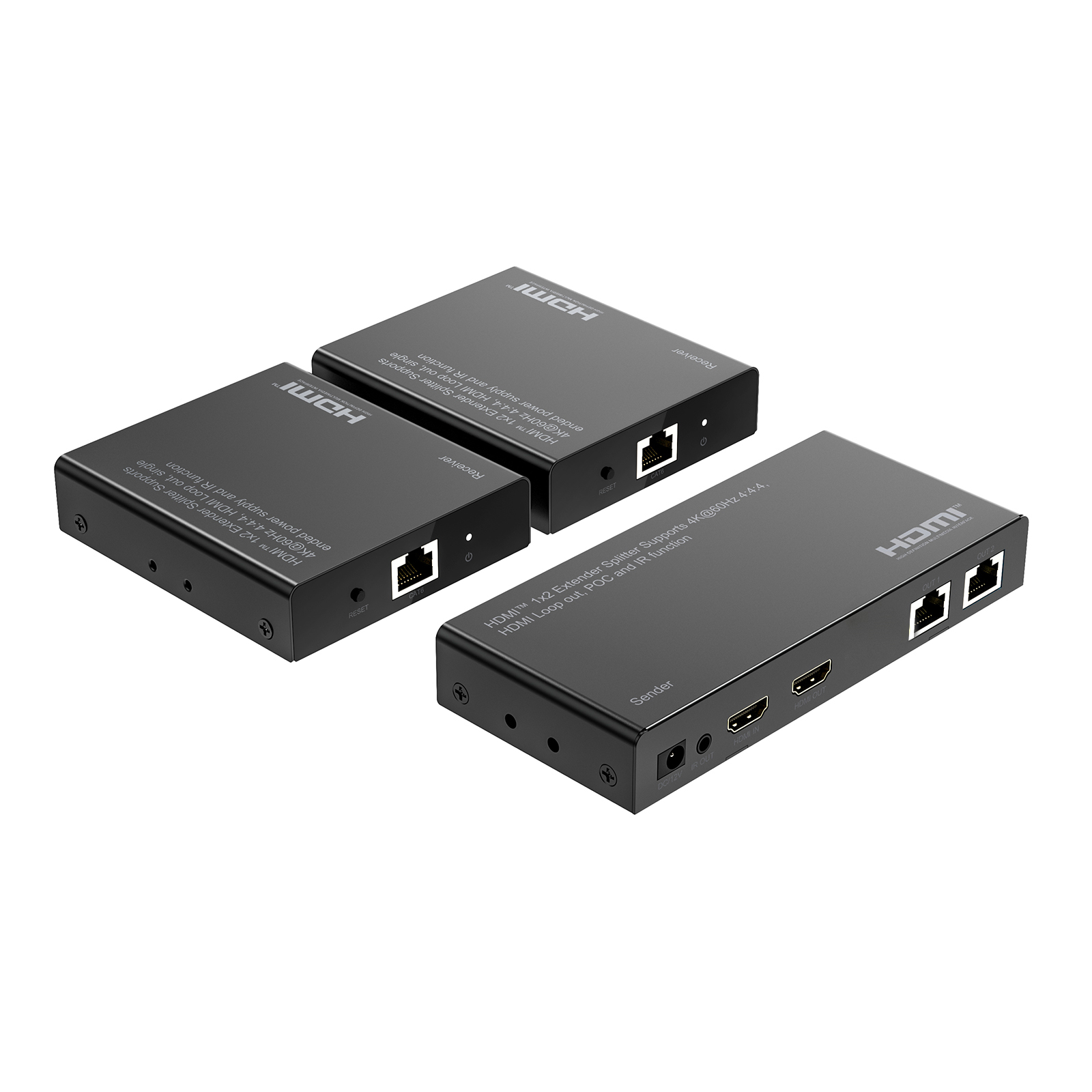

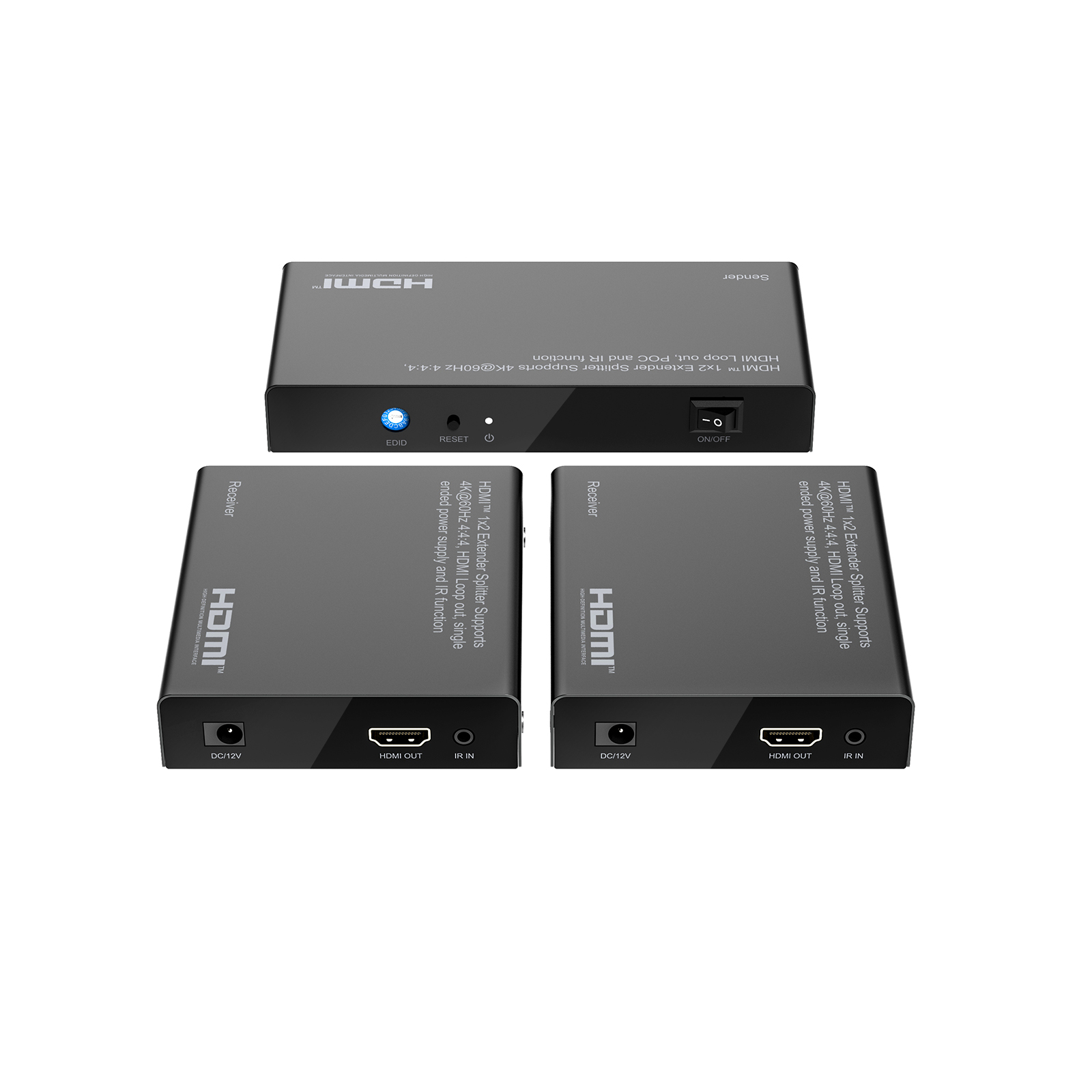

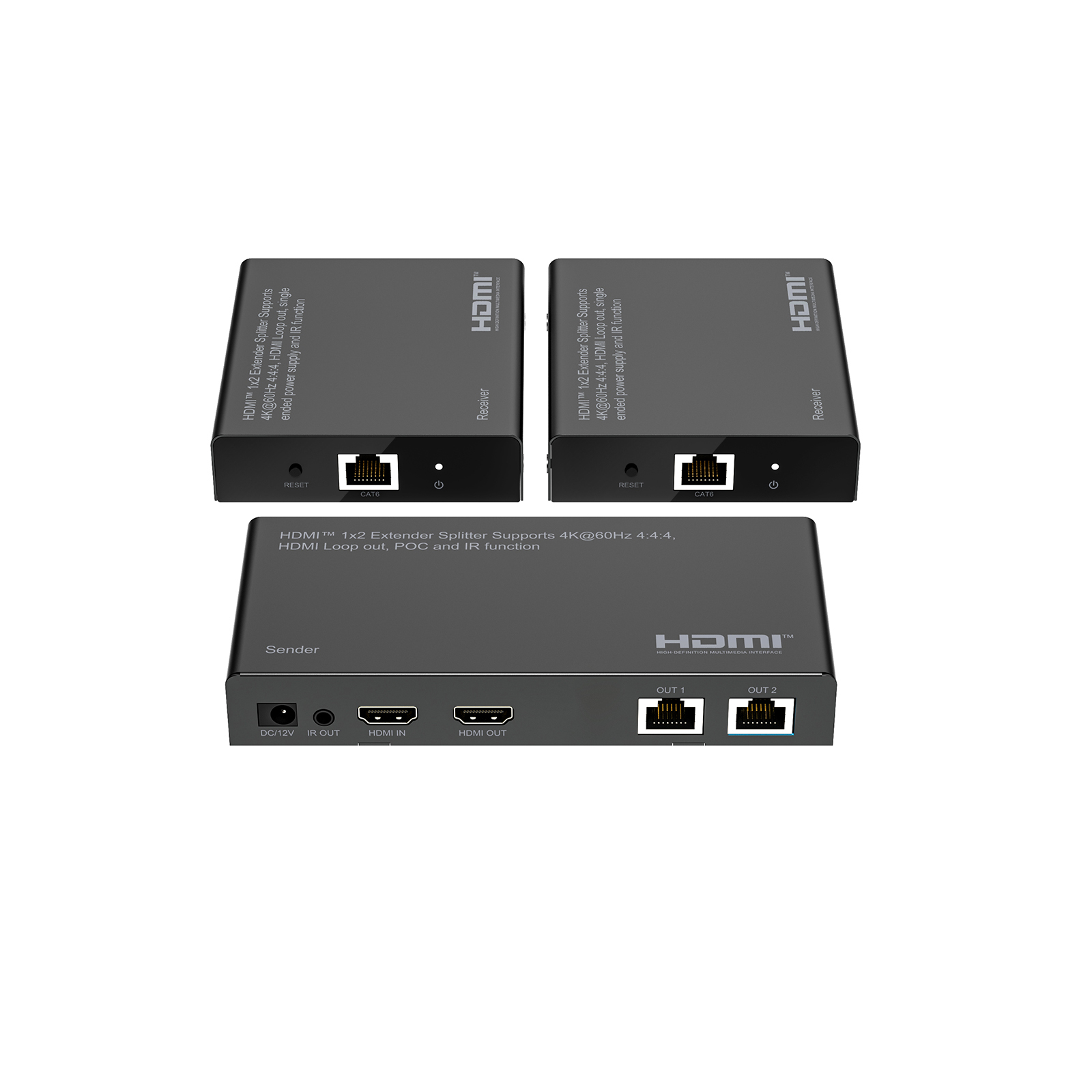

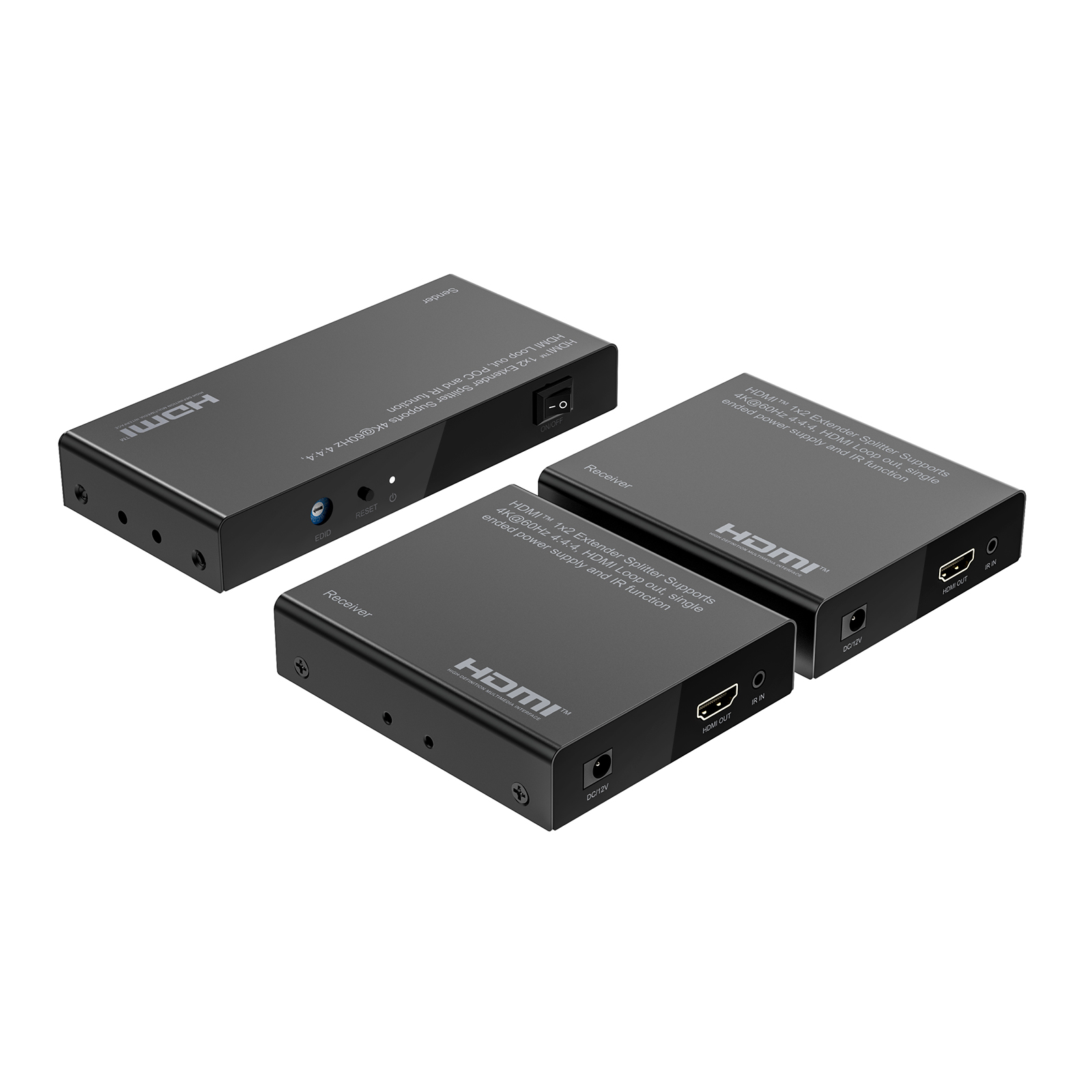

HDMI™ 1×2 Extender Splitter Supports 4K@60Hz 4:4:4, HDMI Loop out and IR function

Package Content

INTRODUCTION

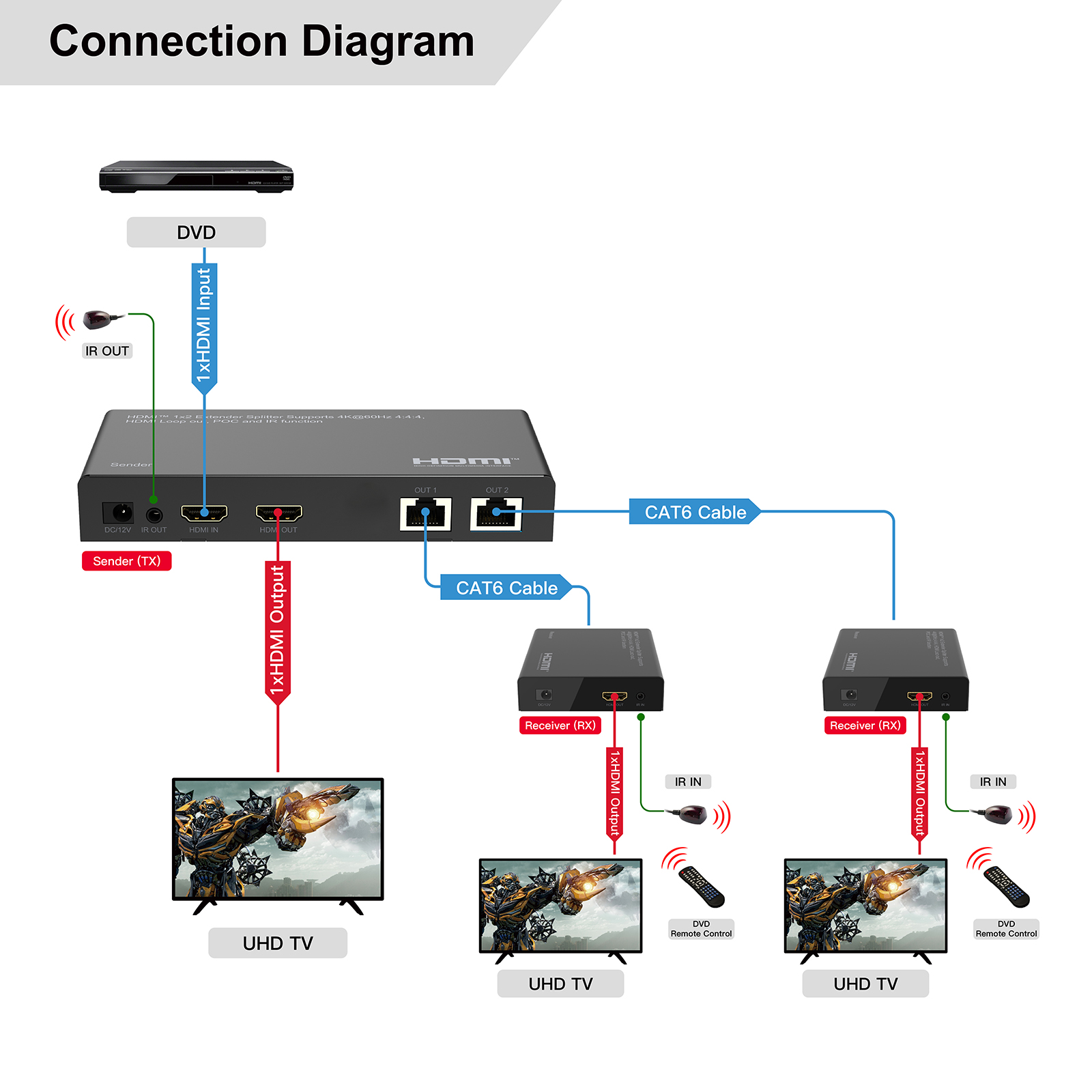

The HDMI™ 1×2 Splitter extender is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the HDMI™ signal into the local and two remote outputs simultaneously, perfect for point-to-point digital signage applications that require high quality HDMI™ video up to 4K@60Hz 4:4:4. It also works to extend Infrared IR signals from remote controls, ideal for controlling your video source from your video destination. It features POC (Power over Cable) enabling the receivers to be powered by a single 12V power supply from the sender side.

FEATURES
  • Support full 3D video format.
  • Support high resolution up to 4K@60Hz YUV 4:4:4.
  • Support HDCP 2.2 and HDCP 1.4.
  • Support High Dynamic Range (HDR) video.
  • Support EDID and HDCP bypass.
  • Support highest data transfer rate up to 6.0Gbps per channel (18Gbps all channels).
  • TMDS clock can be up to 600MHz.
  • Support 12bit per channel (36bit all channels) deep color.
  • Support uncompressed audio such as LPCM.
  • Support compressed audio such as DTS, Dolby Digital.
  • Supports POC (Power over Cable) feature, only can 12V power transmitted from sender to receiver.
SPECIFICATIONS
Input Port

  • HDMI x 1, RJ45 x 2, 3.5MM x 1

Output Port

  • HDMI x 1, LOOP OUT x 1, RJ45 x 1, 3.5MM x 1

Extensions Distance

  • 70m(230 feet) for 4K@60Hz 4:4:4

Vertical Frequency Range

  • 50/60Hz

IR Frequency Range

  • 20-60KHz

Interlaced Resolutions(50&60Hz)

  • 480i, 576i, 1080i

Progressive Resolutions(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@60Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 50℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • DC 12V@2A

Power Consumption (Max)

  • TX: 5.2W, RX: 1.6W

Extender Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • FCC, CE, RoHS

Dimension(LxWxH)

  • TX: 180x103x23mm; RX: 100x88x23mm

Net Weight

  • TX: 390g, RX: 199g

Material

  • Metal

User Manual

  • English Version

Note: Specifications are subject to change without notice.
