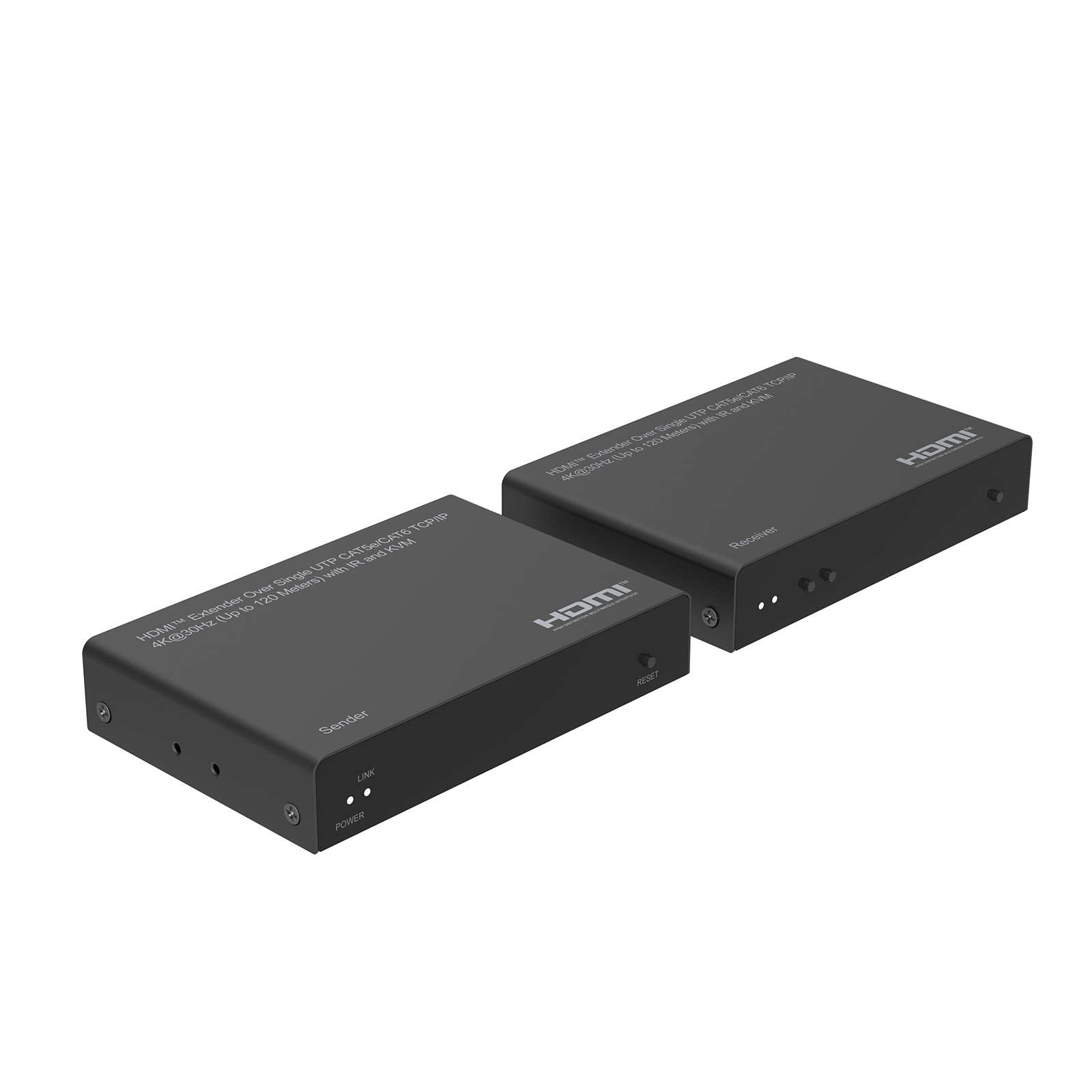

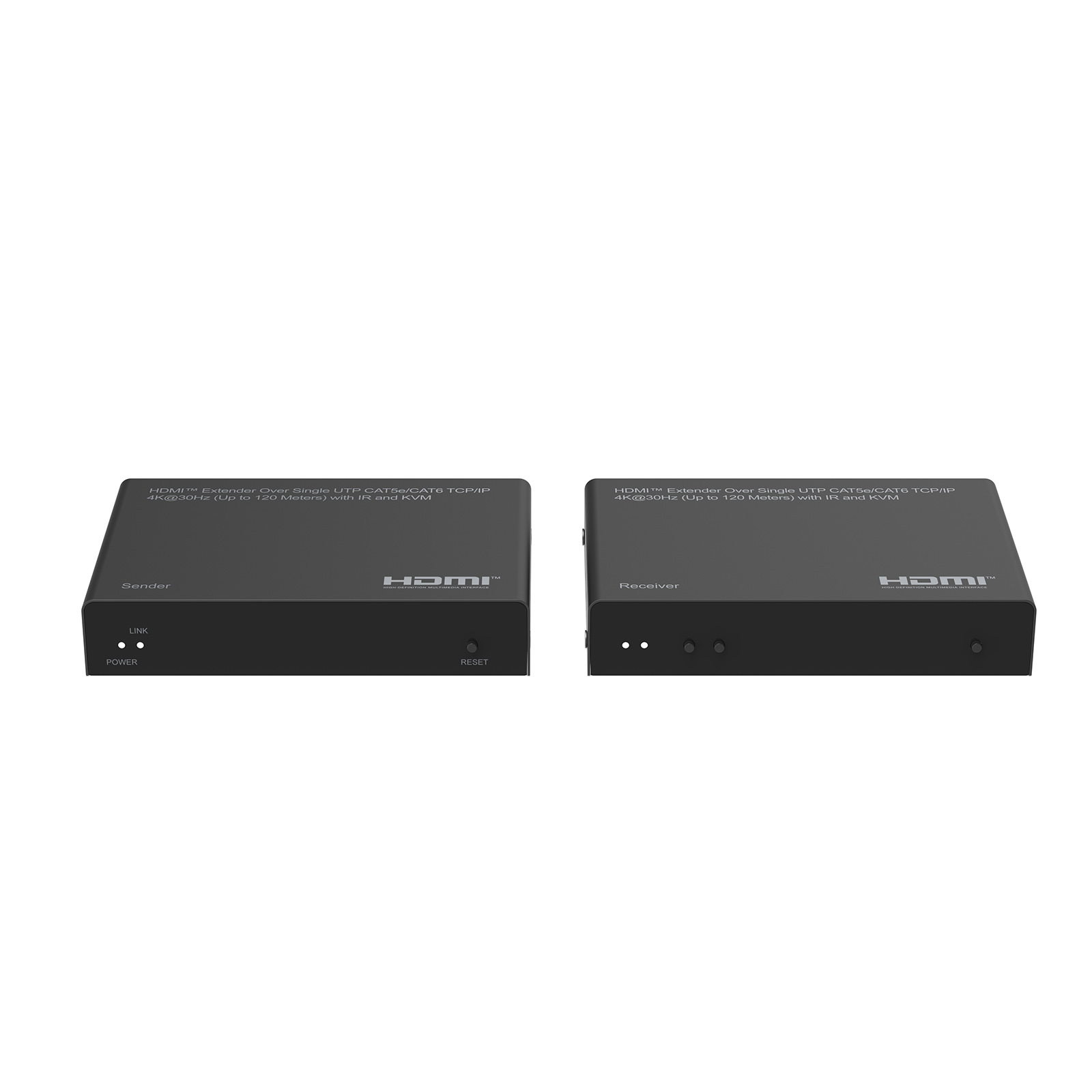

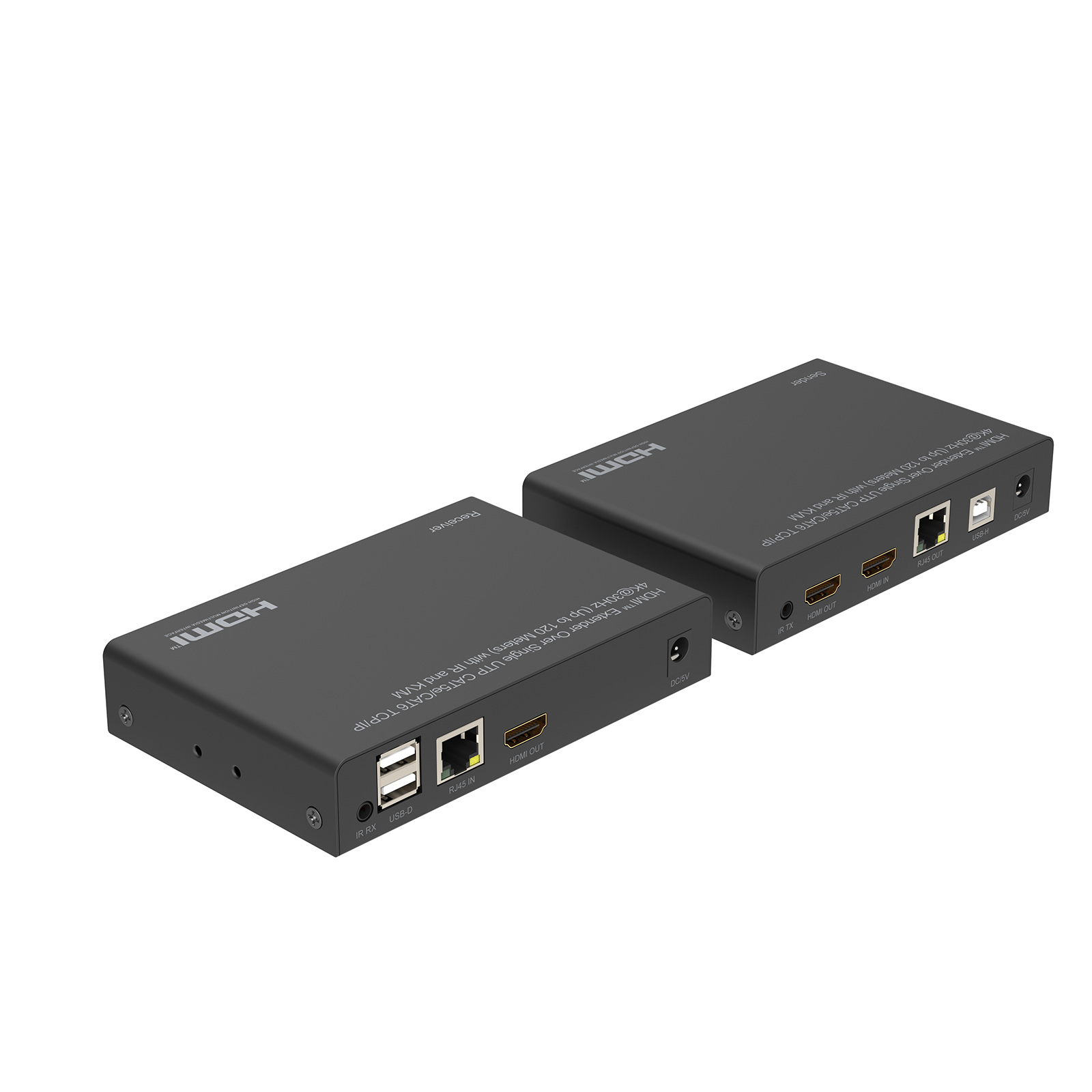

HDMI™ Extender Over Single UTP CAT5e/CAT6 TCP/IP 4K@30Hz (Up to 120 Meters) with KVM, supports 1:1, 1:N and N:N

Package Content


The HDM™ video Extender lets you extend HDMI™ signal or DVI Signal (using HDMI™-DVI adapter, not included) by up to 120m (395 ft) for Ultra HD(4K@30Hz) video and 200m(660 ft) for HD video, over single Cat6 cable. An ideal solution for sharing a display or projector over a LAN network so that even the video source lacking digital video output can still connect, it also transmits the USB1.1 control signals at the same time, perfect for controlling your video source from your video destination.

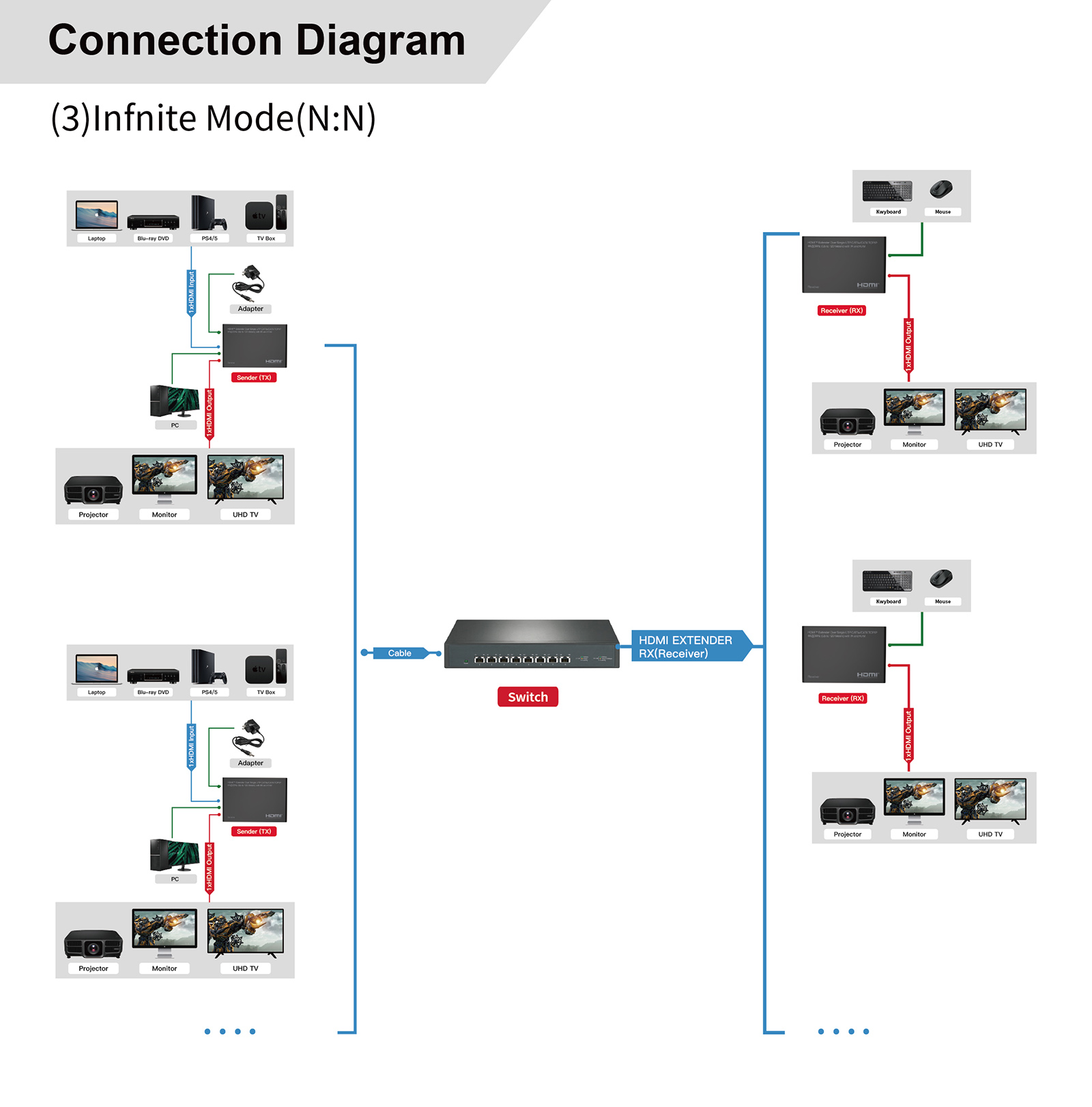

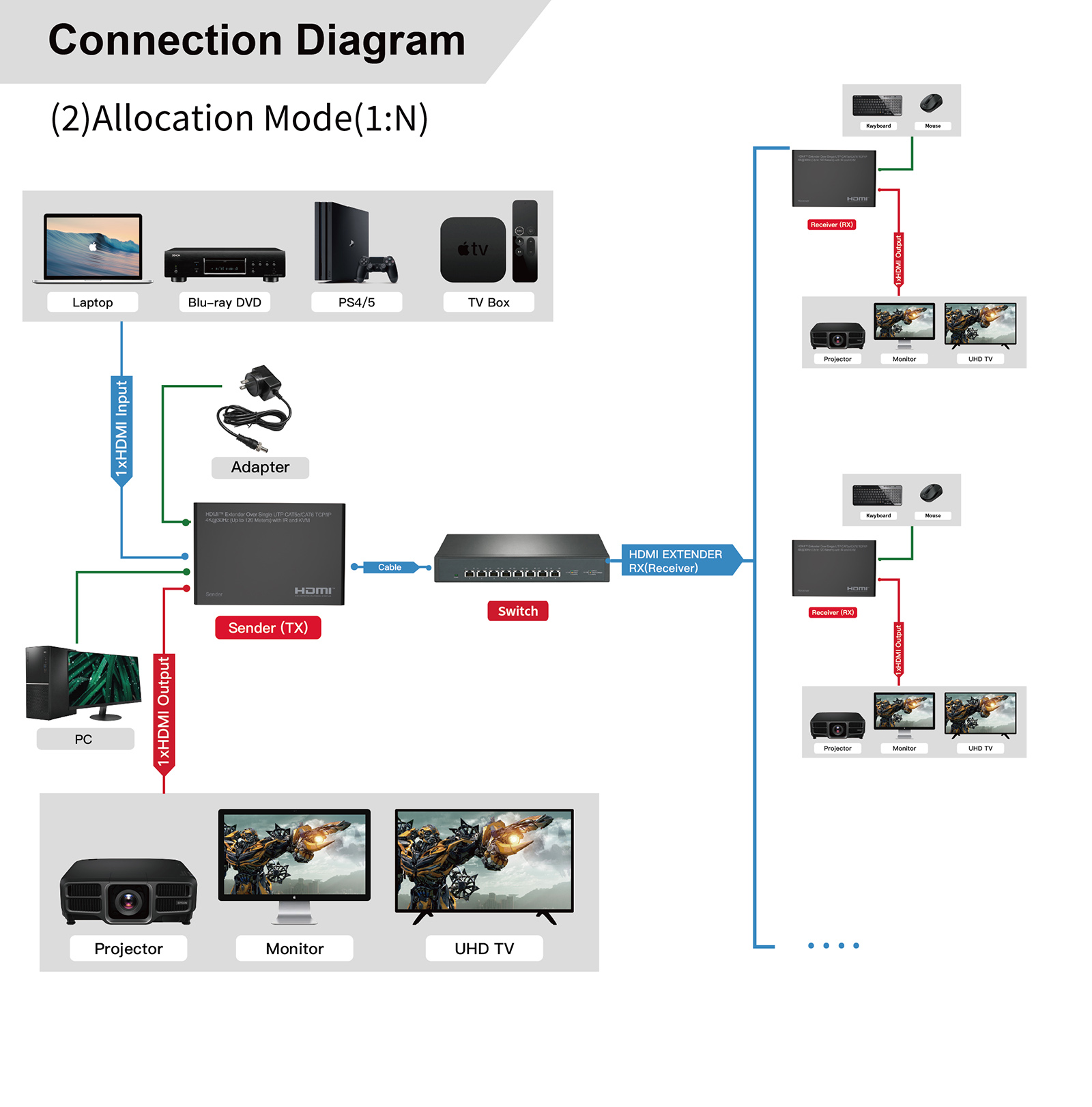

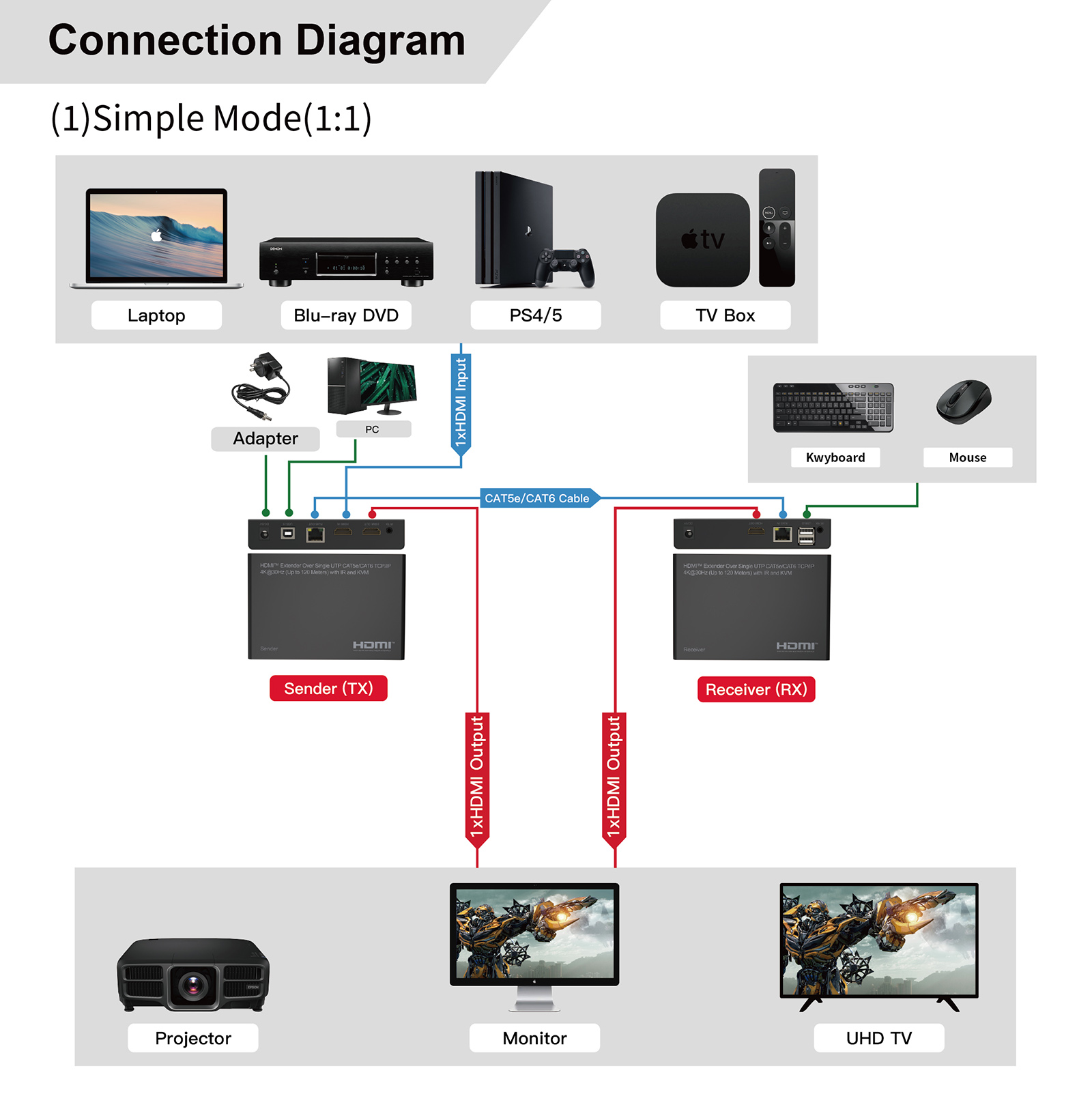

  • Features 3 extension mode: simple mode (1:1), allocation mode (1: N), and Multiple to Multiple Mode(N: N).
  • Following TCP/IP standard.
  • Supports resolution up to 480p/720p/1080i/1080p/4K@30Hz at 120m.
  • Supports max video bandwidth to 3.4Gbps/340MHz per channel (10.2Gbps all channels).
  • CAT5e/6 cable follows the standard of IEEE-568B.
  • Supports 3D.
  • Supports remote USB mouse and keyboard connection (up to 2 ports at receiver).

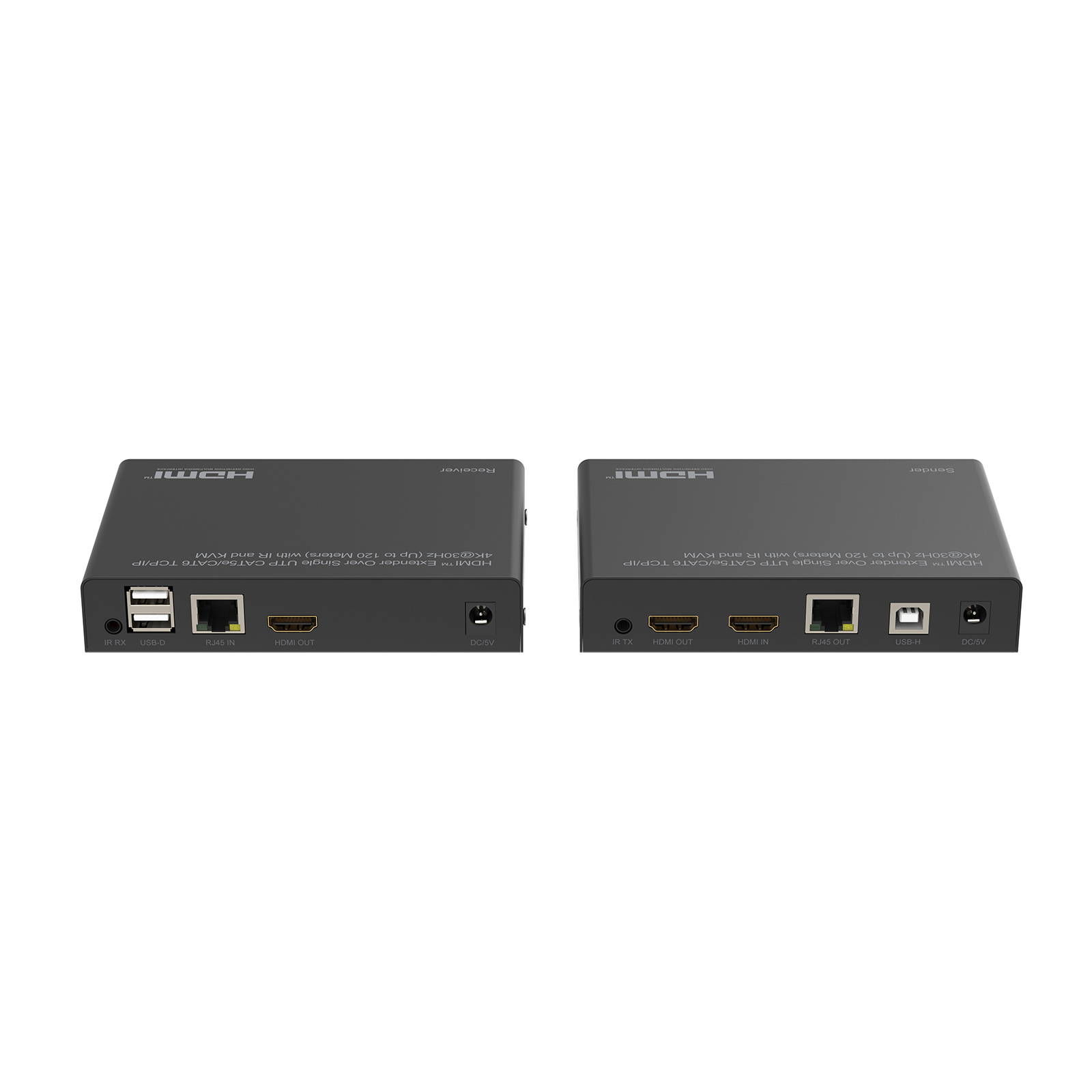

Input Port

  • HDMI x 1, IR IN x 1

Output Port

  • HDMI x 1, IR OUTx 1

Extensions Distance

  • 120m@4K@30Hz

USB transmission rate

  • 480Mbps

Vertical Frequency Range

  • 50/60Hz

Interlaced Resolutions(50&60Hz)

  • 1080i

Progressive Resolutions(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@30Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 50℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • DC 5V 1A x 2pcs

Power Consumption (Max)

  • TX: 2W, RX: 2W

Extender Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • FCC, CE, RoHS


  • TX/RX: 119.5 x 94 x 24mm

Net Weight

  • TX/RX: 214g


  • Metal

User Manual

  • English Version

Note: Specifications are subject to change without notice.
