HDMI™ Extender 100m over 5GHz Wireless Wifi Supports 1080p and IR Function

Package Content

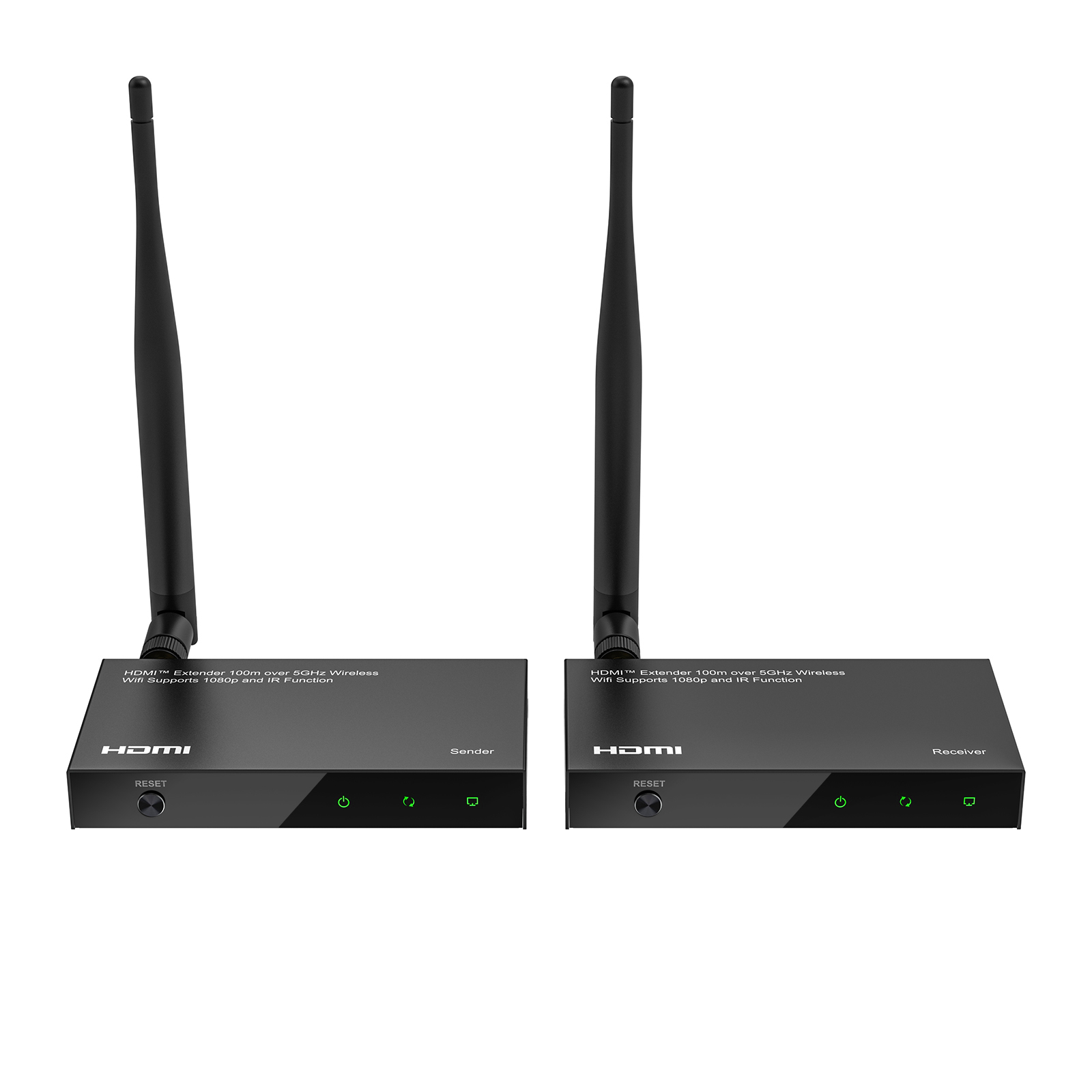

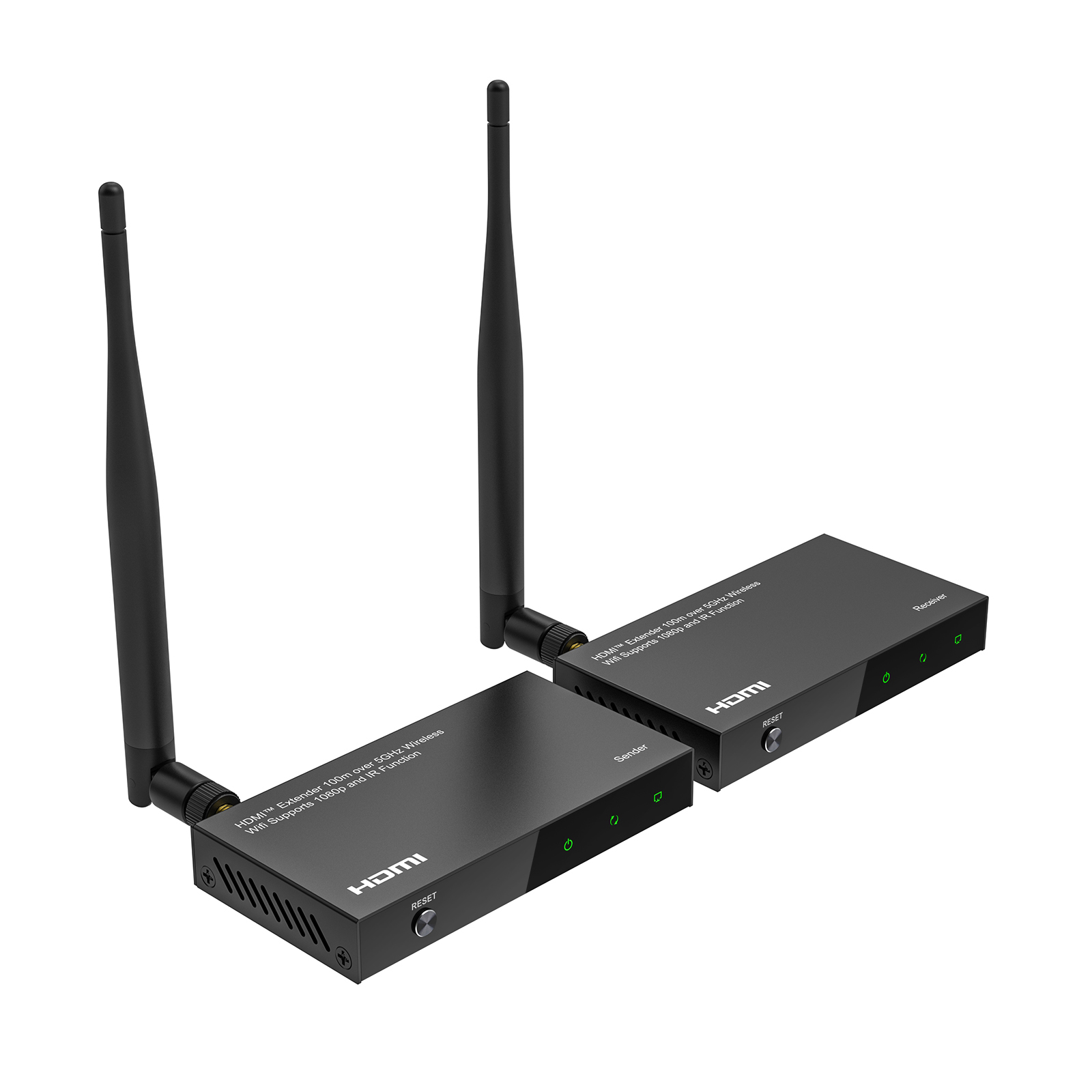

HDMI™ Extender 100m over 5GHz Wireless lets you extend HDMI™ audio/video signal up to 100meters (330 feet) via 5GHz band, with very low latency. HDMI™ Extender 100m over 5GHz Wireless includes both the Transmitter and Receiver, ideal for the point to point digital signal extension situations that require high quality HDMI™ video and some place which have the limitation to physical wire connection. It supports up to 4 displays to show one source content synchronously and resolutions up to 1080p. It also allows user to control source device from display side via source device’s remote controller.

  • Simple Plug and Play, no software installation required.
  • Support 5GHz single frequency wireless A/V transmission.
  • Wireless extension of HDMI up to 100 meters (330 feet) with no obstruction.
  • Compliant with HDCP1.3.
  • Support highest video resolution 1080p.

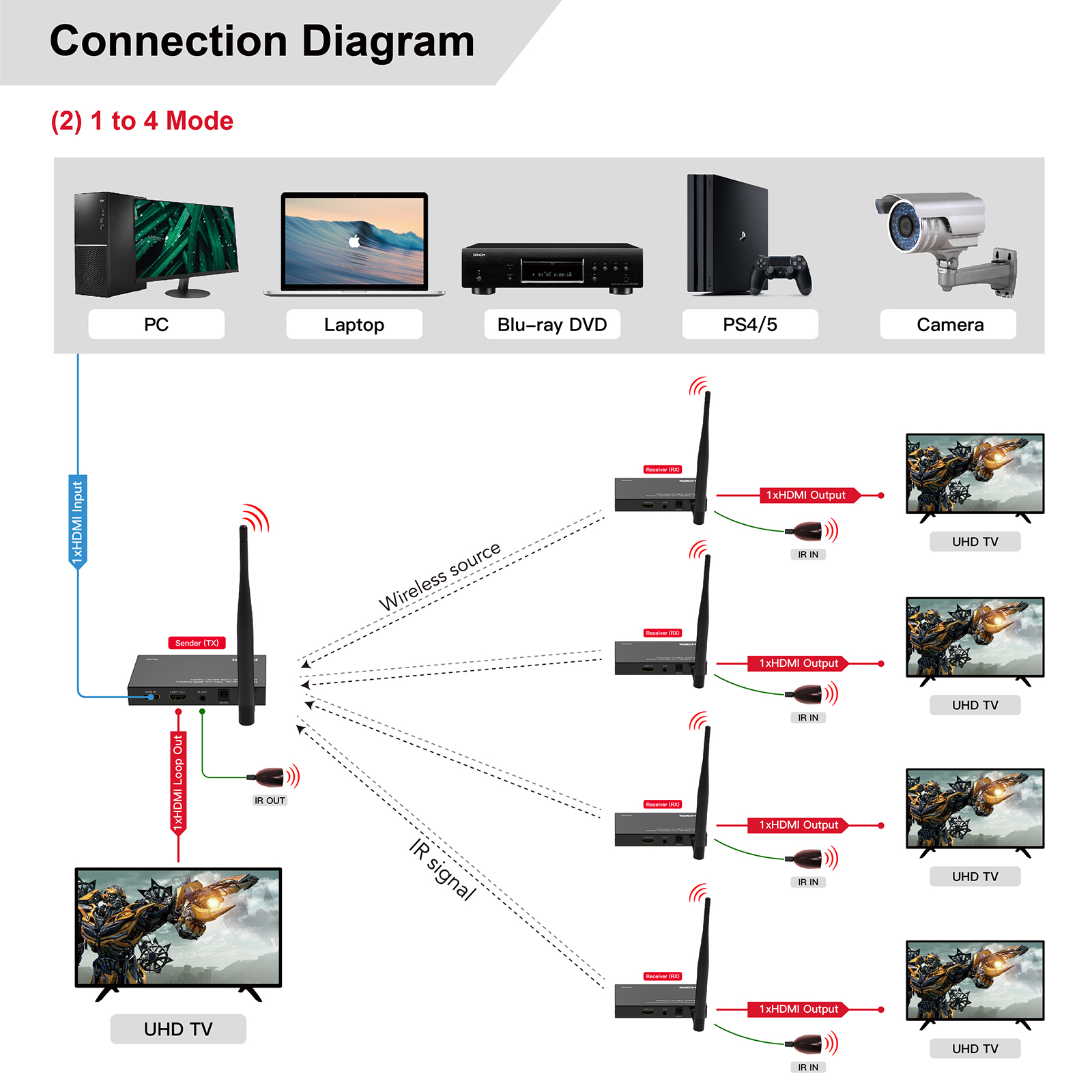

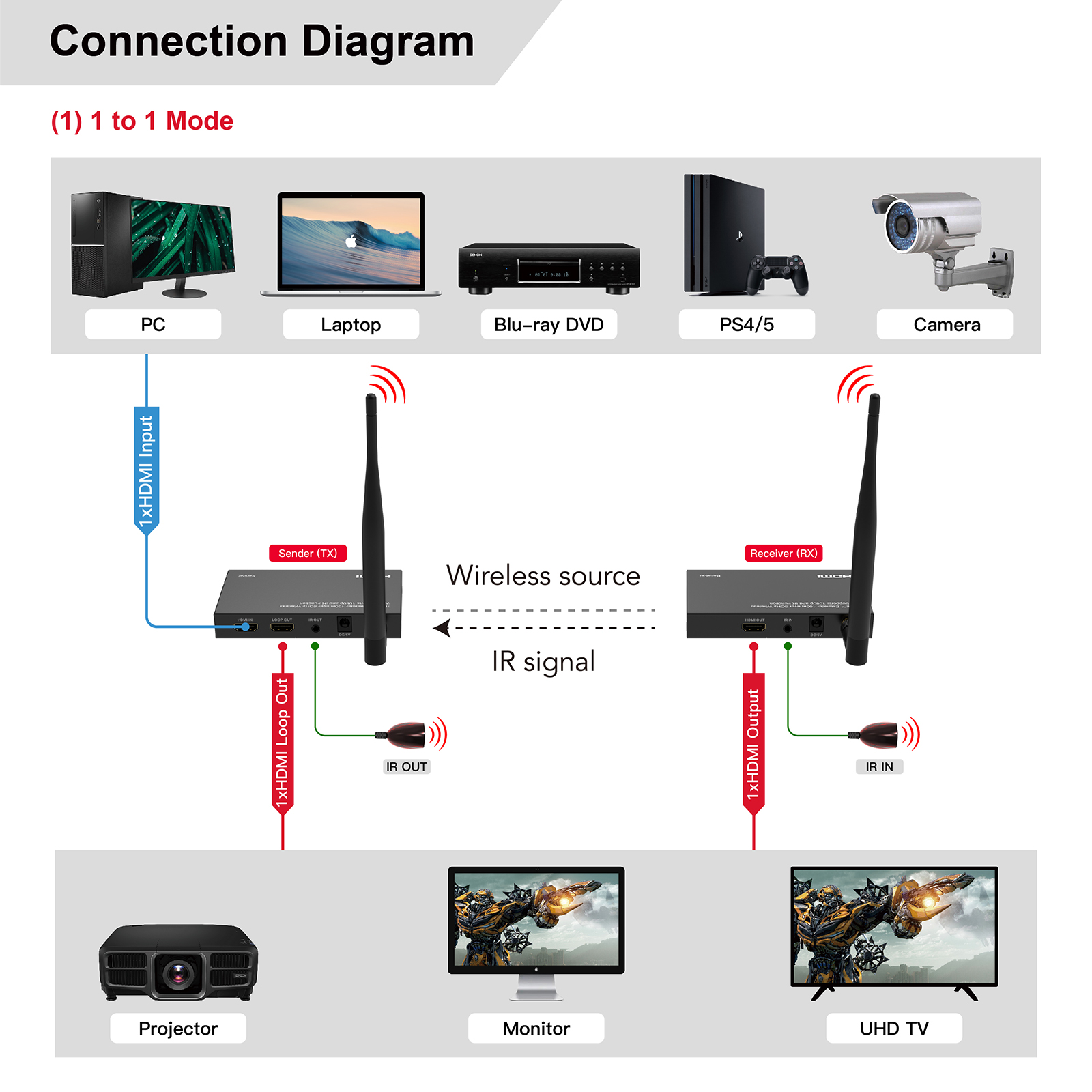

  • Support Point-to-Point and Multicast transmission (up to 4 receivers).
  • Support infrared remote to control source device from display side.
  • Support uncompressed audio such as LPCM.
  • Support audio sampling rate up to 48 KHz.
Input Port

  • HDMI x 1

Output Port

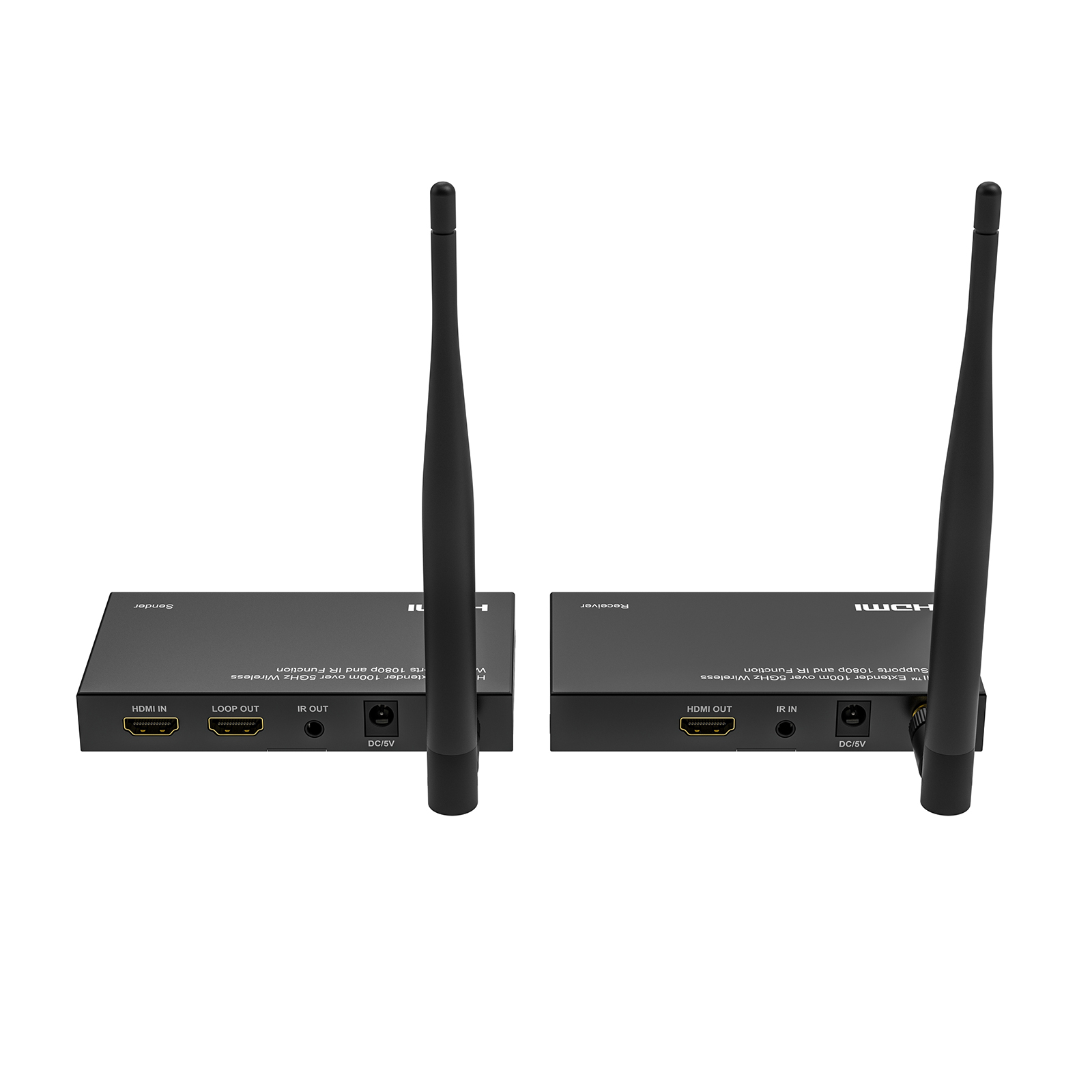

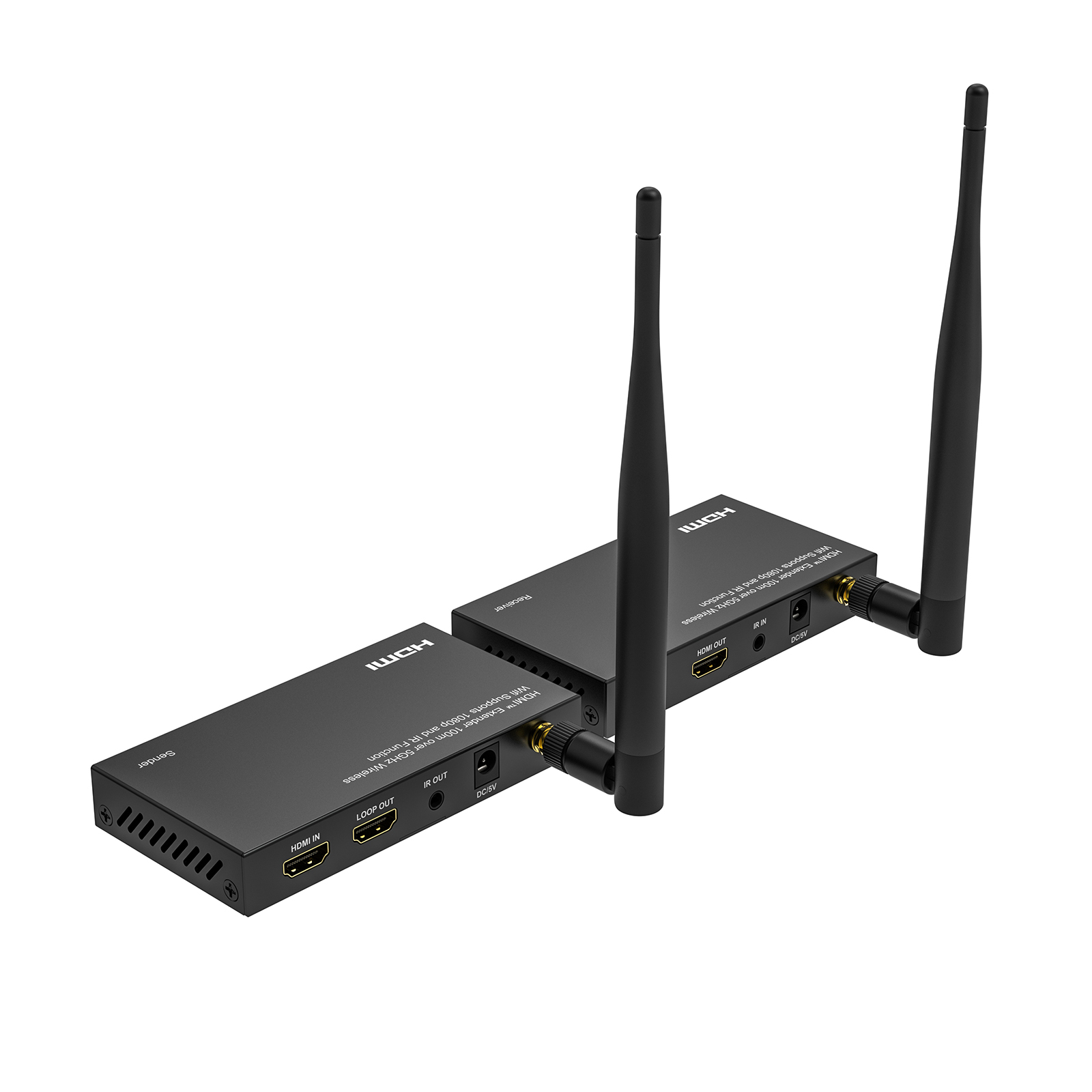

  • HDMI x 1; LOOP OUT x 1

Wireless Extensions Distance

  • 100m(330 feet) for 1080p

Frequency Band Range

  • 5GHz

Wireless Standard

  • 802.11a

Vertical Frequency Range

  • 50/60Hz

Compress Formats

  • H.265

IR Frequency Range

  • 20-60KHz

Progressive Resolutions(50&60Hz)

  • 480p, 576p, 720p, 1080p

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 50℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • DC 5V

Power Consumption (Max)

  • TX: 3W, RX: 1.5W

Extender Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • FCC, CE, RoHS


  • 115 x 60 x 18mm

Net Weight

  • TX: 172g, RX: 170g


  • Metal

User Manual

  • English Version

Note: Specifications are subject to change without notice.
