INTRODUCTION

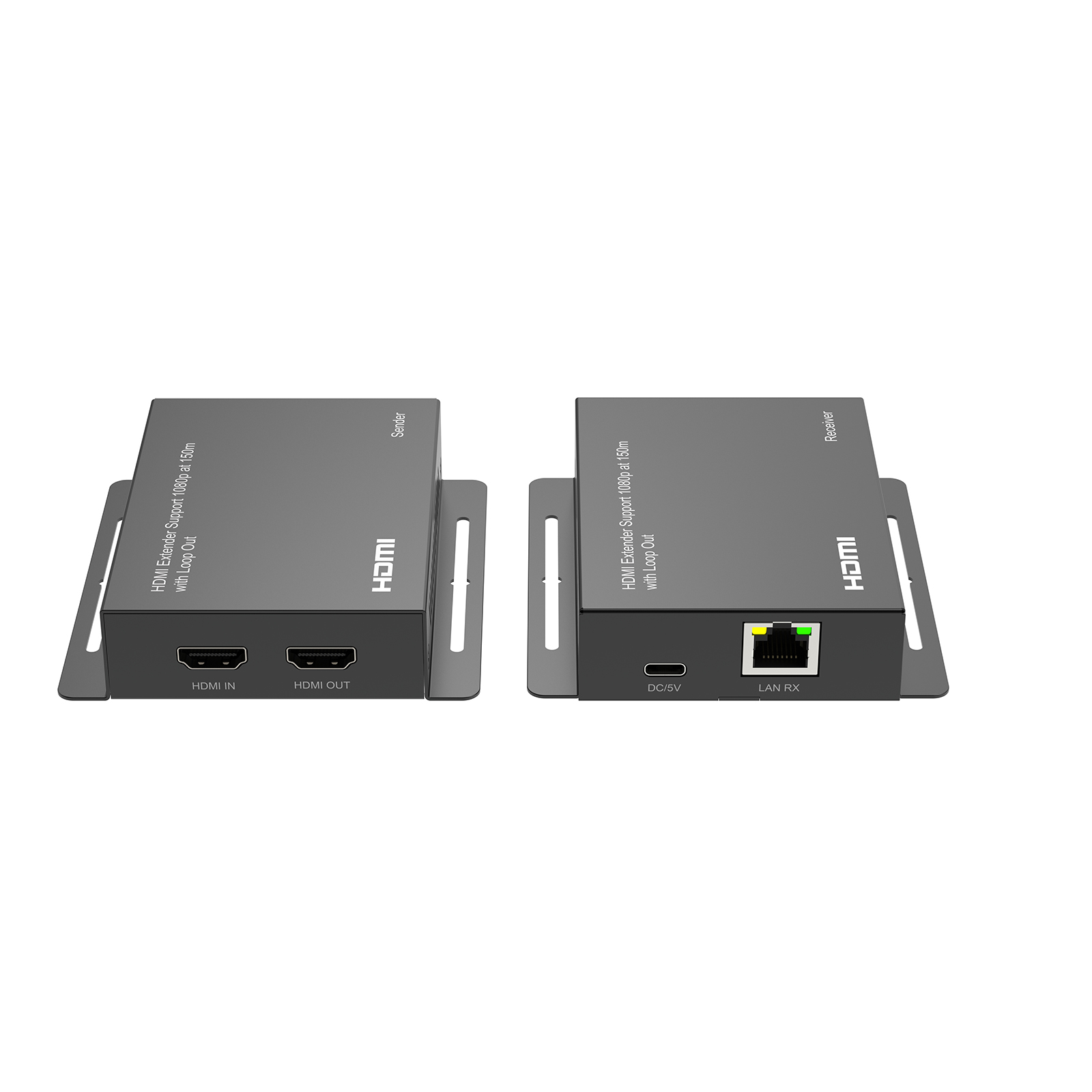

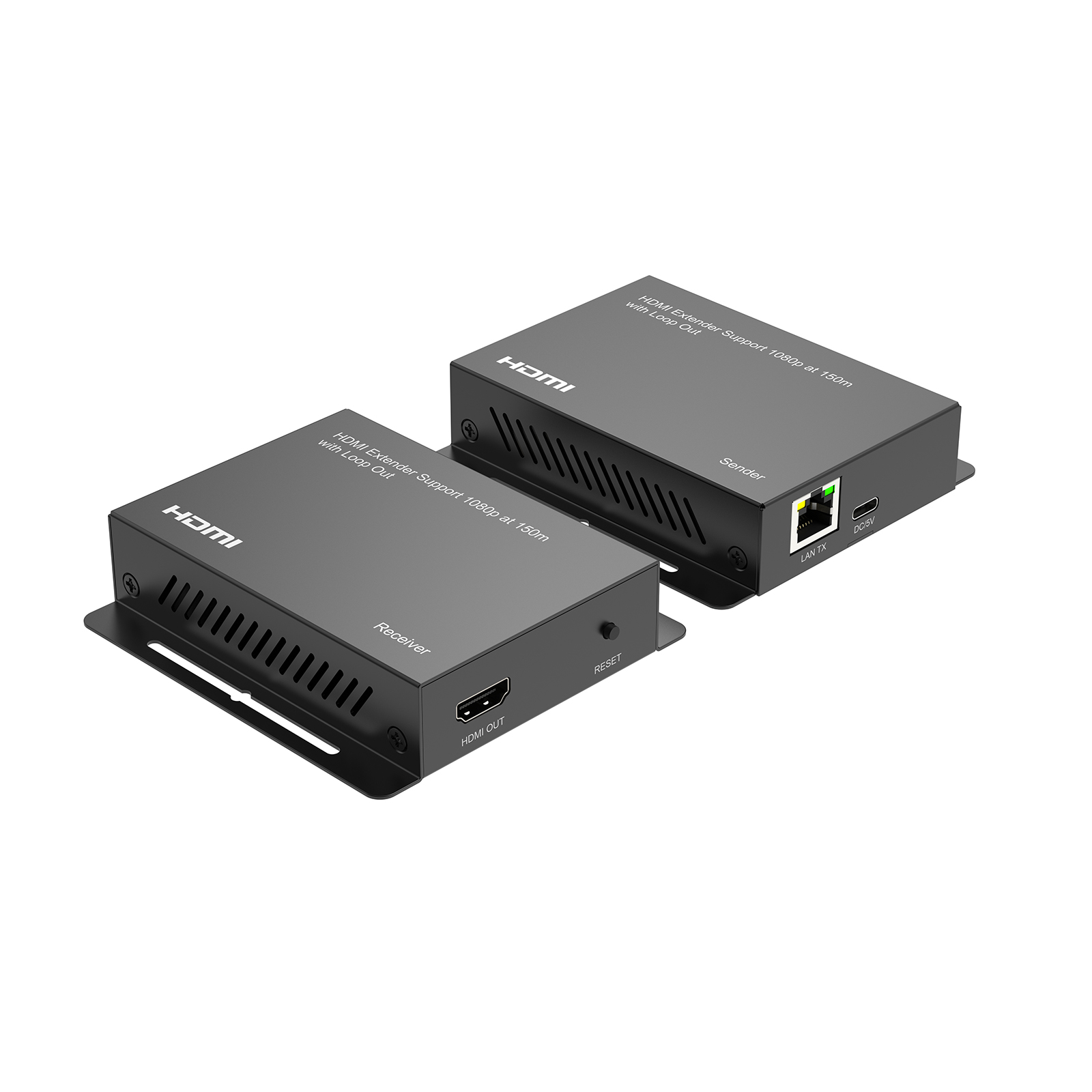

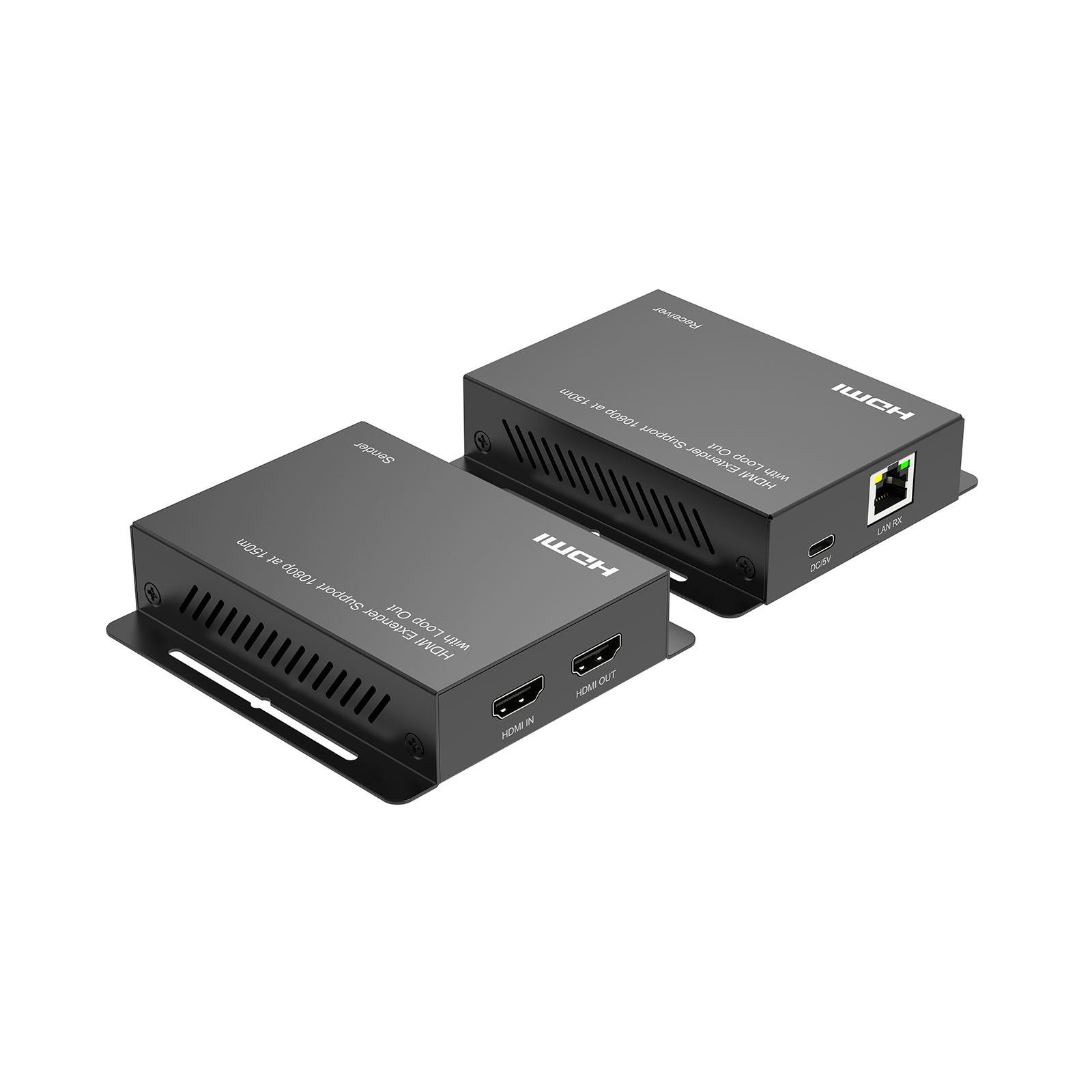

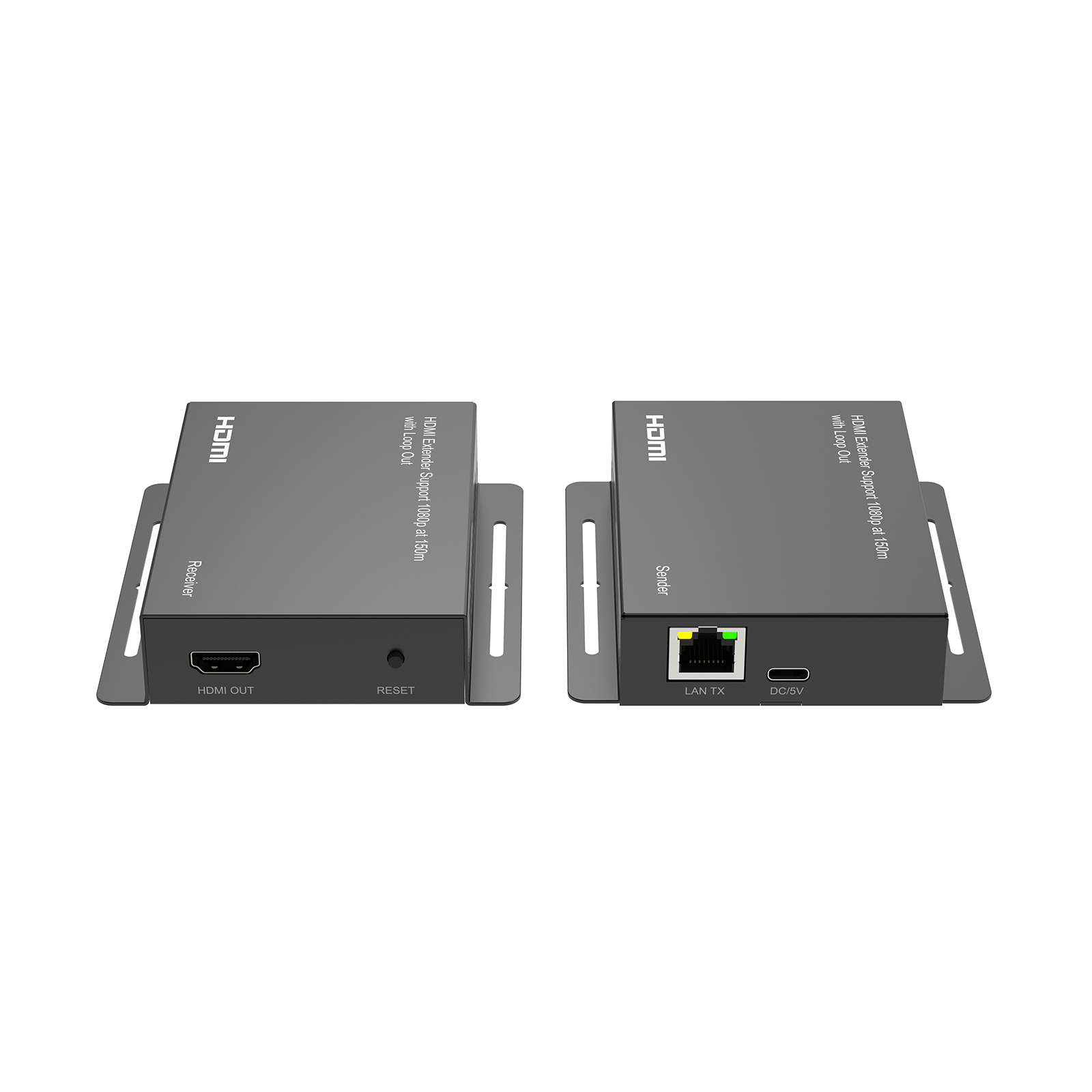

The HDM™ video Extender lets you extend HDMI™ signal or DVI Signal (using HDMI™-DVI adapter, not included) by up to 150m (492ft) via single cat6 cable with HDMI™ loop out. Ideal for use in classrooms, home theater PC applications, internet bar which need long distance transmission of high resolution with high quality by its good stability and powerful security.
FEATURES
- Simple Plug and Play, no software installation required

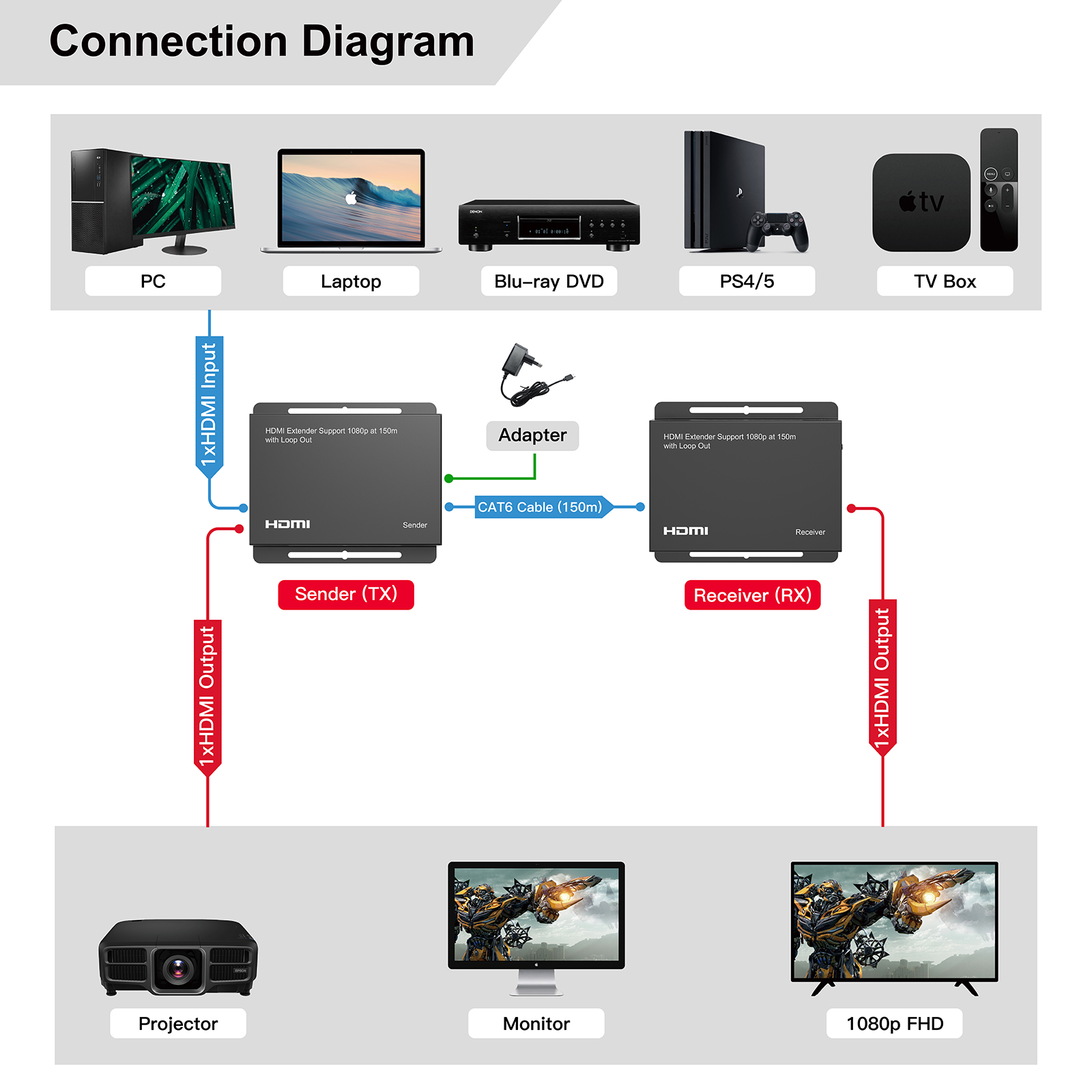

- Dual output at local unit: 1 x HDMI output for local site, plus 1 x UTP output for remote site
- One pair as a full functional module, no need of setting
- Extending distance up to 150 meters (492 feet) for both HDMI signal and USB signal
- Extends USB 1.1 signal to 150m, no driver and no conversion delay, compatible with all Windows XP, Windows 7/8/10/11, Mac, and Linux OS
- Supports lossless uncompressed A/V signal transmission
- Full HD 1080P transmission to make video image more vivid
- Supports 3D video format
SPECIFICATIONS
Input Port
- HDMI x 1
Output Port
- HDMI x 2
Extensions Distance
- 150m(492 feet ) for cat6 UTP cable for 1080P@60Hz max
USB transmission rate
- 12Mbps
USB Standard
- USB 1.1
Vertical Frequency Range
- 50/60Hz
Interlaced Resolutions(50&60Hz)
- 1080i
Progressive Resolutions(50&60Hz)
- 480p,576p,720p,1080p
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 50℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- DC 5V 1A x 2pcs
Power Consumption (Max)
- TX: 2W, RX: 2W
Extender Unit Cert
- FCC, CE, RoHS
Power Supply Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- TX/RX: 119.5 x 94 x 24mm
Net Weight
Material
- Metal
User Manual
- English Version
Note: Specifications are subject to change without notice.
