HDMI™ 50m Extender, Support 1080p, 3D

INTRODUCTION

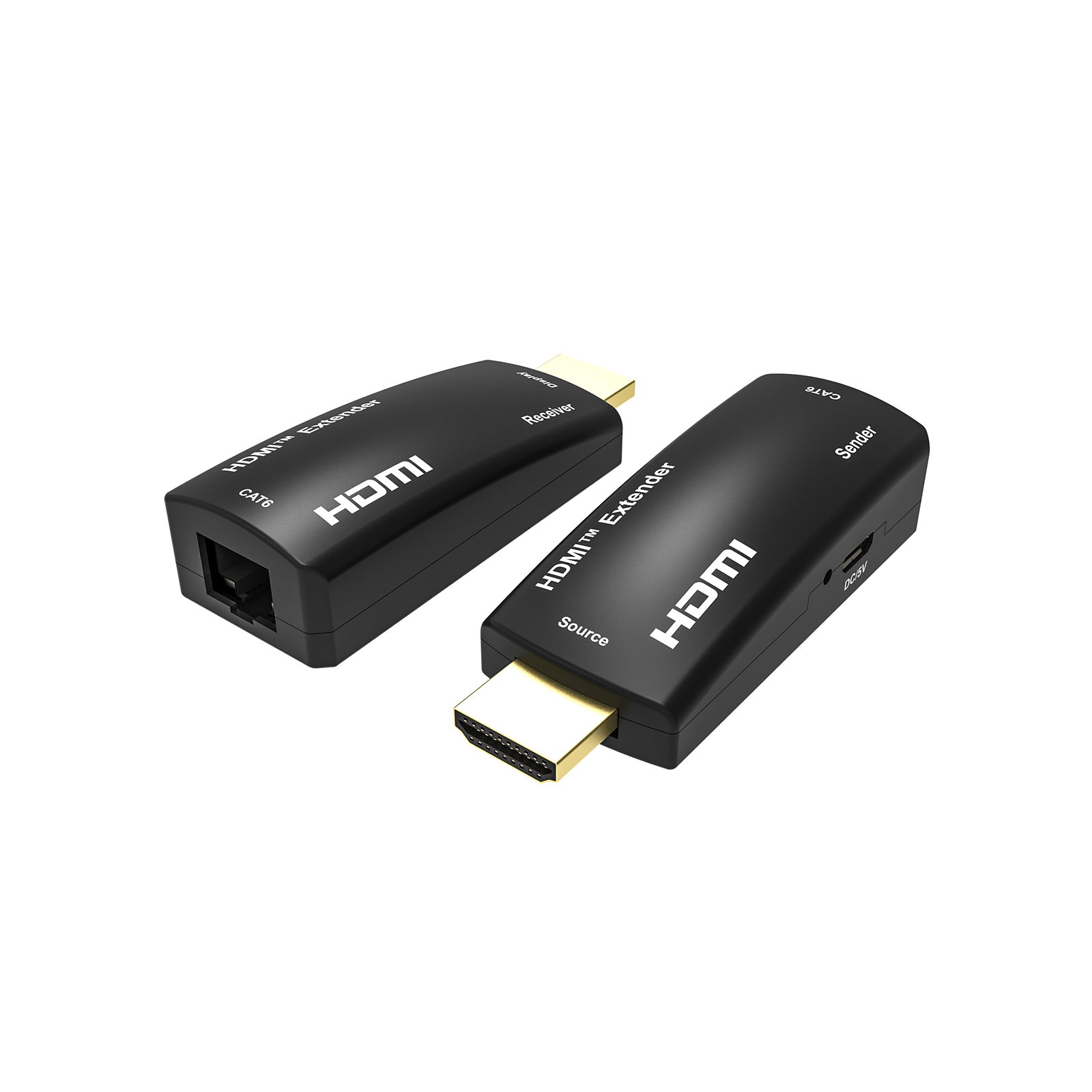

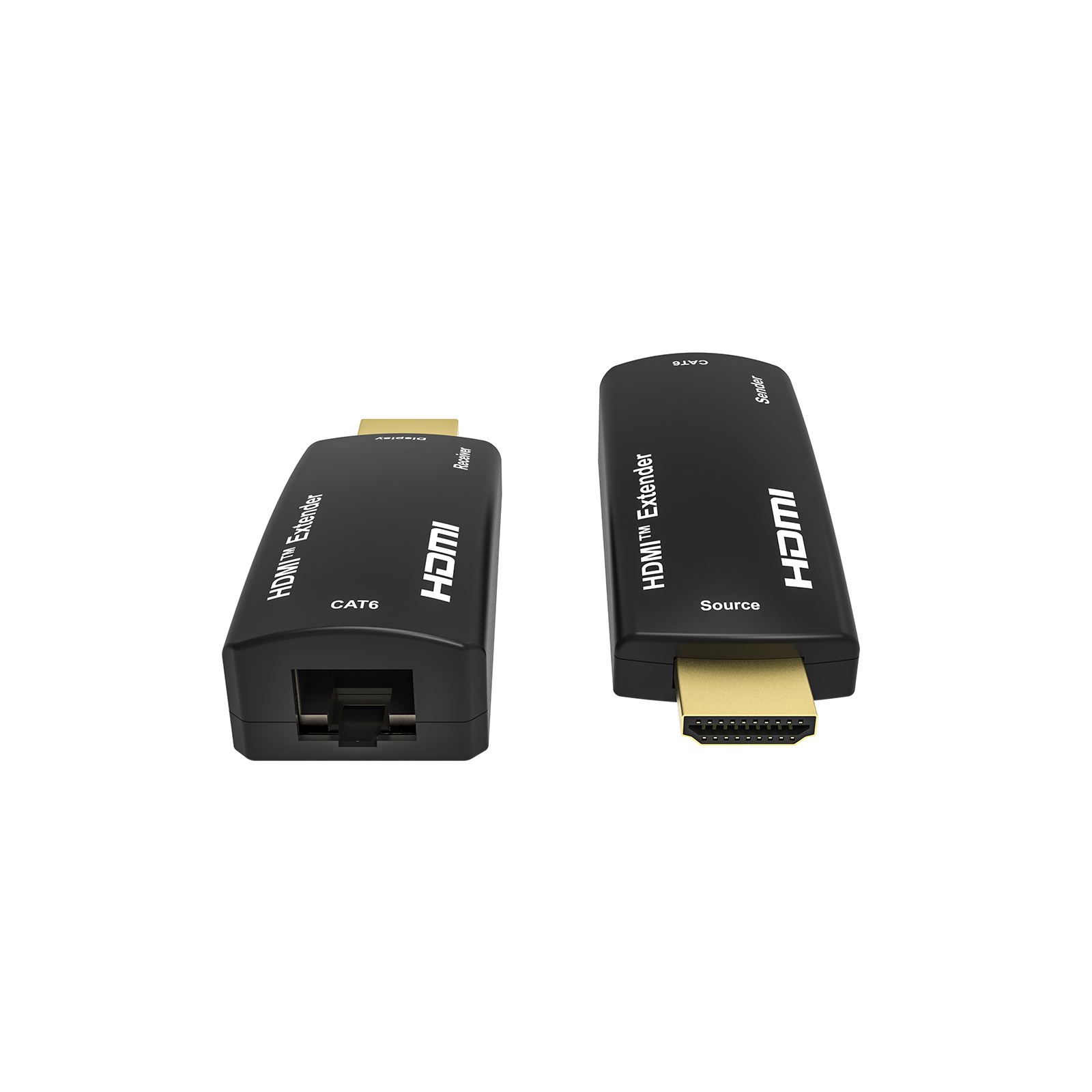

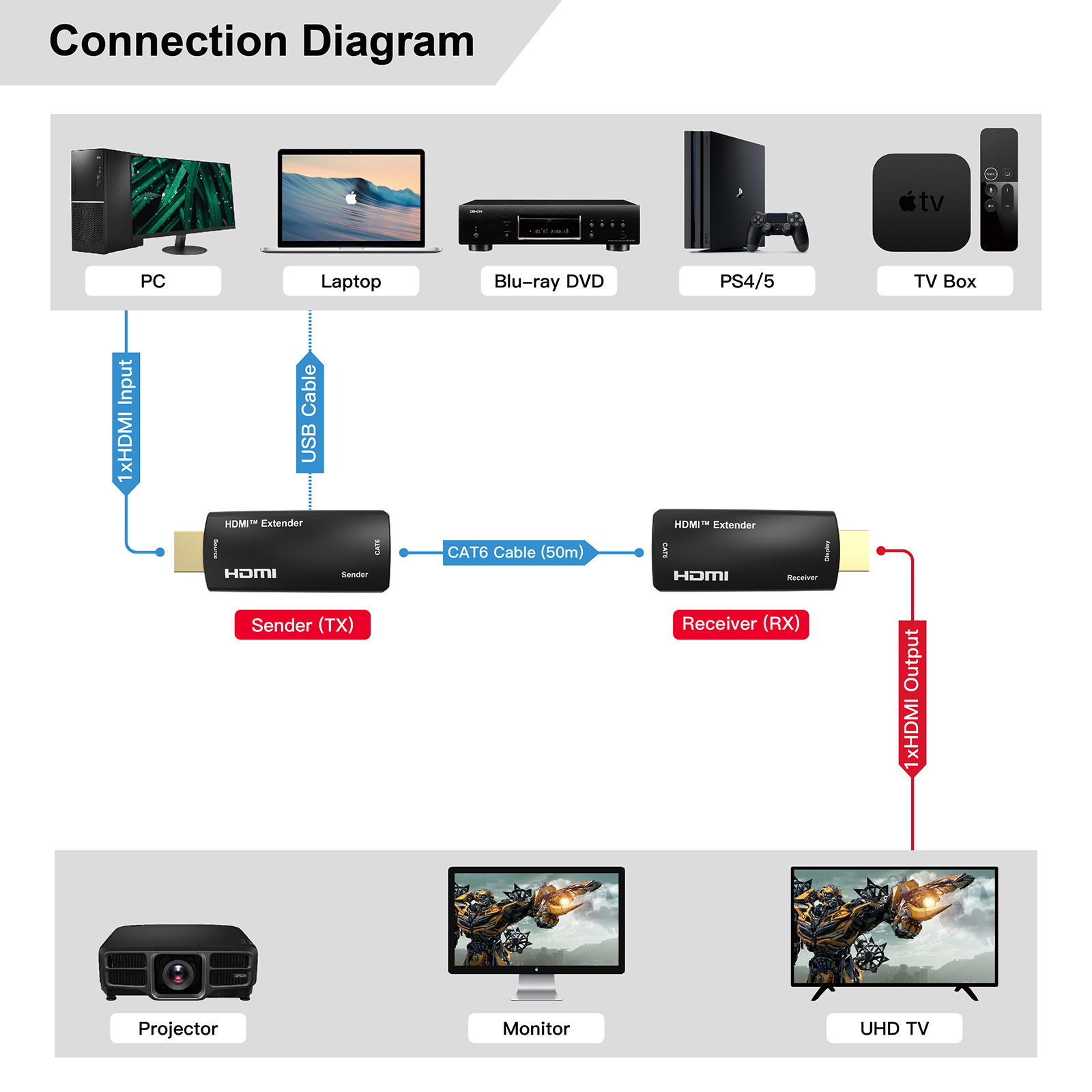

The HDMI™ Extender lets you extend HDMI™ audio/video signal by up to 50 meters (164 feet) over single CAT6 cable. The extender kit includes both the local transmitter and remote receiver units, ideal for point-to-point digital signage applications that require high quality HDMI™ video. For perfect performance, the extender comes with a reset function on the receiver, which enables user to adjust the signal to best match the cable length.

FEATURES
  • Slim and portable size design, plug and play, without installation
  • HDMI over single CAT6 cable transmission up to 50m/164ft
  • Supports lossless uncompressed A/V signal transmission

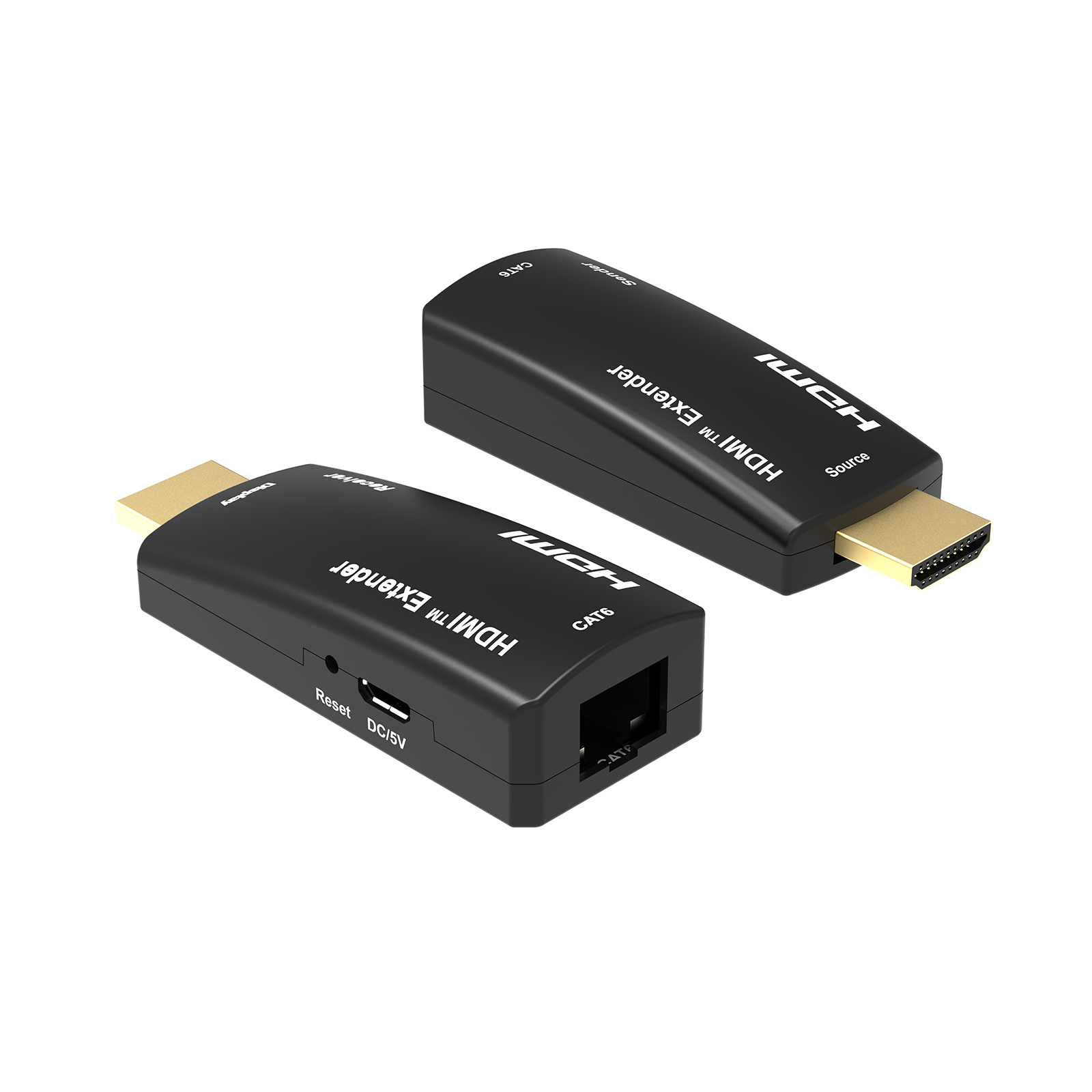

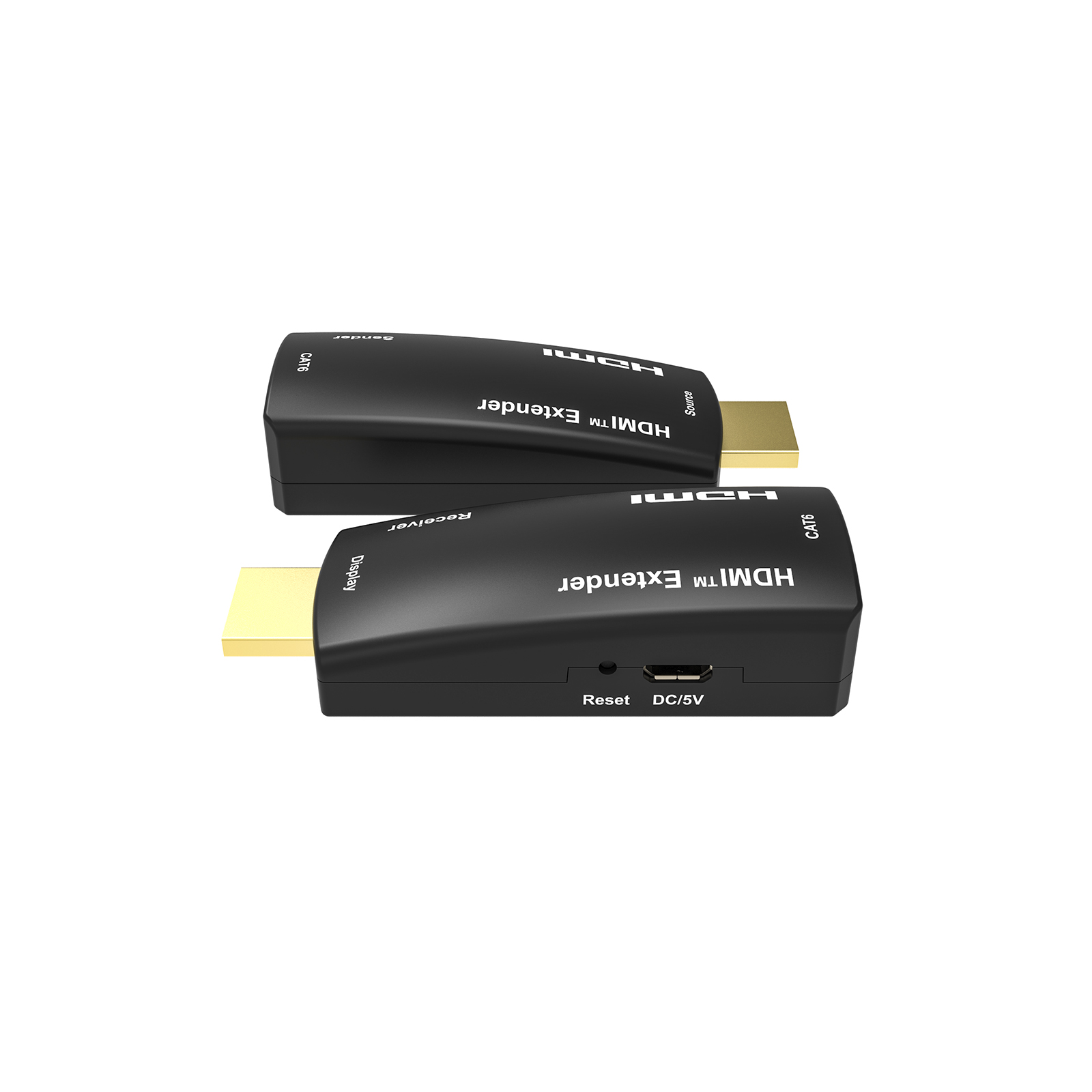

  • Signal auto adjustment to match the cable length after press ‘RESET’ button on receiver
  • Full HD 1080p transmission to make video image more vivid
  • Supports 3D video format

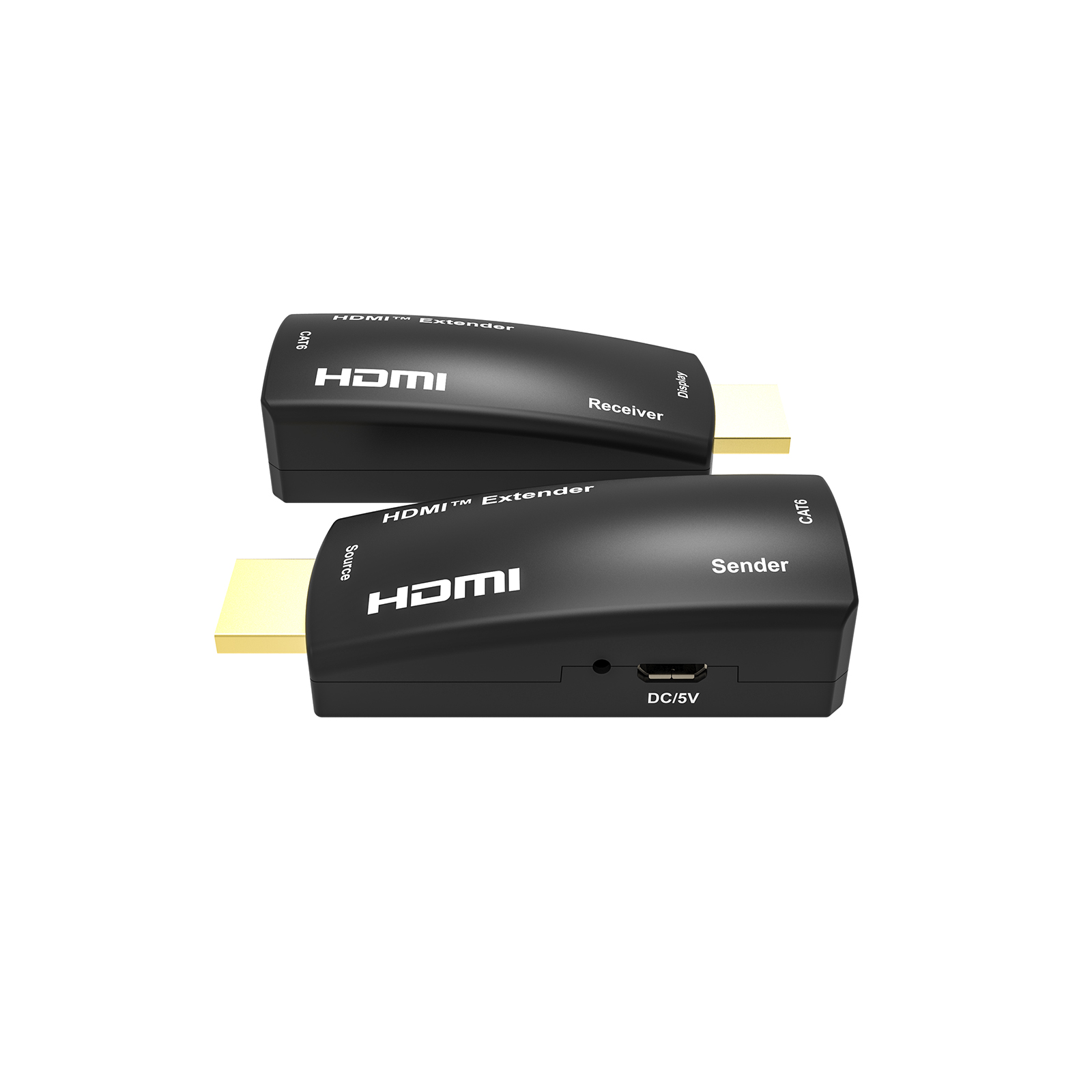

  • Both the transmitter and receiver are powered by Micro USB, support receiver powered from transmitter
Note: Dolby is a trademark of Dolby Laboratories.
SPECIFICATIONS
Input Ports

  • HDMI x 1, RJ45 x 1

Output Ports

  • HDMI x 1, RJ45 x 1

CAT-6 Cable

  • 50m for 1080p

Vertical Frequency Range

  • 50/60Hz

Interlaced Resolutions(50&60Hz)

  • 480i,576i,1080i

Progressive Resolutions(50&60Hz)

  • 480p,576p,720p,1080p

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 50℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • Powered via micro-USB ports

Power Consumption (Max)

  • 5W

Extender Unit Cert

  • FCC, CE, RoHS

Dimension(LxWxH)

  • 62x27x17mm

Net Weight

  • Sender:18g; Receiver:17g

Material

  • ABS

User Manual

  • English Version

Note: Specifications are subject to change without notice.
PACKAGE CONTENTS
  1. Main Unit
  2. Micro-USB Power Cable x 2
