INTRODUCTION
The USB-C to 3xHDMI(Single 4K60, Dual 4K60, Triple 4K30), 2xUSB-A 3.0 +2xUSB-C 3.0 + SD/TF 3.0 + RJ45 1000M +3.5mm /Mic audio port+ PD100W in, which connects USB-C to triple displays (HDMI x3 ). The docking station lets you harness the video capabilities built into your USB 3.1 Type-C™ connection, to deliver the astonishing quality of Ultra HD to your 4K display. Plus, the docking station is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
This USB 3.1 Type-C™ video docking station is highly portable with lightweight design, perfect accessory for your MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™, fitting easily into your laptop bag or carrying case.
FEATURES
- Support UHD video resolutions up to 4K@60Hz for single display on HDMI connection.
- Support dual-video output with resolutions up to 4K@60Hz or triple-video output with resolutions up to 4K@30Hz.
- Support power deliver function up to 100W with PD 3.0 standard. Please confirm laptop’s USB-C port supports charging.
- Support two USB 2.0 port up to 480Mbps data transmission with 5V 0.5A power supply capacity.
- Support two USB 3.0 port,and two USB-C (data only) up to 5Gbps data transmission with 5V 0.9A power supply capacity.
- Support 10/100/1000Mbps for Gigabit (1000M) Ethernet port.
- Support SD and TF card data transfer rates up to 104MB/s and follow the SD3.0/TF3.0 standard.
- Support 3.5mm mic in and stereo audio output.
- Compatible with USB-C, USB-A, Thunderbolt 3/4, and USB 4 standard ports.
- Plug and play with no driver or software installation at all.

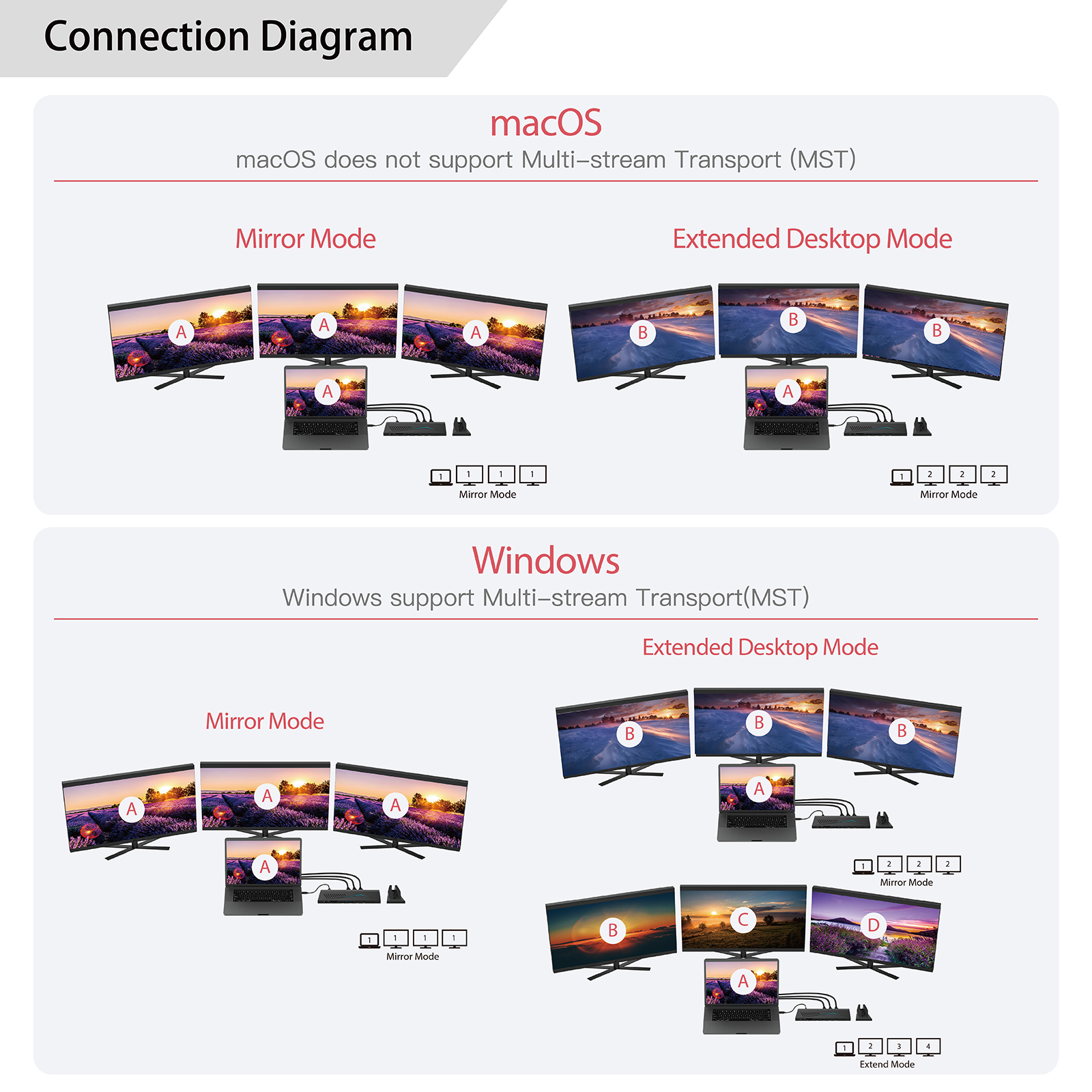

- Allows you to extend your PC screen to multiple displays, only supporting up to 3 different displays on Windows and 3 same displays on Mac OS.
SPECIFICATIONS
Input Ports
- USB-C Female x 1
Output Ports
- HDMI x 3, USB-C 3.2(data) x 2, USB-C(data) x 1, USB-C(fast charging) x 1, USB 3.0 x 2,USB2.0 x 2, SD 3.0 x1,TF 3.0 x1, RJ45 x 1, 3.5mm x 1,USB-C PD x1
Data Transmission Rate (Max)
- 10Gbps
Data Transmission Standard
- USB 3.0 ( USB 3.1/3.2 GEN 1)
Vertical Frequency Range
- 50/60Hz
Video Amplifier Bandwidth
- 6Gbps/600MHz per channel(18Gbps all channels)
Progressive(50&60Hz)
- 480p,576p,720p,1080p,4K@24/30/50/60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 60℃
Storage Humidity
- 5% to 90% RH non-condensation
Unit Cert
- FCC, CE, RoHS
Dimension (LxWxH)
- 7.8x 3.07×0.93in (198x 78×23.5mm)
Net Weight
- 212g
Material
- ABS
User Manual
- English Version
