INTRODUCTION

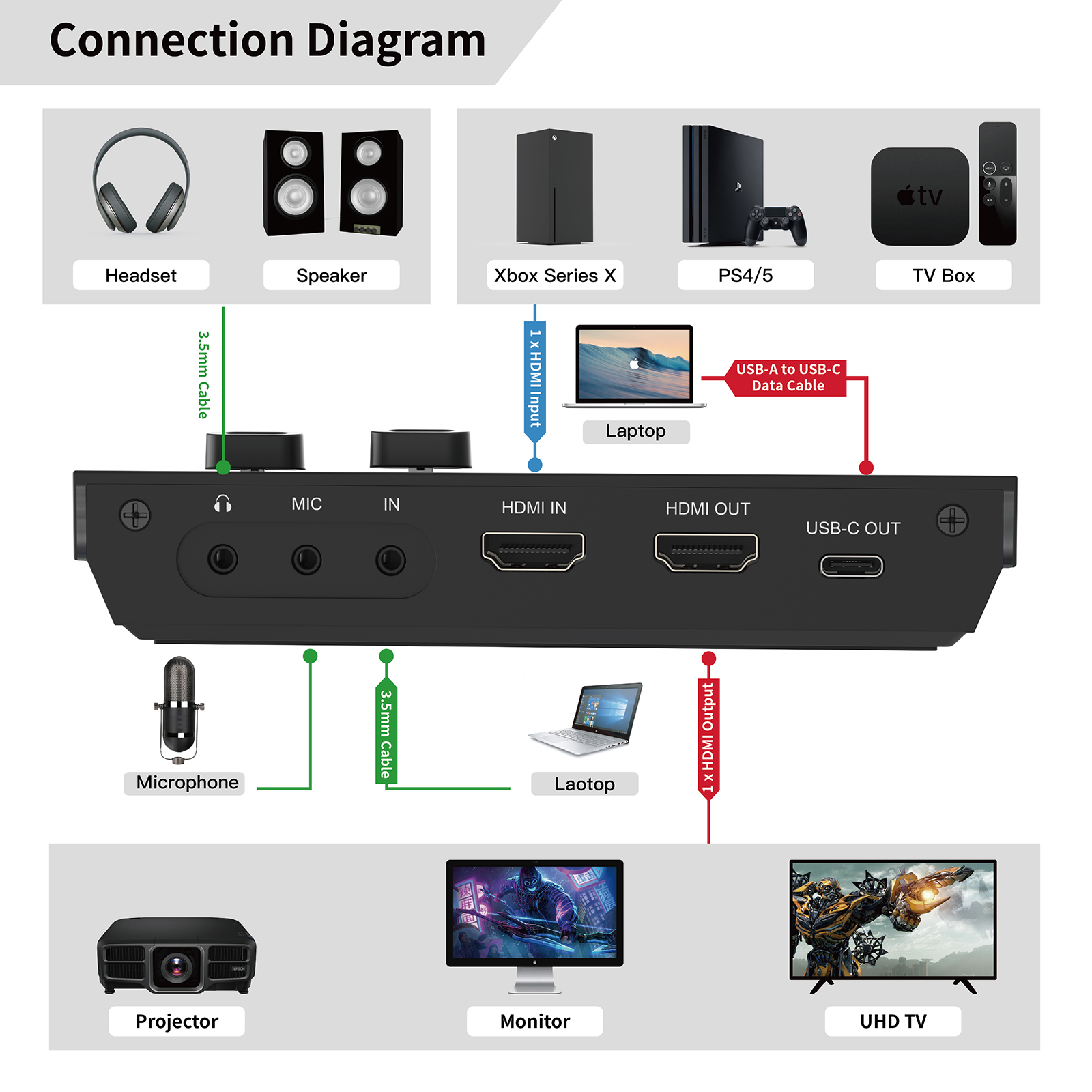

This product is a USB 3.0 HD video capture card with HDMI loop-out functionality. It is designed to connect to HDMI signal sources such as game consoles, cameras, PCs, and TV boxes. The device simultaneously outputs the HDMI signal to a monitor or TV through the HDMI loop-out port with near-zero latency, while capturing the audio and video through USB for previewing, recording, or live streaming on a computer. Compliant with UVC and UAC standards, the capture card supports plug-and-play operation without requiring additional drivers on compatible Windows, Linux, and macOS systems. It supports embedded LPCM audio capture and is equipped with a 3.5 mm microphone input and an audio monitoring output. It is suitable for applications such as game streaming, camera-based live streaming, video recording, online teaching, meetings, and other HDMI video capture applications.
FEATURES
- Supports 3D video formats
- Supports HDCP 1.4
- USB-powered; no external power supply required
- No driver installation required; plug and play
- Supports capture of a single HDMI video signal with input resolutions up to 3840x 2160@60Hz 4:2:0, HDMI loop-out, and USB capture output up to 3840×2160@60 4:2:0 format
- Supports UVC video capture and MJPEG,YUV 4:2:2,XRGB and NV12 video output
- Supports UAC audio capture and 48 kHz 2-channel and 5.1-channel audio output
- Compatible with Windows, Linux, and macOS
- Compatible with USB 3.0 and USB 2.0
- Processes video and audio independently to reduce CPU usage
- Supports 2-channel, 5.1-channel,7.1-channel LPCM audio input
- Supports multiple capture devices connected to a single host computer
SPECIFICATIONS

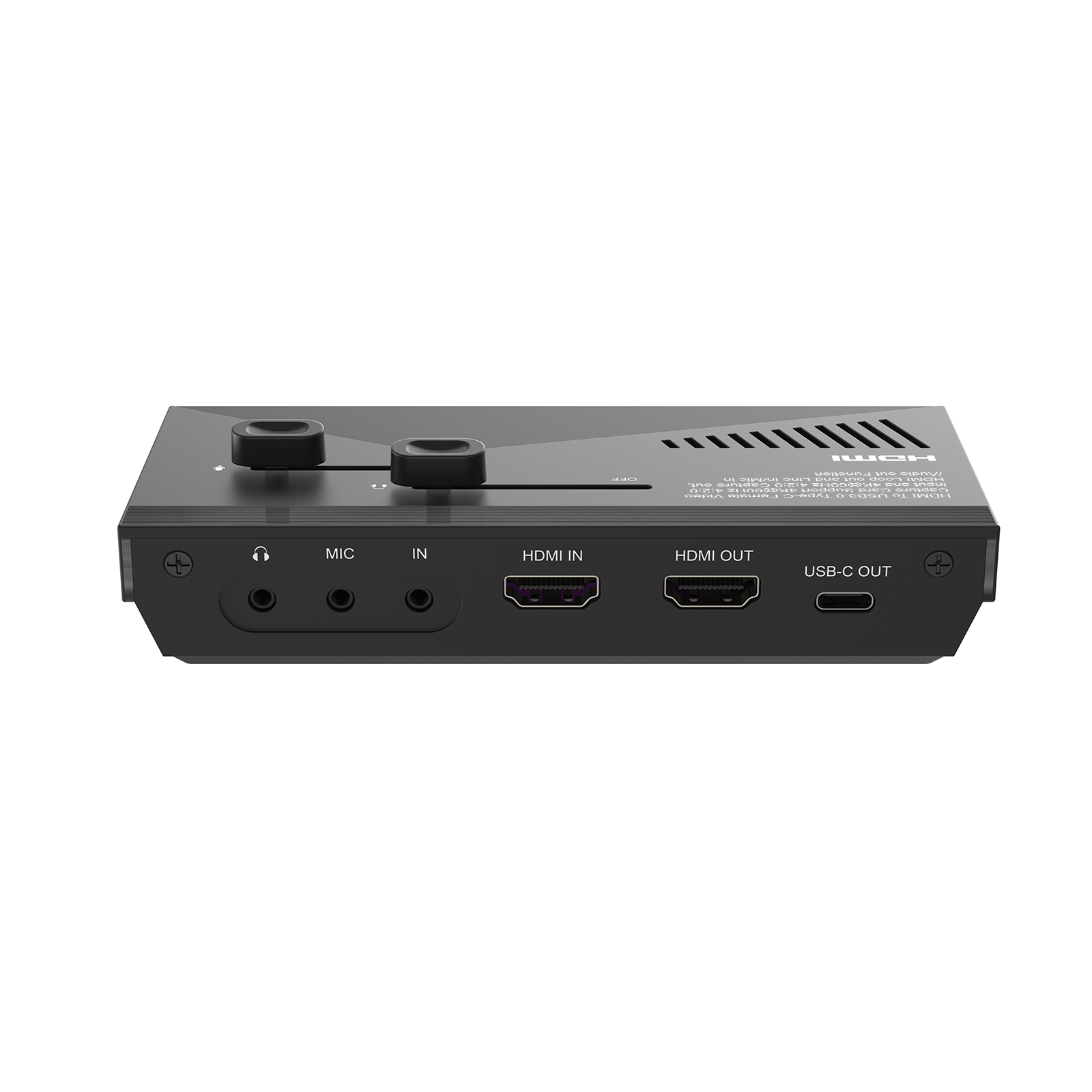

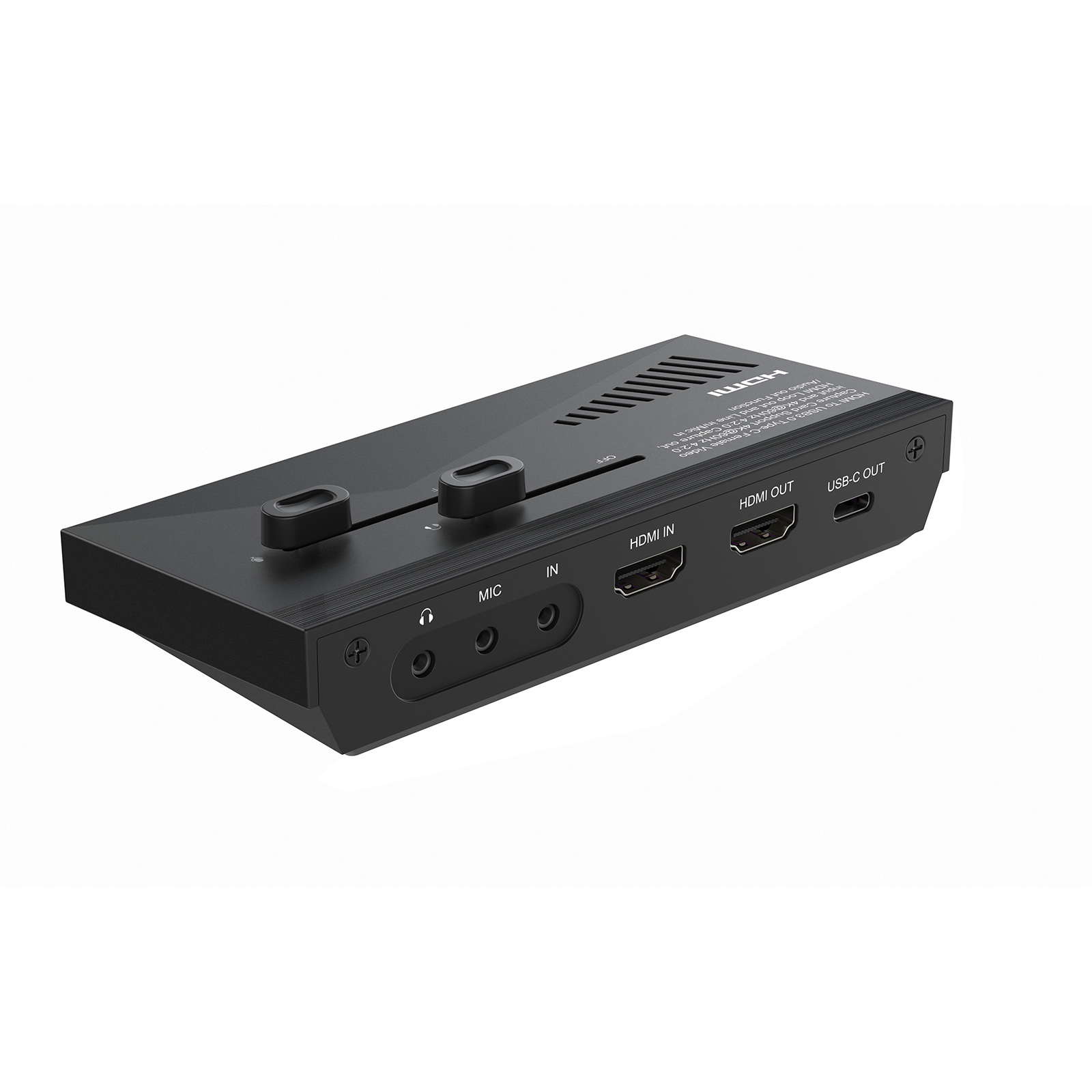

Input Ports
- HDMI x 1, 3.5mm Line In x1, 3.5mm MIC In x1
Output Ports
- USB-C 3.0 x1,HDMI Loop Out x1, 3.5mm Line Out x1
Vertical Refresh Rate
- 50/60Hz
Video Amplifier Bandwidth
- 3.4Gbps/340MHz per channel(10.2Gbps all channels)
HDMI Input/Loop-Out Resolution
- 720x480p@60Hz, 720x576p@50Hz, 480i@60Hz, 576i@50Hz, 1280x720p@60Hz, 1920x1080i@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 3840x2160p@30Hz,3840x2160p@60Hz(YUV4:2:0)
USB 3.0 Capture Output
- 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 3840X2160@30(YUV4:2:0), 3840×2160@60(YUV4:2:0 MJPEG)
Compatible System
- Windows 7/8/10, Linux (Kernel 2.6.38 or later), and macOS 10.8 or later
Software Compatibility
- OBS Studio, VLC Media Player, PotPlayer, XSplit Broadcaster, Wirecast, and other UVC/UAC-compatible applications
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 50℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- Powered via USB-C
Power Consumption (Max)
- 5W
Capture Unit Certifications
- FCC, CE, RoHS
Dimension(L x W x H)
- 136 x 68 x 25.8mm
Net Weight
- 110g
Material
- ABS
User Manual
- English Version
