INTRODUCTION

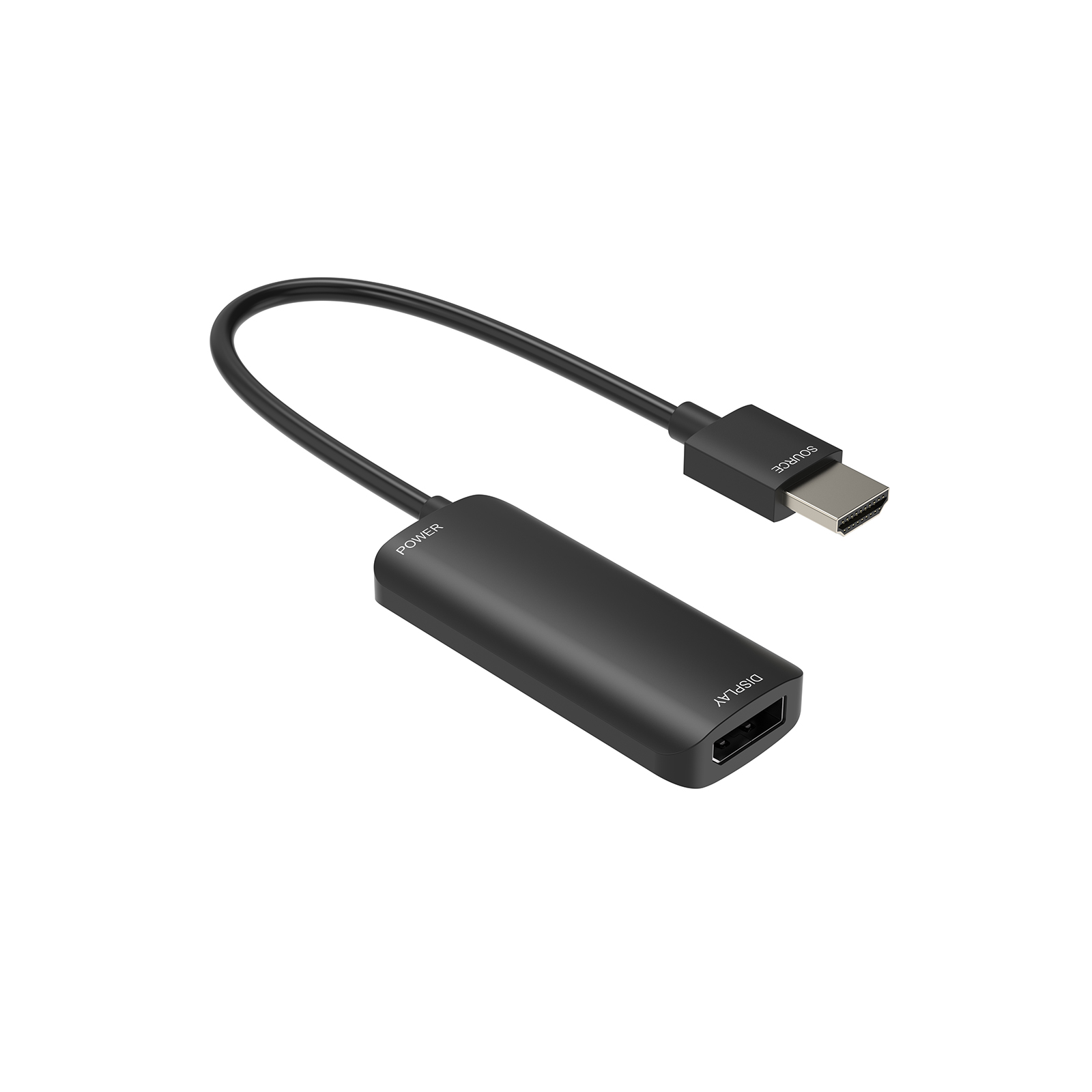

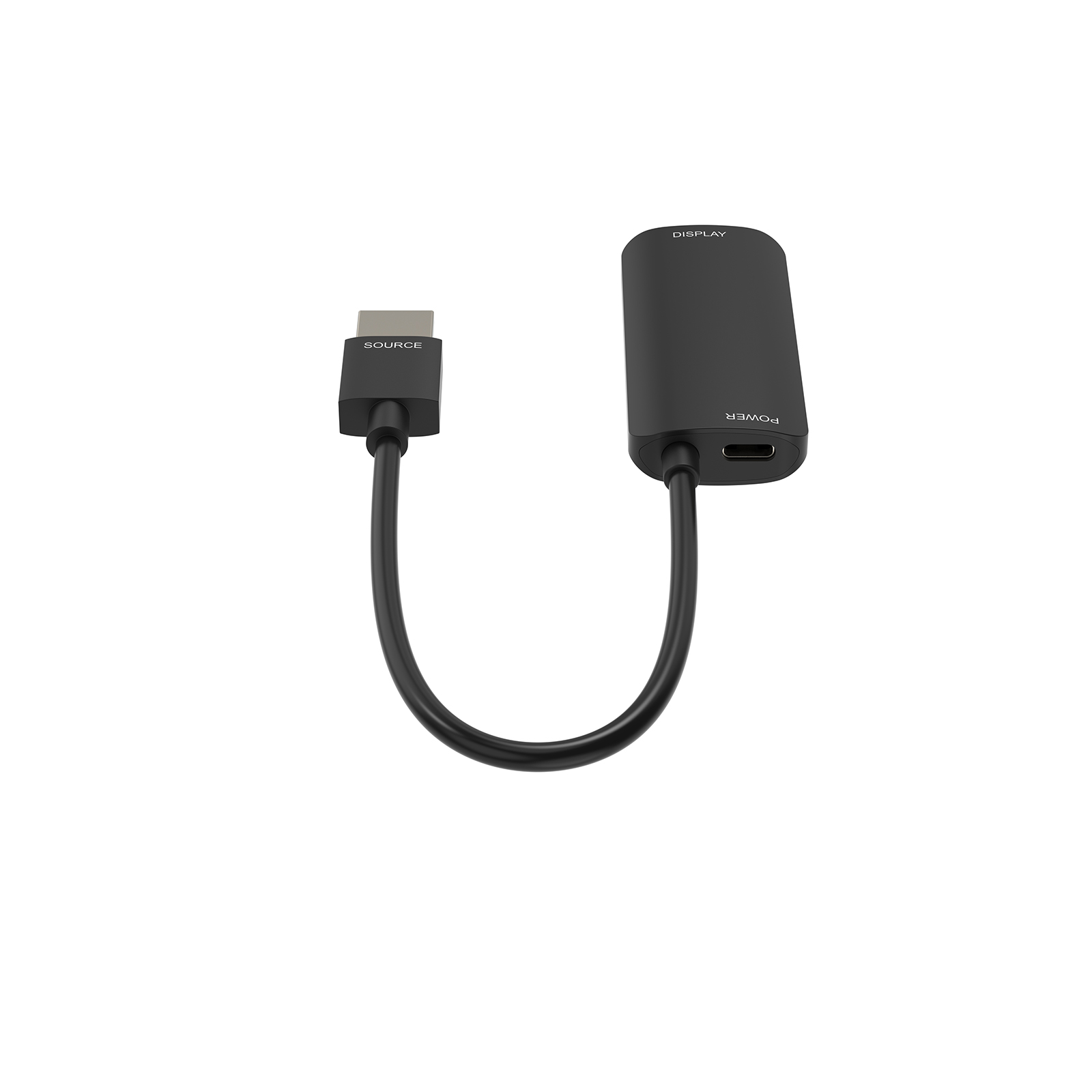

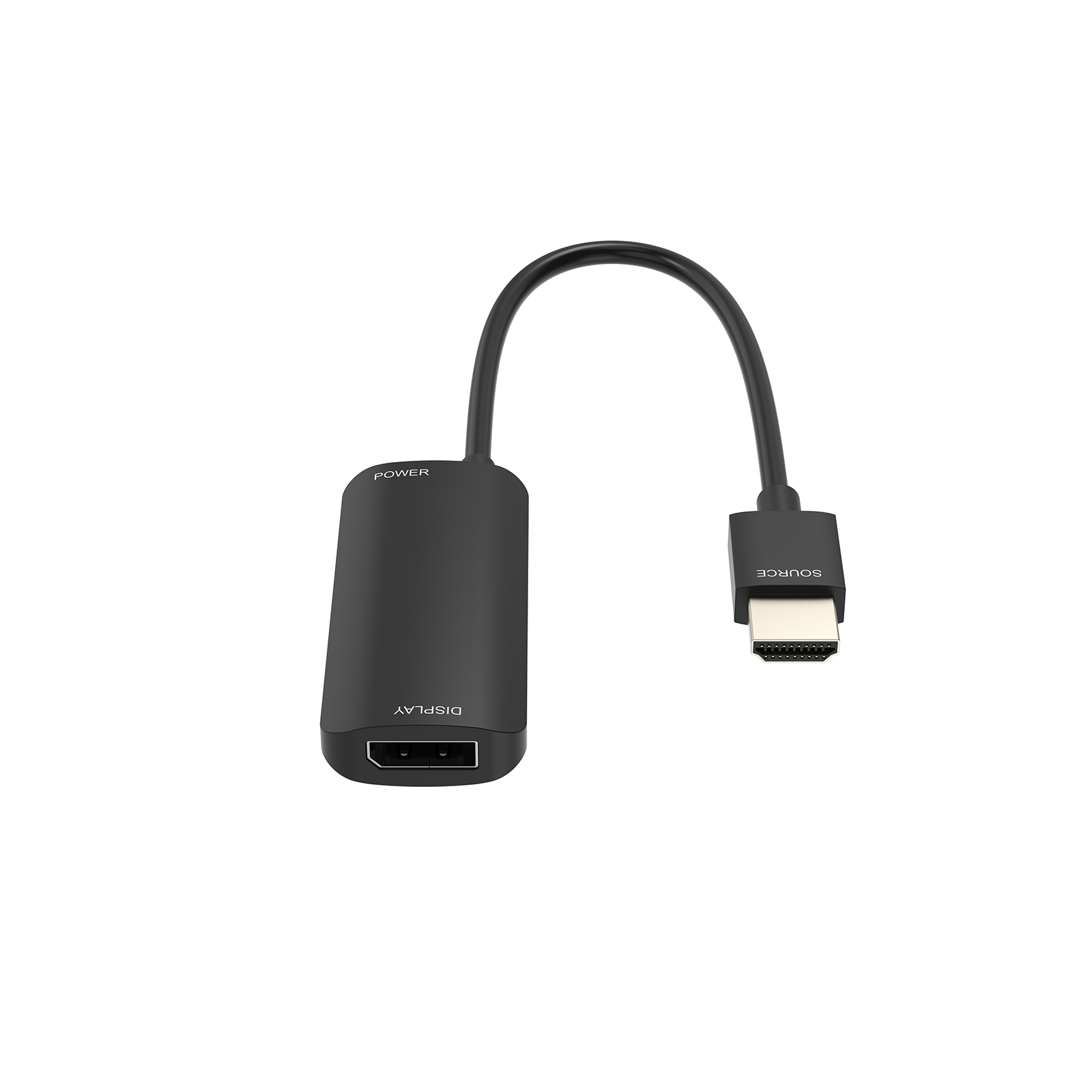

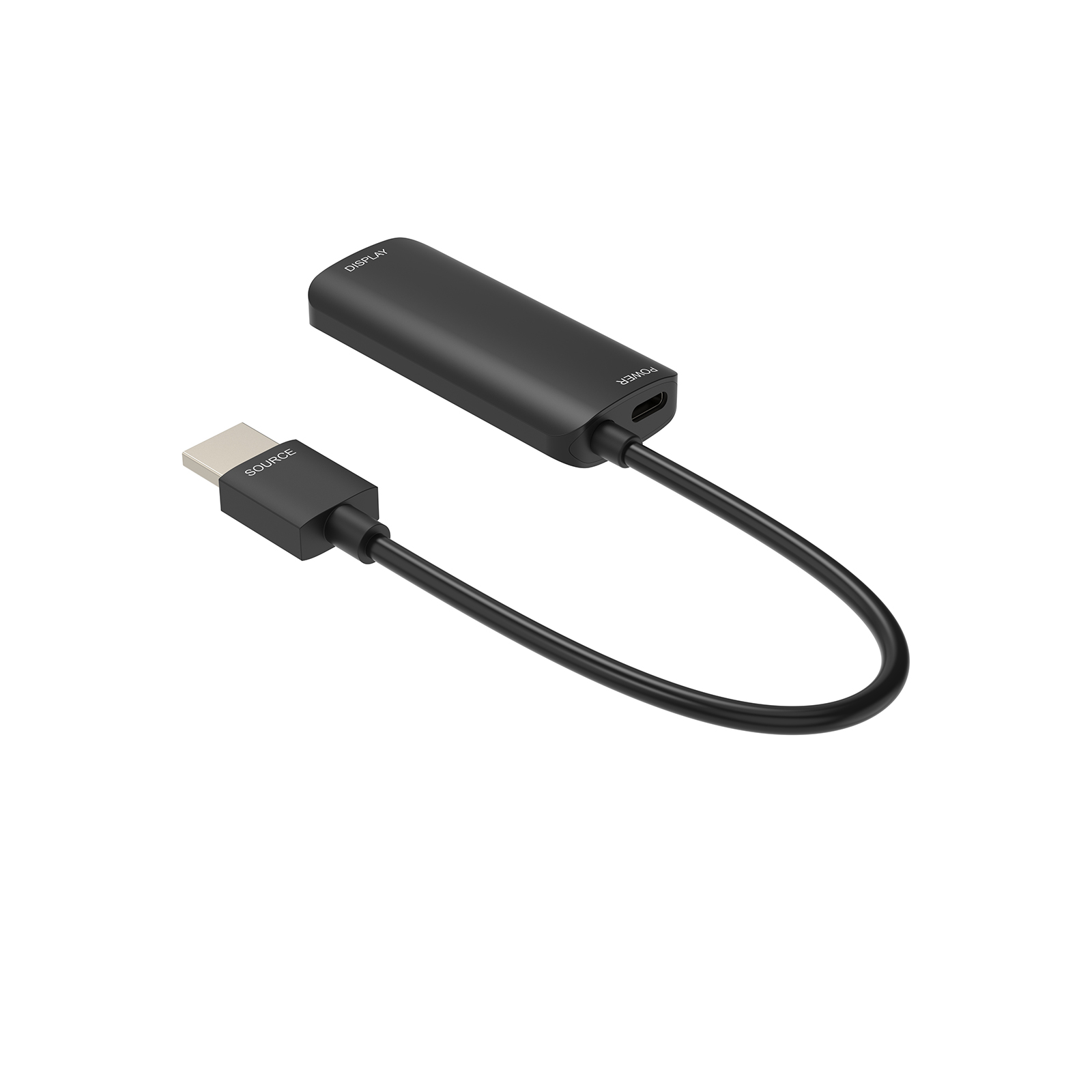

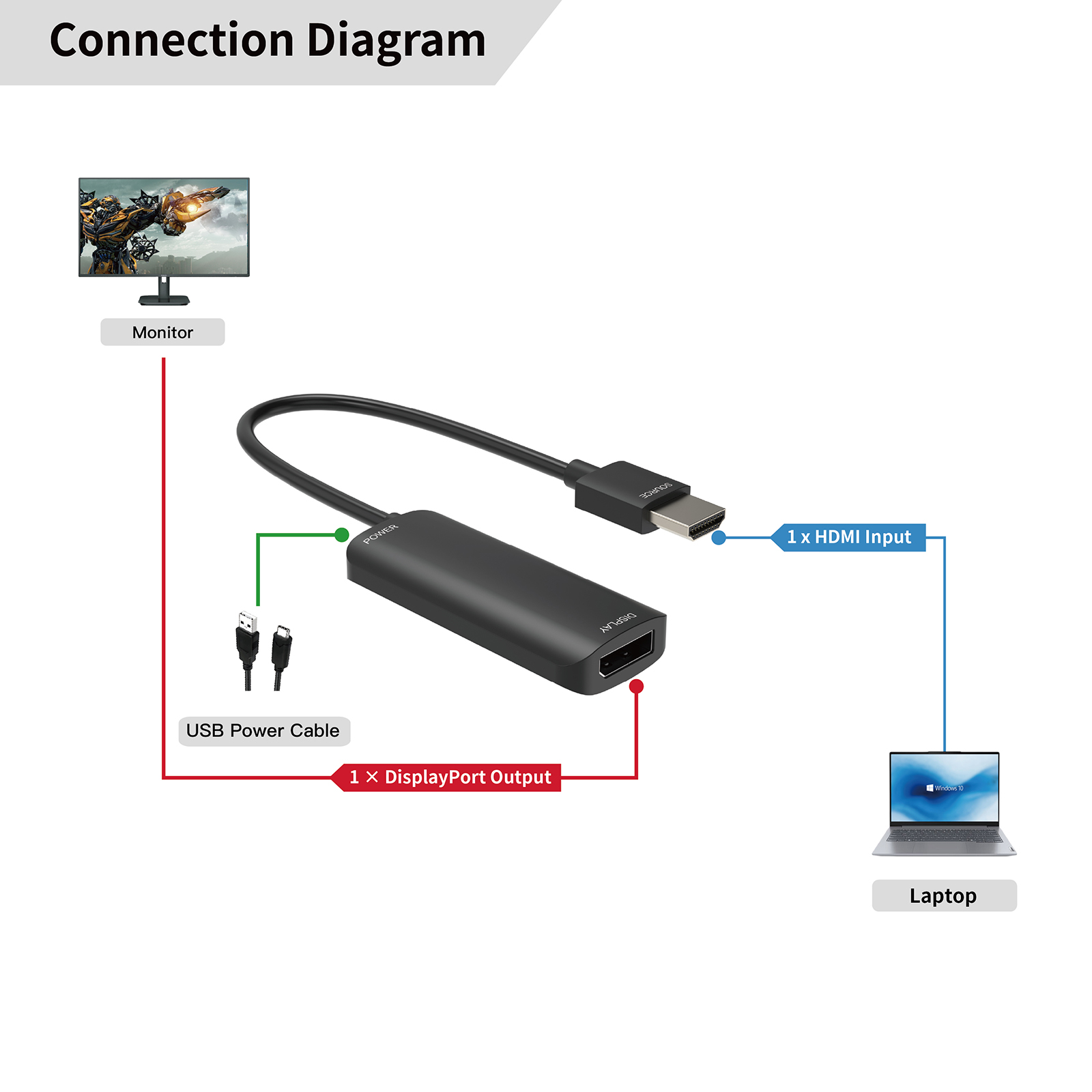

The HDMI 4K@60Hz to DisplayPort 1.2 Converter combines functionality and convenience, making it an essential tool for modern connectivity needs. It bridges the gap between devices with different interfaces, allowing seamless connectivity between HDMI® source devices, such as PCs, Blu-ray players, or media players, and DisplayPort monitors, digital signage, and large-format displays. This converter supports resolutions up to 3840×2160@60Hz 4:4:4 8bit, delivering superior clarity and vibrant content in innovative workspaces, collaborative environments, and educational setups. It also supports immersive multi-channel audio up to 7.1 channels, complementing the high-quality video output. For added convenience, the converter includes a USB power cable, ensuring it can be externally powered when used with low power HDMI® sources. This makes it perfect for adding an additional display to extend the available desktop workspace. Its compact, lightweight form factor and plug & play installation make it an ideal travel companion, ensuring you can set up quickly and efficiently in any environment.
FEATURES
- Support high resolution up to 4K@60Hz YUV 4:4:4
- Support HDCP 2.2
- Support highest data transfer rate up to 21.6Gbps
- Support 12bit per channel (36bit all channels) deep color
- Support LPCM audio 96kHz/24bit
- Support High Dynamic Range (HDR) video
- Maximum Power Consumption 2.5W
- Built-in HDMI SR Cable: 25 mm in length
SPECIFICATIONS
Input Ports
- HDMI (Male) x 1
Output Ports
- DisplayPort (Female) x 1
Power Supply
- USB-C
Vertical Frequency Range
- 24/30/50/60Hz
Video Amplifier Bandwidth
- 21.6Gbps
Interlaced(50&60Hz)
- 480i,576i,1080i
Progressive
- 480p,576p,720p,1080p,4K@24/30/50/60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 70℃
Storage Humidity
- 5% to 90% RH, non-condensing
Converter Unit Certifications
- CE, FCC, RoHS
Dimension(L x W x H)
- 71.5 x 31.2 x 12mm
Net Weight
- 28.7g
Material
- ABS
User Manual
- English Version
