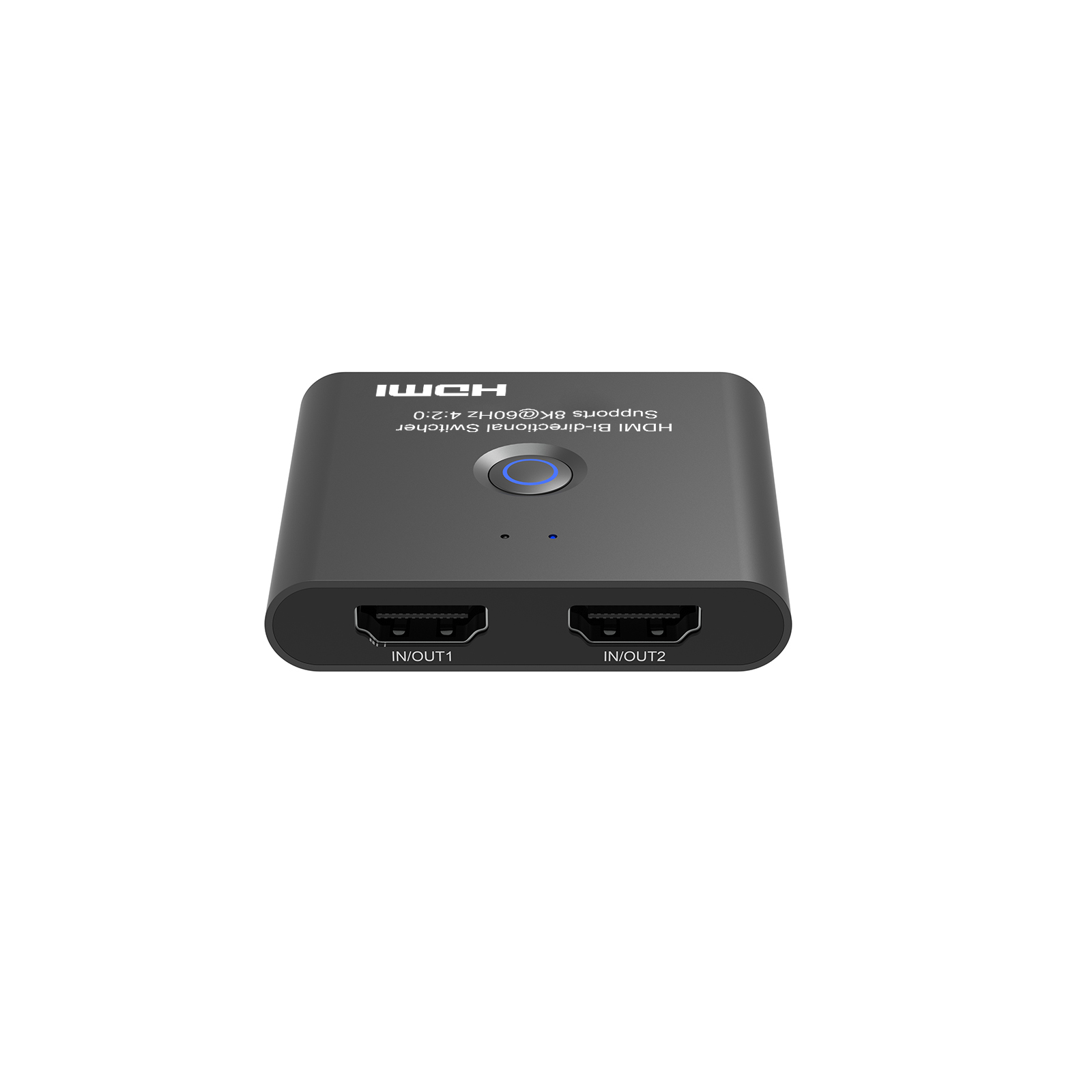

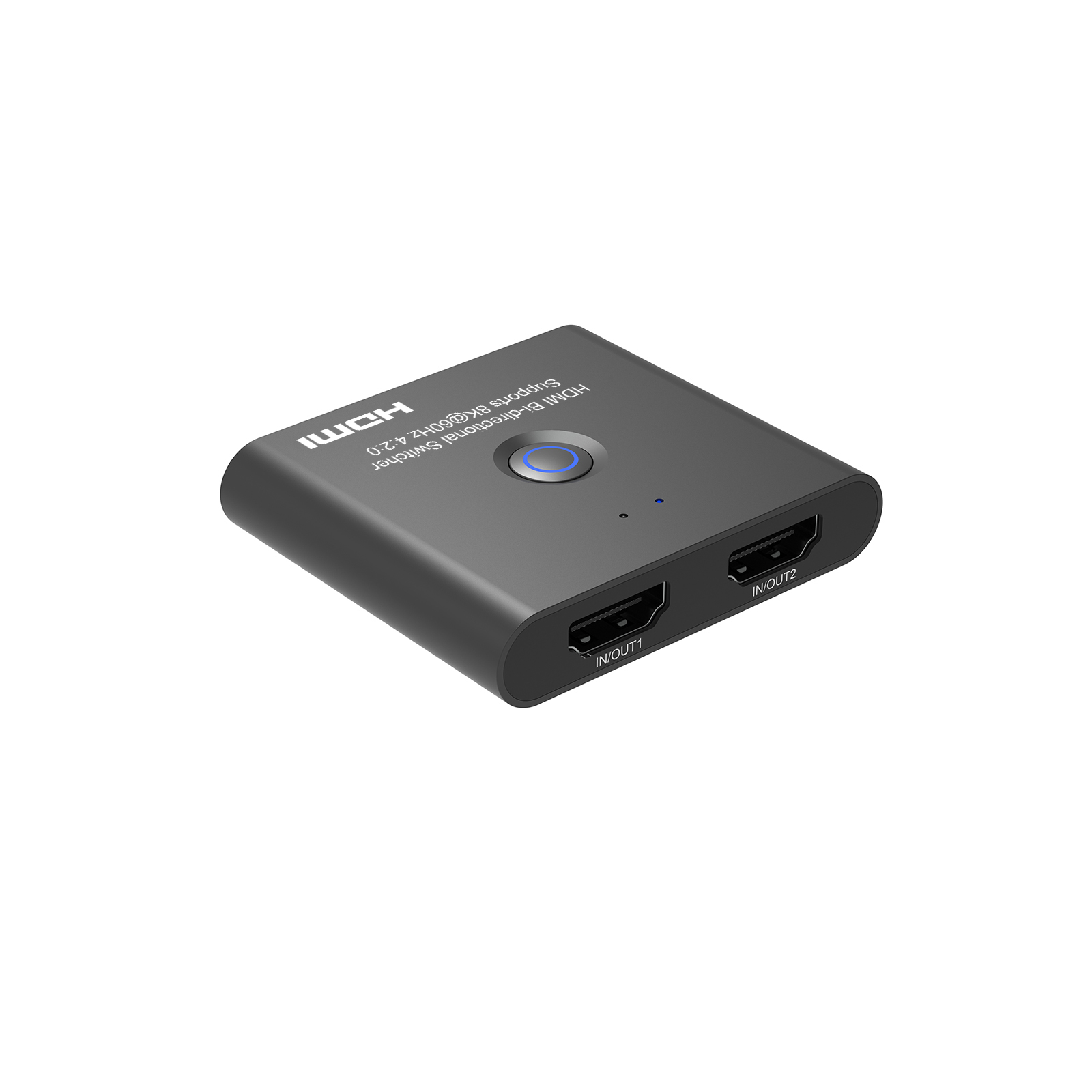

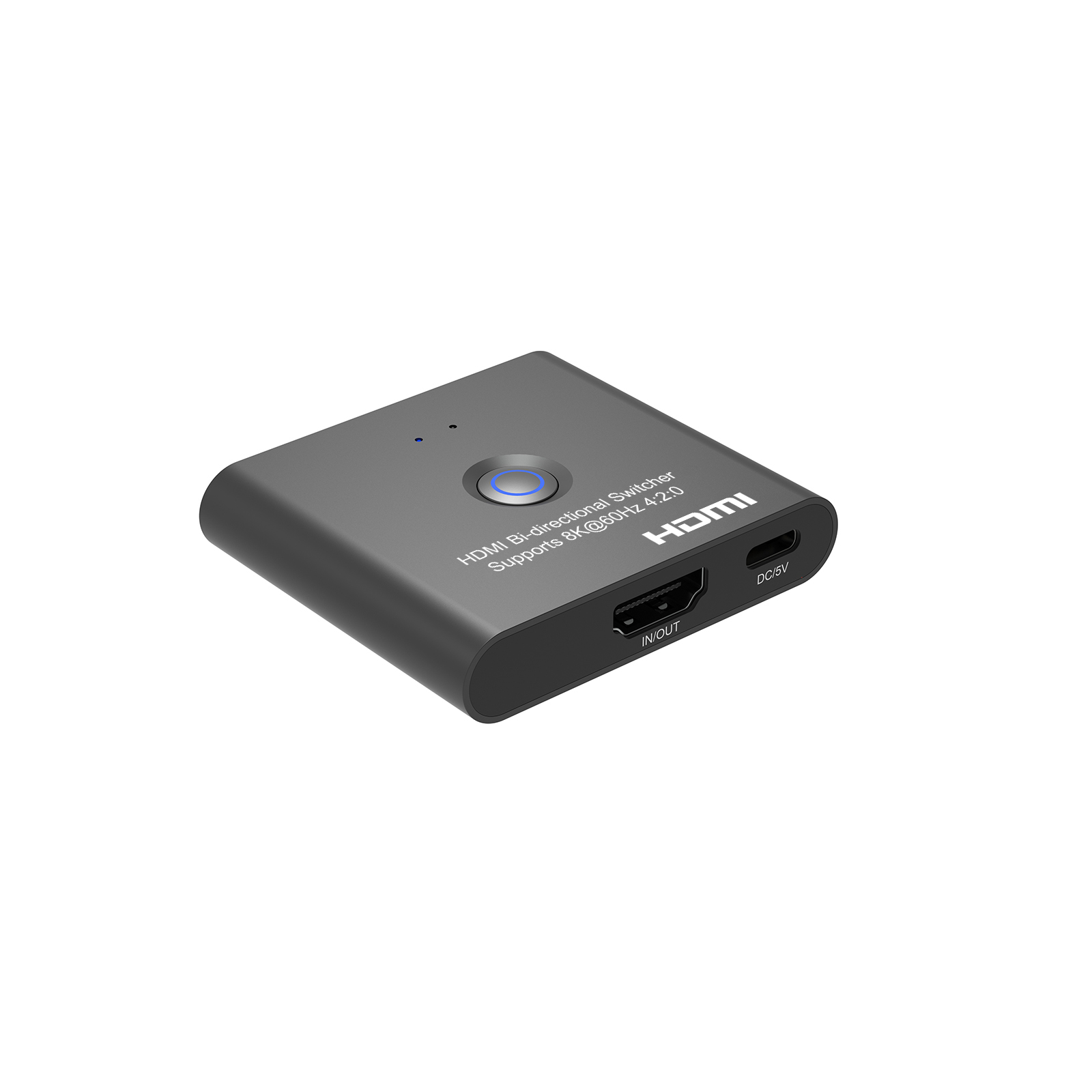

HDMI™ Bi-directional Switcher Supports 8K@60Hz 4:2:0

Package Content


This is a device with HDMI™ 2 ports and a bi-directional manual switcher. It can easily switch two routes of 8K UHD Source to one of any 8K UHD displays or projectors or distribute one 8K UHD Source to two displays (not synchronously). This newer bi-directional switch adopts an integrated IC solution to substantially reduce product power consumption for improving compatibility. To add its versatility, the switch can draw power from the input sources via HDMI™ Cable. It is very convenient in areas where access to power outlets is limited.

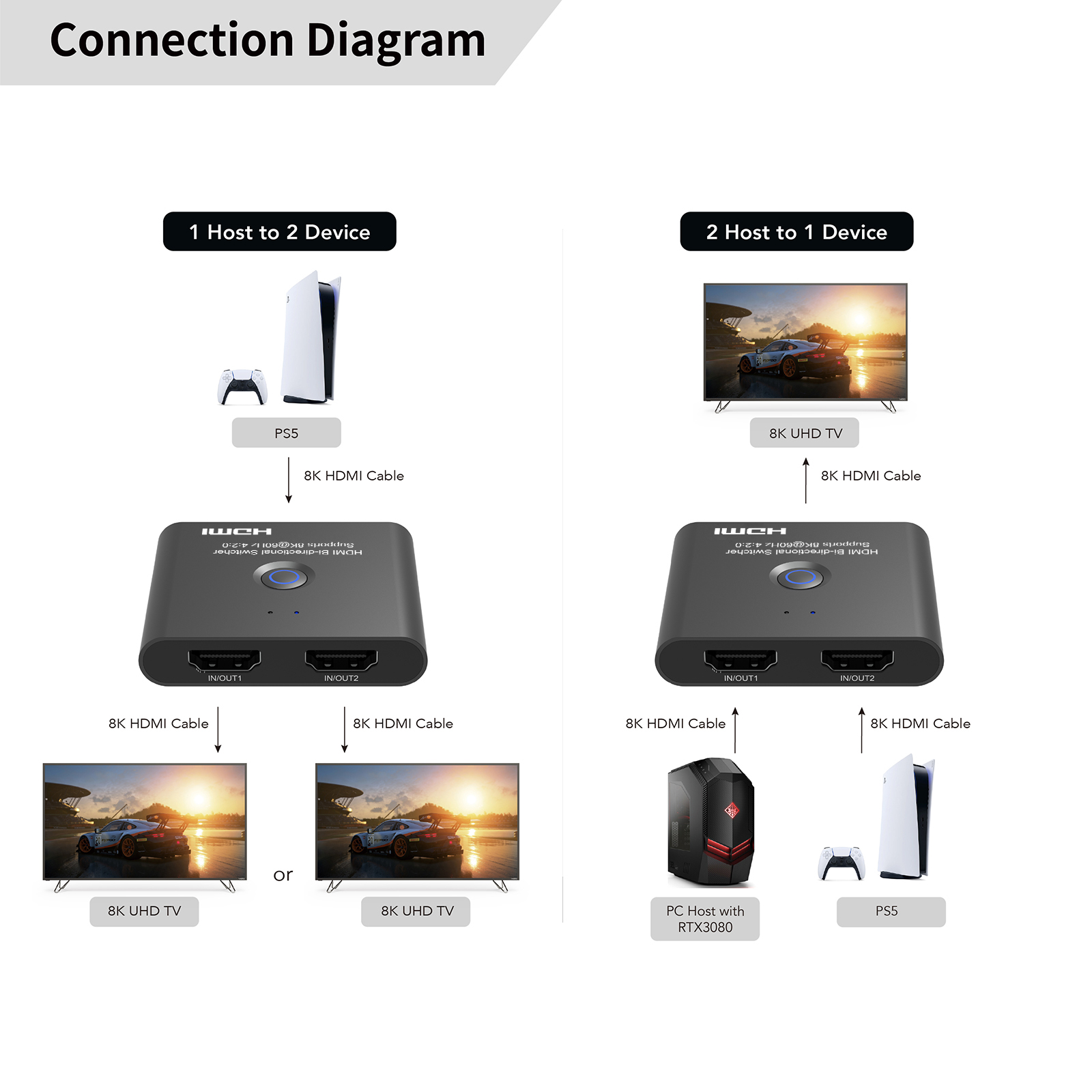

  • 2 HDMI-Host to 1 HDMI monitor.
  • 1 HDMI-Host to 2 HDMI monitors.
  • Support high definition resolution 8K@60Hz 4:2:0, 4K@120Hz and 1080P@240Hz.
  • Support 1000MHz/10Gbps per channel bandwidth (40Gbps all channels).
  • Support 12bit per channel (36bit all channels) deep color.
  • Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4.
  • Support High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision etc.
  • Support VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) function.
  • Support Consumer Electronics Control.
  • Support uncompressed audio such as LPCM.
  • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
  • Easy installation & operation: plug and play.
Input Ports

  • HDMI Female Port x 1 (1 in 2 out) / HDMI x 2 (2 in 1 out)

Output Ports

  • HDMI x 2 (1 in 2 out) / HDMI Female Port x 1 (2 in 1 out)

Vertical Frequency Range

  • 50/60/100/120/240Hz

Video Amplifier Bandwidth

  • 10Gbps/1000MHz per channel(40Gbps all channels)


  • 480i, 576i, 1080i


  • 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • USB Power Cable

Power Consumption (Max)

  • 5W

Switcher Unit Cert

  • FCC, CE, RoHS


  • 59*52*12mm

Net Weight

  • 34g


  • aluminum

User Manual

  • English Version

Note: Specifications are subject to change without notice.
