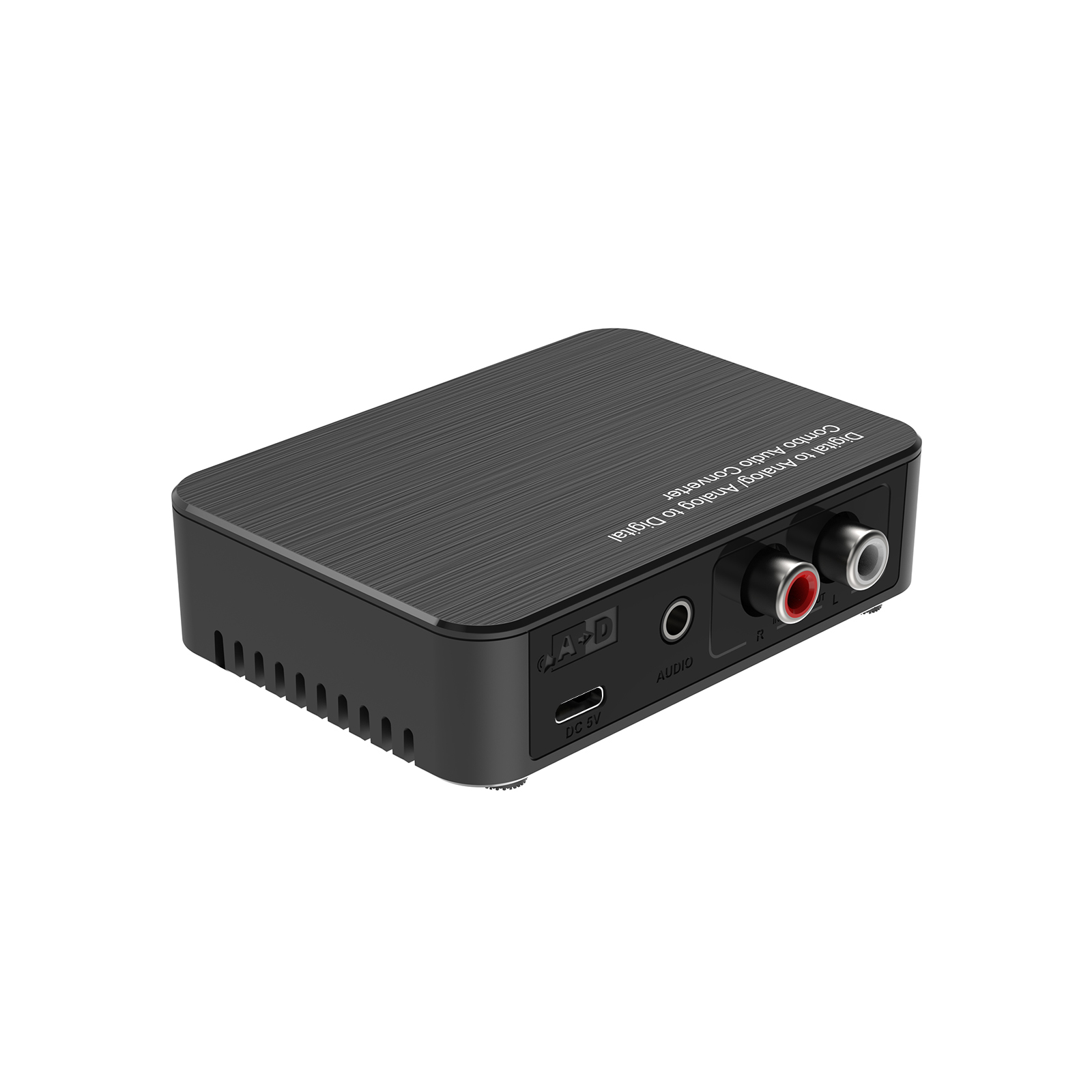

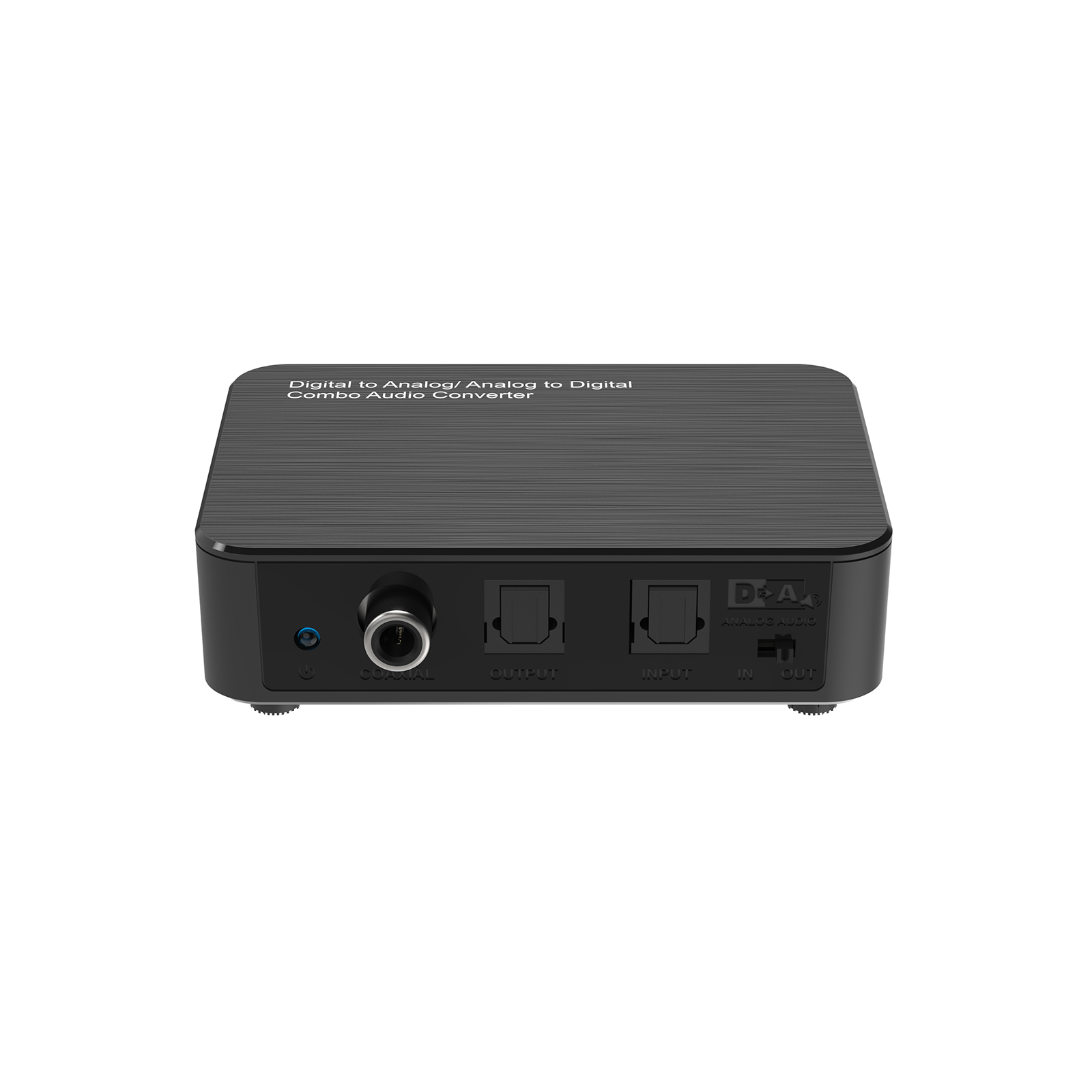

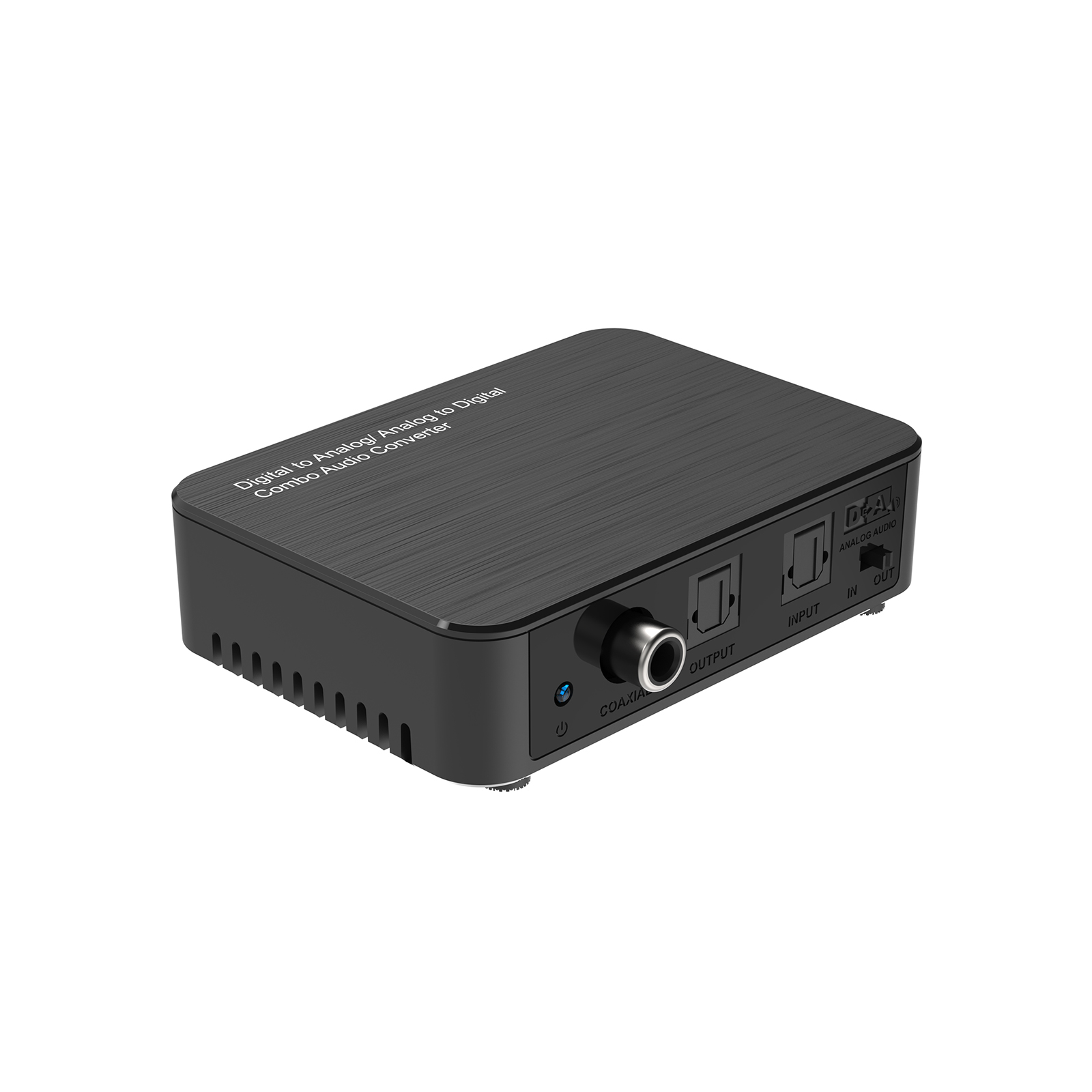

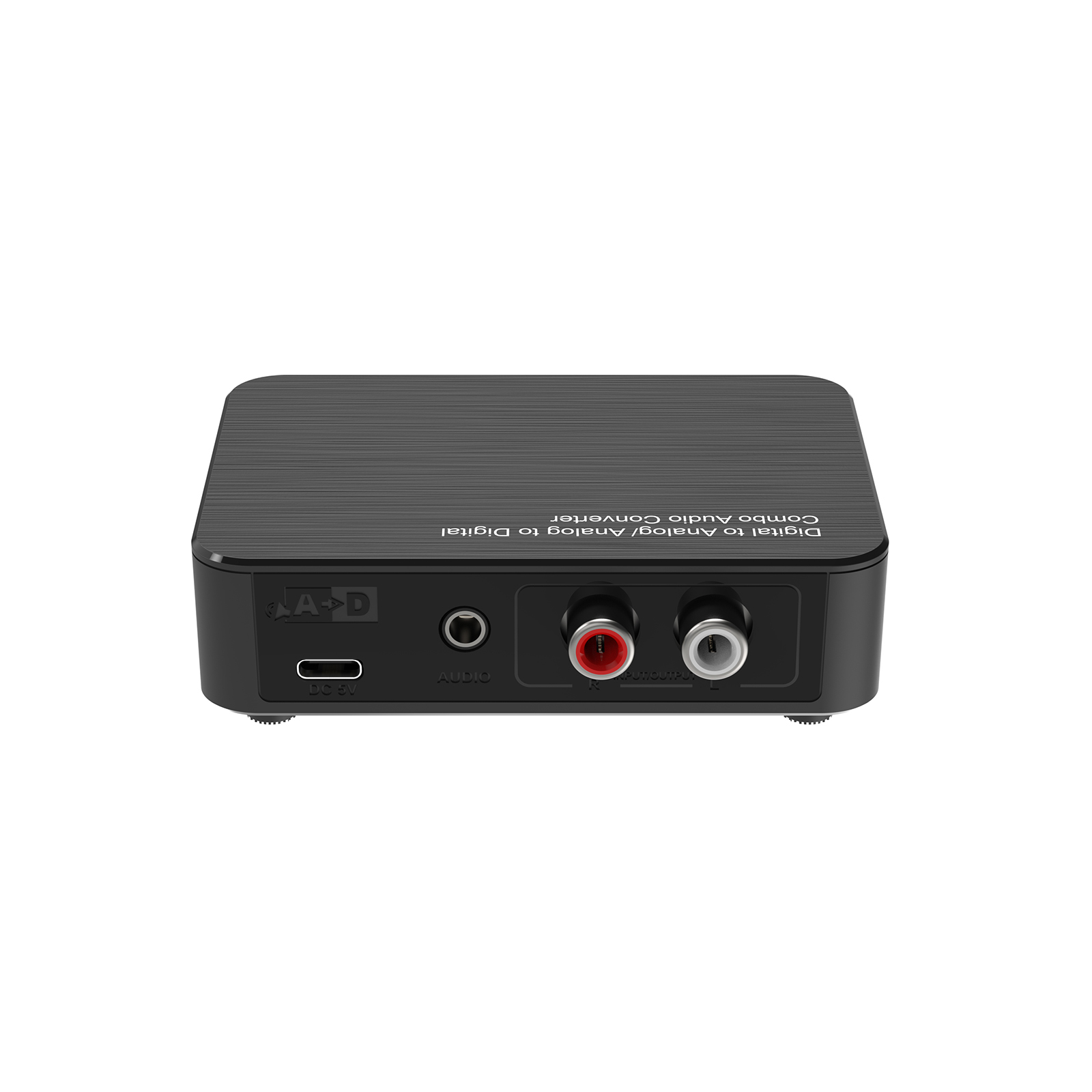

Digital to Analog/ Analog to Digital Combo Audio Converter

Package Content

INTRODUCTION

This Digital to Analog/Analog to Digital Combo Audio Converter is converter is designed for either home or professional audio switching It convert coaxial or optical digital audio input to analog stereo output over RCA or 3.5mm , and also can convert analog audio signals to digital audio signals , it can convert in either direction. It is compatible with audio-visual equipment such as TVs, media players, amplifiers, and powered speakers, and solves the problem of incompatibility between new and old audio interfaces.

FEATURES

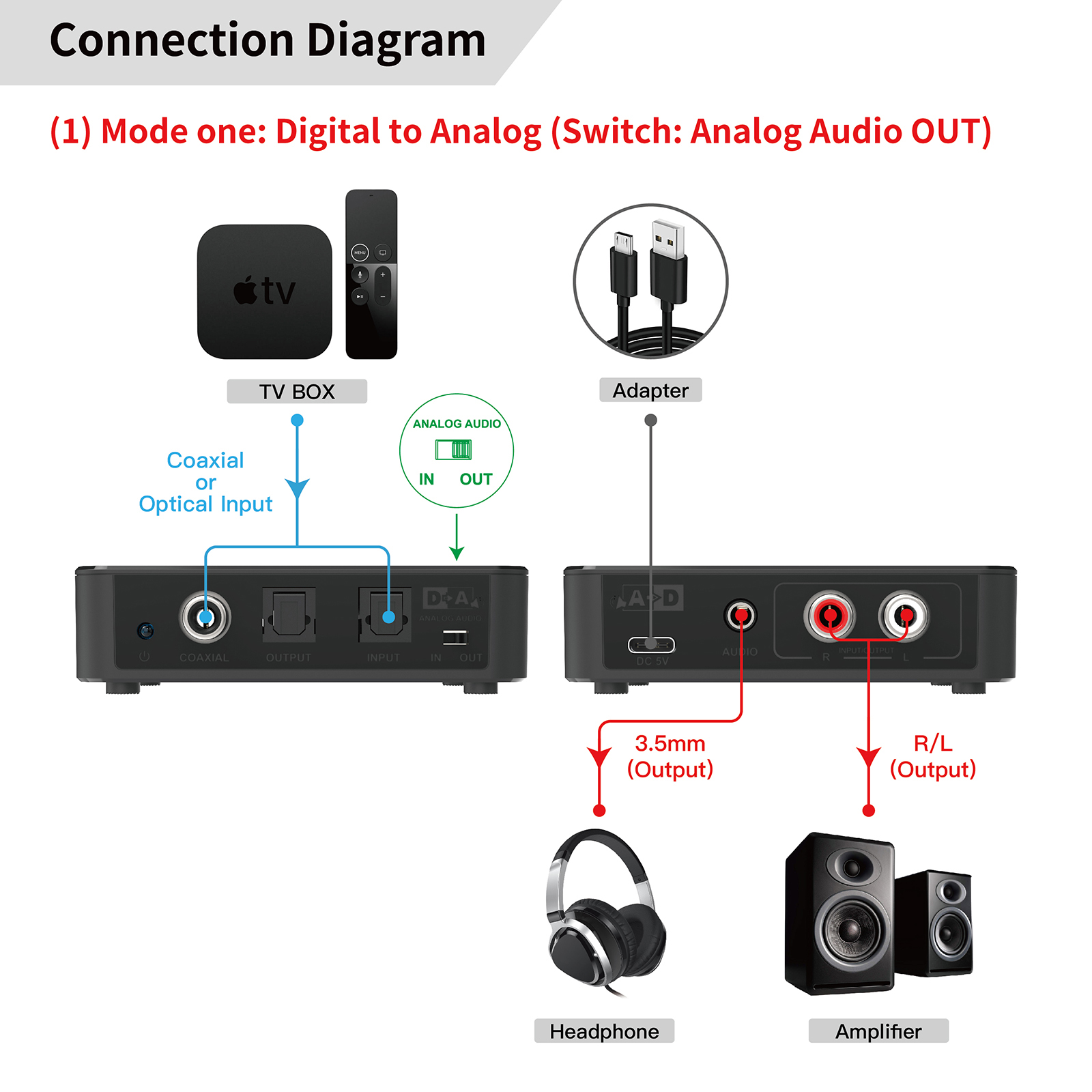

  • Supports coaxial or optical digital audio to analog stereo audio

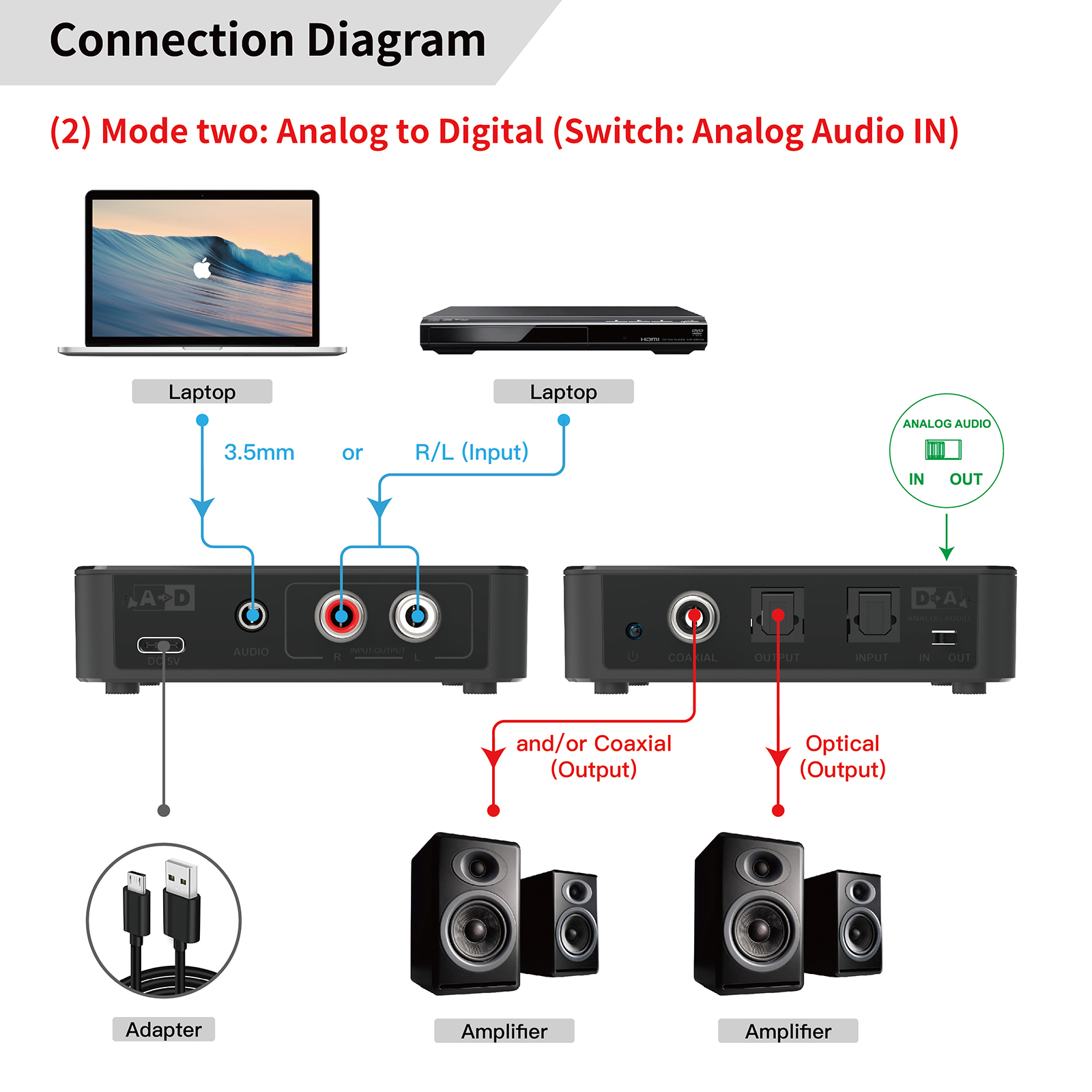

  • Supports analog stereo audio to coaxial or optical digital audio
  • Supports 2 channels LPCM digital audio signal output
  • Supports sampling rate at 44.1 KHz, 48 KHz, 96 KHz
  • Plug and play
SPECIFICATIONS
Input Audio

  • Coaxial/Toslink digital audio, 3.5mm stereo and R/L analog audio

Output Audio

  • Coaxial/Toslink digital audio, 3.5mm stereo and R/L analog audio

Bit Depth

  • 16bit/24bit

Sampling Rate

  • 32, 44.1, 48 ,64,88.2and 96 KHz

Digital Audio Channel

  • 2CH

Dimension(LxWxH)

  • 87x62x25mm

Net Weight

  • 53g

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0 ℃ to +60℃

Operating Humidity

  • 10% to 85 % RH (no condensation)

Storage Temperature

  • -10℃ to +80℃

Storage Humidity

  • 5% to 90 % RH (no condensation)

Powered By

  • USB-A to USB-C Power Cable (DC 5V 1A) x1

Power Consumption (Max)

  • 1W

Converter Unit

  • FCC.CE, RoHS

Material

  • ABS

User Manual

  • English Version

Note: Specifications are subject to change without notice.
