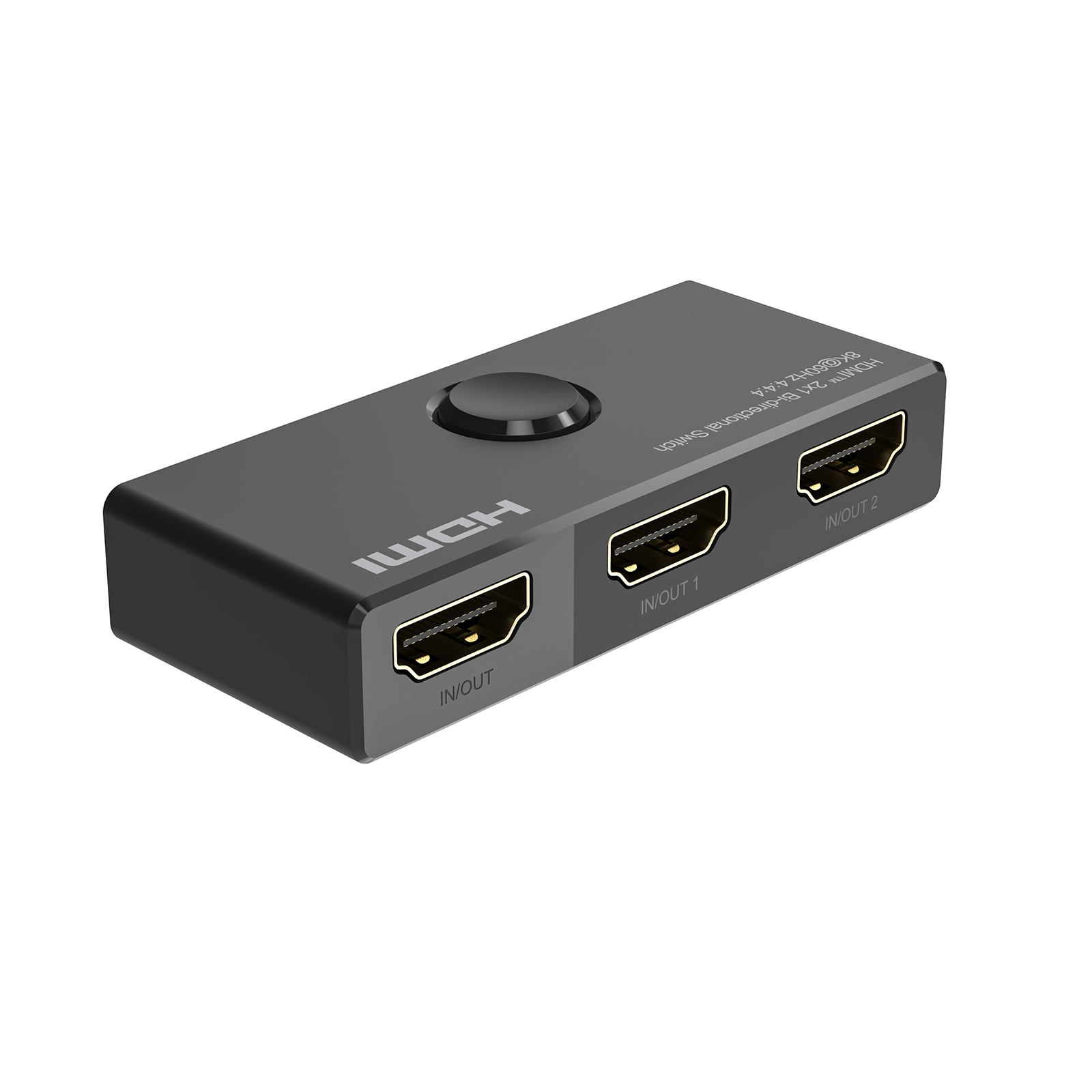

HDMI™ 2×1 Bi-directional Switch 8K@60Hz

Package Content


This HDMI 2 ports bi-direction manual switches. It can easily switch two routes of 8K@60Hz UHD Source to one of any UHD display or projector or distribute one 8K@60Hz UHD Display or projector to two displays (not synchronously). This newer bi-directional switch adopts an integrated IC solution to reduce product power consumption for improved compatibility. For added versatility, the switch can draw power from the input sources via HDMI Cable. It is very convenient in areas where access to power outlets is limited.

  • 2 HDMI-Host to 1 HDMI monitor.
  • 1 HDMI-Host to 2 HDMI monitors.
  • Support high definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz.
  • Support 1200MHz/12Gbps per channel bandwidth (48Gbps all channels).
  • Support 12bit per channel (36bit all channels) deep color.
  • Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4.
  • Support High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision, etc.
  • Support VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) function.
  • Support Consumer Electronics Control.
  • Support uncompressed audio such as LPCM.
  • Support compressed audio such as DTS, Dolby Digital(including DTS-HD Master Audio™ and Dolby TrueHD).
  • Easy installation & operation: plug and play.
Input Ports

  • HDMI x 1(1 in 2 out)/ HDMI x 2(2 in 1 out)

Output Ports

  • HDMI x 2(1 in 2 out)/ HDMI x 1(2 in 1 out)

Vertical Frequency Range

  • 50/60/100/120/240Hz

Video Amplifier Bandwidth

  • 12Gbps/1200MHz per channel(48Gbps all channels)


  • 480i, 576i, 1080i


  • 480p, 576p, 720p, 1080p, 4K@24/30Hz,4K@50/60/120Hz, 8K@24/30/50/60Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • N/A

Power Consumption (Max)

  • 5W

Splitter Unit Cert

  • FCC, CE, RoHS


  • 71.5x32x14.5mm

Net Weight

  • 28g


  • ABS

User Manual

  • English Version

Note: Specifications are subject to change without notice.
