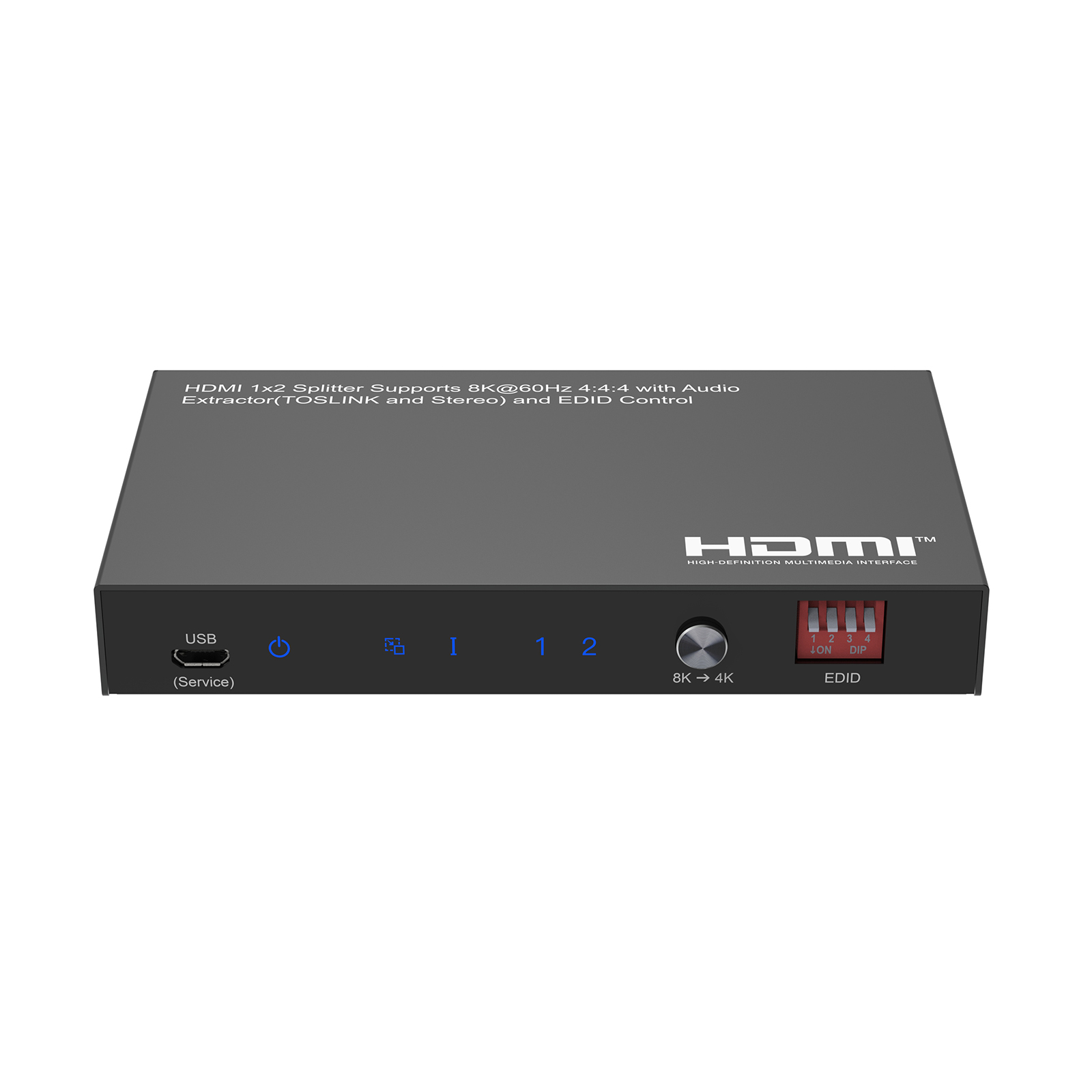

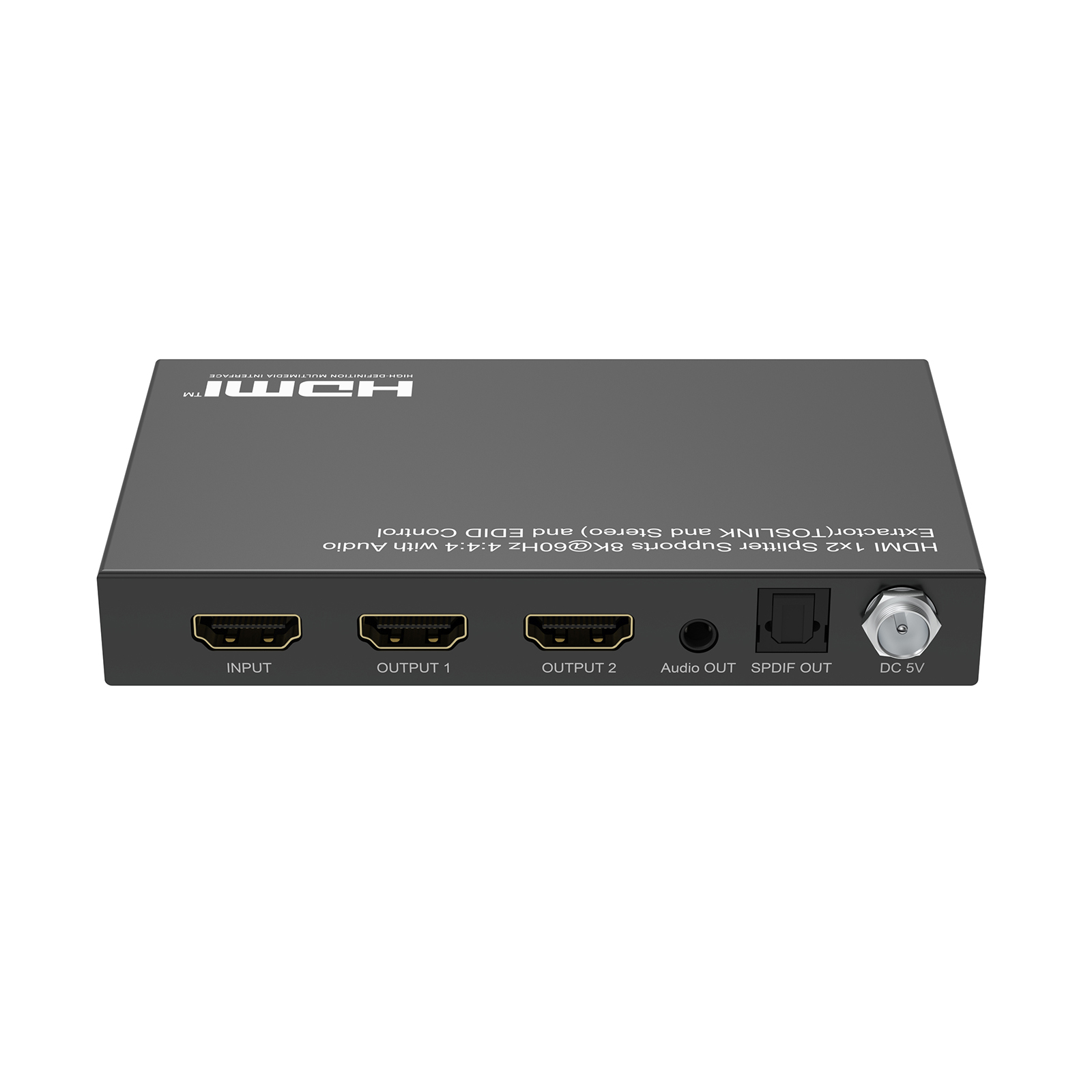

HDMI™ 1×2 Splitter Supports 8K@60Hz 4:4:4 with Audio Extractor(TOSLINK and Stereo) and EDID Control

Package Content

INTRODUCTION

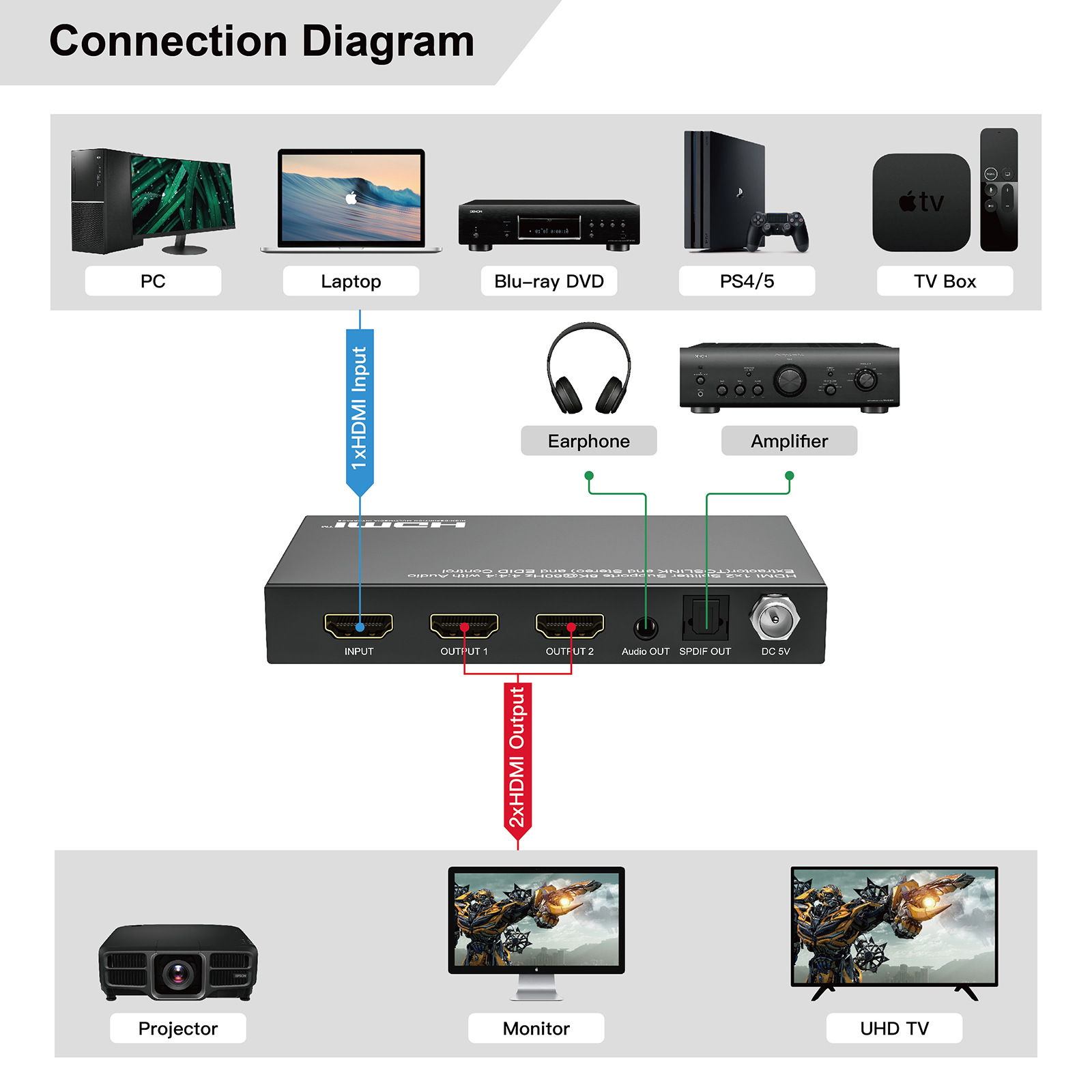

The HDMI™ 8K splitter 1×2 lets you share two HDMI™ displays or projectors with an HDMI-enabled audio/video source device. With support for Ultra HD (8K@60Hz), the HDMI™ splitter ensures astonishing picture quality, four times the resolution of UHD 4K@60 Hz. The 8K splitter is also backward compatible with previous HDMI™ revisions, supporting 4K/1080p / 720p HDMI™ video resolution devices. Even if you don’t require 8K video today, the HDMI™ 8K Splitter 1×2 ensures you’ll be ready to take advantage of tomorrow’s display technology. It features EDID management for copy output1 EDID and fifteen default EDID modes to meet the needs of different display occasions. It also supports audio extract from HDMI source to optical and analog out.

FEATURES
  • Support full 3D video format.
  • Support high definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz.
  • Support 1200MHz/12Gbps per channel bandwidth (48Gbps all channels).
  • Support 12bit per channel (36bit all channels) deep color.
  • Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4.
  • Support High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision etc.
  • Support Consumer Electronics Control function.
  • Support uncompressed audio such as LPCM.
  • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
  • Support EDID managment for copy output1 EDID and fifteen default EDID modes.
SPECIFICATIONS
Input Ports

  • HDMI x 1

Output Ports

  • HDMI x 2

Vertical Frequency Range

  • 50/60Hz

Video Amplifier Bandwidth

  • 12Gbps/1200MHz per channel(48Gbps all channels)

Interlaced(50&60Hz)

  • 480i, 576i, 1080i

Progressive(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • DC 5V Power Adapter

Power Consumption (Max)

  • 5W

Splitter Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • FCC, CE, RoHS

Power Adapter Standard

  • US, EU, UK, AU Standard etc.

Dimension(LxWxH)

  • 122×70.5x18mm

Net Weight

  • 191g

Note: Specifications are subject to change without notice.
