HDMI 4×2 Matrix with Ouad Multi-viewer with Seamless Switcher Supports 4K@60Hz 4:4:4 with USB3.0 x3, USB1.1 x2(Keyboard/Mouse), Mouse Romaing Function, Audio Extractor(Optical and Stereo) , OLED Display, Touch Panel Switch, Web Gui Control and RS-232 Control

INTRODUCTION

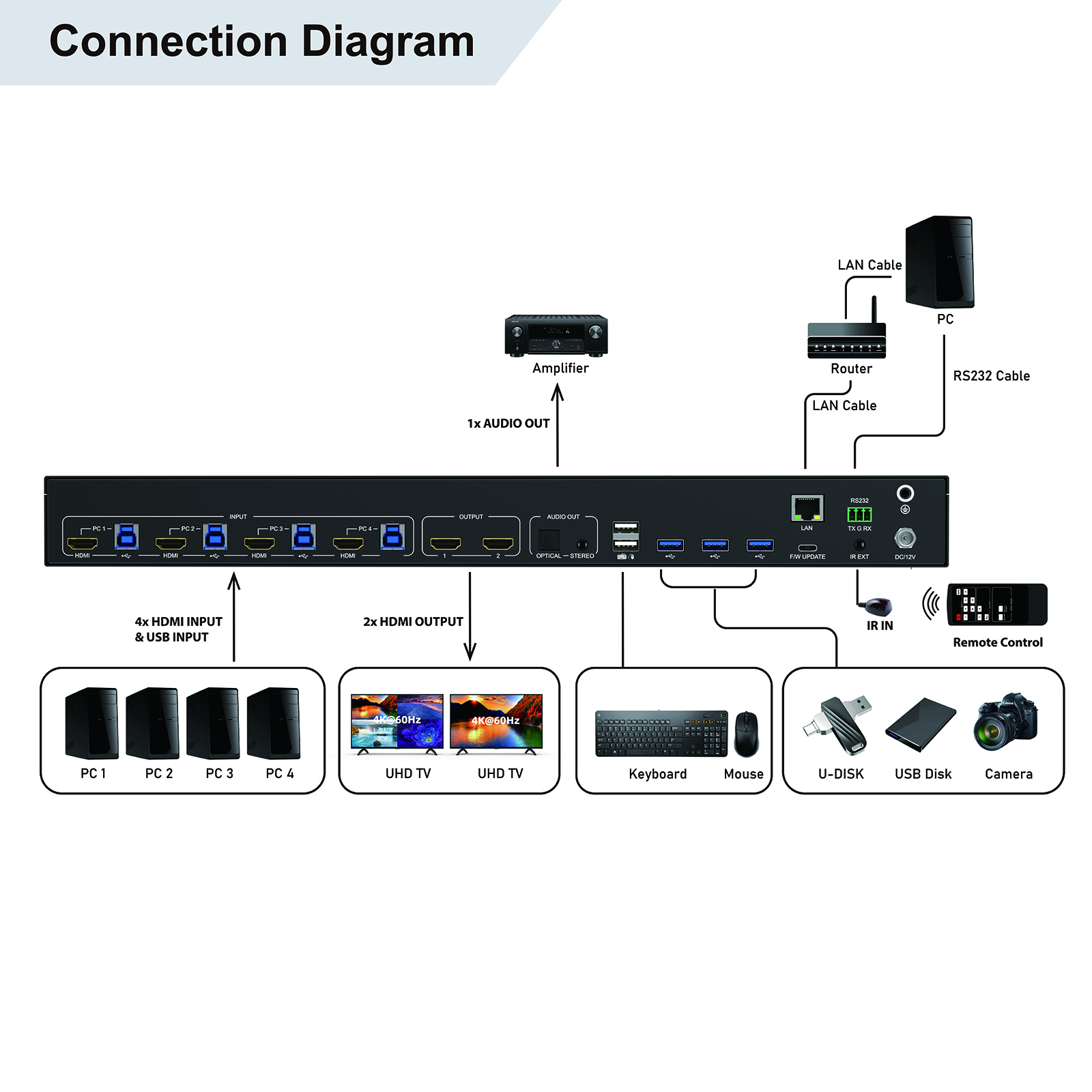

The HDMI 4×2 Matrix with Quad Multi-viewer with Seamless Switcher and USB3.0 data lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters – not included), with audio extractor( optical and stereo out) between 2 independent displays or projectors. This matrix switch features matrix/multi-viewer mode fits customers different needs allows each input and the corresponding audio to be switched individually as matrix mode, meaning that different four A/V sources can be shown on each output; multi-viewer mode to allow four input source show at a monitor simultaneously, offering maximum flexibility. The Matrix switcher features a front panel OLED display for easy status monitoring, plus a front panel Touch Keys control/IR control/RS232 control/WEB GUI control for multiple control method from a distance. Ideal for connecting/switching multiple sources in data centers, help desks and video broadcasting Facilities, Perfect for digital signage applications in retail environments requiring more than one media player.

FEATURES

• Support audio output simultaneously: Optical and Stereo audio
• Support two USB-A 1.1 ports for USB keyboards and mouse, and three USB 3.0 A ports for other USB devices up to 5Gbps
• Support mouse roaming control
• Support four IR in and IR out matrix switch

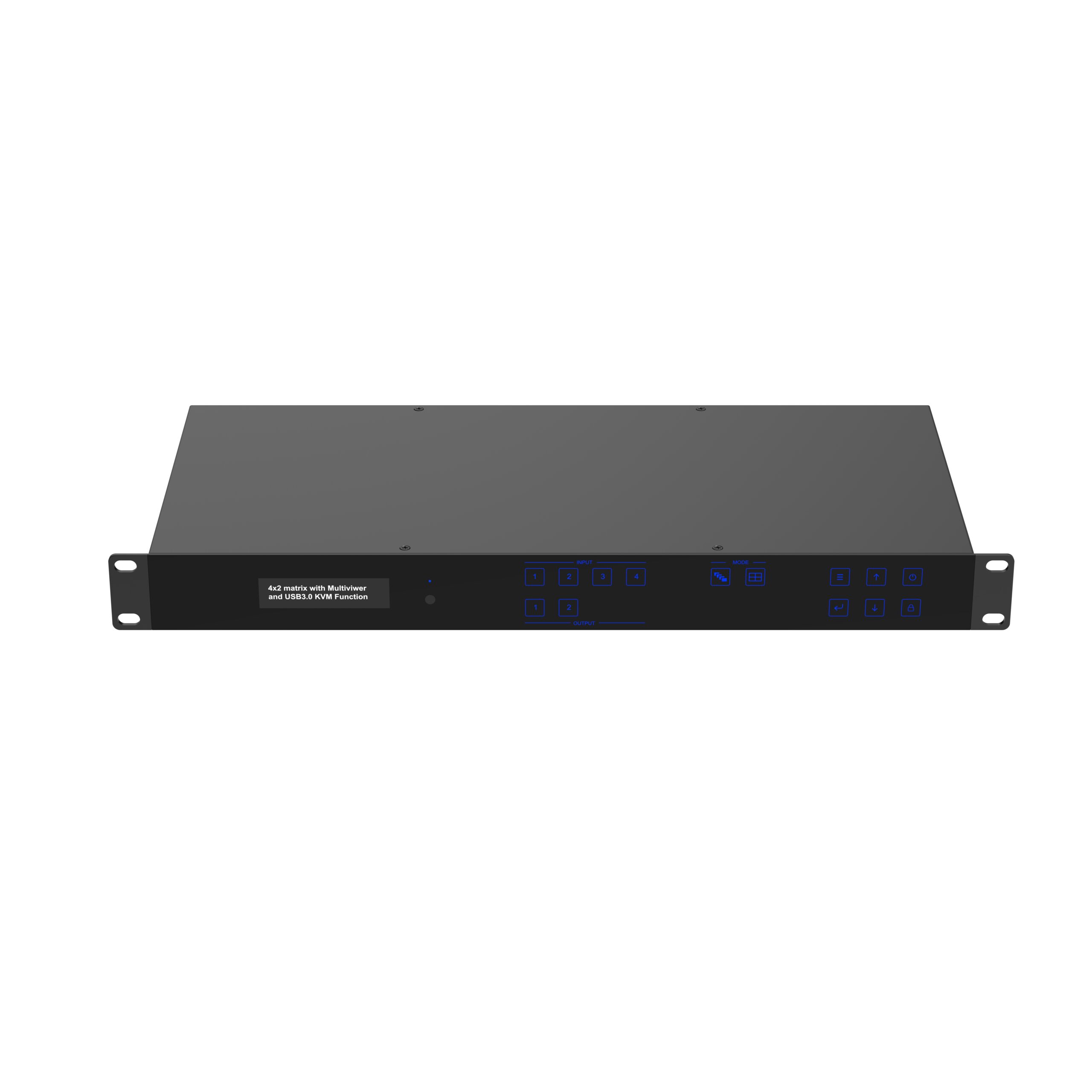

• Support OLED display mode and status
• Support multiplexed HDMI 4-input and 2-output.
• Support up to 4K@60Hz high definition resolution.
• Support 4 by 2 quad multi-viewer, seamless switch (with same resolution)
• Support scaler up, scaler down function.
• Support multi output resolution 1080p/1600P/4K@30Hz/4K@60Hz
• Support HDCP2.3, HDCP 2.2 and HDCP 1.4
• Support digital audio format LPCM/AC3/DTS.
• Support the highest data transmission rate, up to 6.0Gbps per channel (18Gbps for all channels) TMDS clock can reach 600MHz
• Support 12 bits per channel (36 bits for all channels) deep color

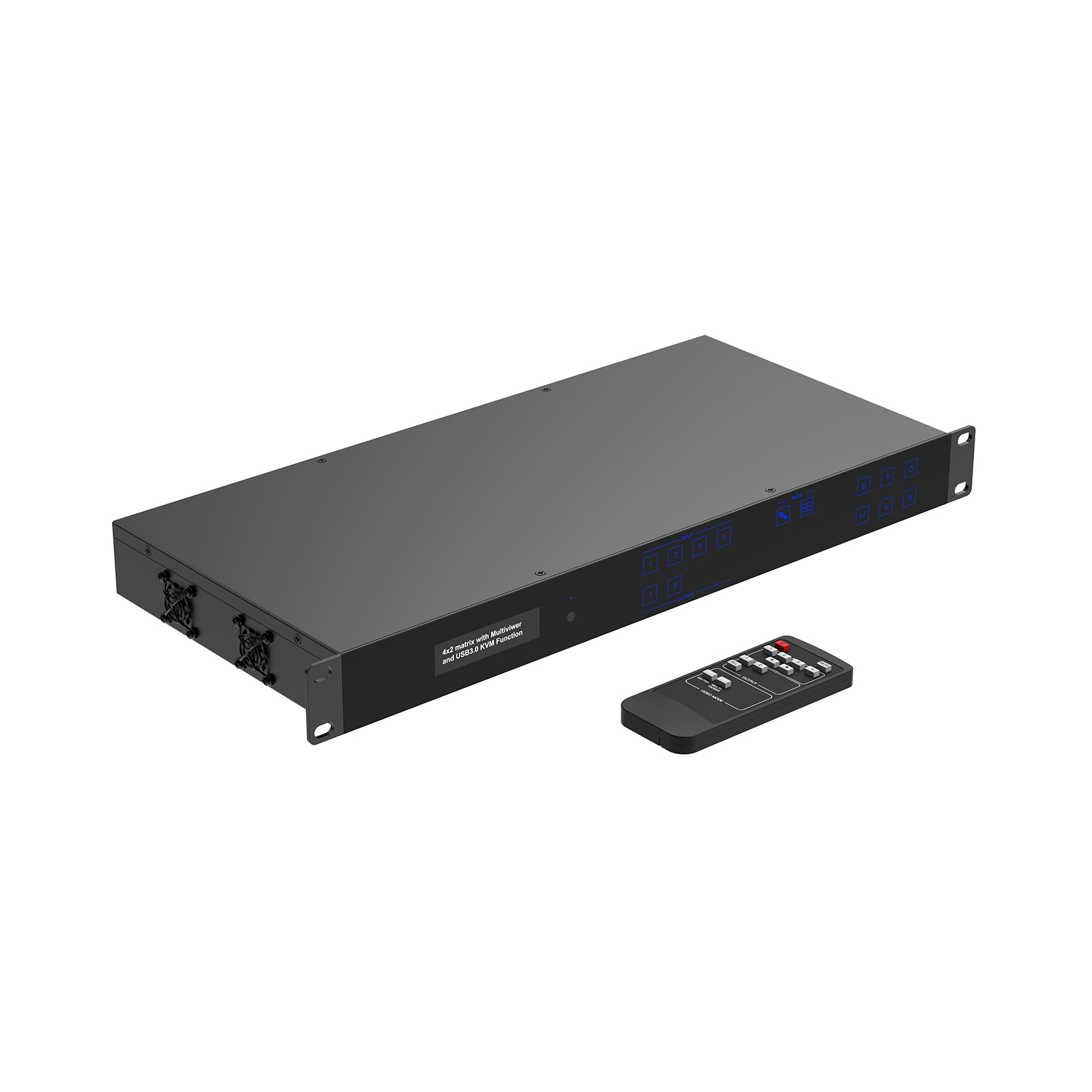

• Support manual control, IR remote control,front Touch Keys control, WEB GUI Control and RS232 control
