INTRODUCTION
Thank you for purchasing from the EDID emulator range. This product has been designed to provide trouble free, reliable operation.To ensure correct use, please read this manual carefully and retain it for future reference.

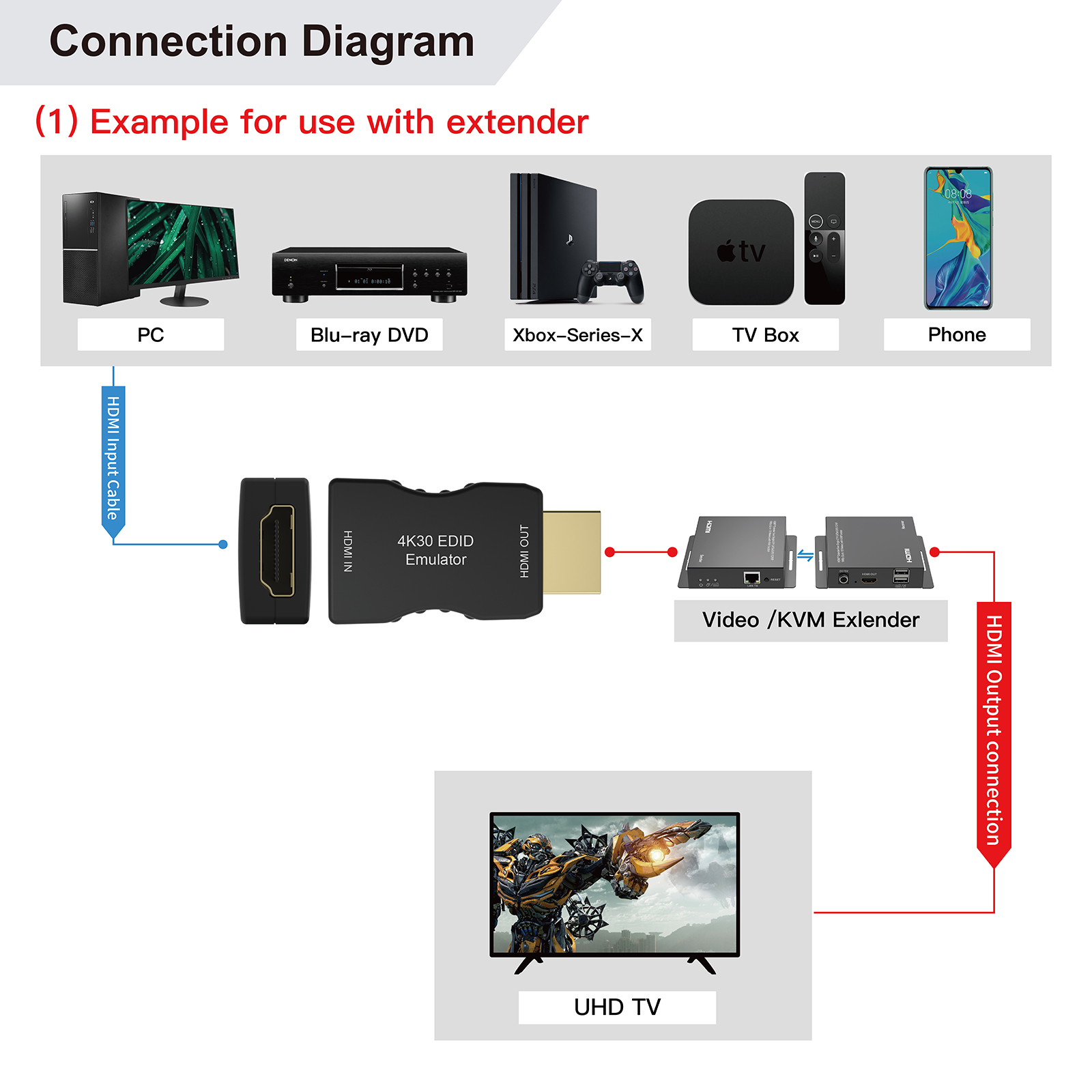

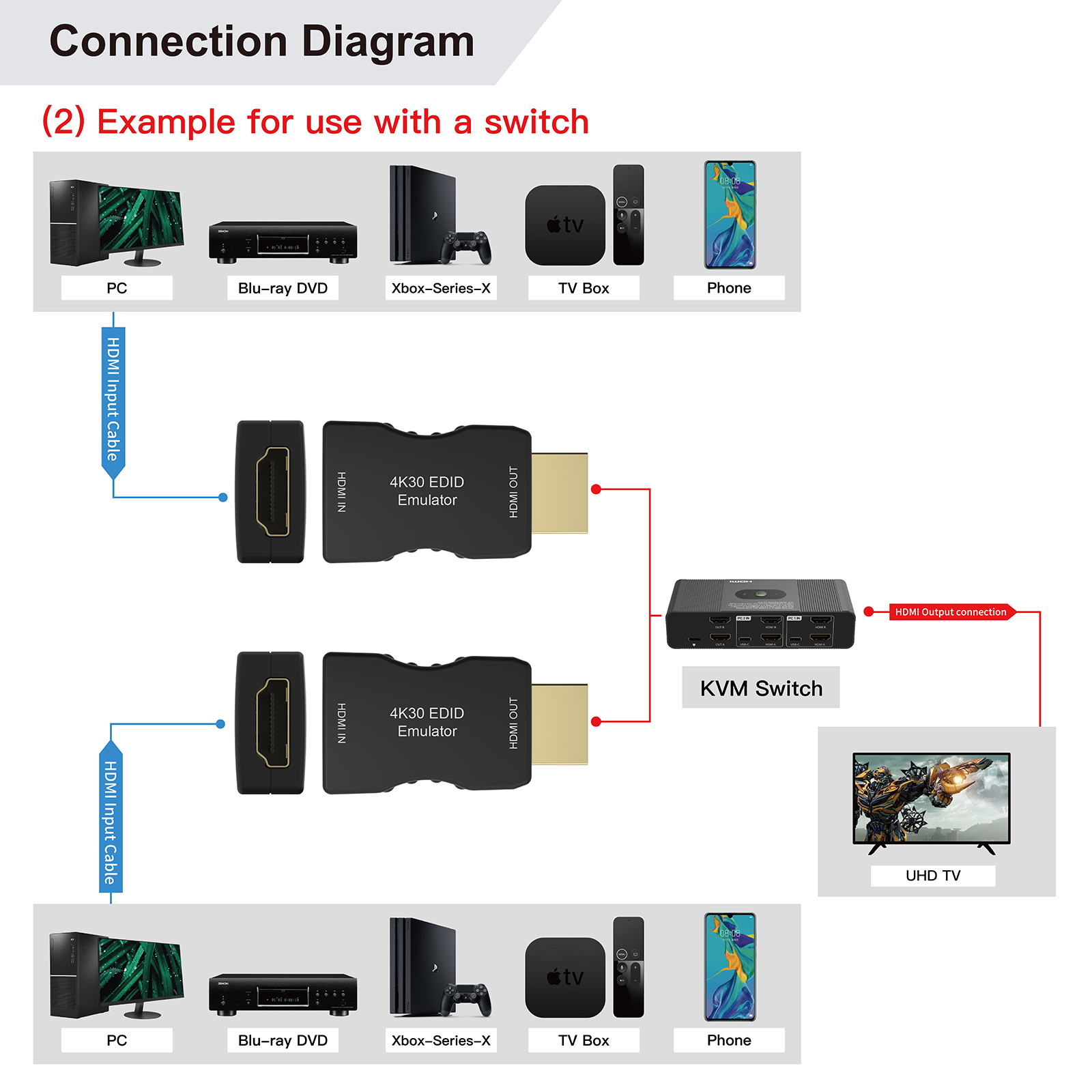

The EDID recorder is a useful solution for solving a variety of EDID compatibility issues that may occur when connecting mixed displays or using splitters, extenders or switches. This emulator possess pre-set EDIDs to consistently provide hassle-free EDID compatibility
FEATURES
- Contains preset EDID/DDC data for commonly used resolutions and refresh rates up to 4K@30Hz.
- Powered via HDMI interface

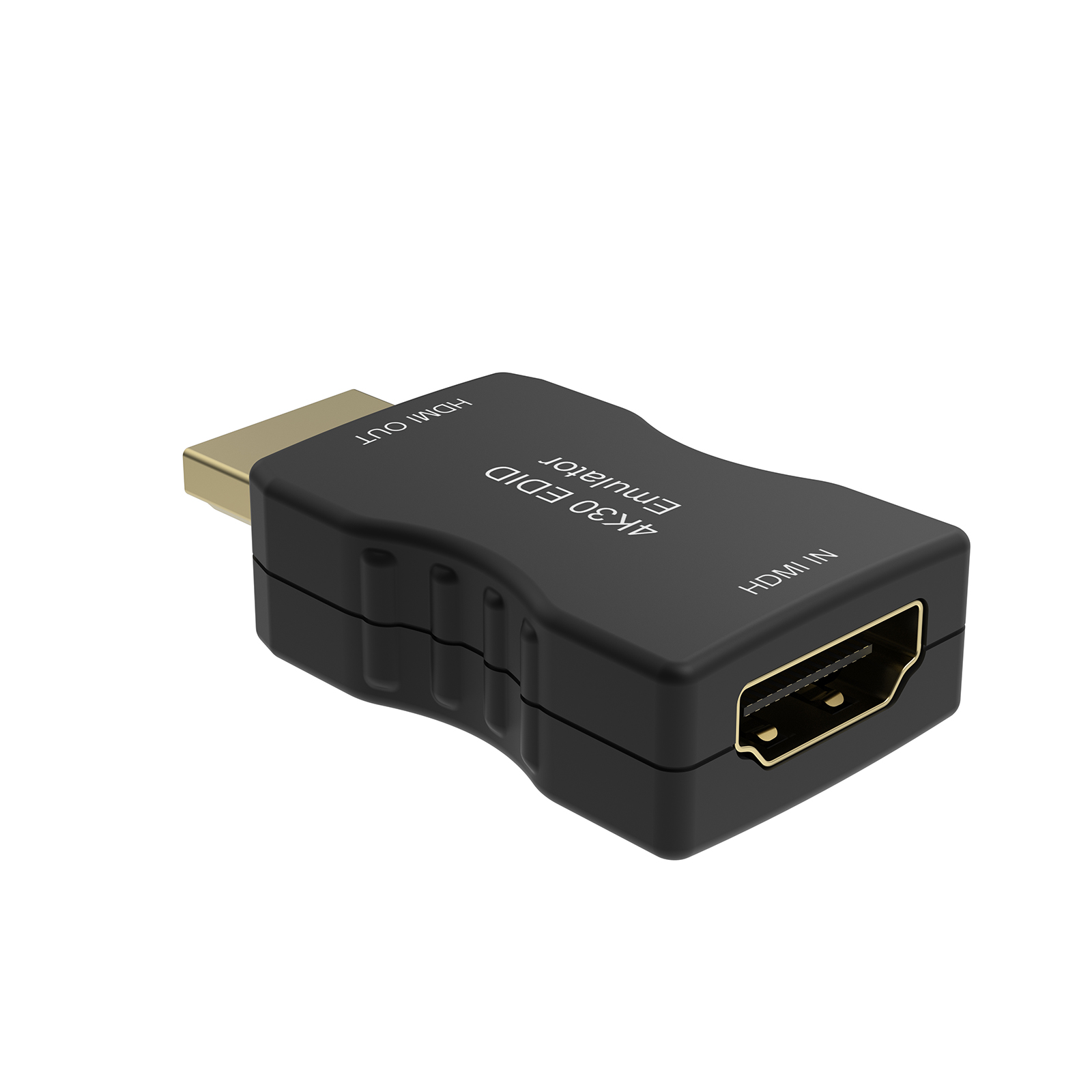

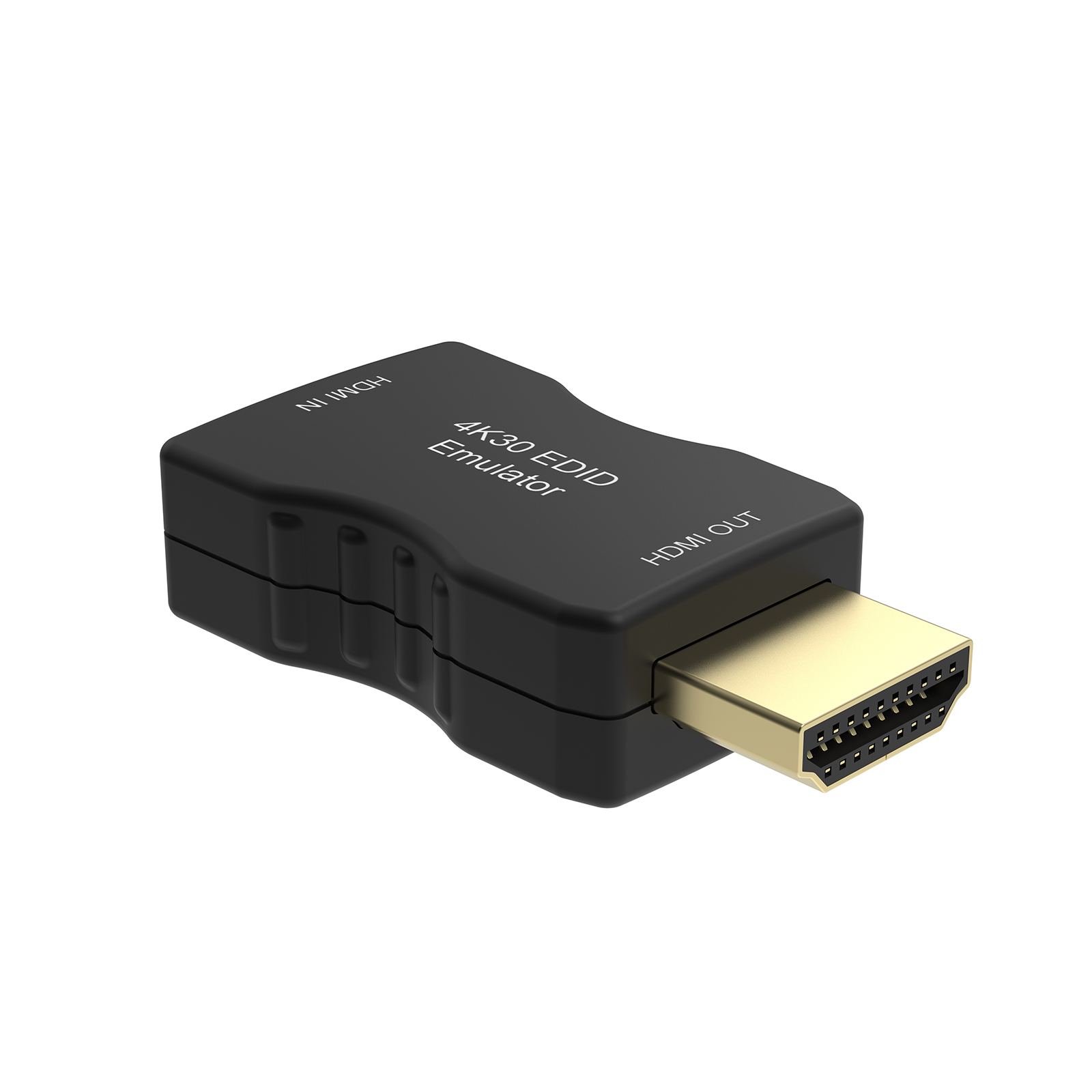

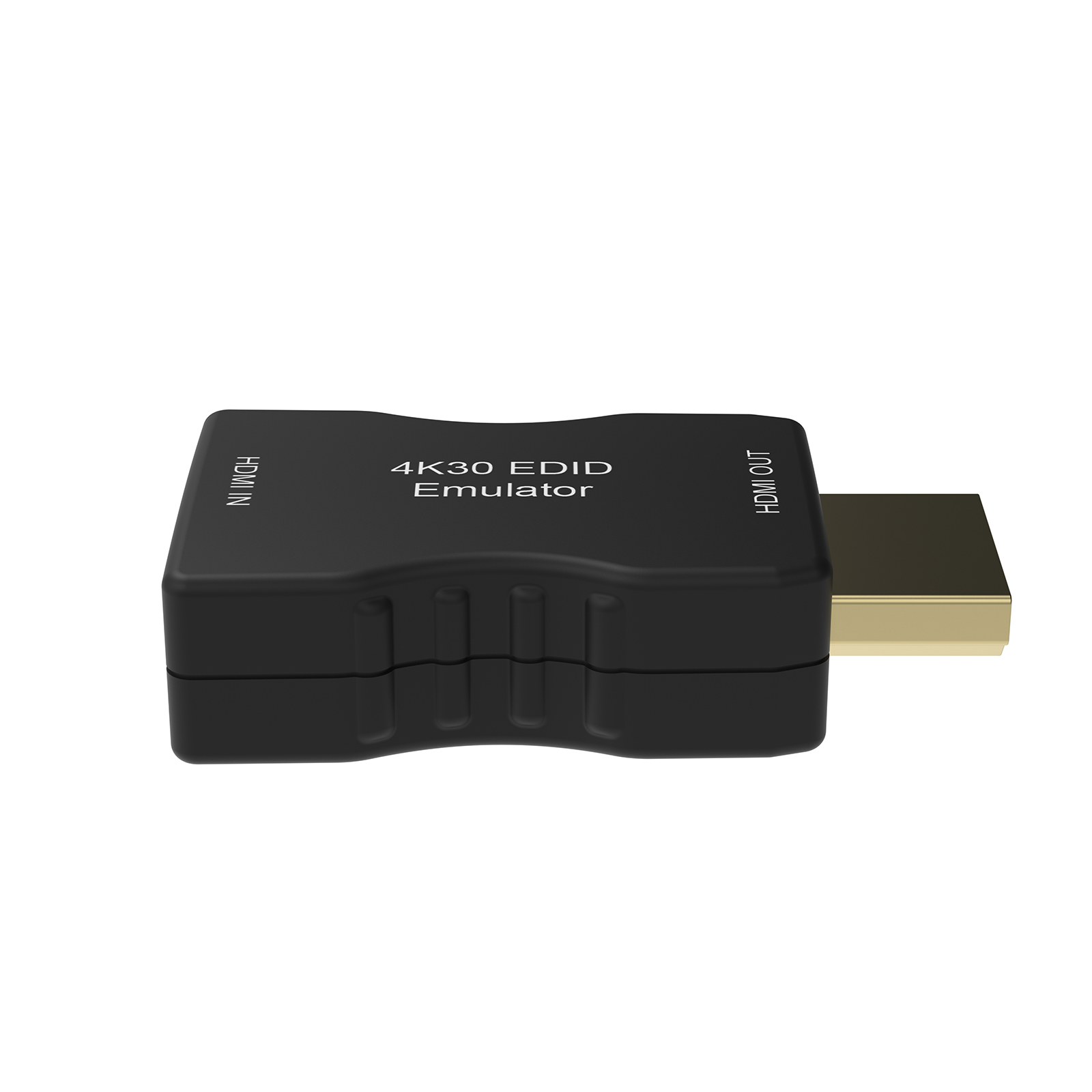

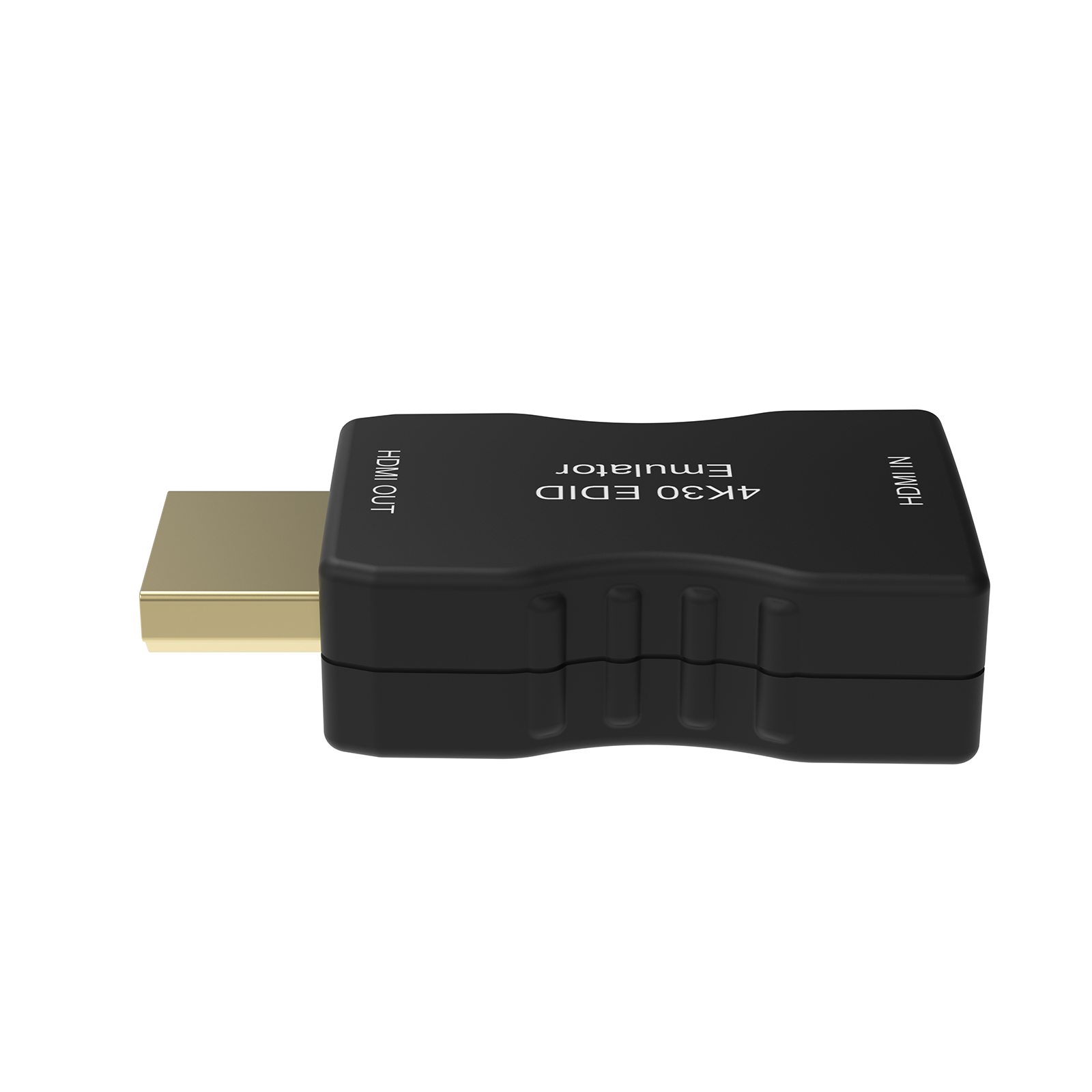

- Support HDMI male plug and HDMI female socket
- Support full 3D video format
- Support high resolution up to4K@30Hz YUV 4:4:4
- Support HDCP 1.4
- Support Consumer Electronics Control(CEC)
- Support highest data transfer rate up to 3.4Gbps per channel (10.2Gbps all channels)
- TMDS clock can be up to 340MHz
- Support 12bit per channel (36bit all channels) deep color
- Support uncompressed audio such as LPCM
SPECIFICATIONS
Input Ports
- HDMI male x 1
Output Ports
- HDMI female x 1
Vertical Frequency Range
- 24/30/50/60/75Hz
Video Amplifier Bandwidth
- 3.4Gbps/340MHz per channel(10.2Gbps all channels)
Interlaced(50&60Hz)
- 480i,576i,1080i
Progressive(50&60Hz)
- 480p,576p,720p,1080p,4K@24/30Hz
Power Supply
- Power Supply via HDMI Source 5V Signal
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 70℃
Storage Humidity
- 5% to 90% RH non-condensation
Emulator Unit Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- 34.9*23.9*12mm
Net Weight
- 8.8g
Material
- ABS
User Manual
- English Version
Note: Specifications are subject to change without notice.
