INTRODUCTION

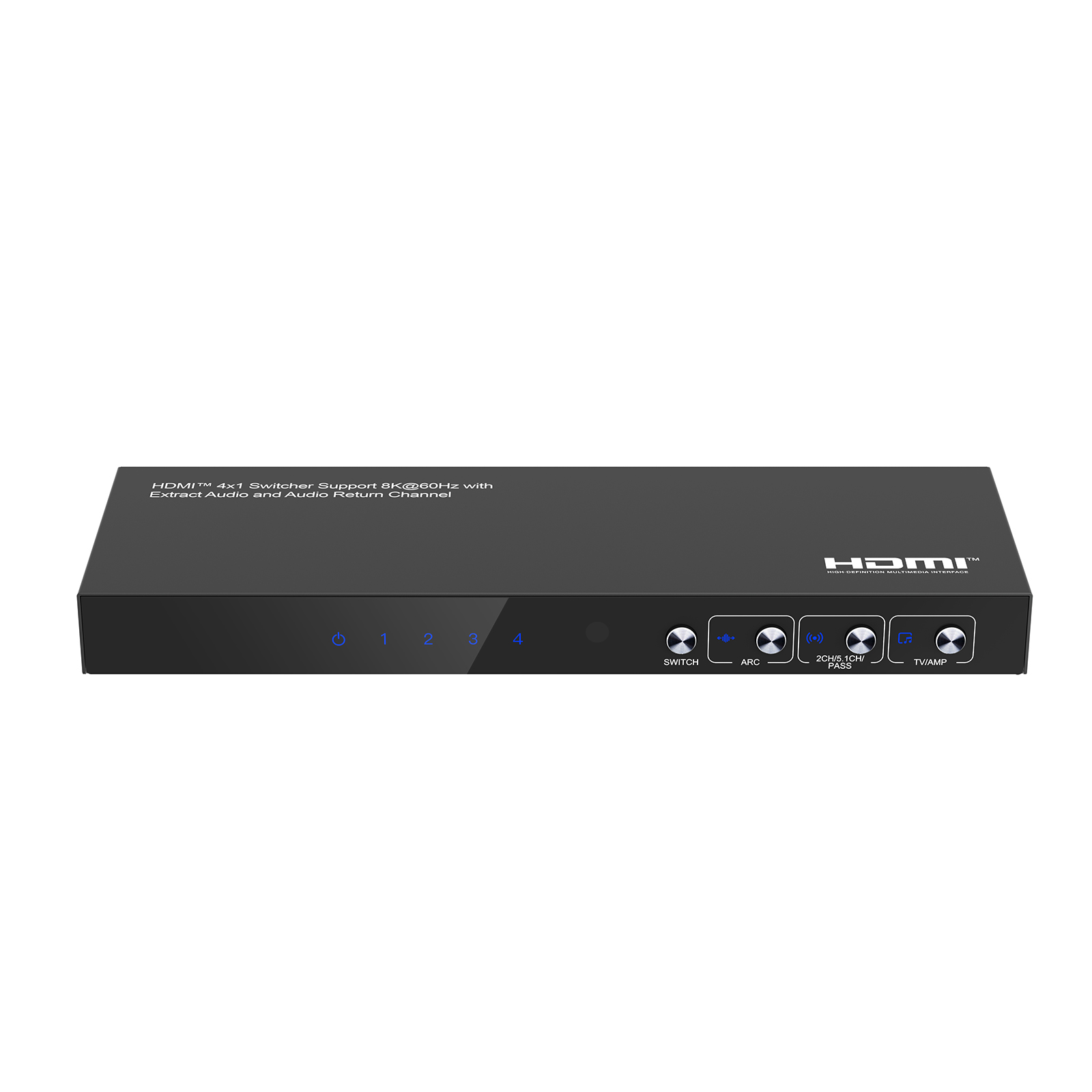

The HDMI 8K@60Hz 4×1 Switch with Audio Extractor is a high-performance HDMI switching device designed for home entertainment, gaming, and professional AV applications.

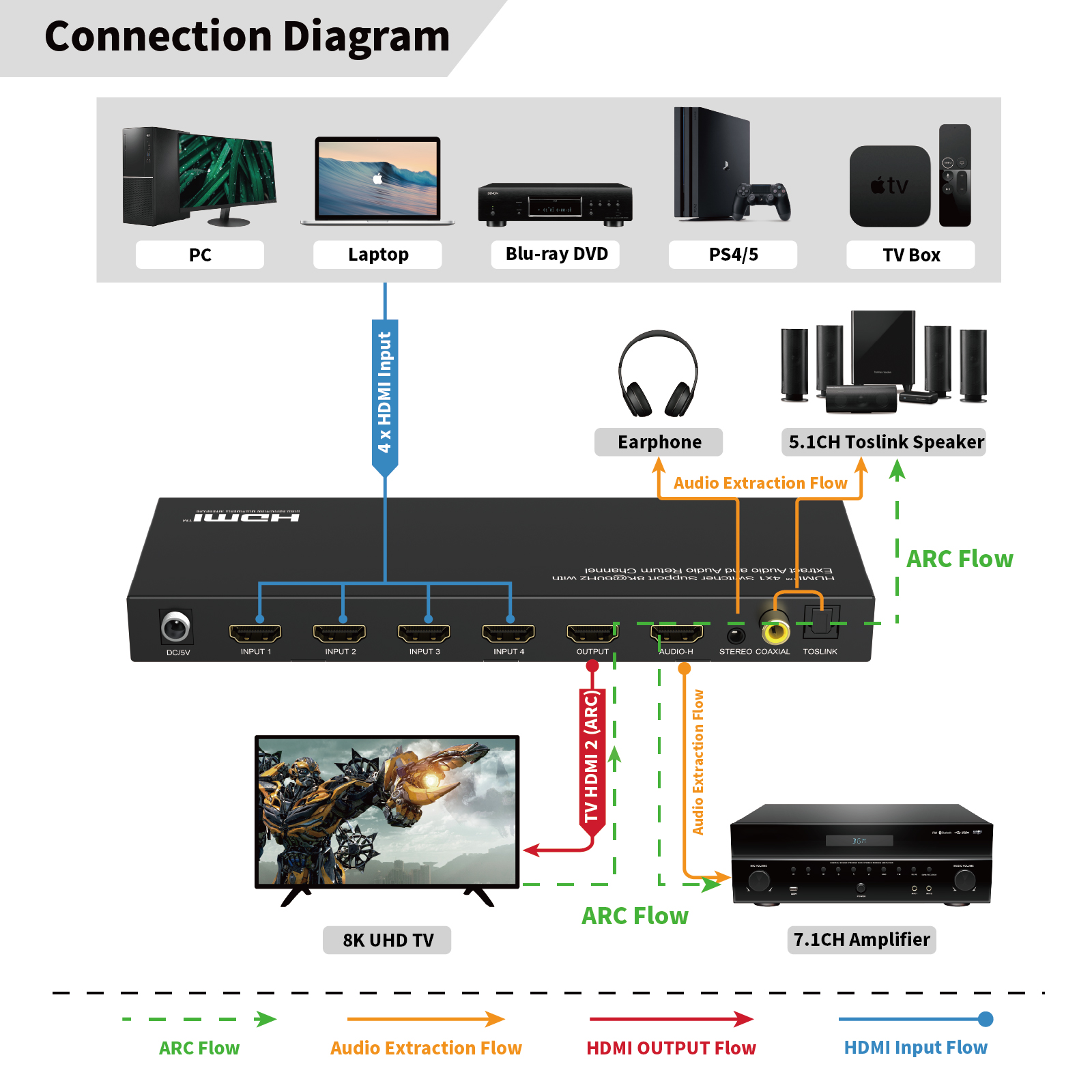

It allows four HDMI source devices to be connected to a single HDMI display while providing convenient signal switching and audio extraction functions.
With HDMI 2.1 technology, the device supports ultra-high-definition video transmission up to 8K@60Hz, high refresh rate gaming up to 4K@144Hz, advanced HDR formats, and next-generation gaming features including VRR, ALLM, and CEC.
The built-in audio extraction function allows HDMI audio signals to be separated and output through optical, coaxial, and analog audio interfaces, providing flexible connection options for sound systems, AV receivers, and external speakers.
Also, the audio embedded in HDMI can be extracted via Toslink or Coaxial and the switch can return the audios to AV receivers with audio return channel (ARC) function.
FEATURES

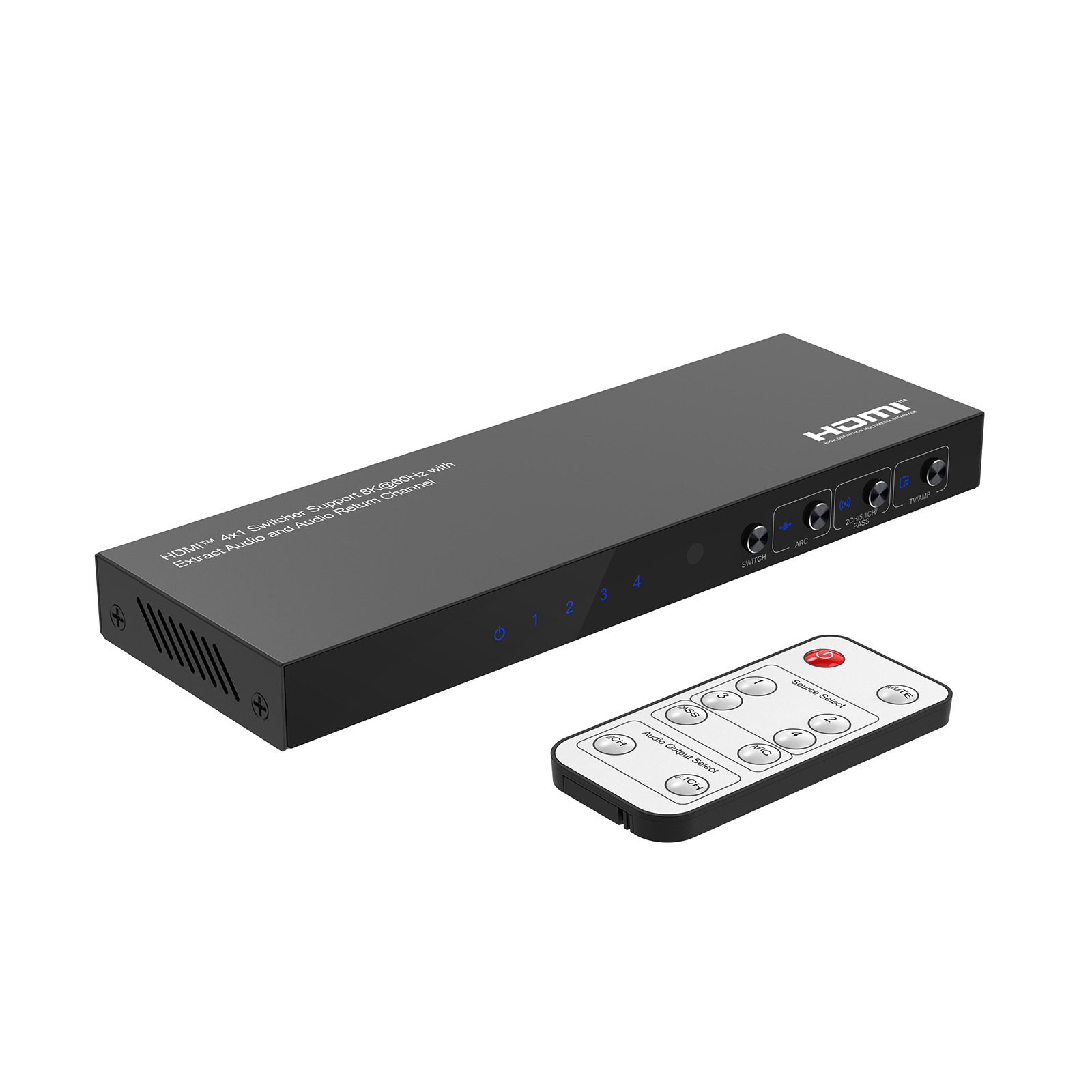

- Support manual control and remote control
- Enable the most recently activated video source to be displayed automatically
- Support digital audio output simultaneously: Audio-H (HDMI only for audio), Stereo, Toslink and Coaxial
- Support resolution up to 8K@60Hz 4:4:4, 4K@144Hz and 4K@120Hz
- Support 1200MHz/12Gbps per channel (48Gbps all channels) bandwidth
- Support 12bit per channel (36bit all channels) deep color
- Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4
- Supports HDR video pass-through, including HDR10, HDR10+, and Dolby Vision. Both the source device and display must support the corresponding HDR format to achieve HDR output.
- Support Consumer Electronics Control (CEC) function
- Support Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM)
- Support uncompressed audio such as LPCM 7.1
- Support compressed audio formats such as DTS, Dolby Digital, Dolby TrueHD, DTS-HD, Dolby Atmos and DTS:X
- Support Audio Return Channel (ARC) function
SPECIFICATIONS
Input Ports
- HDMI x 4
Output Ports

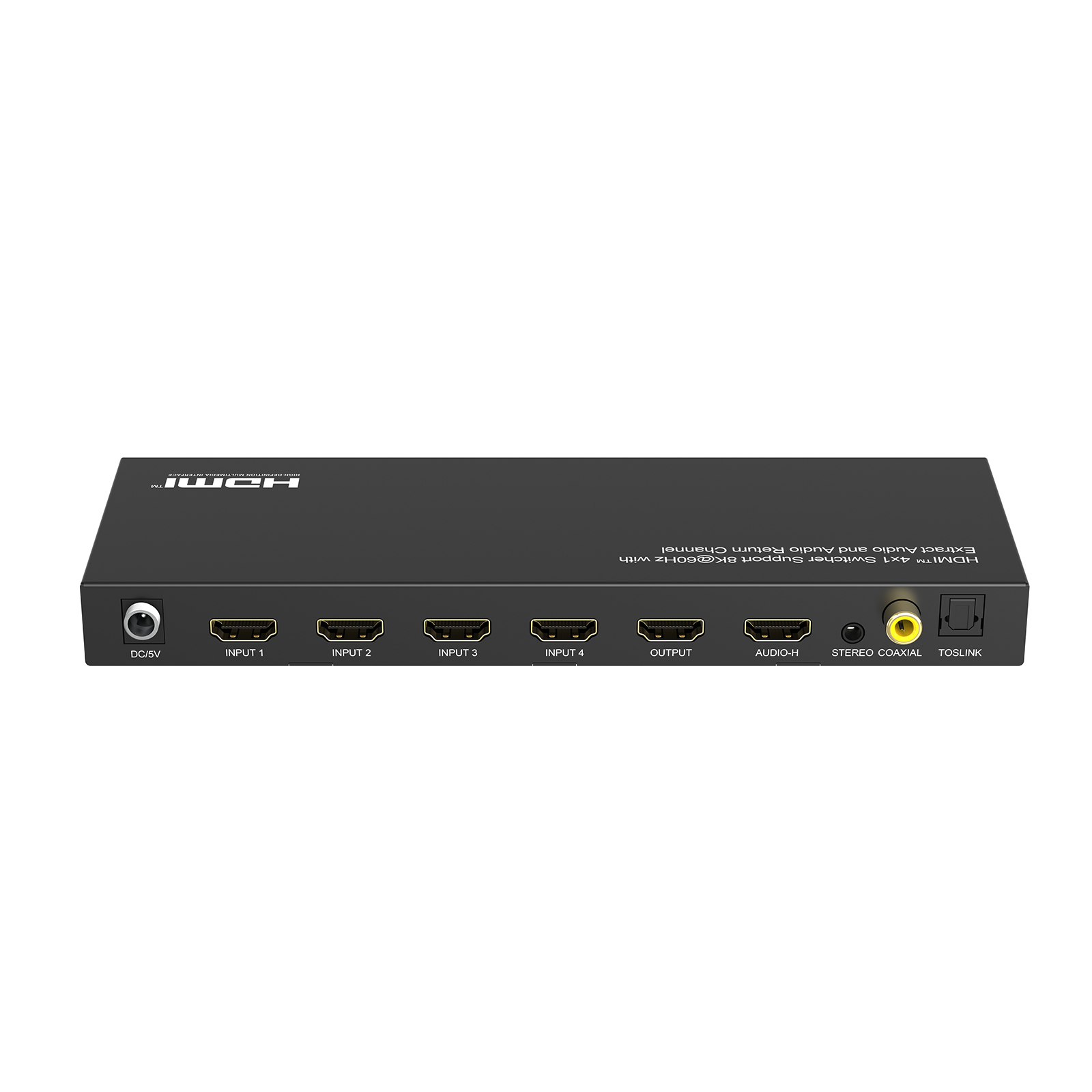

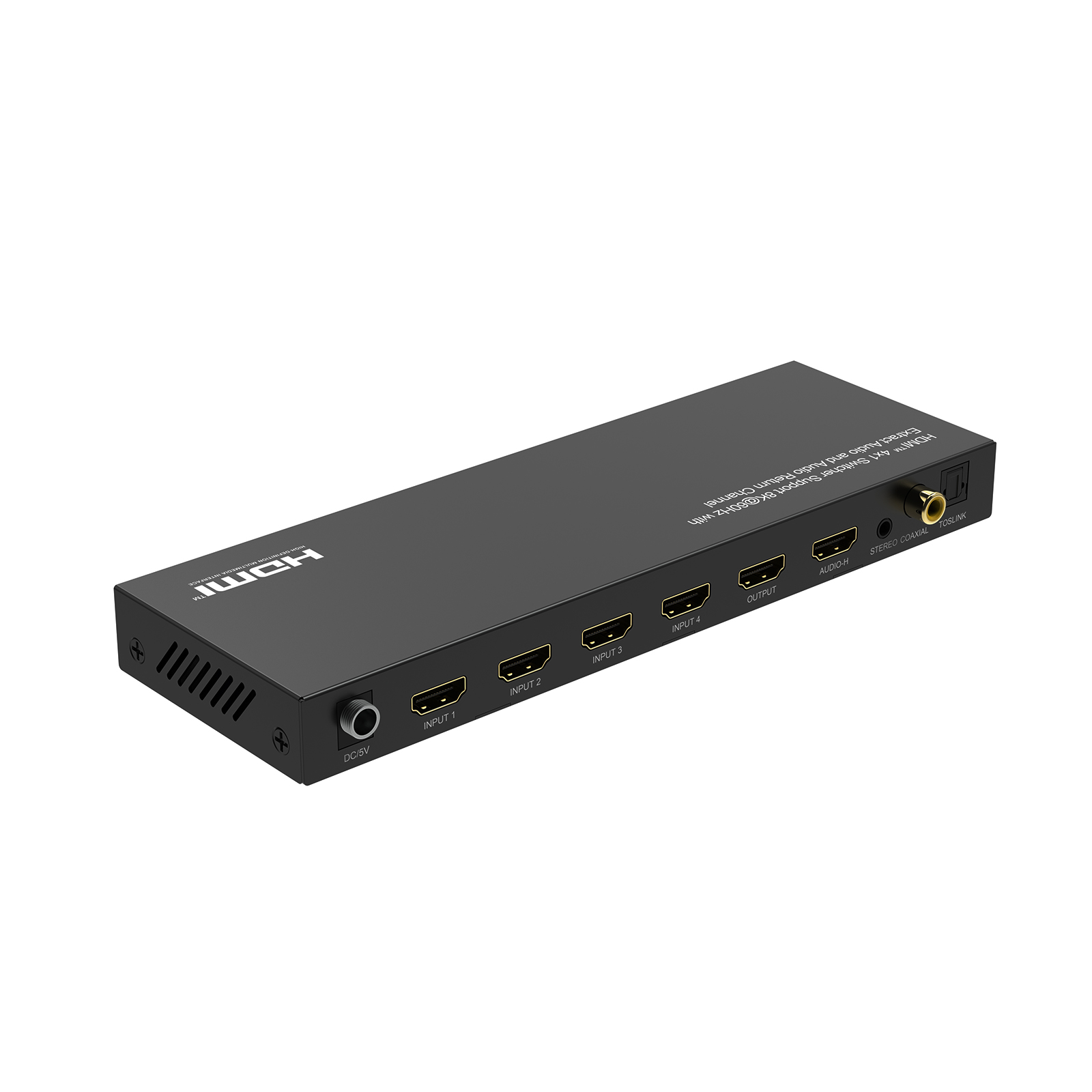

- HDMI x 1, Audio-H x 1, Stereo x 1,Coaxial x 1,Toslink x 1
Vertical Frequency Range
- 50/60Hz
Video Amplifier Bandwidth
- 12Gbps/1200MHz per channel(48Gbps all channel)
Interlaced(50&60Hz)
- 480i,576i,1080i
Progressive(50&60&120&144Hz)
- 480p,576p,720p,1080p,4K@50/60/120/144Hz,8K@50/60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 70℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- 5V DC @ 2A
Power Consumption (Max)
- 6W
Switcher Unit Cert
- CE, FCC, RoHS
Power Supply Cert
- CE, FCC, RoHS
Power Adapter Standard
- US, EU, UK, AU Standard etc.
Dimension(LxWxH)
- 211 x 66 x 26mm
Net Weight
- 356g
Material
- Metal
User Manual
- English Version
