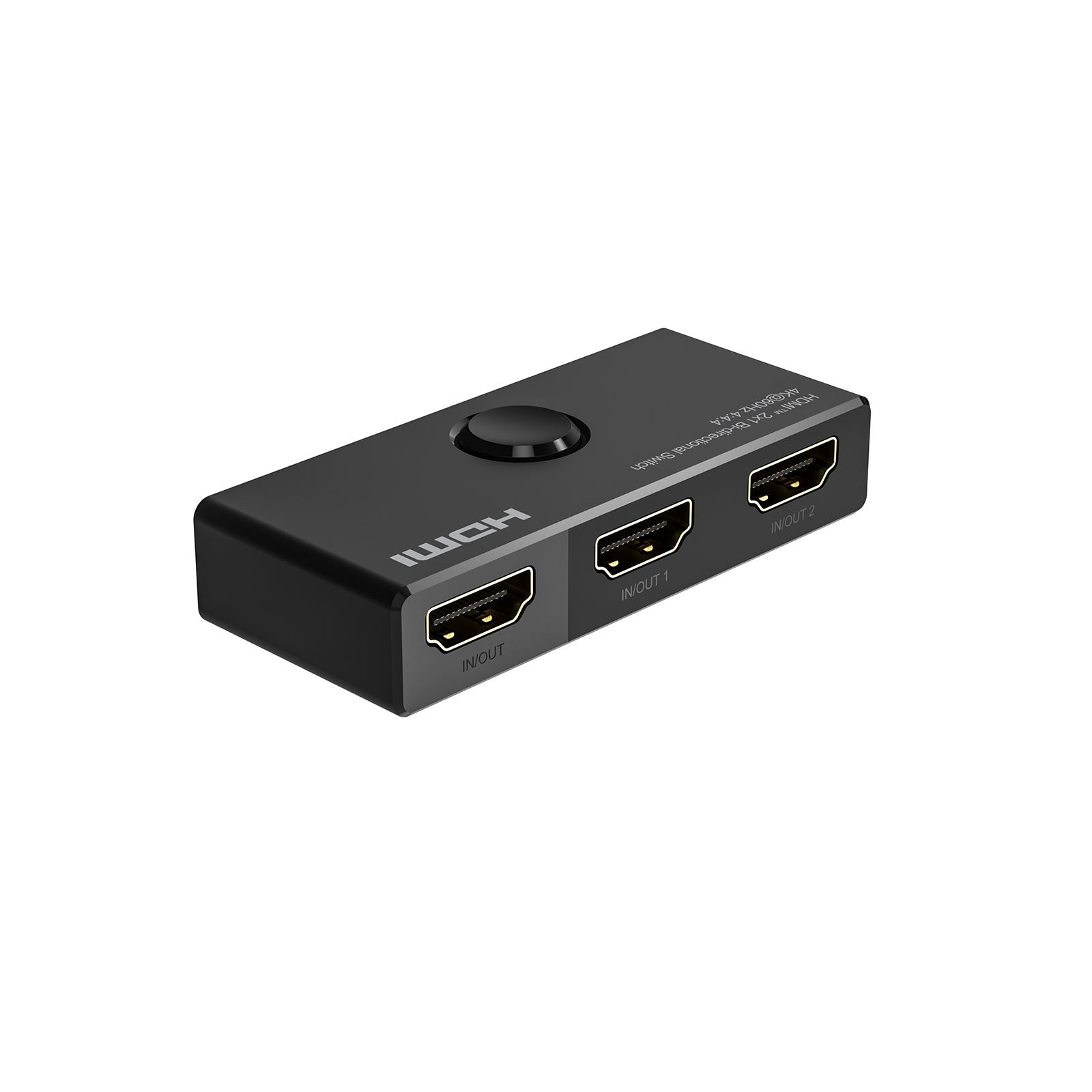

HDMI™ 2×1 Bi-directional Switch 4K@60Hz

Package Content

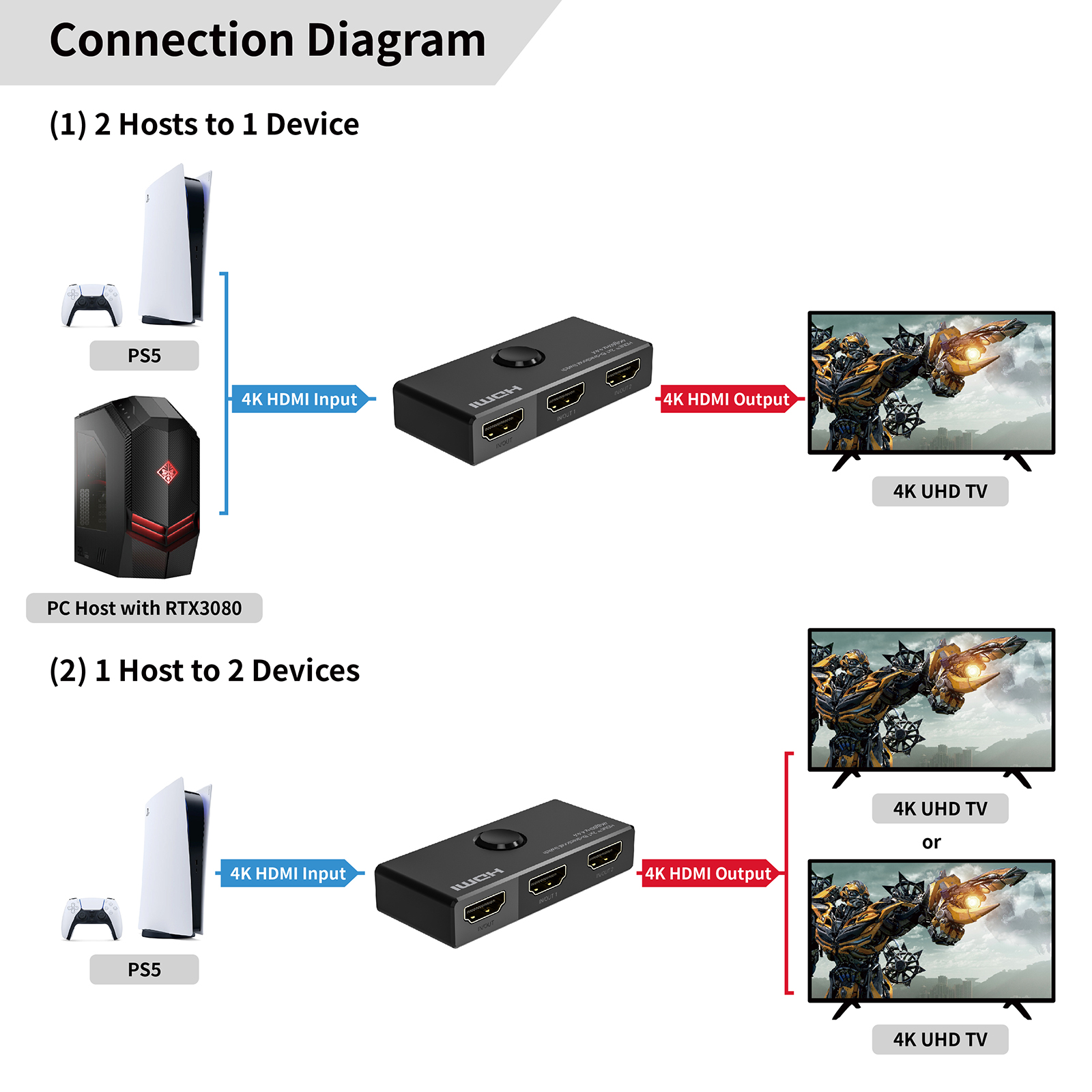

This is one device of HDMI™ 2 ports bi-direction manual switches. It can easily switch two routes of UHD Source to any one UHD display or projector or distribute one UHD Display or projector to two displays (not synchronously). This newer bi-directional switch adopts an integrated IC solution to reduce product power consumption for improved compatibility. For added versatility, the switch can draw power from the input sources via the HDMI™ Cable. It is very convenient in areas where access to power outlets is limited.

  • 2 HDMI-Host to 1 HDMI monitor.
  • 1 HDMI-Host to 2 HDMI monitors.
  • Max operation Current: 11mA.
  • Backward compatible with the HDMI earlier versions.
  • Support HDCP 2.2 and HDCP 1.4.
  • Support high definition resolution 4K@60Hz YUV 4:4:4 and Full 3D.
  • Support 600MHz/6.0Gbps per channel bandwidth (18Gbps all channels).
  • Support Consumer Electronics Control.
  • Support High Dynamic Range (HDR) video.
  • Manual port selection: Enables you to manually select your HDMI source with easy-to-use panel buttons.

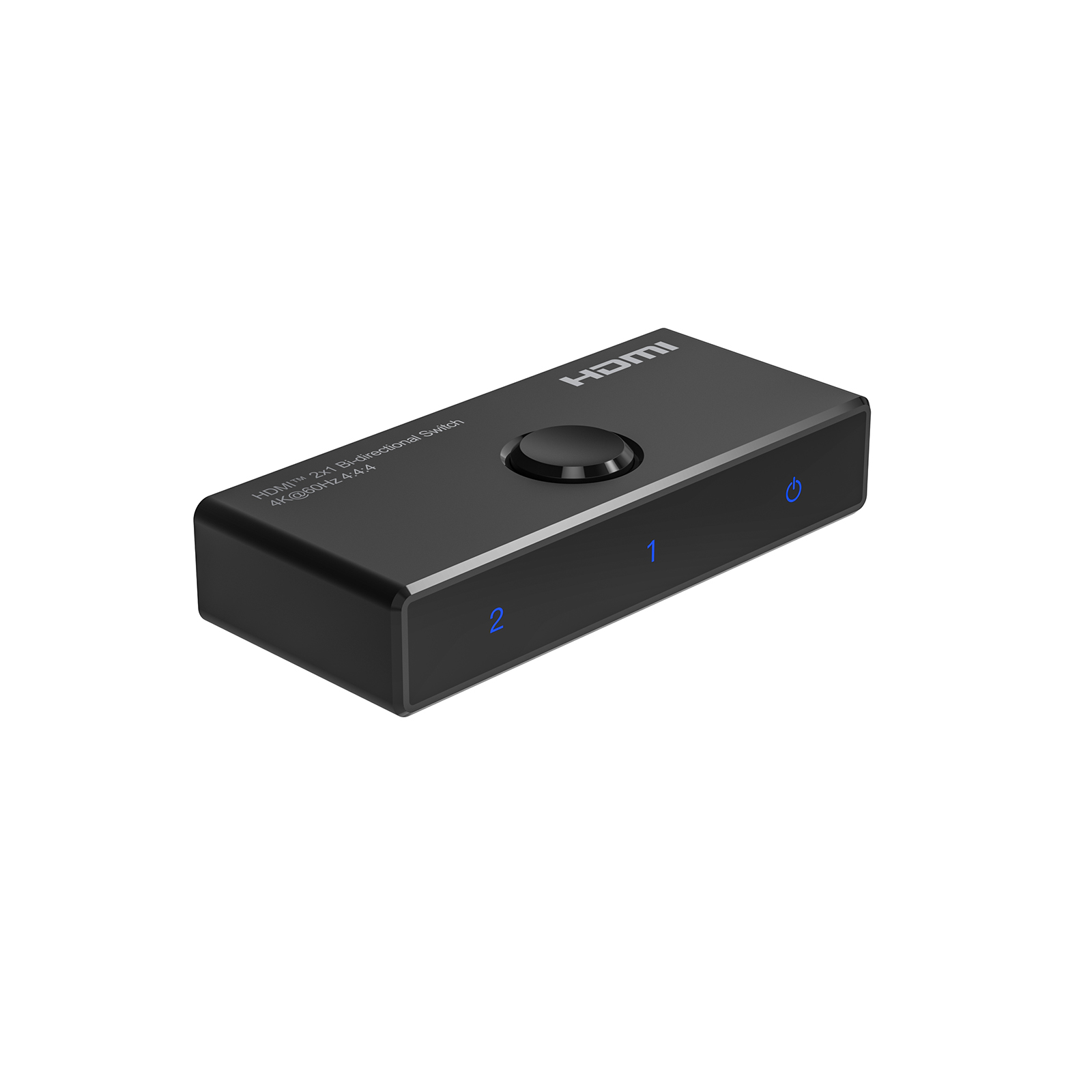

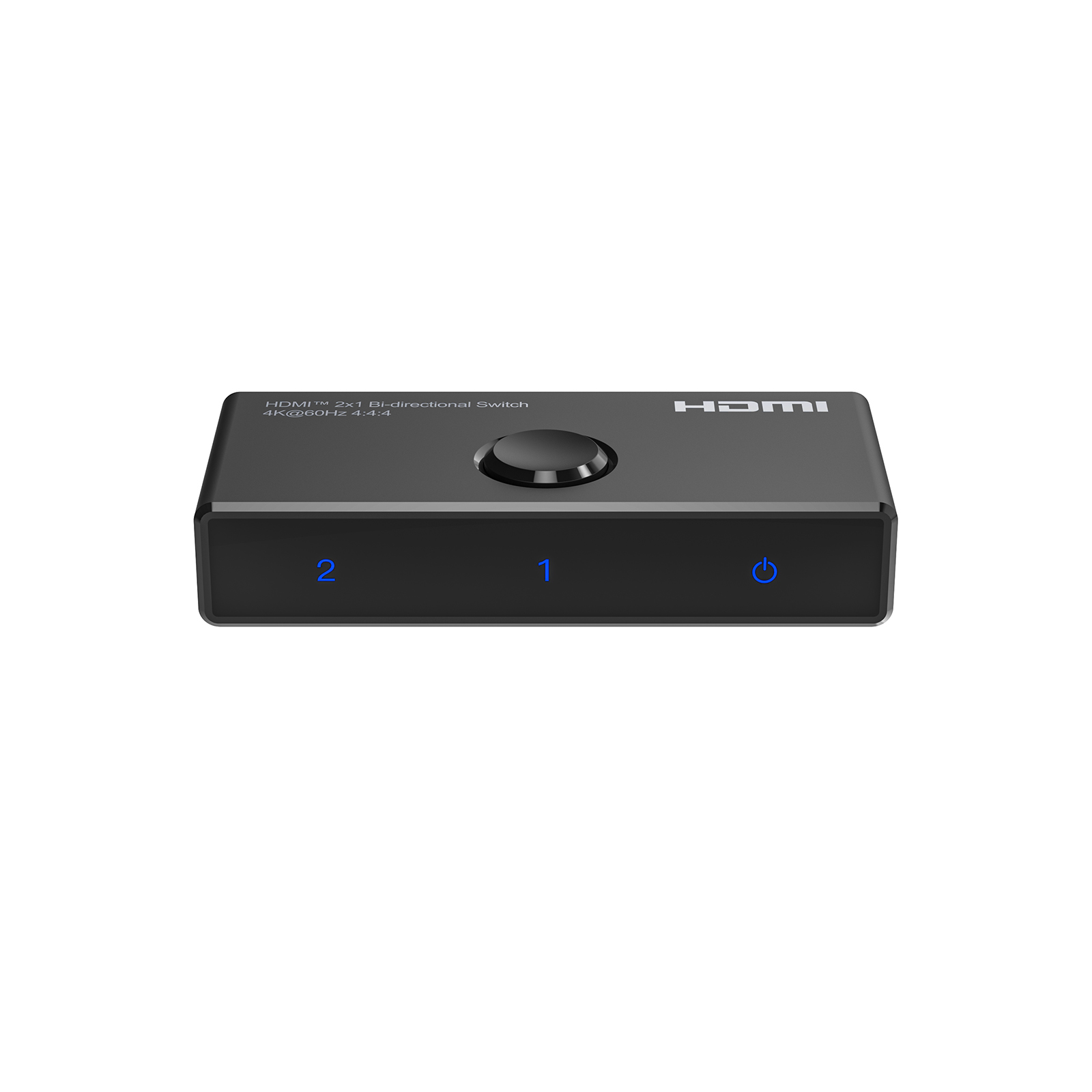

  • LED working status indication.
  • Easy installation & operation: plug and play.

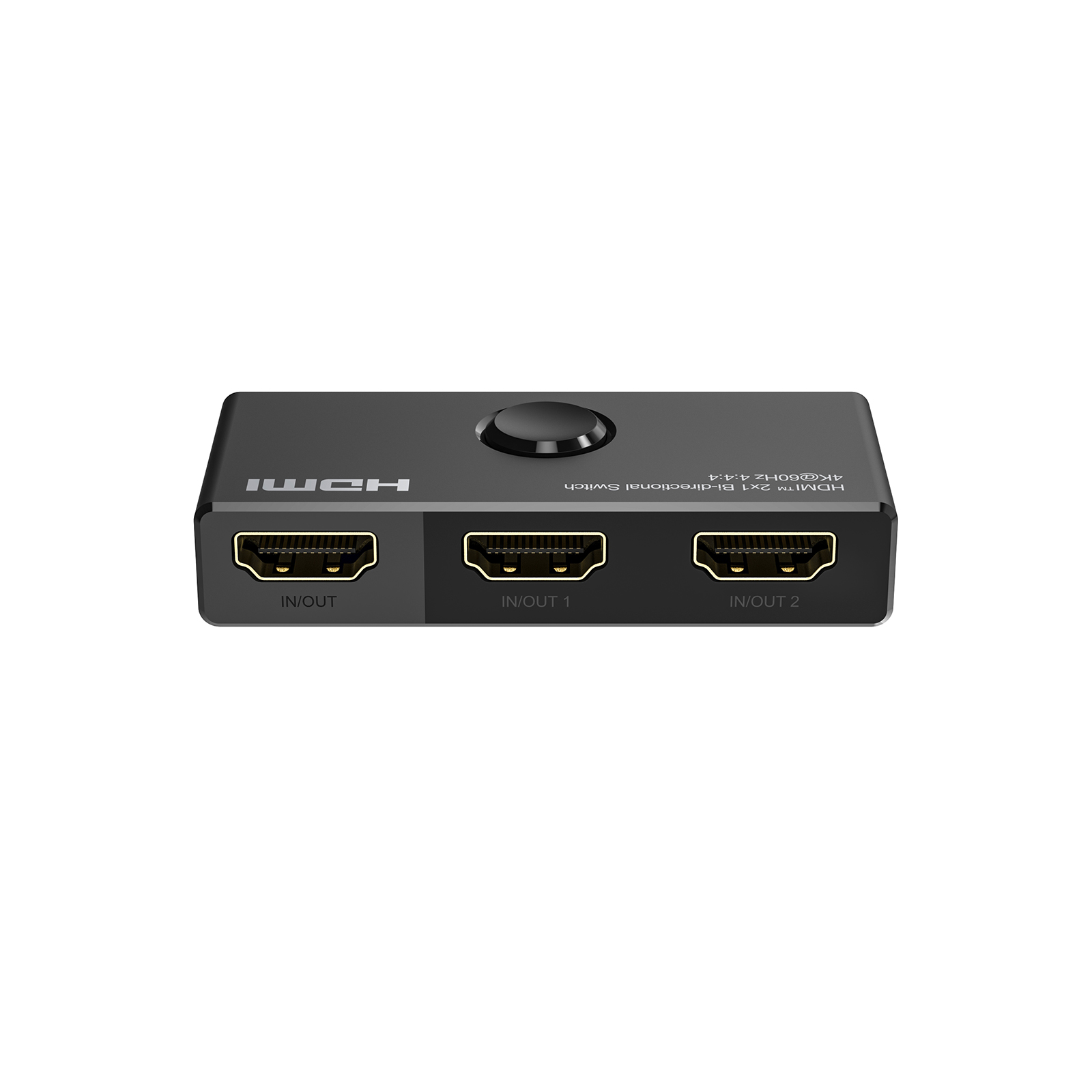

Input Ports

  • HDMI x 2

Output Ports

  • HDMI x 1

Vertical Frequency Range

  • 50/60

Video Amplifier Bandwidth

  • 6Gbps/600MHz per channel(18Gbps all channels)


  • 480i, 576i, 1080i


  • 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • N/A

Power Consumption (Max)

  • 5W

Switcher Unit Cert

  • FCC, CE, RoHS


  • 71.5x32x14.5mm

Net Weight

  • 28g


  • ABS

User Manual

  • English Version

Note: Specifications are subject to change without notice.
