HDMI 8K@30Hz EDID Emulator with 16 Default EDID Modes

INTRODUCTION

Thank you for purchasing the HDMI 2.1 EDID Emulator. This product has been designed to provide trouble free, reliable operation. It benefits from both a one year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.

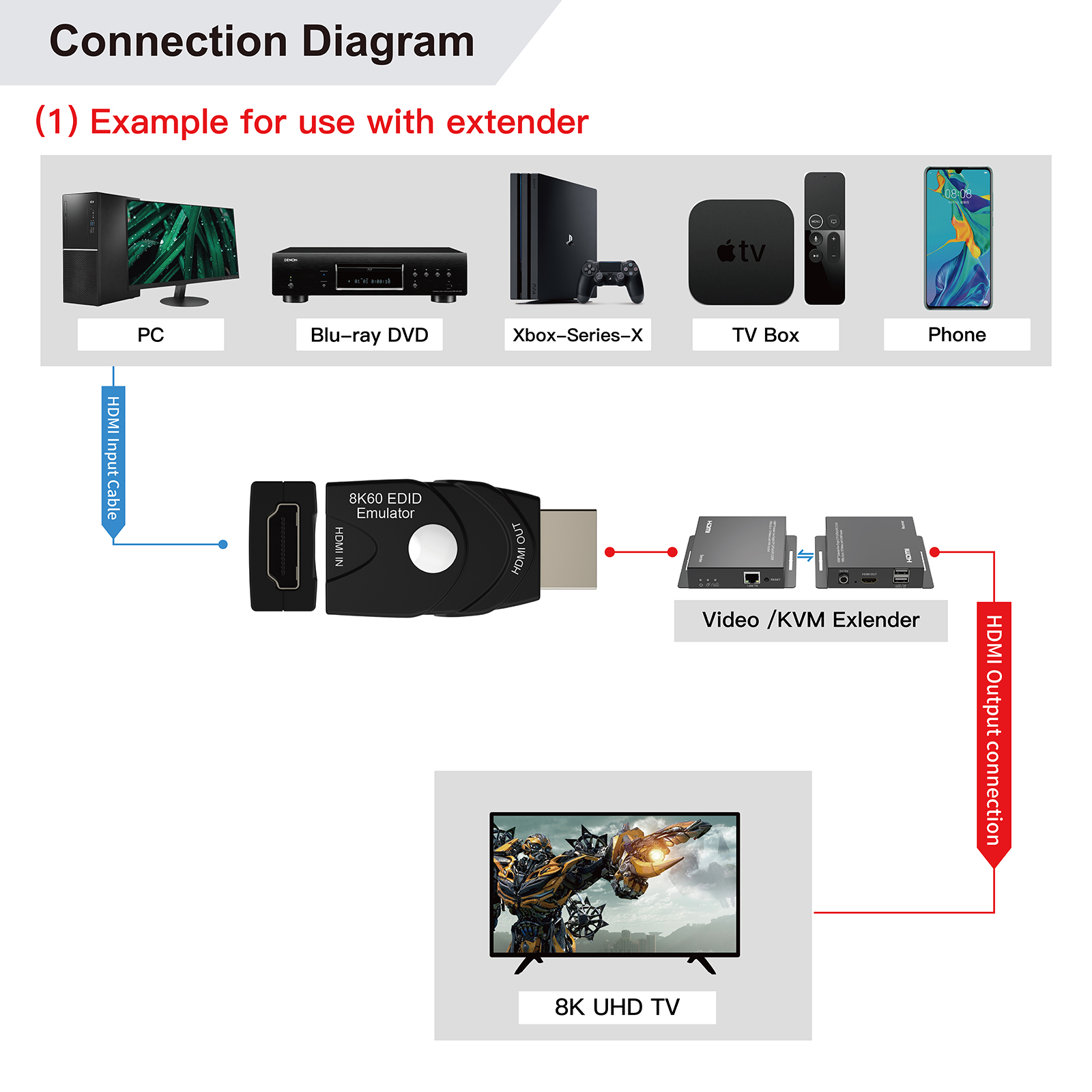

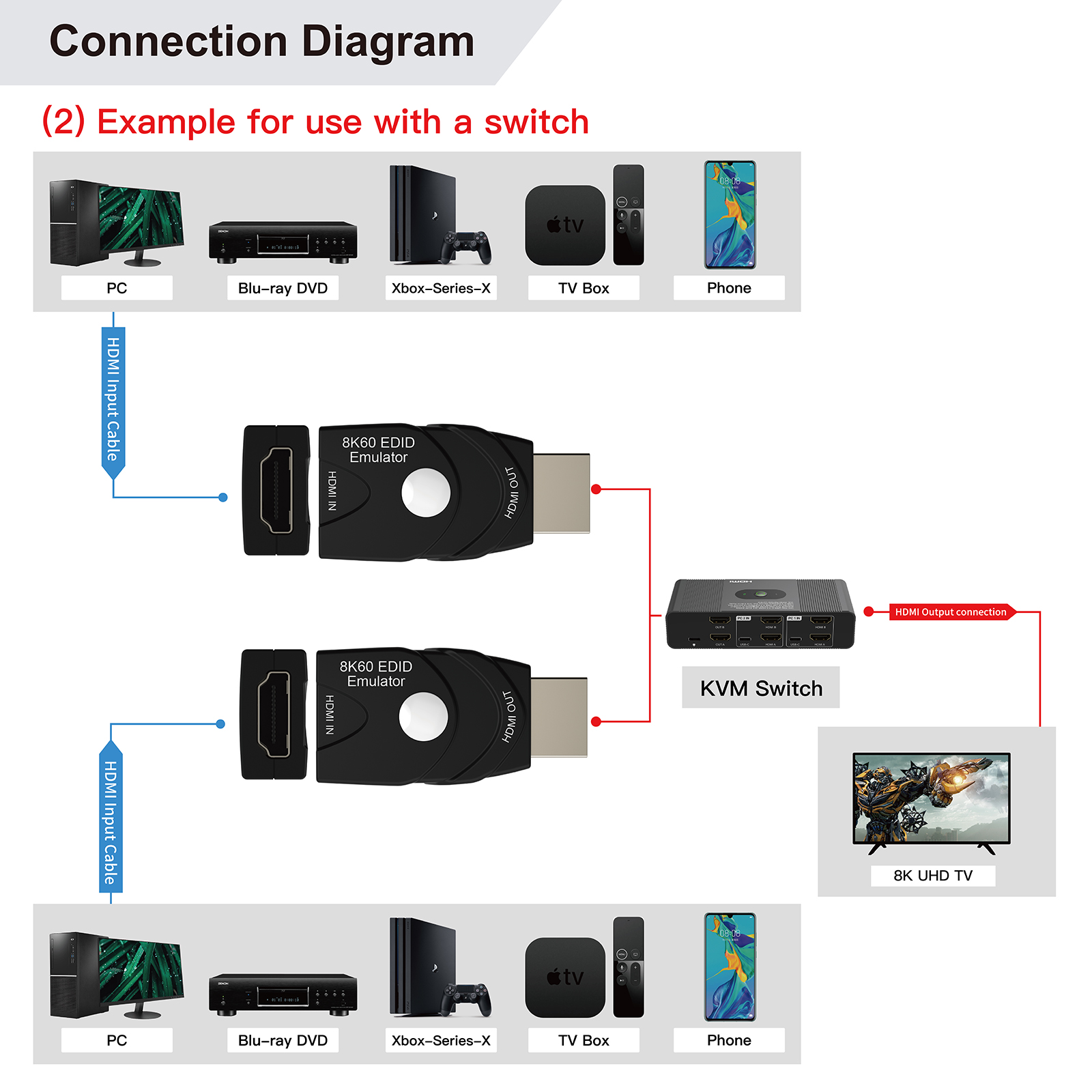

This product is designed to help overcome EDID related problems which can occur when using AV/KVM Extenders, Switcher and Splitter. It can also be used in place of a monitor to keep a PC or Server awake for remote access via IP.

FEATURES

• Supports EDID learning or Preset Emulation
• Supports 15 Preset EDID modes with blocks for AV and PC applications
• Supports HDMI 2.1 Resolutions up to 8K 60Hz 4:4:4 8bit
• Supports full 3D video format
• Supports HDCP 2.3, backward compatible with HDCP 2.2 and 1.4
• Supports 1200MHz/12.0Gbps per channel bandwidth (48Gbps all channels)
• Supports 12bit per channel (36bit all channels) deep color
• Supports Consumer Electronics Control(CEC)
• Supports High Dynamic Range(HDR)
• Supports VRR and ALLM
• Supports uncompressed audio such as LPCM
• Support compressed audio such as DTS, Dolby Digital
• Supports EDID storage, data retained after power off
• Powered via HDMI source interface

SPECIFICATIONS
