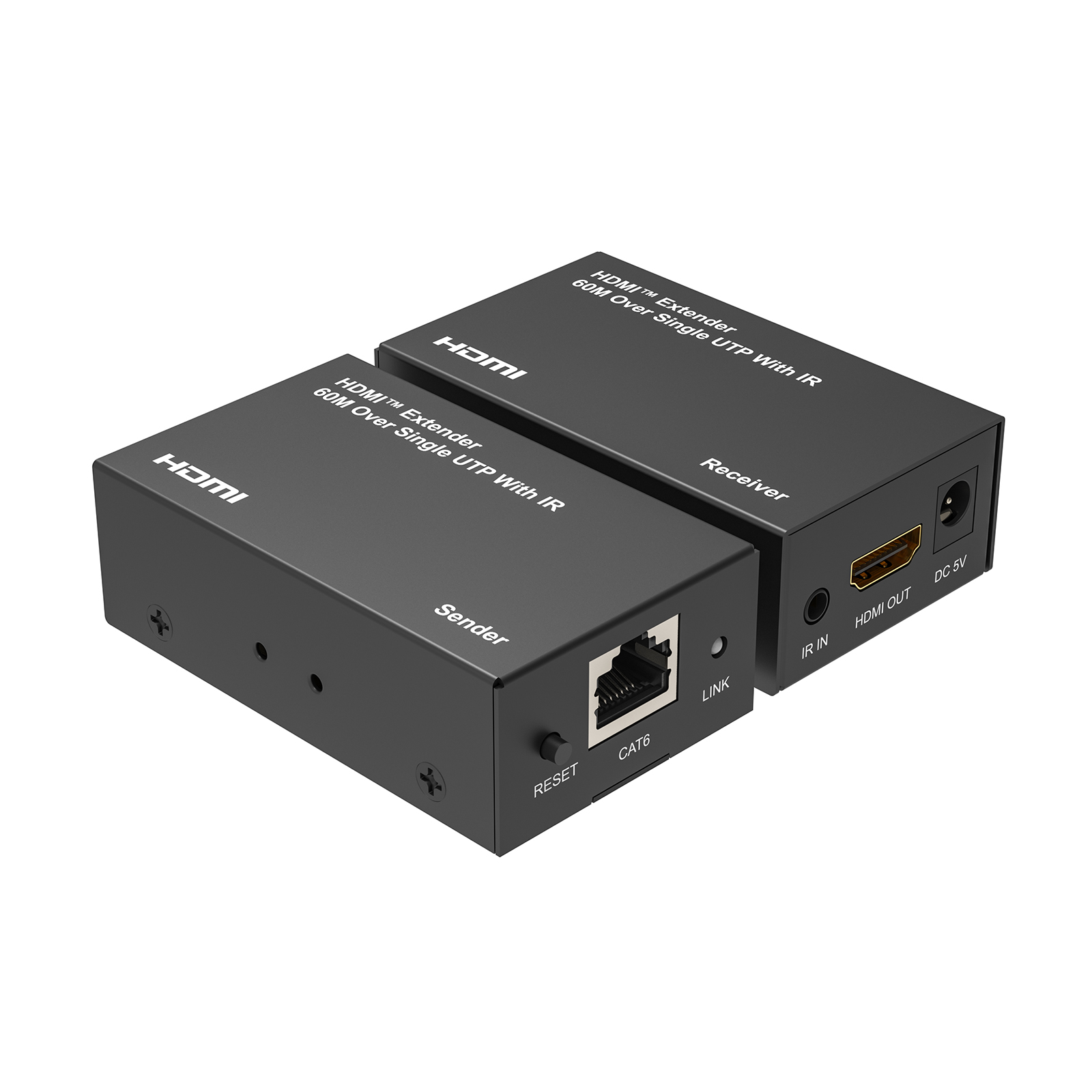

HDMI™ Extender 60m over single UTP with IR

Package Content


The HDMI™ Extender lets you extend HDMI™ audio/video signal by up to 60 meters (196 feet) over a single CAT6 cable. The extender kit includes both the local transmitter and remote receiver units, perfect for point-to-point digital signage applications requiring high-quality HDMI™ video. It also works to extend Infrared IR signals from remote controls, ideal for controlling your video source from your video destination. For perfect performance, the extender features a reset function on the receiver, which enables the user to adjust the signal to best match the cable length.

  • HDMI over single CAT6 cable transmission up to 60m/196ft.
  • Supports transmitting lossless uncompressed A/V signal.
  • Signal auto adjustment to match the cable length after pressing the ‘RESET’ button on the receiver.
  • Full HD 1080P transmission to make video images more vivid.
  • IR signal transmission for easy control of the source device.
  • Supports 3D video format.
  • Both the transmitter and receiver are powered by DC 5V via a power adapter, support receiver powered from the transmitter.
Signal Input

  • HDMI Signal

Input Video Signal

  • 0.5-1.0volts/p-p

Output Video

  • HDMI Signal


  • 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

CAT-6 Cable

  • 60m@1080p

Vertical Frequency Range

  • 50/60Hz

Interlaced Resolutions(50&60Hz)

  • 480i, 576i, 1080i

Progressive Resolutions(50&60Hz)

  • 480p, 576p, 720p, 1080p

Limited Warranty

  • 1Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Operating Humidity

  • 10% to 85% RH (no condensation)

Storage Temperature

  • -10℃ to +80℃

Storage Humidity

  • 5% to 90% RH (no condensation)

Power Supply

  • 5V DC

Power Consumption(Max)

  • 5W

Extender Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • CE, FCC, RoHS

Power Adapter Standard

  • US, UK, EU, AU Standard etc.

User Manual

  • English Version

Note: Specifications are subject to change without notice.
