INTRODUCTION

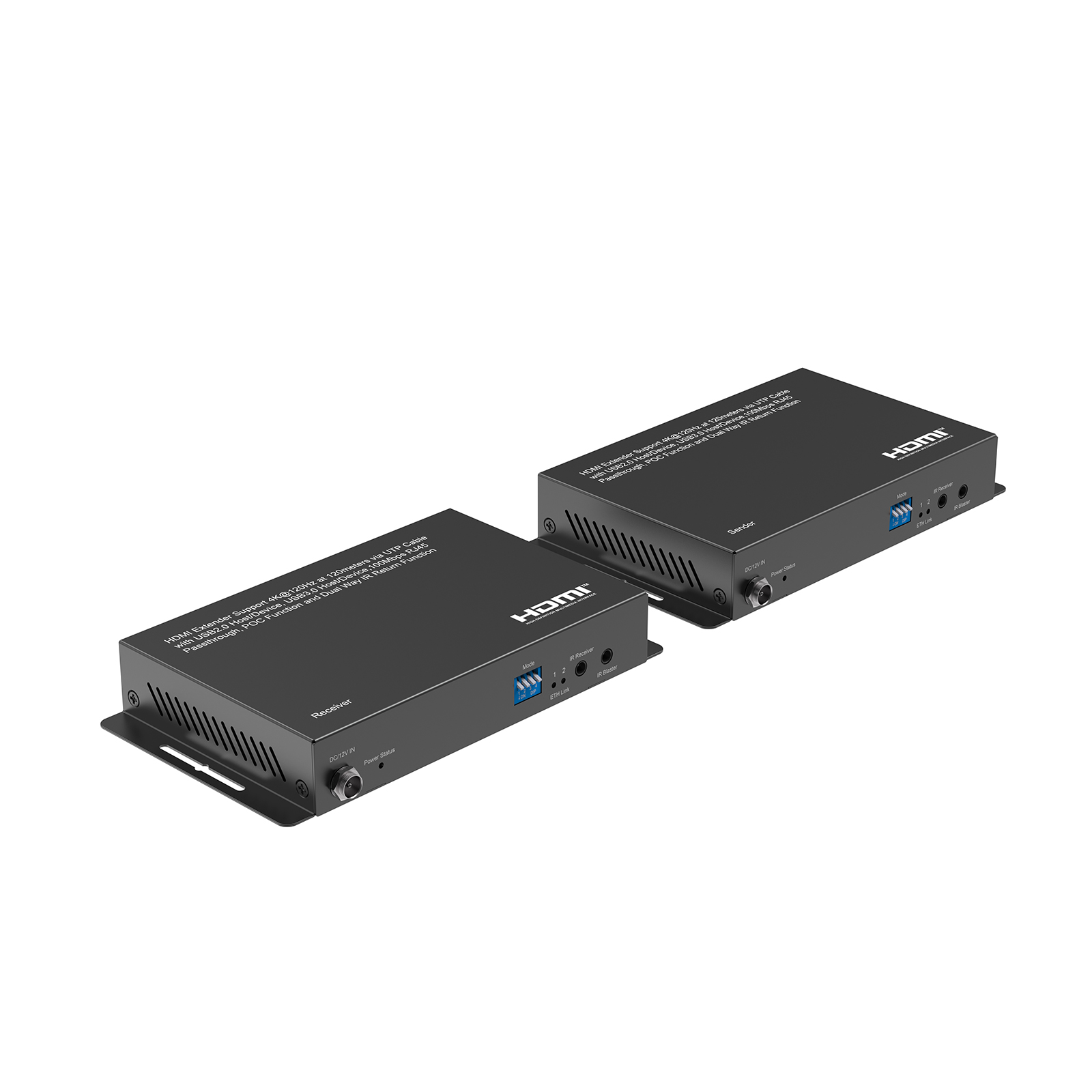

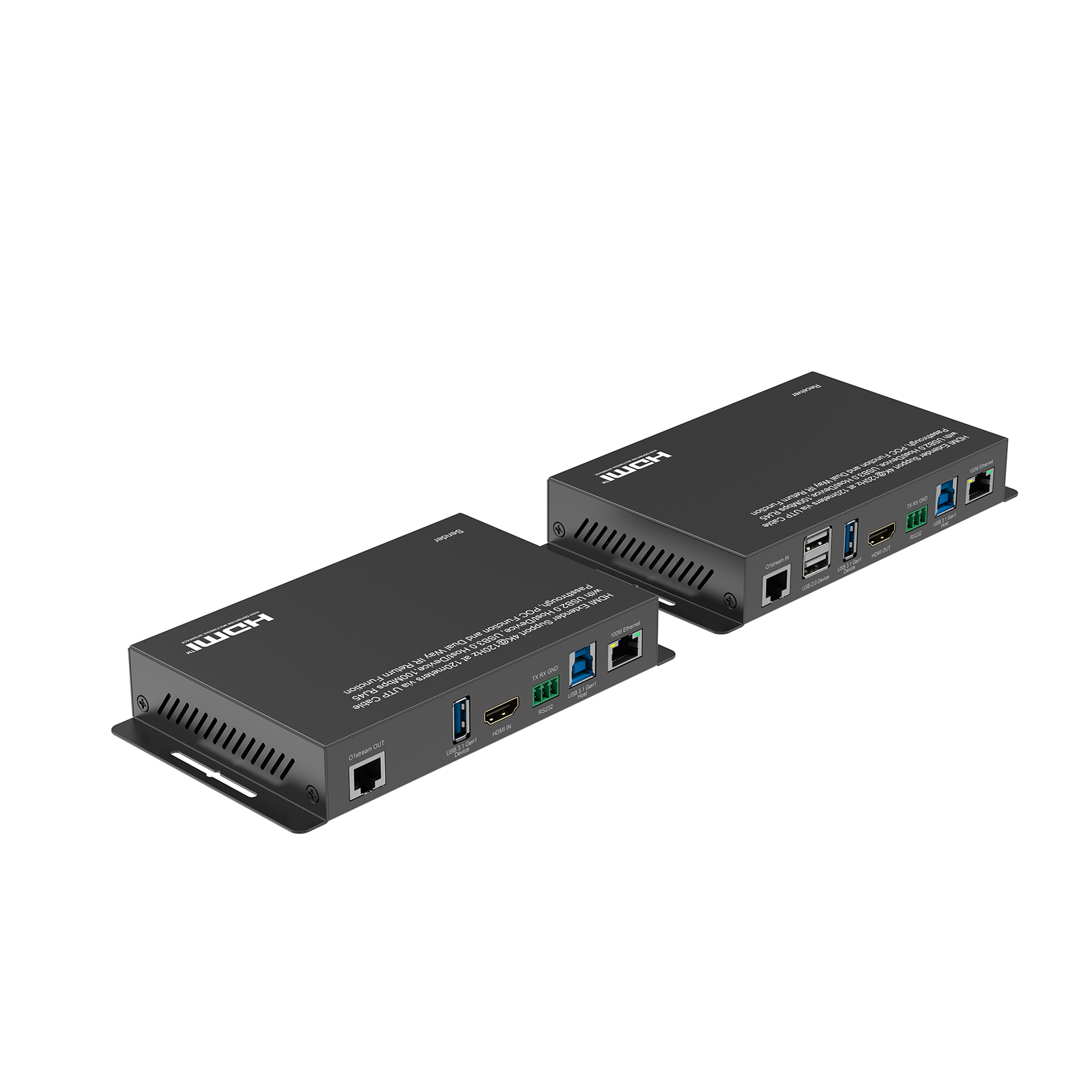

The HDMI™ extender is an ideal device for local displaying and remote viewing. It extend the input of the HDMI™ signal to remote outputs up to 40m (132feet), perfect for point-to-point digital signage applications that require high quality HDMI™ video up to 4K@120Hz 4:4:4 with DSC function. It also works to extend Infrared IR signals from remote controls, ideal for controlling your video source from your video destination.
FEATURES
- Support high resolution up to 4K@120Hz YUV 4:4:4 with DSC function up to 40m (132feet)
- Support HDCP 2.3, HDCP 2.2 and HDCP 1.4
- Support High Dynamic Range (HDR) video
- Support EDID and HDCP bypass
- Support digital stream conversion (DSC) function and compatible with the DSC 1.2a
- Support highest data transfer rate up to 8Gbps per channel (32Gbps all channels)
- TMDS clock can be up to 800MHz
- Support 12bit per channel (36bit all channels) deep color
- Support uncompressed audio such as LPCM
- Support compressed audio such as DTS, Dolby Digital
- Support compressed audio such as DTS, Dolby Digital(including DTS-HD Master Audio™ and Dolby TrueHD)
SPECIFICATIONS

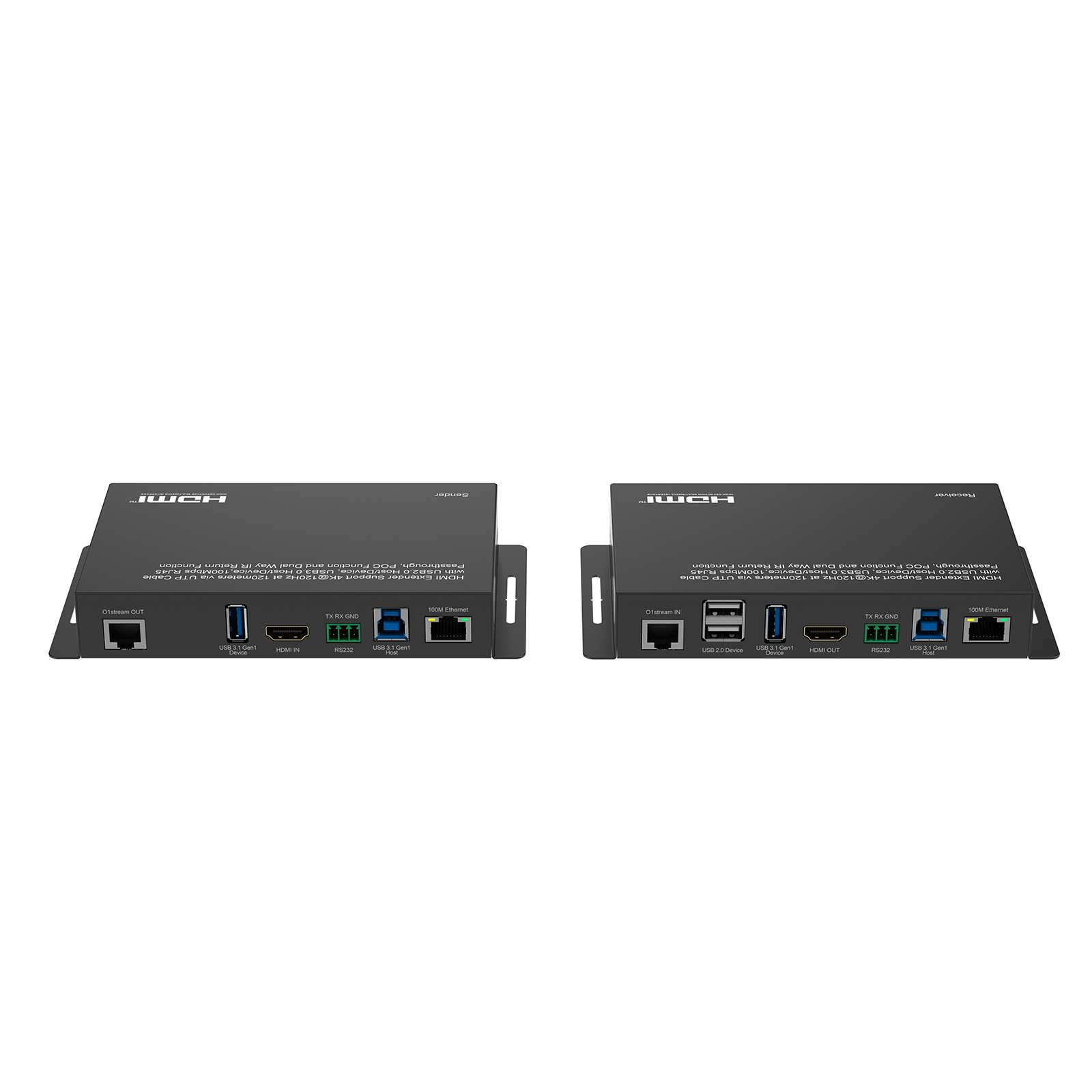

Input Port
- HDMI x 1 RJ45 x 1, 3.5MM x 2
Output Port
- HDMI x 1, RJ45 x 1, 3.5MM x 2
Extensions Distance
- 40m(132 feet) for 4K@120Hz 4:4:4
Vertical Frequency Range
- 50/60Hz
IR Frequency Range
- 20-60KHz
Interlaced Resolutions(50&60Hz)
- 480i,576i,1080i
Progressive Resolutions(50&60Hz)
- 480p,576p,720p,1080p,4K@60Hz/4K120Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 50℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- DC 12V
Power Consumption (Max)
- TX: 4W, RX: 3.5W
Extender Unit Cert
- FCC, CE, RoHS
Power Supply Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- 84*64*14.5mm
Net Weight
- TX/RX: 120g
Material
- Metal
User Manual
- English Version
Note: Specifications are subject to change without notice.
