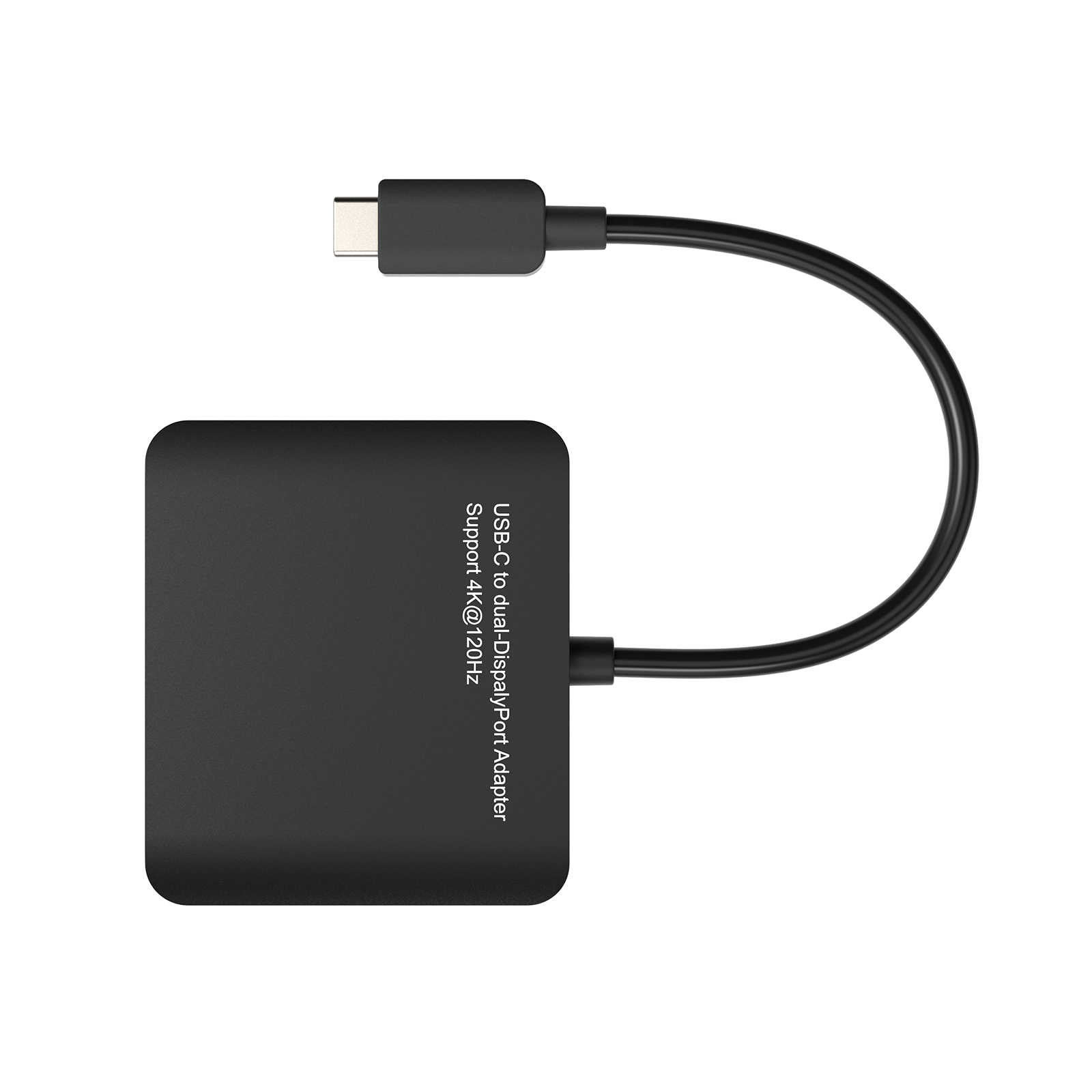

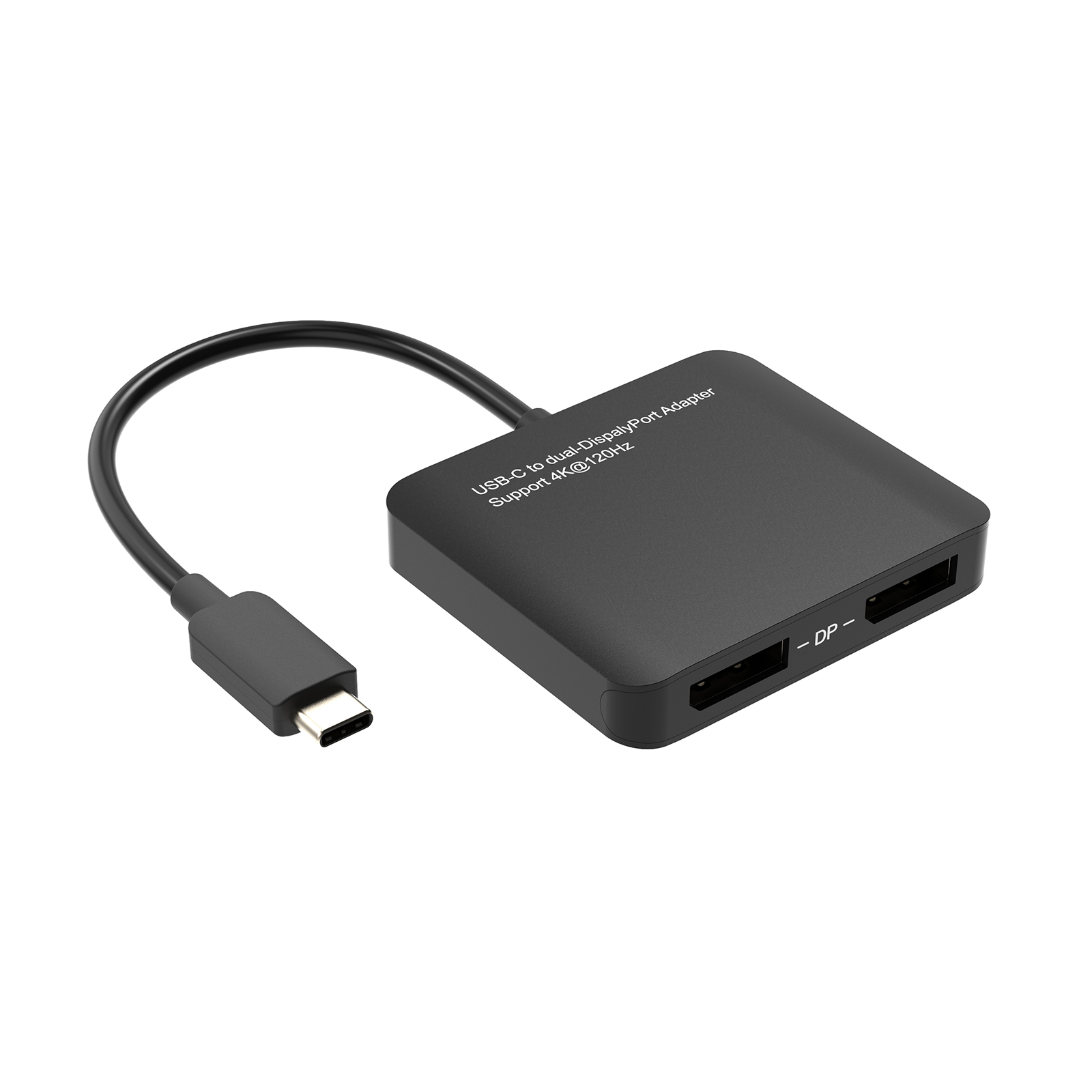

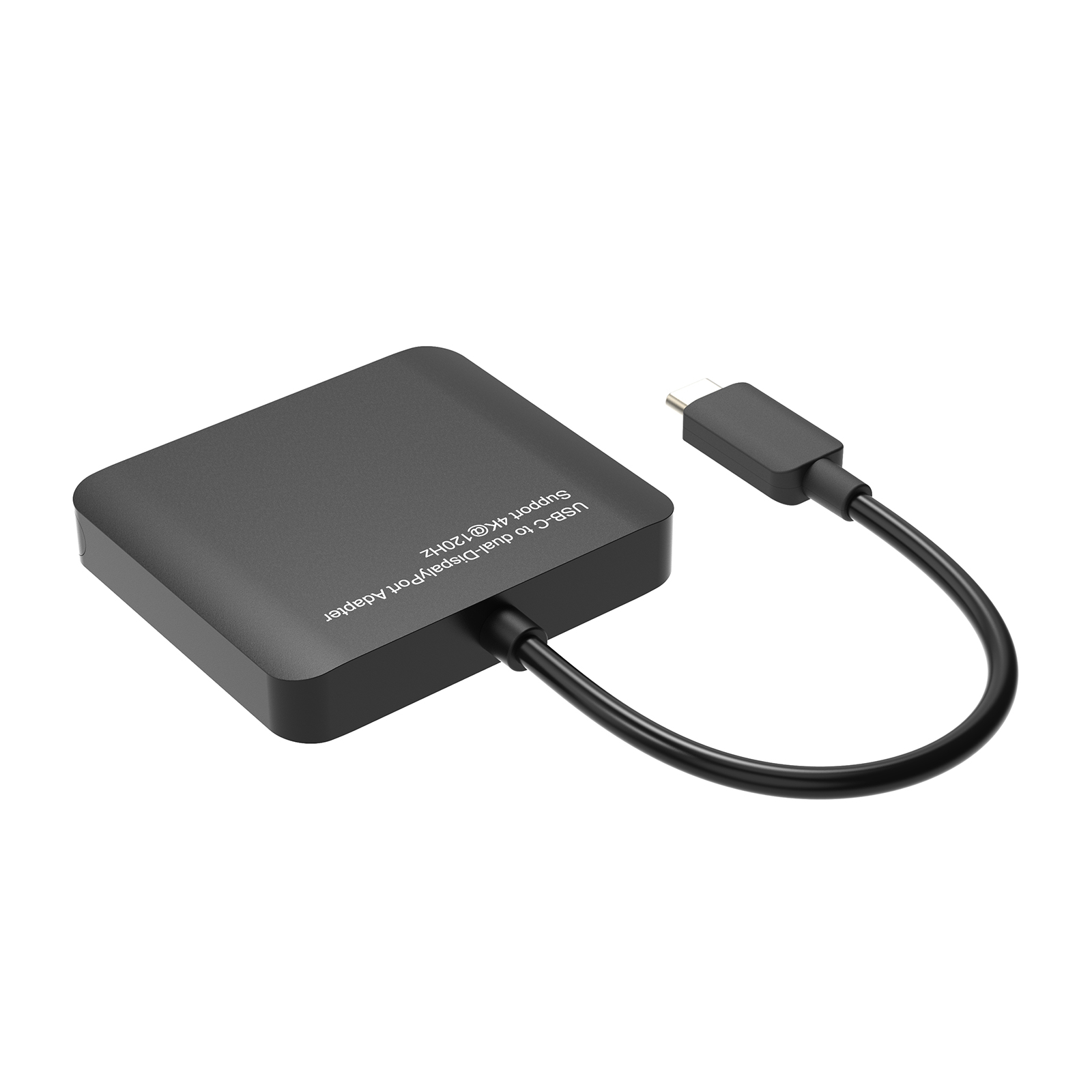

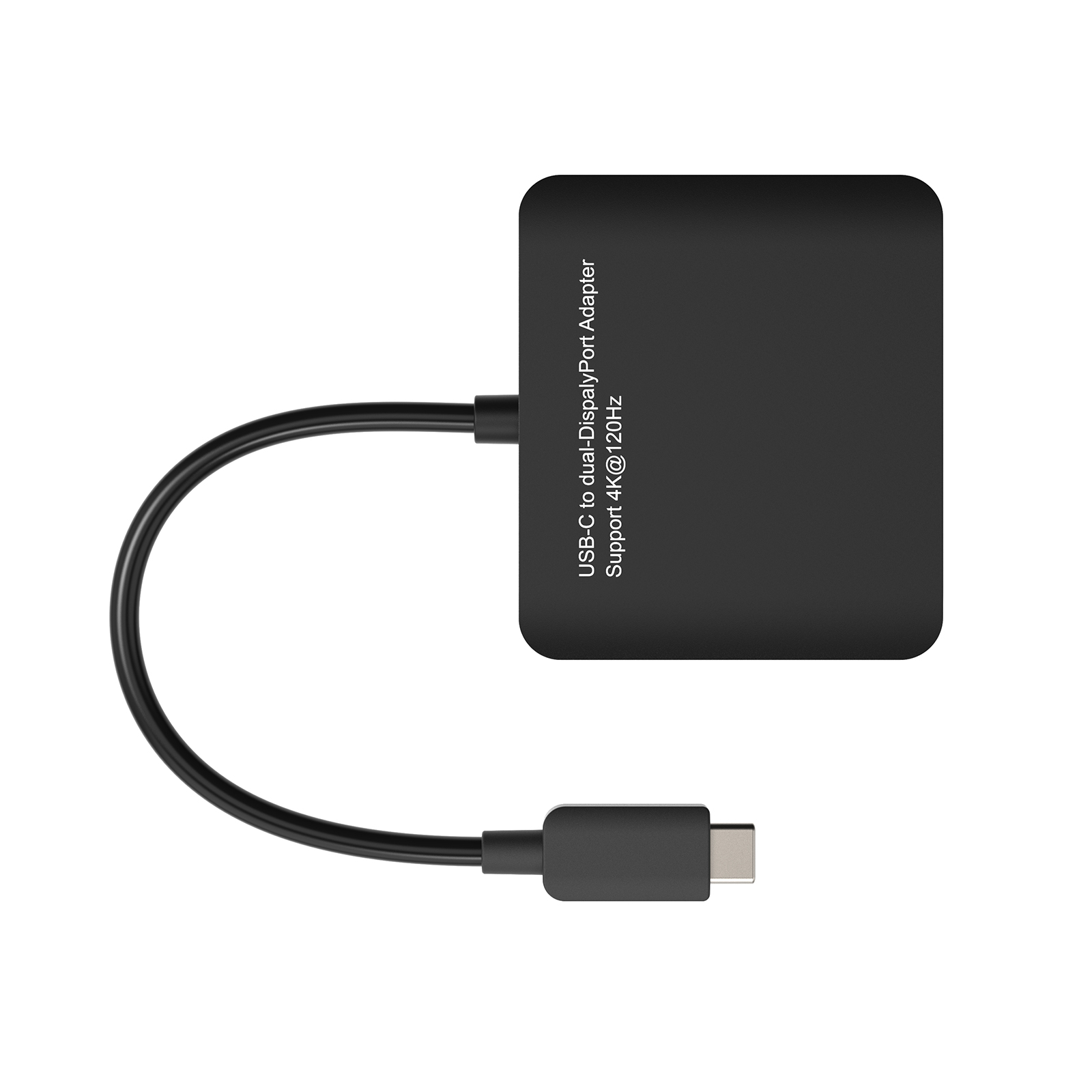

USB-C™ to Dual Displayport Supports 8K@30Hz (4:4:4) at one Dispaly and 4K@120Hz (4:4:4) at two Dispalys

Package Content

INTRODUCTION

This USB-C to dual Displayport adapter 4K@60Hz 4:4:4 lets you output two Displayport video and audio from a USB-C device such as a MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™ laptop. It lets you utilize the versatile USB-C port on your portable device. USB-C is a reversible connector, so it doesn’t matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of fiddling with your device when you’re trying to deliver a presentation.
The adapter lets you harness the video capabilities built into your USB-C connection, to deliver the astonishing quality of Ultra HD to your 4K display. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
This USB-C video adapter is highly portable with lightweight design, perfect accessory for your MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™, fitting easily into your laptop bag or carrying case.

FEATURES
  • Supports UHD video resolutions up to 8K@30Hz 4:4:4 for a single DisplayPort display or 4K@120Hz 4:4:4 for dual DisplayPort displays (needs your USB-C devices to support 8K resolution output and enough bandwidth).

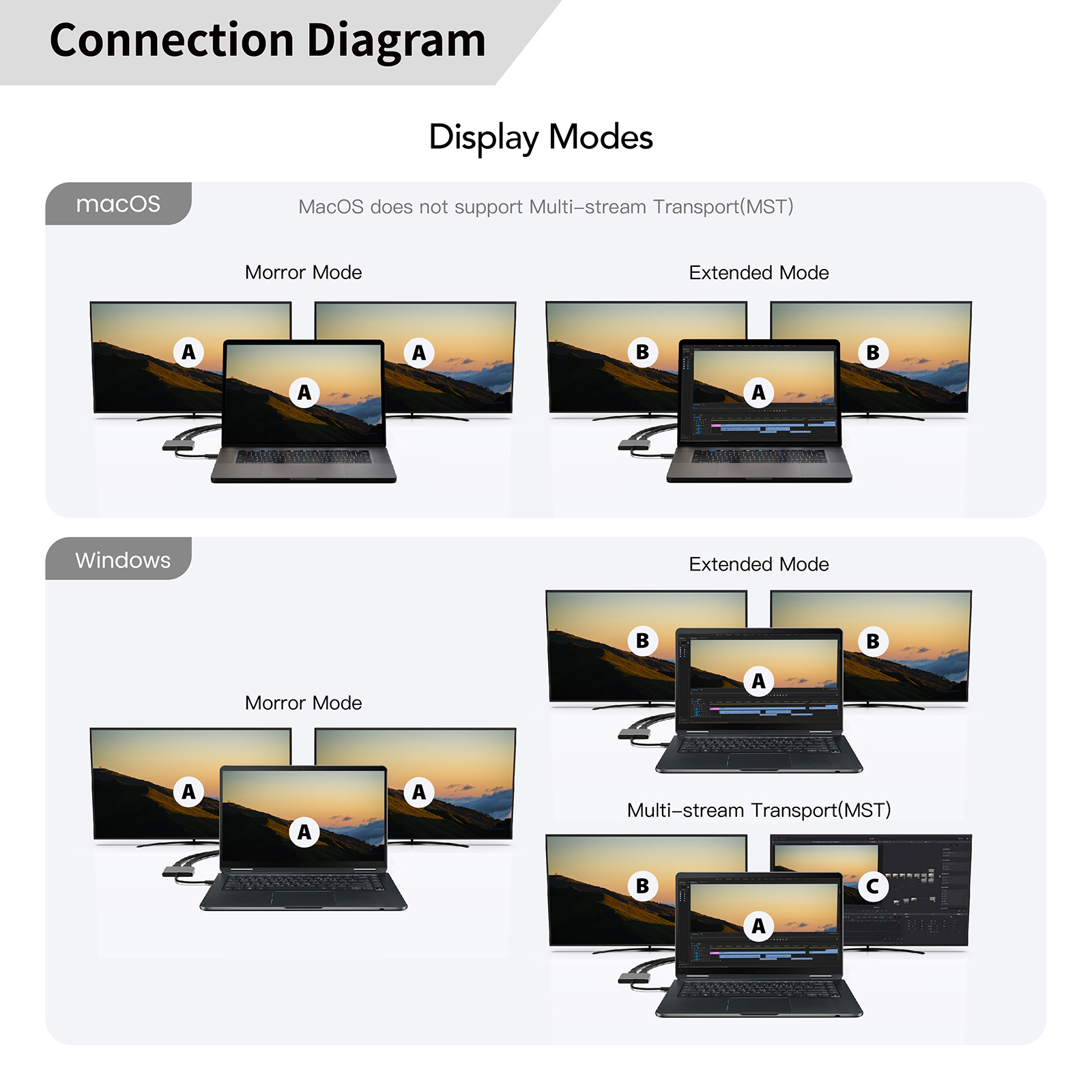

  • Supports MST functions allowing for extended, mirrored, or duplicated screens along with HDR 10, DSC (Display stream compression).
  • Built-in USB Type C cable to be connected directly to your source device.
  • Compatible with Thunderbolt 3.
  • Compatible with DP1.4 alt mode.
  • Compact design with ABS case.
  • Plug and play with no driver or software installation at all.
SPECIFICATIONS
Input Ports

  • USB-C Male

Output Ports

  • DisplayPort x 2

Vertical Frequency Range

  • 50/60Hz

Video Amplifier Bandwidth

  • 8.1Gbps per lane(HBR3)

Interlaced(50&60Hz)

  • 480i, 576i, 1080i

Progressive(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz, 8K@30Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 60℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • N/A

Power Consumption (Max)

  • 5W

Adapter Unit Cert

  • FCC, CE, RoHS

Dimension(LxWxH)

  • 63x50x11mm

Net Weight

  •

Material

  • ABS

User Manual

  • English Version

Note: Specifications are subject to change without notice.
