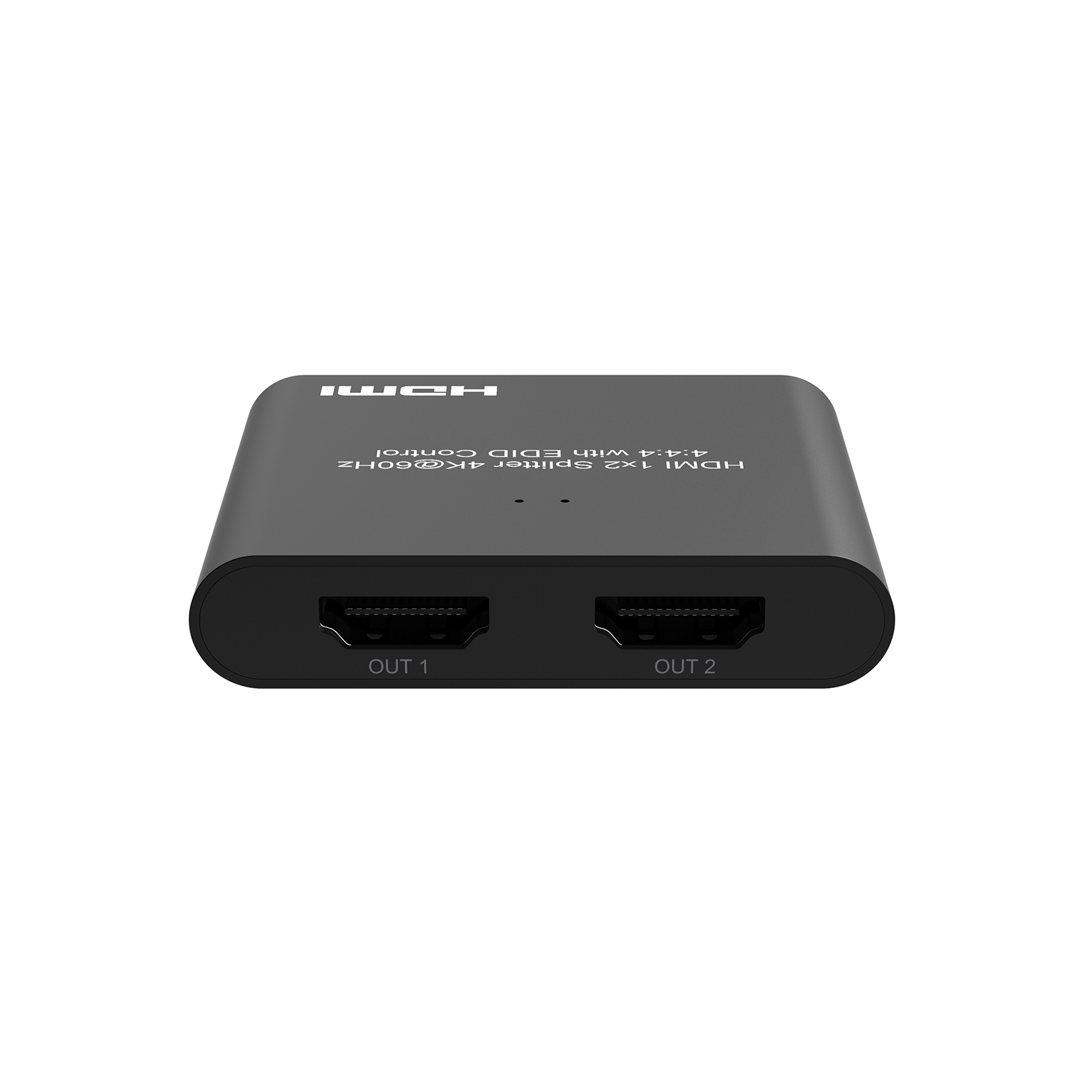

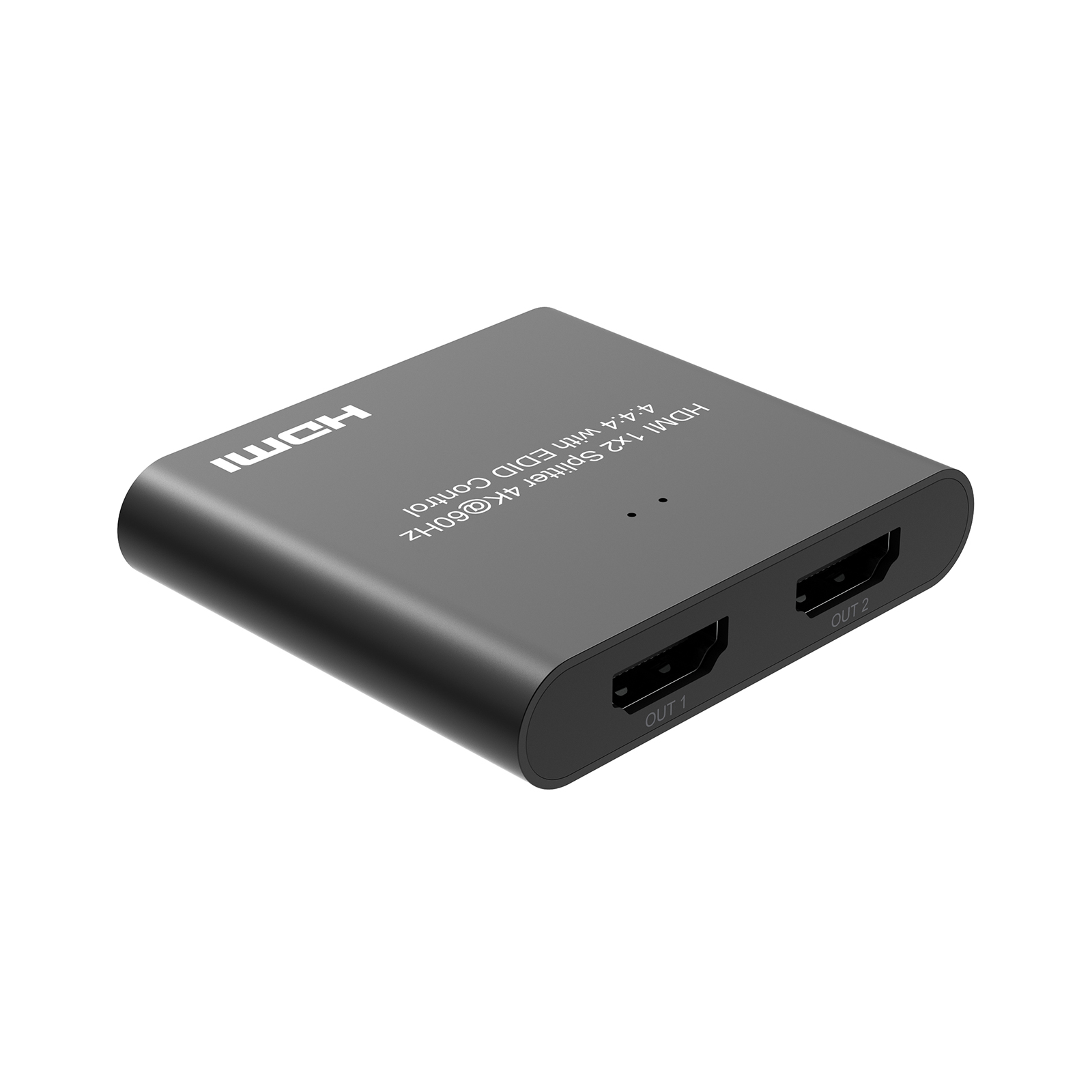

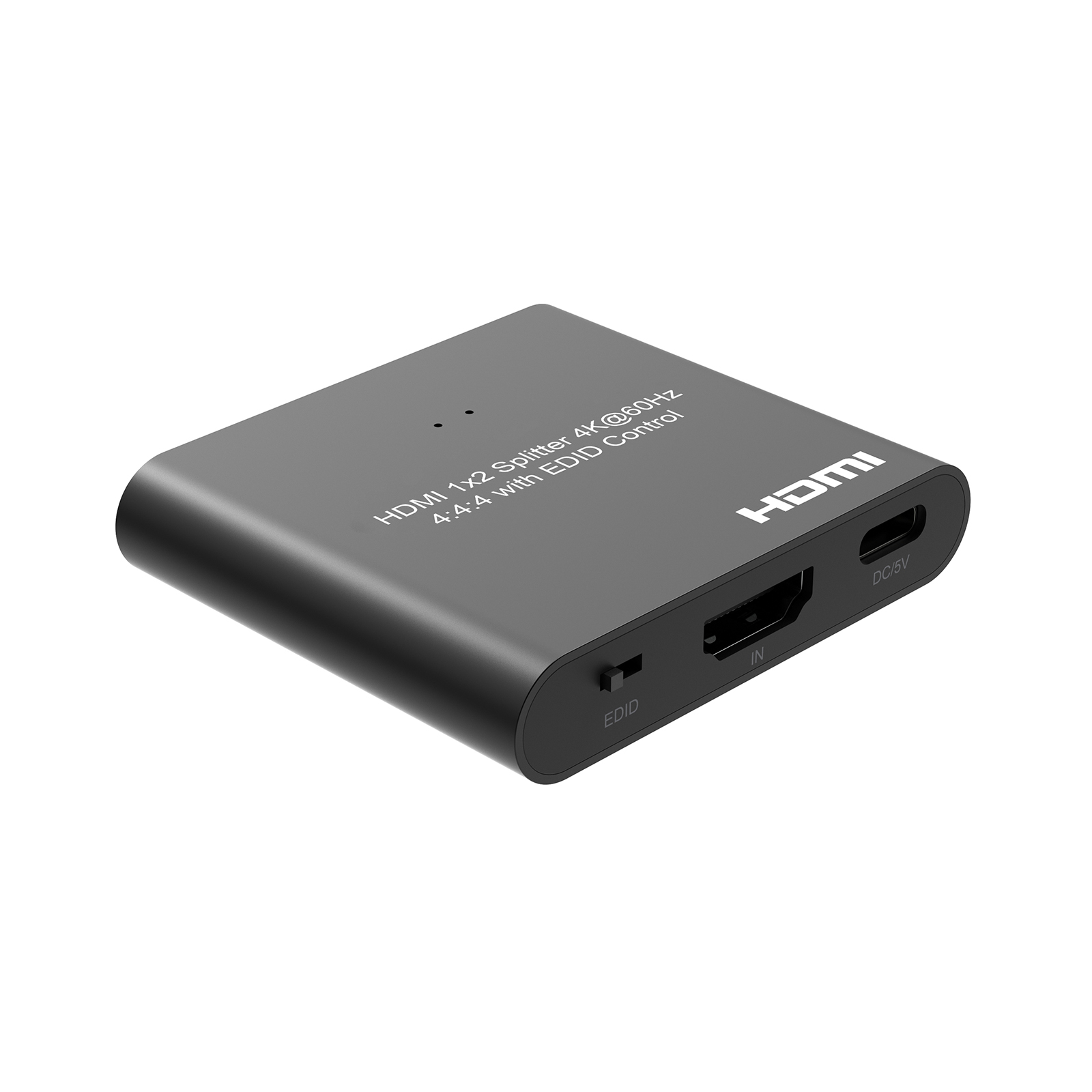

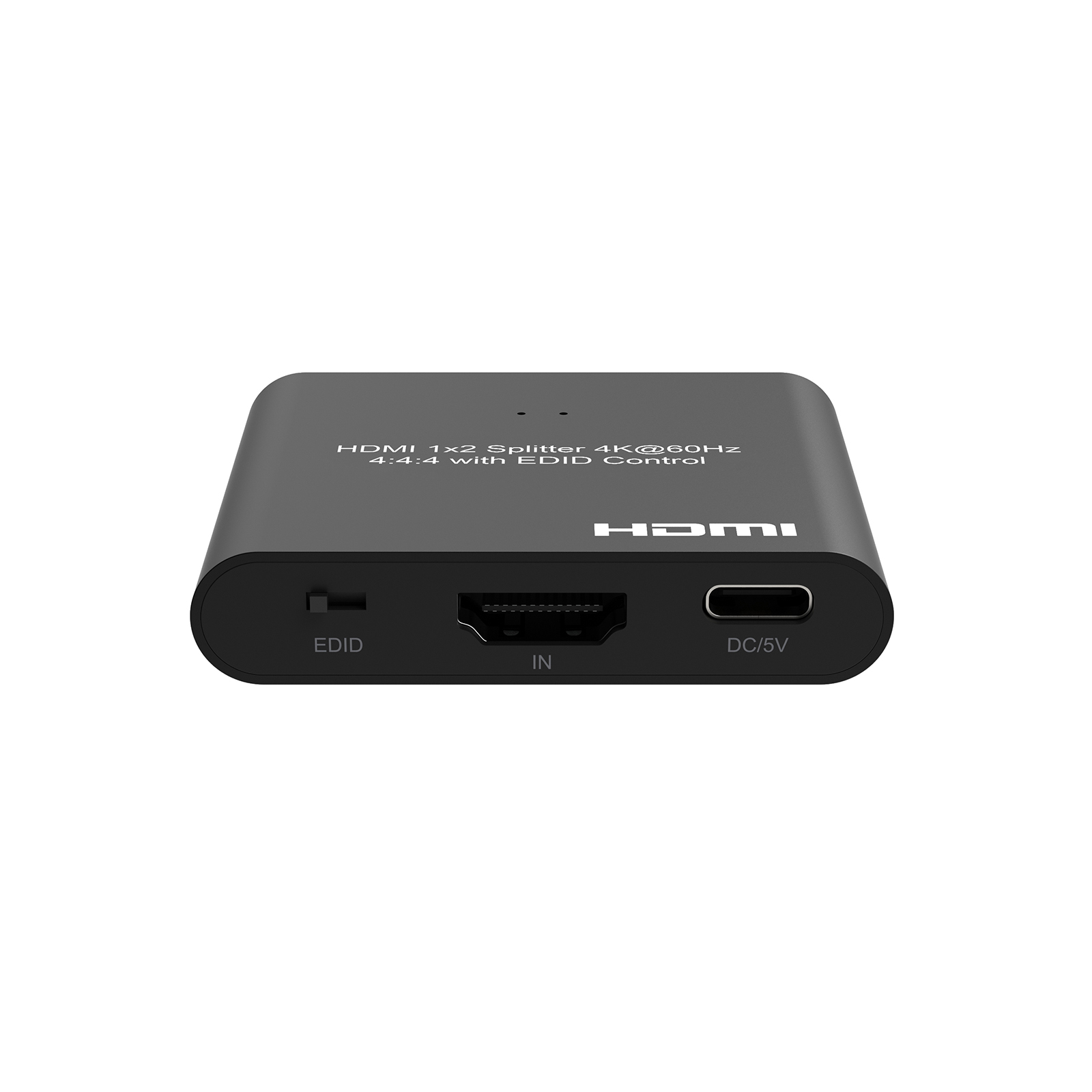

Premium HDMI™ Splitter 1X2 Support 4K@60Hz HDCP2.3 EDID control (Copy, Auto, Downscaler)

Package Content

INTRODUCTION

The HDMI™ 4K splitter 1×2 lets you share two HDMI™ displays or projectors with an HDMI-enabled audio / video source device. With support for Ultra HD (4K@60Hz) the HDMI™ splitter ensures astonishing picture quality, four times the resolution of UHD 1080p. The 4K splitter is also backward compatible with previous HDMI™ revisions, supporting 1080p / 720p HDMI™ video resolution devices. Even if you don’t require 4K video today, the HDMI™ 4K Splitter 1×2 ensures you’ll be ready to take advantage of tomorrow’s display technology. It features three different EDID modes auto/copy/downscaler for meet needs of different display occasion.

FEATURES
  • Support three different EDID modes auto/copy/Downscaler.
    When turn to the auto EDID function, it can get the lower resolution and audio format of the both output for the input device to output the signal to fit both outputs.
    When turn to the copy EDID function, it can copy the output1 resolution and audio format for the input device to output the signal, if the other output device supported resolution is lower than the output1 connected device, it will downscaler the resolution and keep the same audio format, HDR format and deep color with the output1, or it will output same signal to both outputs.

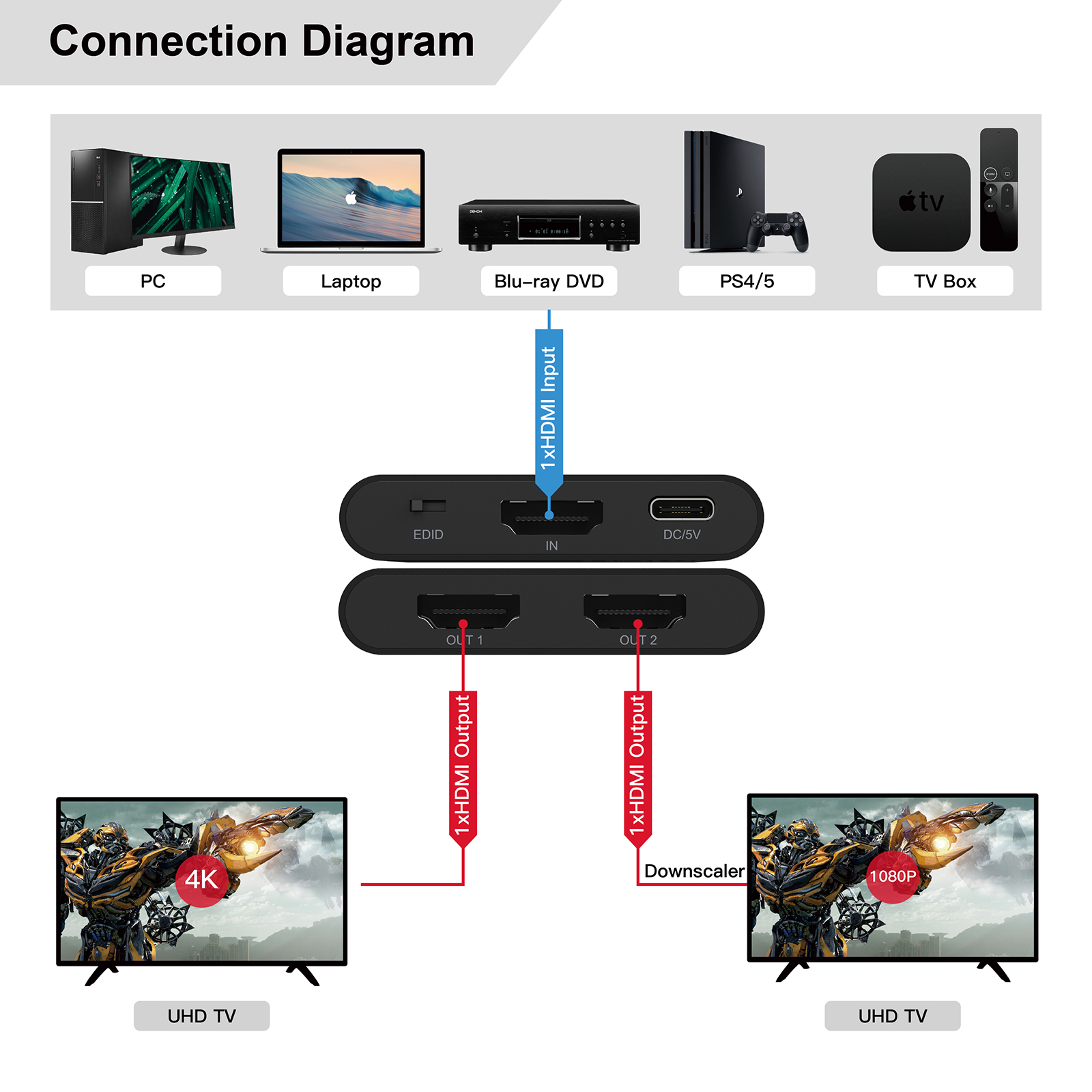

    When turn to the Downscaler function, it can downscale the Input 4K Resolution to 1080p by the FHD (1080p) Display and 4K Resolution to the 4K Displays Simultaneously.
  • Support full 3D video format.
  • Support high definition resolution 4K@60Hz 4:4:4.
  • Support 600MHz/6Gbps per channel bandwidth (18Gbps all channels).
  • Support 12bit per channel (36bit all channels) deep color.
  • Support HDCP2.3, HDCP2.2 and HDCP1.4.
  • Support High Dynamic Range (HDR) video.
  • Support Consumer Electronics Control function.
  • Support uncompressed audio such as LPCM.
  • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
SPECIFICATIONS
Input Ports

  • HDMI x 1

Output Ports

  • HDMI x 2

Vertical Frequency Range

  • 50/60Hz

Video Amplifier Bandwidth

  • 6Gbps/600MHz per channel(18Gbps all channels)

Interlaced(50&60Hz)

  • 480i, 576i, 1080i

Progressive(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • USB Power Cable

Power Consumption (Max)

  • 5W

Splitter Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • FCC, CE, RoHS

Power Adapter Standard

  • US, EU, UK, AU Standard etc.

Dimension(LxWxH)

  • 59*52*12mm

Net Weight

  • 34g

Note: Specifications are subject to change without notice.
