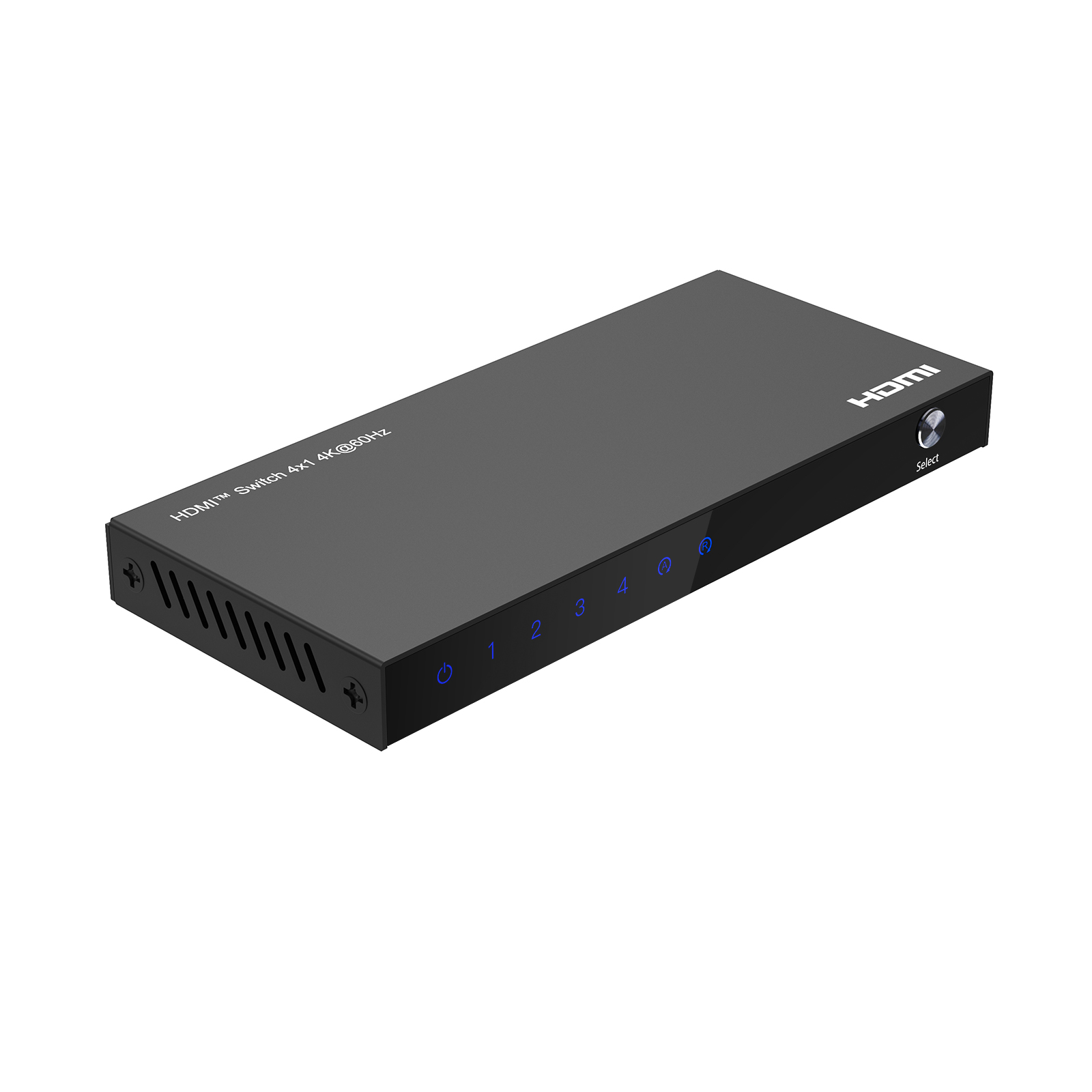

Premium 4 Port HDMI Switch with IR Wireless Remote 4K@60Hz HDCP2.3

Package Content

INTRODUCTION

The 4 port HDMI™ Switch Supports 4K@60Hz lets you share a display or projector with four HDMI™-enabled video sources. The switch features four independent inputs that each support 4K resolution and 7.1 surround sound audio. You’ll be amazed at how this video switch maintains Ultra HD picture quality. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the switch is backward compatible with high-definition 1080p, you can rest assured any video source will look great in your digital signage application.
Enjoy hassle-free operation with three different switching modes:
1. Manual Switching: Enables you to manually select your HDMI™ source with easy-to-use panel button.
2. Remote Control Switching: Enables you to control the switch at a distance.
3. Automatic Switching: Enables your most recently activated video source to be displayed automatically.
And it also features the Automatic and Manual Switching mode change function and IR receiver on/off function via long press the switch button for 3 and 6 seconds to meets customers’ needs.

FEATURES
  • HDMI Stylish switches with remote control switching/manual switching / automatic switching.
  • Support manual switching and automatic switching. Each mode can be changed to another via long press the selector button for 3 seconds.
  • Support IR receiver on/off function via long press the selector button for 6 seconds, turn on the IR receiver function for normal use and turn off the IR receiver function to avoid the unwished remote control the switch for using the same Infrared code.
  • Support high definition resolution 4K@60Hz and full 3D.
  • Support 600MHz/6.0Gbps per channel bandwidth (18Gbps all channels).
  • Support 12bit per channel (36bit all channels) deep color.
  • Support HDCP 2.2.
  • Support High Dynamic Range (HDR) video.
  • Support Consumer Electronics Control.
  • Support uncompressed audio such as LPCM.
  • Support compressed audio such as DTS, Dolby Digital(including DTS-HD Master Audio™ and Dolby TrueHD).
SPECIFICATIONS
Input Ports

  • HDMI x 4

Output Ports

  • HDMI x 1

Vertical Frequency Range

  • 50/60Hz

Video Amplifier Bandwidth

  • 6.0Gbps/600MHz per channel(18Gbps all channels)

Interlaced(50&60Hz)

  • 480i, 576i, 1080i

Progressive(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • USB Power Cable

Power Consumption (Max)

  • 5W

Switcher Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • FCC, CE, RoHS

Power Adapter Standard

  • US, EU, UK, AU Standard etc.

Dimension(LxWxH)

  • 136.3×61.5×14.5mm

Net Weight

  • 173g

Material

  • Metal

User Manual

  • English Version

Note: Specifications are subject to change without notice.
