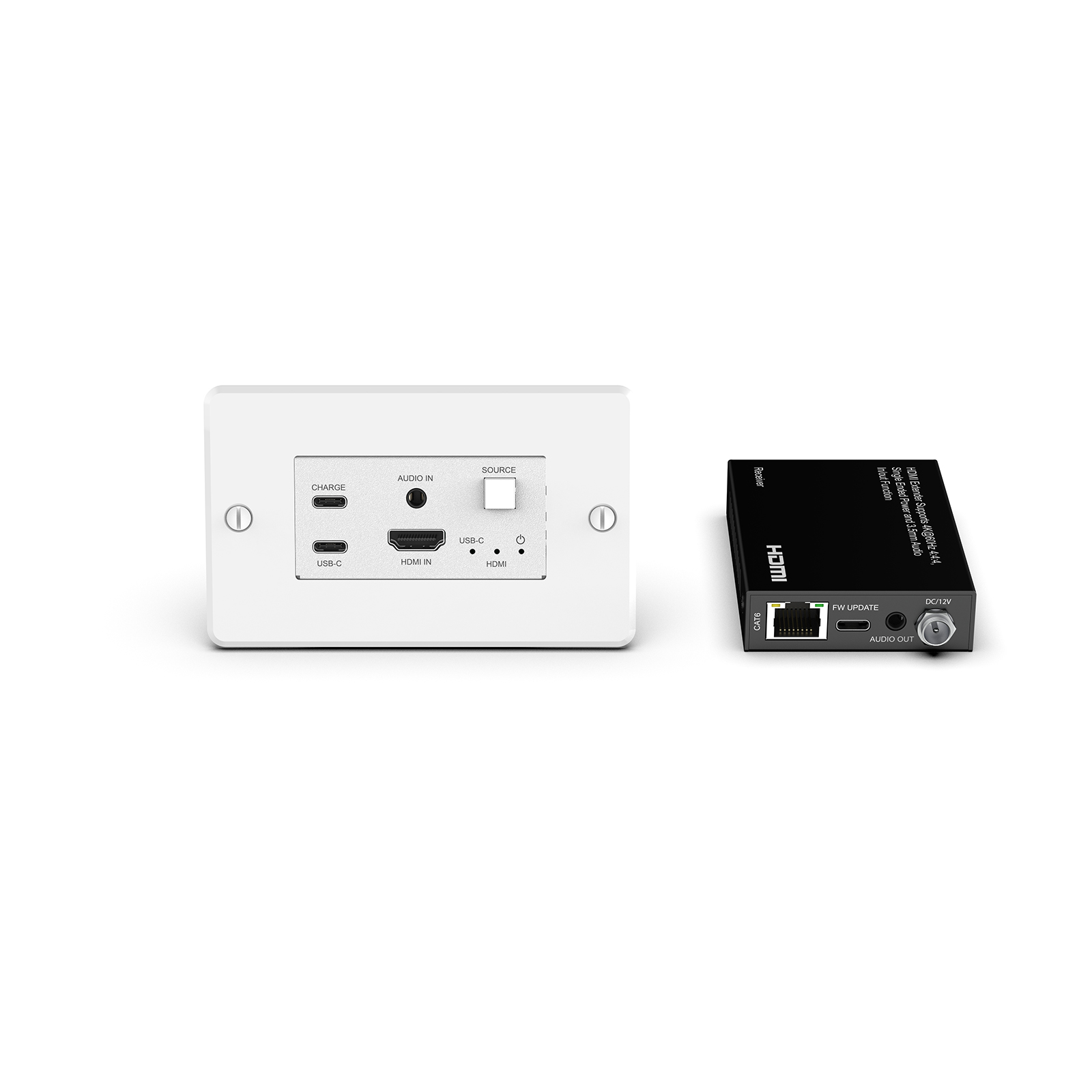

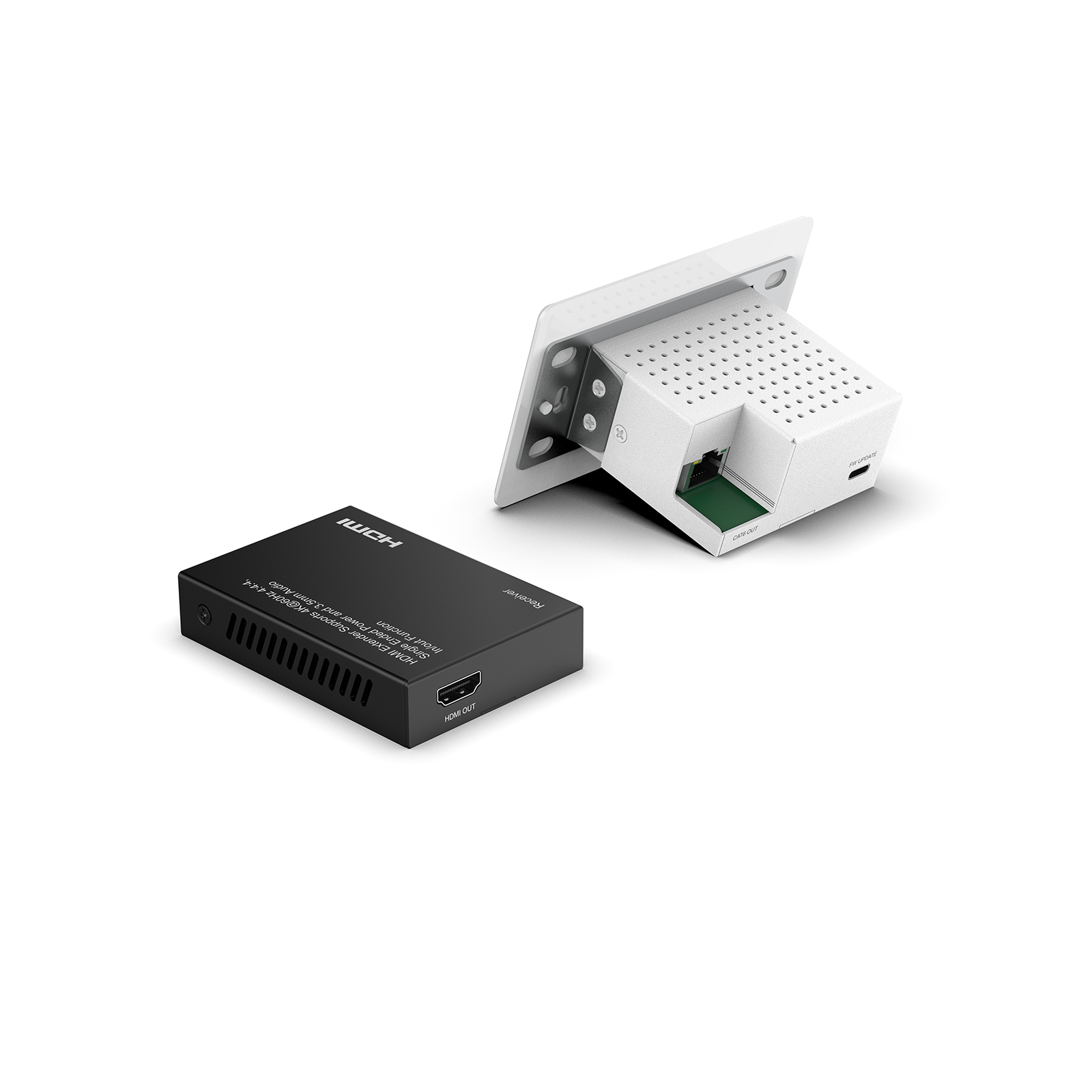

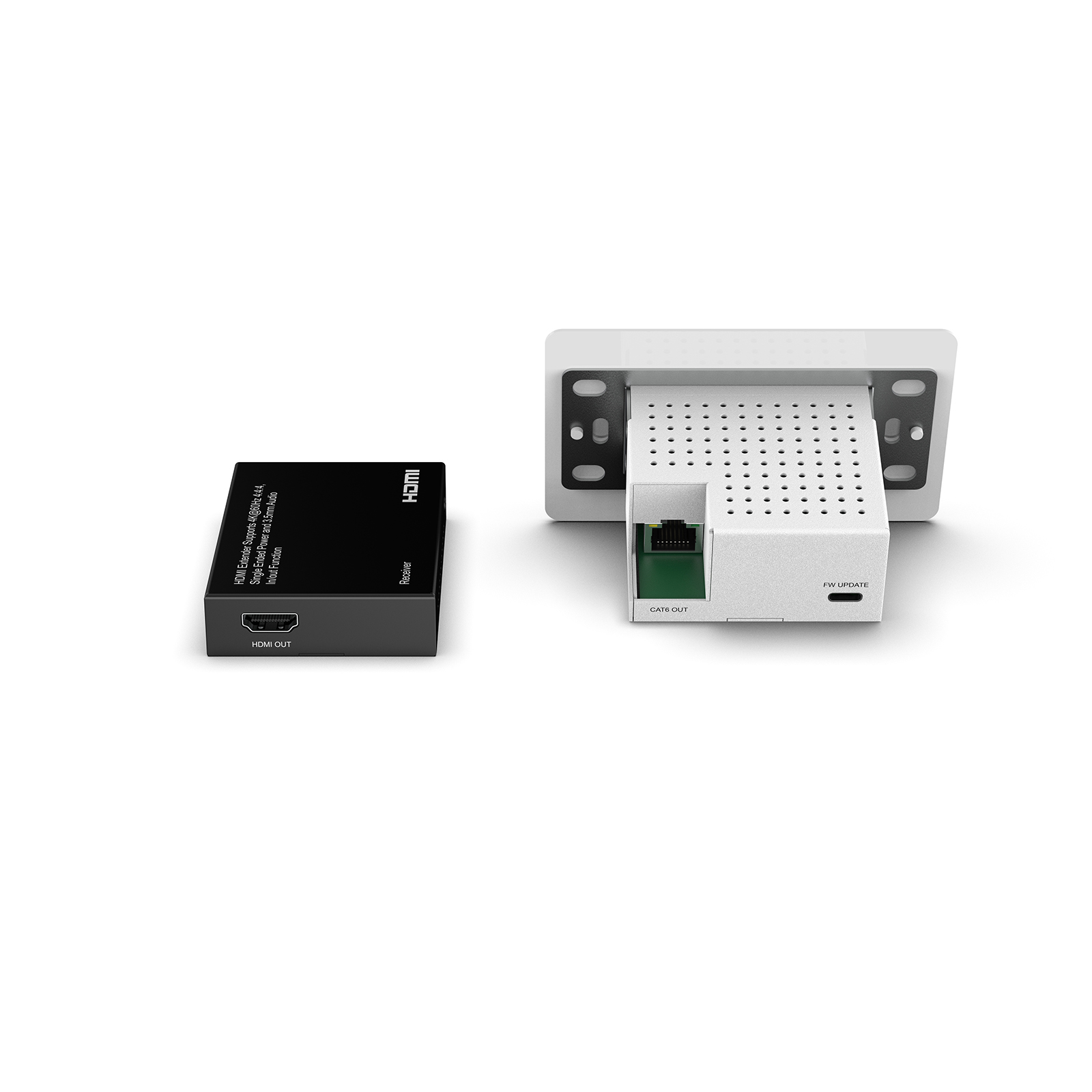

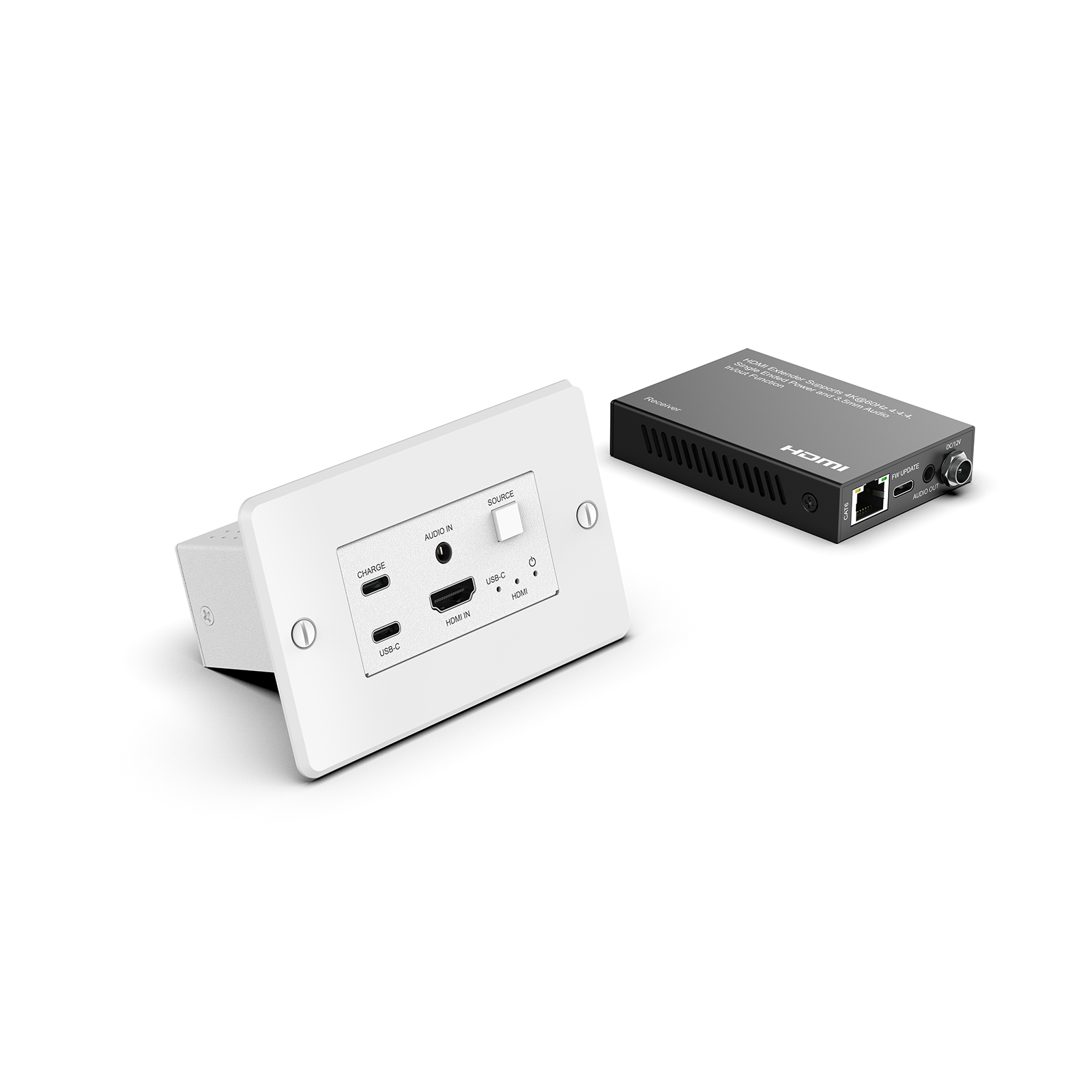

4K 60Hz Wall Plate HDMI Extender Over Ethernet with HDMI/USB-C Inputs, USB-C Charging Port, 3.5mm audio embedded and 3.5mm audio extractor fti

INTRODUCTION

The HDMI™ extender is an ideal device for remote viewing. It extend the input of the HDMI™ or USB-C (DP Alt Mode) signal to remote outputs up to 4K@60Hz at 35m (115feet)/1080p@60Hz at 50m (164feet) , perfect for point-to-point digital signage applications that require high quality HDMI™ video up to 4K@60Hz 4:4:4. It also Supports Audio Eembedded and De-Eembedded Function, ideal for education or confrence. It features single ended power supply enabling the transmitter to be powered by a single 12V power supply from the receiver.

FEATURES

• Support high resolution up to 4K@60Hz YUV 4:4:4.
• Support HDCP2.3, HDCP 2.2 and HDCP 1.4.
• Support High Dynamic Range (HDR) video.
• HDMI input supports HDMI 2.0b standard, 6Gbps per channel/18Gbps all channels video bandwidth.
• USB-C input supports DP 1.2a standard, 5.4Gbps per channel/21.6Gbps all channels video bandwidth, Video resolution up to 4K@60Hz 4:4:4.
• Video transmission distance up to 164ft for 1080p@60Hz or 115ft for 4K@60Hz via a single CAT6/6a cable.
• Features USB-C charging port up to PD3.0 standard for 100W max.
• Support uncompressed audio such as LPCM.
• Support compressed audio such as DTS, Dolby Digital.
• Support single ended power supply feature, 12V power transmitted from receiver to sender.
• Support 3.5mm audio embedded and 3.5mm audio extractor function.
• US one-gang for Decora-style wall plate openings.
