INTRODUCTION

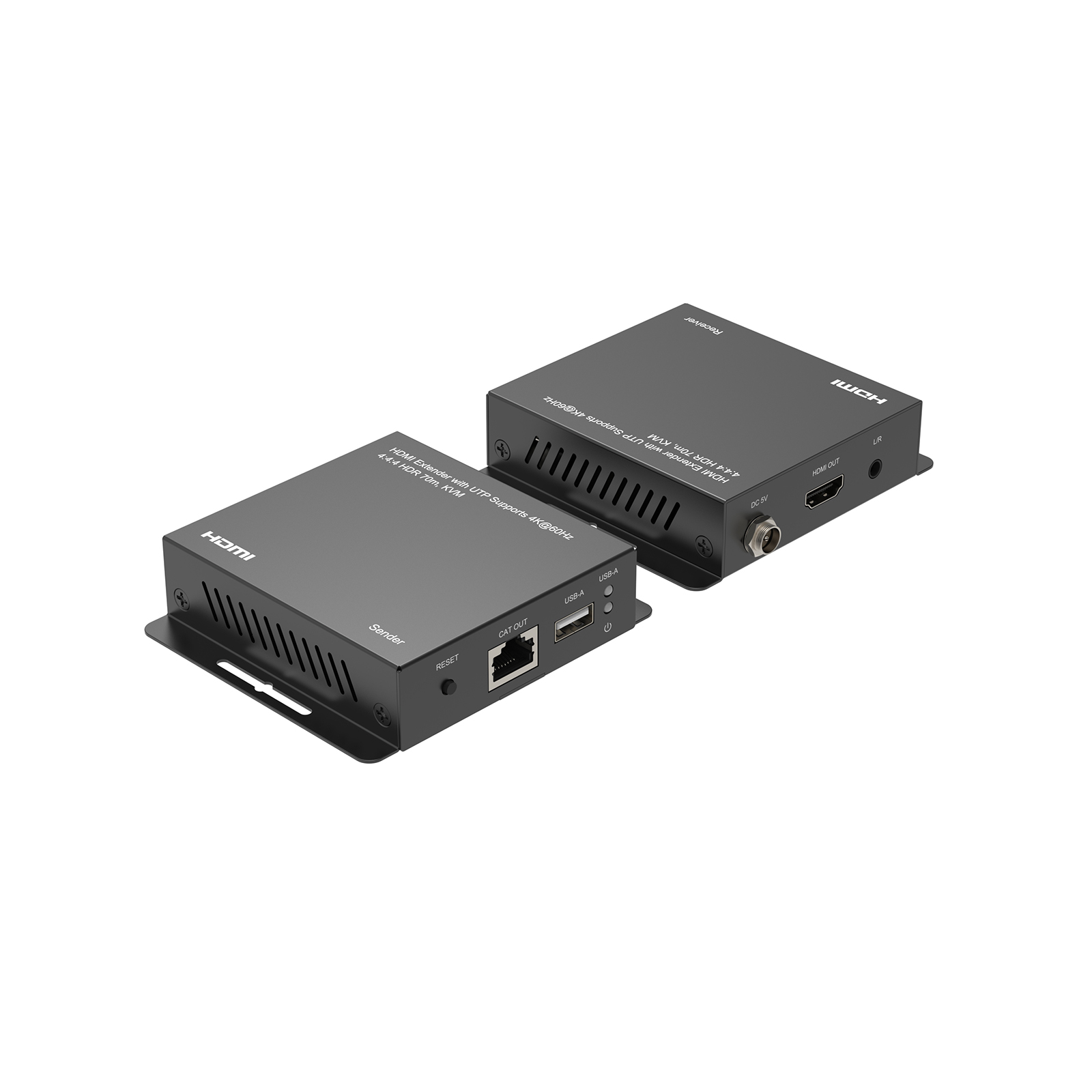

The HDMI™ 1×2 Splitter extender is an ideal device for local displaying and remote viewing. It combines the split function and extension function. It distributes the input of the HDMI™ signal into the local and remote outputs simultaneously, perfect for point-to-point digital signal applications that require high-quality HDMI™ video up to 4K@60Hz 4:4:4. it also transmits the USB1.1 control signals at the same time, perfect for controlling your video source from your video destination. It features a single-ended power supply enabling the receiver to be powered from the transmitter by a single 12V power supply.
FEATURES
- Support high resolution up to 4K@60Hz YUV 4:4:4 at 70 meters.
- Support HDCP 2.2 and HDCP 1.4.
- Support High Dynamic Range (HDR) video.
- Support highest data transfer rate up to 6.0Gbps per channel (18Gbps all channels).
- TMDS clock can be up to 600MHz.
- Support 12bit per channel (36bit all channels) deep color.
- Support uncompressed audio such as LPCM.
- Support compressed audio such as DTS, Dolby Digital.
- Supports single ended power supply feature, 12V power transmitted from sender to receiver.
- Supports remote USB mouse and keyboard connection (up to 2 ports at receiver).
SPECIFICATIONS
Input Port
- HDMI x 1, RJ45 x 1, 3.5MM x 2
Output Port
- HDMI x 1, LOOP OUT x 1 RJ45 x 1, 3.5MM x 2
Extensions Distance
- 70m(230 feet) for 4K@60Hz 4:4:4
Vertical Frequency Range
- 50/60Hz
IR Frequency Range
- 20-60KHz
Interlaced Resolutions(50&60Hz)
- 480i, 576i, 1080i
Progressive Resolutions(50&60Hz)
- 480p, 576p, 720p, 1080p, 4K@60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 50℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- DC 12V
Power Consumption (Max)
- TX: 1.3W, RX: 1.6W
Extender Unit Cert
- FCC, CE, RoHS
Power Supply Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- 80.5*80.5*17.3mm
Net Weight
- TX: 61g, RX: 56g
Material
- ABS
User Manual
- English Version
Note: Specifications are subject to change without notice.
