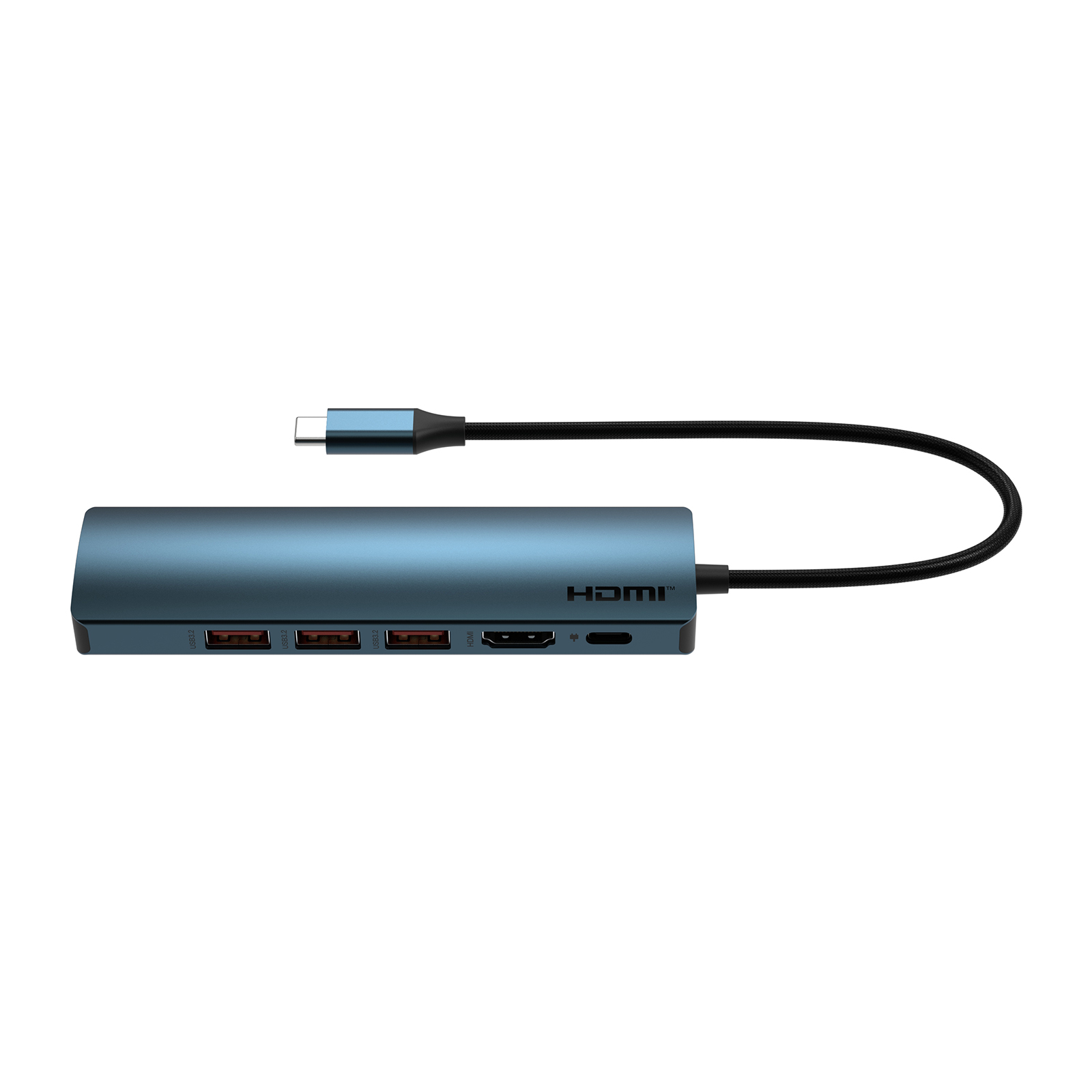

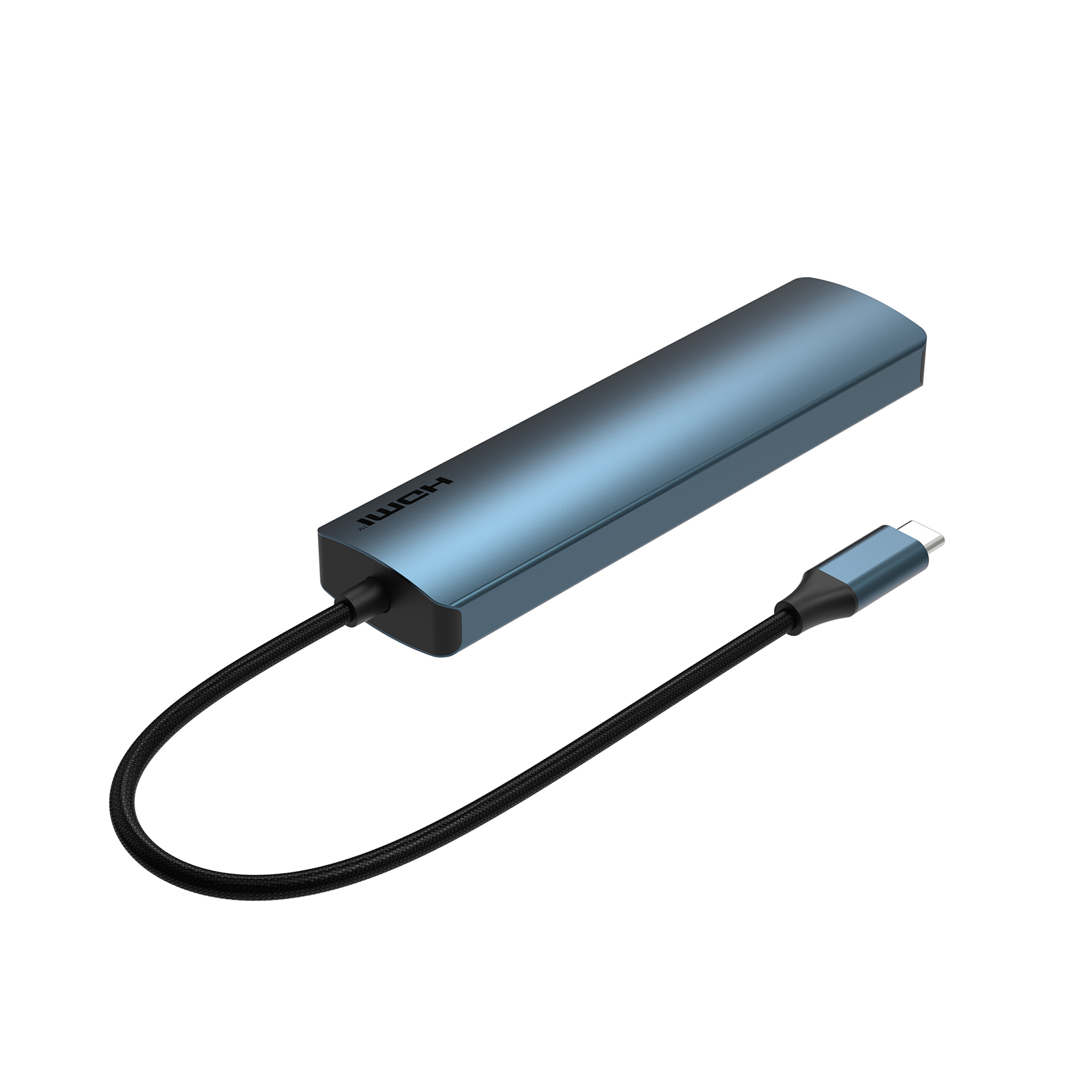

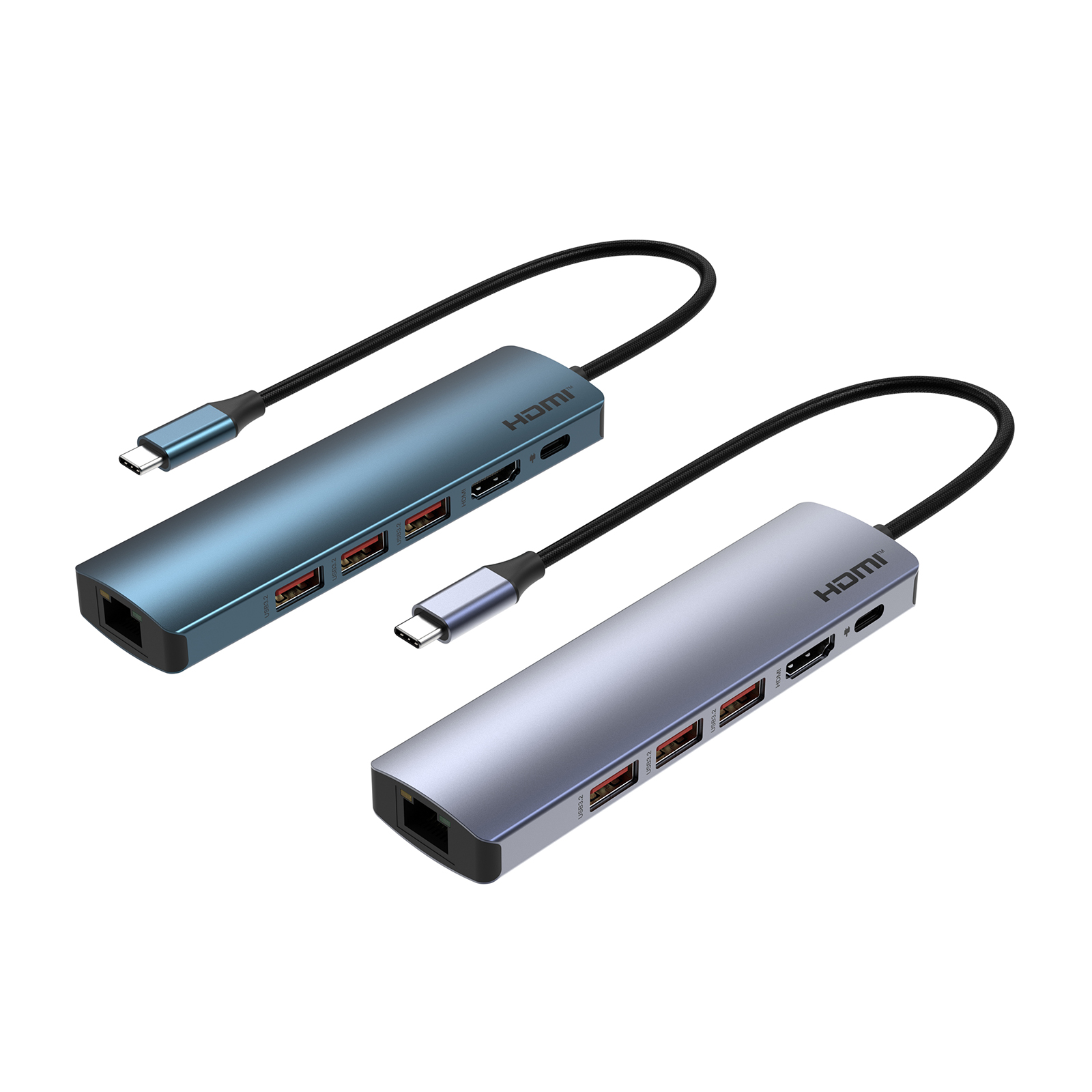

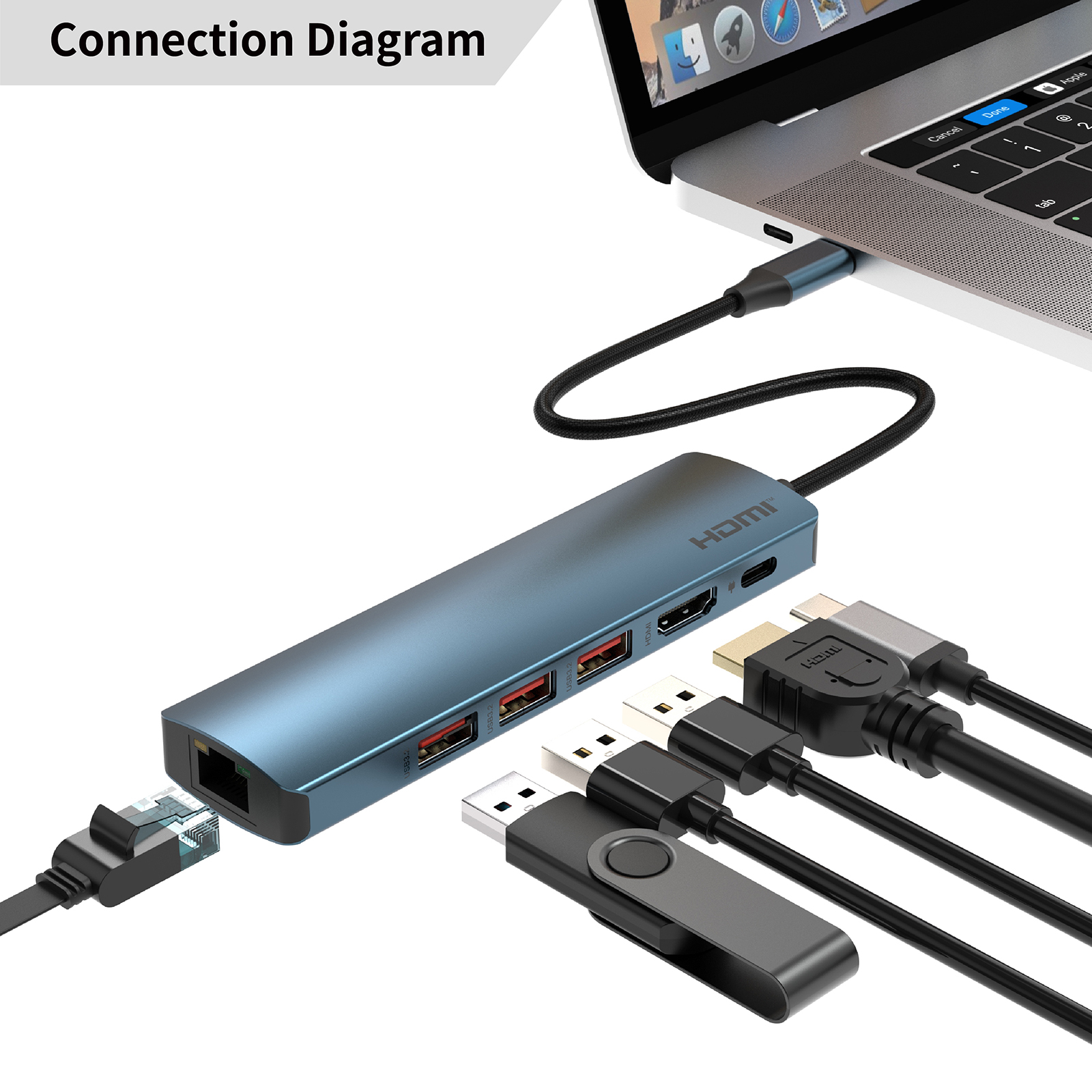

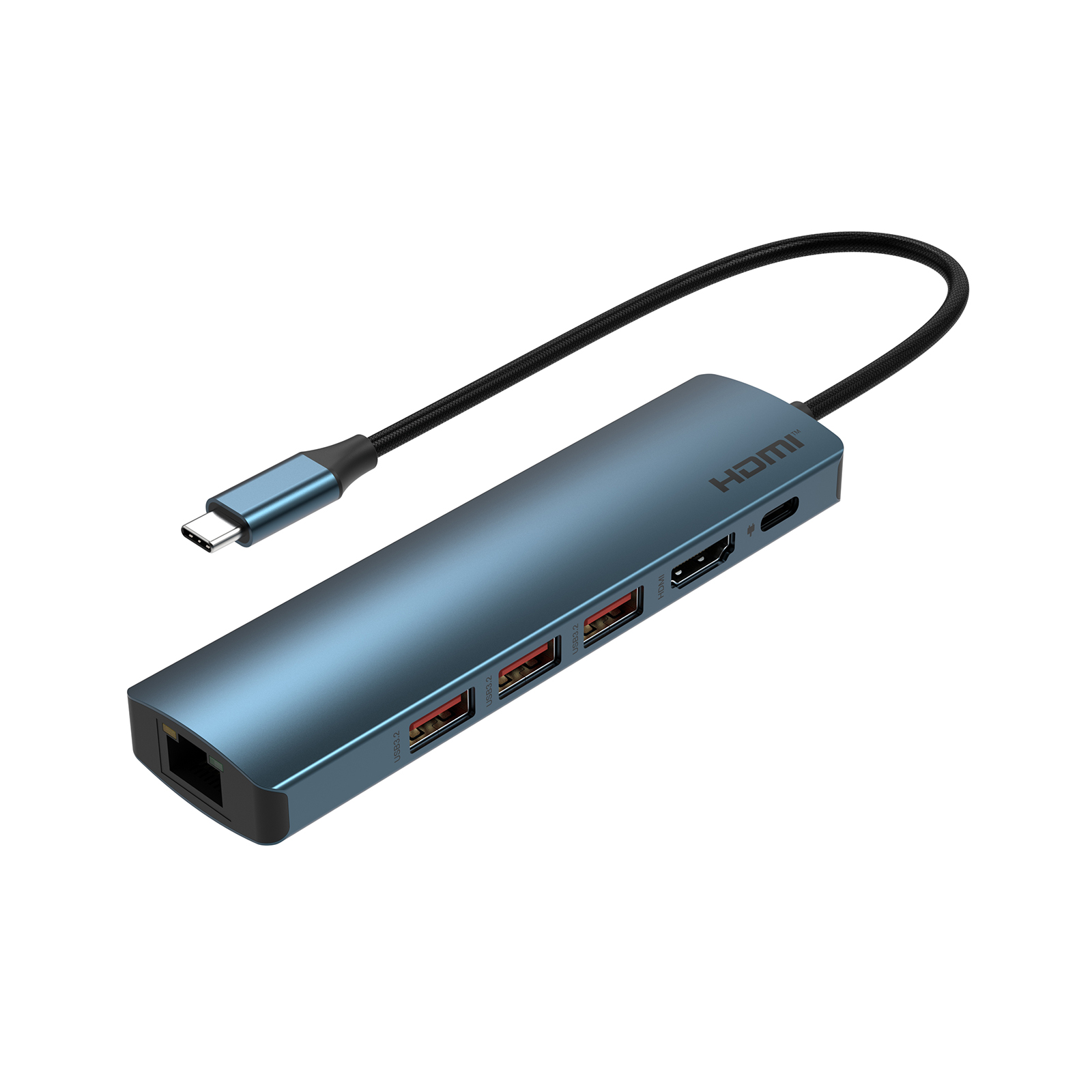

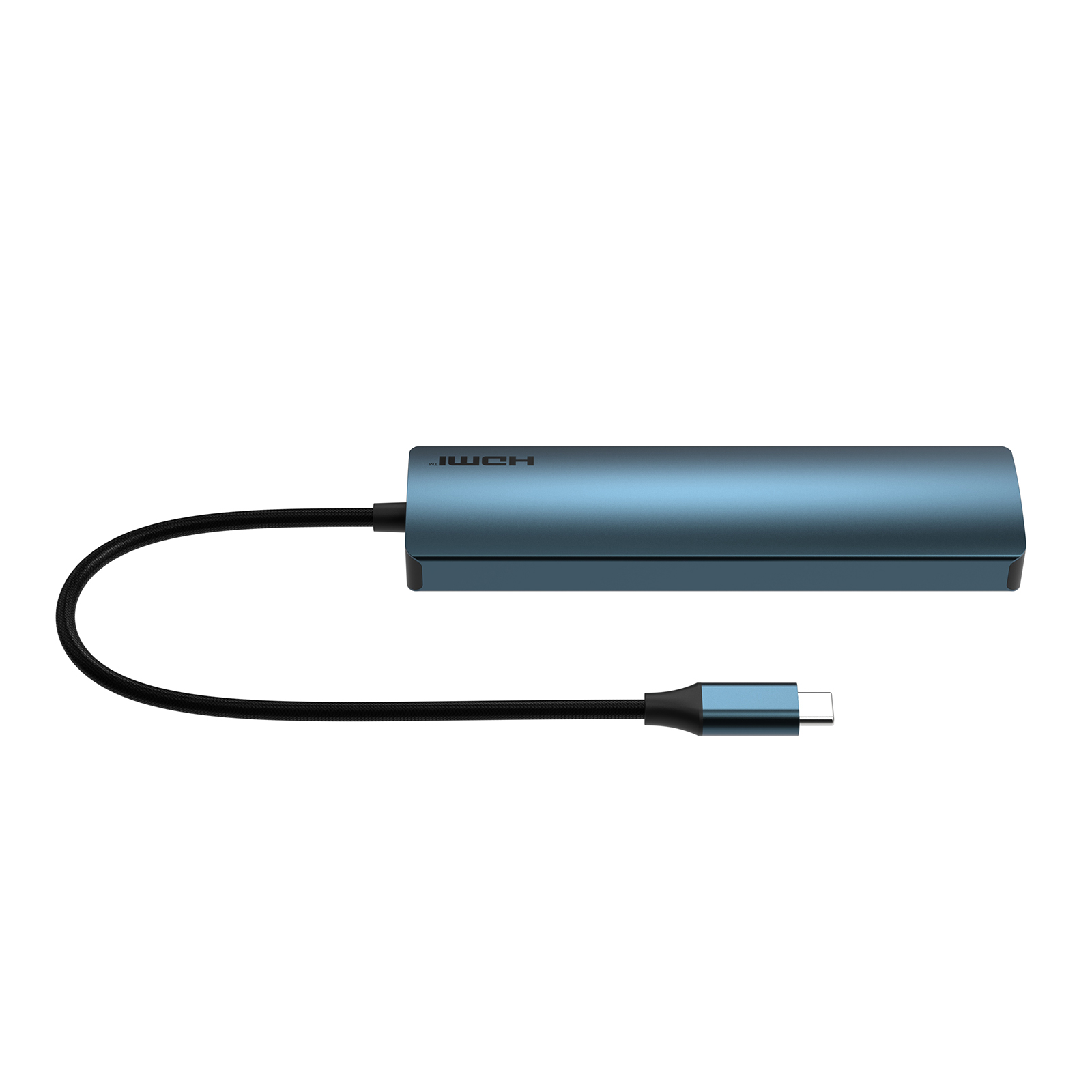

USB-C™ to HDMI™ 4K@60Hz + 3xUSB 3.2 Gen2 (10Gbps) + RJ45 1000M + PD3.0 100W

Package Content

INTRODUCTION

This USB 3.1 Type-C™ to HDMI™ + 3 x USB 3.2 gen2(10Gbps) +1000M RJ45 + PD 3.0 adapter 4K@60Hz 4:4:4 lets you output HDMI™ video and audio and connecting three USB 3.2 gen2(10Gbps) devices, one RJ45 Gigabit(1000M) Ethernet port with power deliver function up to PD 3.0 100W from a USB 3.1 Type-C™ device such as a MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™ laptop. It lets you utilize the versatile USB 3.1 Type-C™ port on your portable device. USB 3.1 Type-C™ is a reversible connector, so it doesn’t matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of fiddling with your device when you’re trying to deliver a presentation.
The adapter lets you harness the video capabilities built into your USB 3.1 Type-C™ connection, to deliver the astonishing quality of Ultra HD to your 4K display. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
This USB 3.1 Type-C™ video adapter is highly portable with lightweight design, perfect accessory for your MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™, fitting easily into your laptop bag or carrying case.

FEATURES
  • Supports UHD video resolutions up to 4K@60Hz 4:4:4 for single display.
  • Supports three USB 3.2 gen2 port up to 10Gbps data transmission with 5V 0.9A power supply capacity
  • Supports power deliver function up to 100W with PD 3.0 standard.
  • Support 10/100/1000Mbps for Gigabit (1000M) Ethernet port.
  • Built-in USB Type C cable to be connected directly to your source device.
  • Compatible with Thunderbolt 3.
  • Compatible with DP1.4 alt mode.
  • Compact design with aluminium alloy + ABS.
  • Plug and play with no driver or software installation at all.
SPECIFICATIONS
Input Ports

  • USB-C Male, USB-C Female x 1 (PD)

Output Ports

  • HDMI x 1, USB 3.2 GEN 2 x 3, RJ45 x 1

Data Transmission Rate (Max)

  • 10Gbps

Data Transmission Standard

  • USB 3.2 GEN 2

Vertical Frequency Range

  • 50/60Hz

Video Amplifier Bandwidth

  • 6.0Gbps/600MHz per channel(18Gbps all channels)

Interlaced(50&60Hz)

  • 480i, 576i, 1080i

Progressive(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 60℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • N/A

Power Consumption (Max)

  • 5W

Unit Cert

  • FCC, CE, RoHS

Dimension(LxWxH)

  • 127.5x34x15mm

Net Weight

  • 65g

Material

  • Aluminium Alloy + ABS

User Manual

  • English Version

Note: Specifications are subject to change without notice.
