HDMI™ 1×2 Splitter Supports 4K@30Hz

Package Content


This 2-port 4K HDMI™ splitter lets you share two HDMI™ displays or projectors with an HDMI™-enabled audio/video source device, such as a computer, Blu-ray player, or cable TV set-top box. With support for Ultra HD (4K) the HDMI™ splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p. The 4K splitter is also backward compatible with previous HDMI™ revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don’t require 4K video today, this 2-port splitter ensures you’ll be ready to take advantage of tomorrow’s display technology.

  • Easy to Use: Install in seconds, no need of setting.

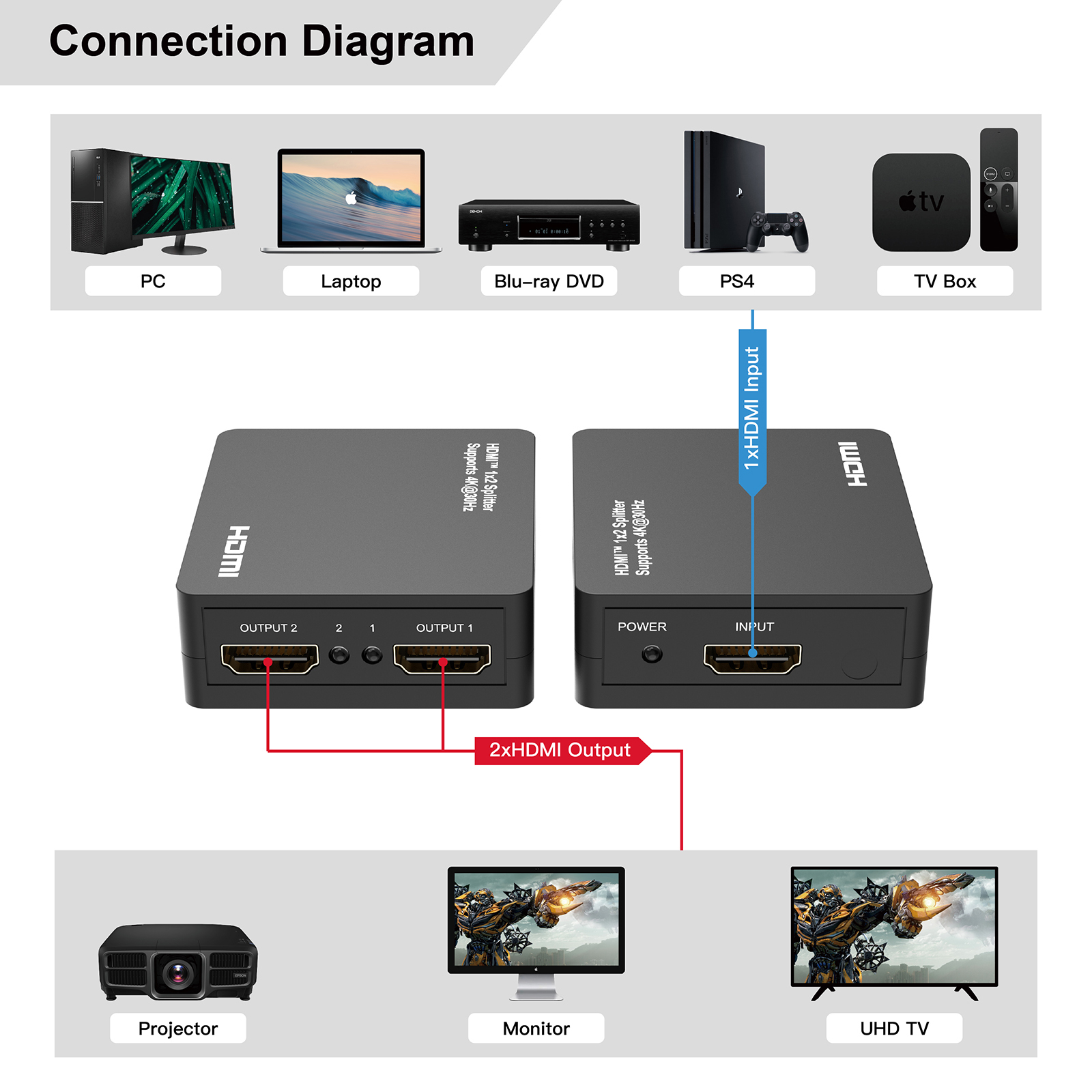

  • One HDMI Input, two HDMI outputs.
  • Support Full 3D and 4K@30Hz resolution.
  • Support 340MHz/3.4Gbps per channel (10.2Gbps all channels).
  • Support 12bit per channel (36bit all channels) deep color.
  • Support HDCP 1.4.
  • Support uncompressed audio such as LPCM 7.1.
  • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master AudioTM and Dolby TrueHD).
Input DDC Signal

  • 5 Volts p-p (TTL)

Maximum Single Link Range

  • 4K@30Hz

Output Video

  • HDMI Signal

Vertical Frequency Range

  • 50/60Hz

Video Amplifier Bandwidth

  • 3.4Gbps/340MHz

Interlaced Resolutions(50&60Hz)

  • 480i, 576i, 1080i

Progressive Resolutions(50&60Hz)

  • 480p, 576p, 720p, 1080p, 4K@30Hz


  • 60.5*54*20.5mm

Limited Warranty

  • 1Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Operating Humidity

  • 10% to 85% RH (no condensation)

Storage Temperature

  • -10℃ to +80℃

Storage Humidity

  • 5% to 90% RH (no condensation)

Power Supply

  • USB Power Cable

Power Consumption(Max)

  • 5W

Splitter Unit Cert

  • FCC, CE, RoHS

Power Supply Cert

  • CE, FCC, RoHS

Power Adapter

  • US, UK, EU, AU Standard etc

User Manual

  • English Version

Note: Specifications are subject to change without notice.
