INTRODUCTION

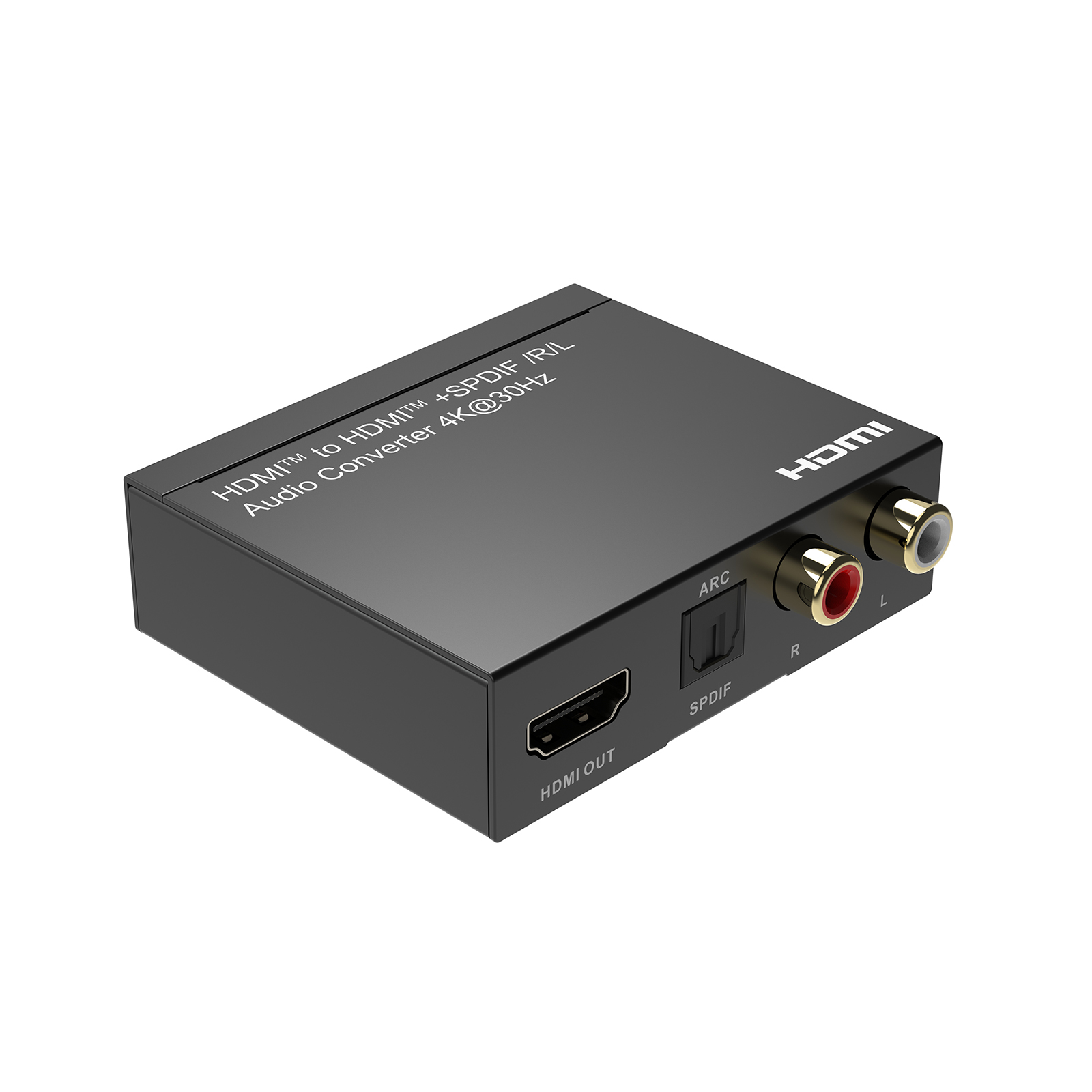

The HDMI to HDMI + Audio Extractor (SPDIF/RL Audio) 4K30Hz with EDID control lets you share one HDMI™ displays and SPDIF/Stereo audio output device simultaneously with an HDMI-enabled audio / video source device. With support for Ultra HD (4K@30Hz) the HDMI™ splitter ensures astonishing picture quality, four times the resolution of UHD 1080p. The 4K HDMI Audio Extractor is also backward compatible with previous HDMI™ revisions, supporting 1080p / 720p HDMI™ video resolution devices. Even if you don’t require 4K video today, the HDMI to HDMI + Audio Extractor (SPDIF/RL Audio) 4K30Hz ensures you’ll be ready to take advantage of tomorrow’s display technology. It features Three kinds of EDID control to meets customer`s different needs.

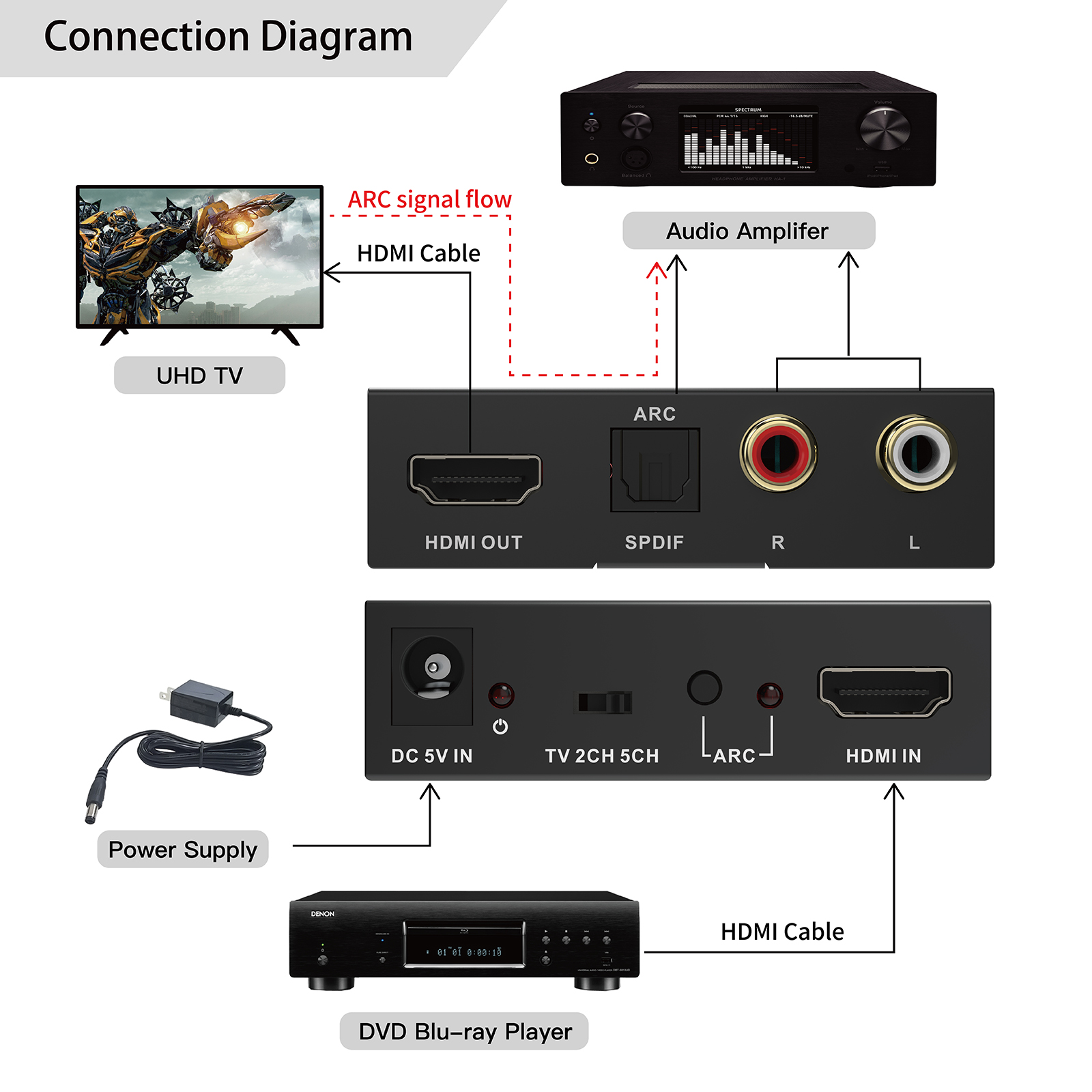

Also, the audio embedded in HDMI™ can be extracted via HDMI, Toslink and the switch can return the audios to AV receivers with audio return channel (ARC) function.
FEATURES
- Support digital audio output simultaneously: RL Audio and Toslink.
- Support full 3D video format.
- Support high definition resolution 4K@30Hz 4:4:4, 1080p and 720p.
- Support 340MHz/3.4Gbps per channel bandwidth (10.2Gbps all channels).
- Support 12bit per channel (36bit all channels) deep color.
- Support HDCP 1.4.
- Support Consumer Electronics Control function.
- Support Audio Return Channel and enhance Audio Return Channel function.
- Support uncompressed audio such as LPCM.
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
SPECIFICATIONS
Input Ports

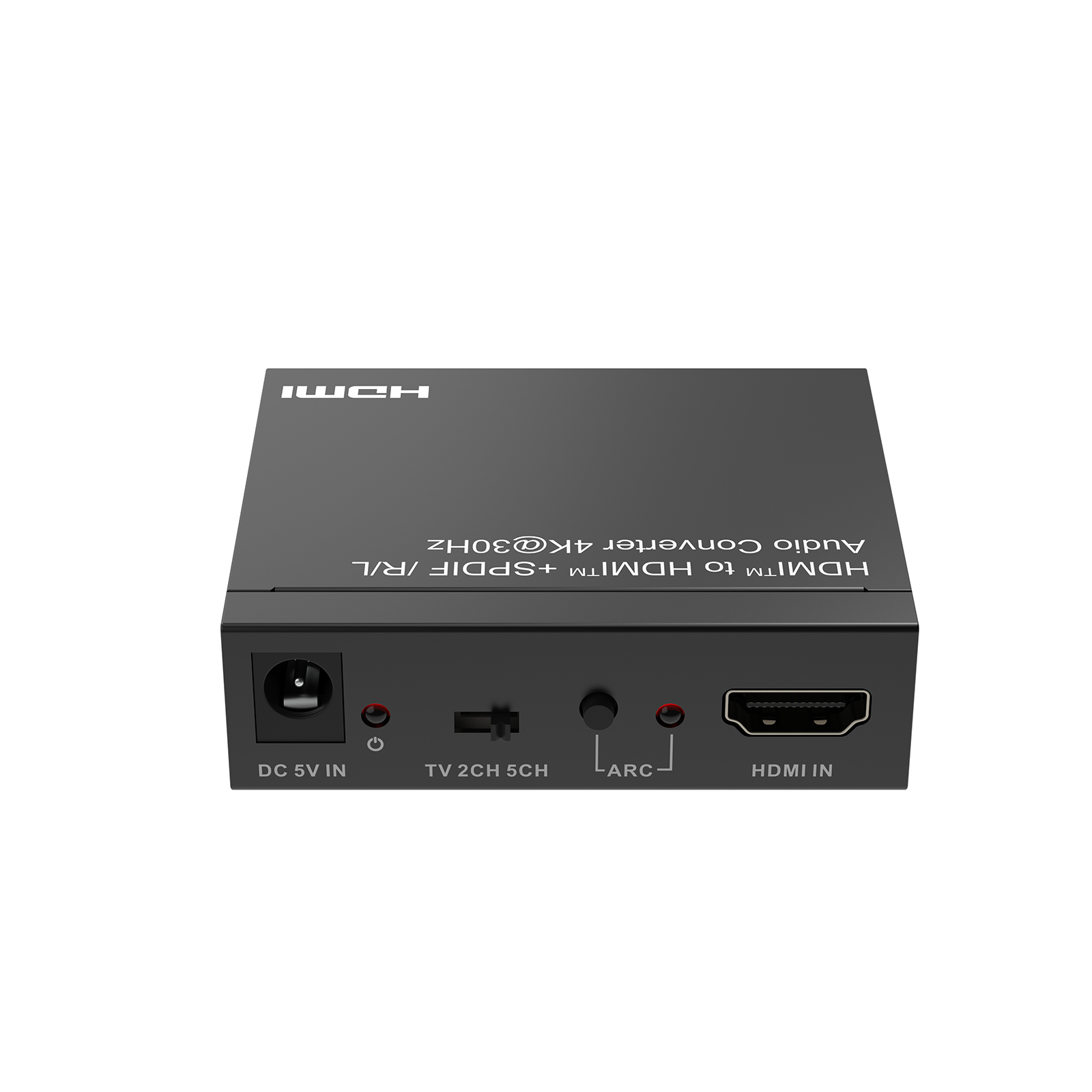

- HDMI x 1
Output Ports

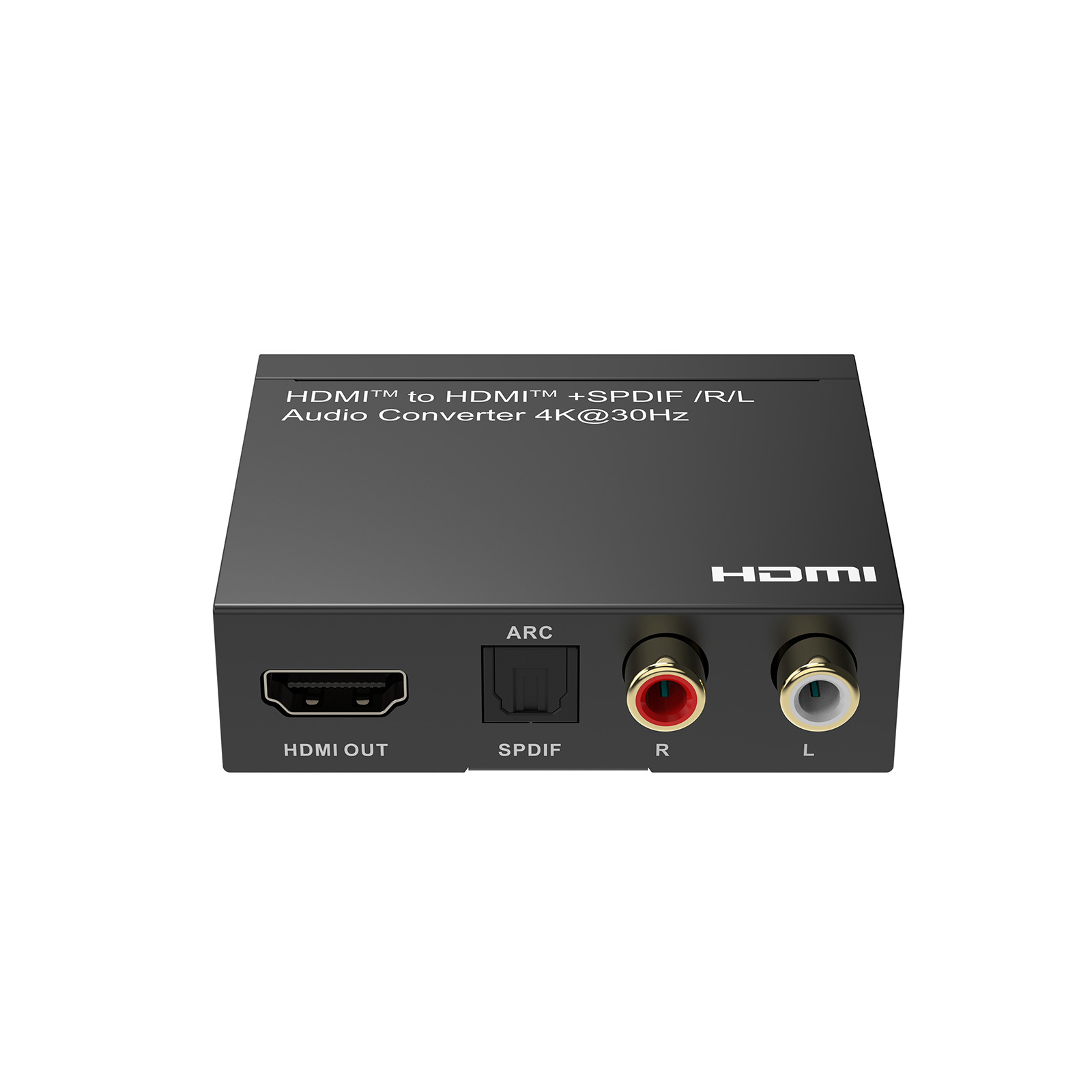

- HDMI x 1, R/L Audio(RCA )x 1, Toslink x 1
Vertical Frequency Range
- 50/60Hz
Video Amplifier Bandwidth
- 3.4Gbps/340MHz per channel(10.2Gbps all channels)
Interlaced(50&60Hz)
- 480i,576i,1080i
Progressive(50&60Hz)
- 480p,576p,720p,1080p,4K@24/30Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 70℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- 5V DC Power Adapter
Power Consumption (Max)
- 5W
Converter Unit Cert
- FCC, CE, RoHS
Power Supply Cert
- FCC, CE, RoHS
Power Adapter Standard
- US, EU, UK, AU Standard etc.
Dimension(LxWxH)
- 71x59x20.5mm
Net Weight
- 110g
Material
- Metal
User Manual
- English Version
