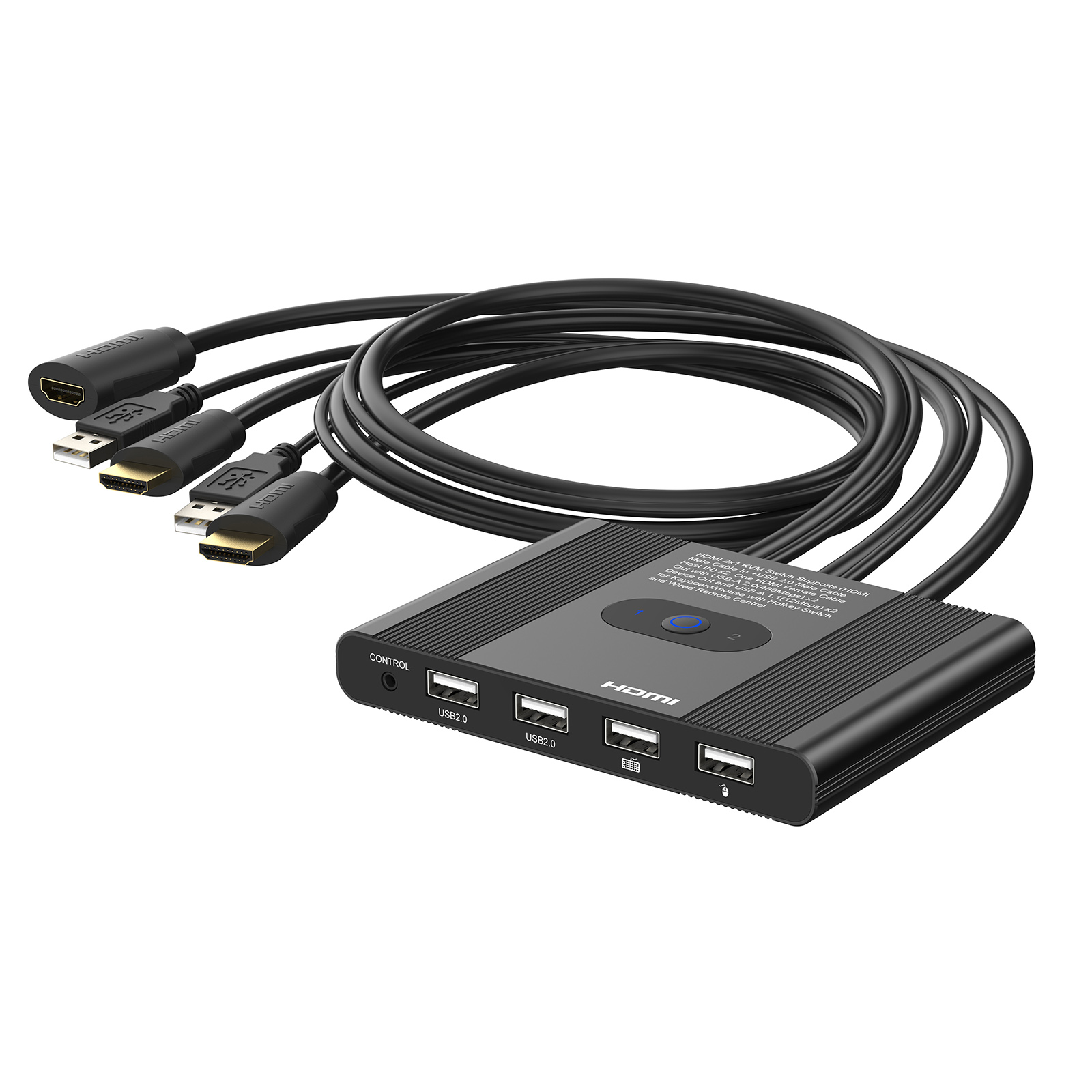

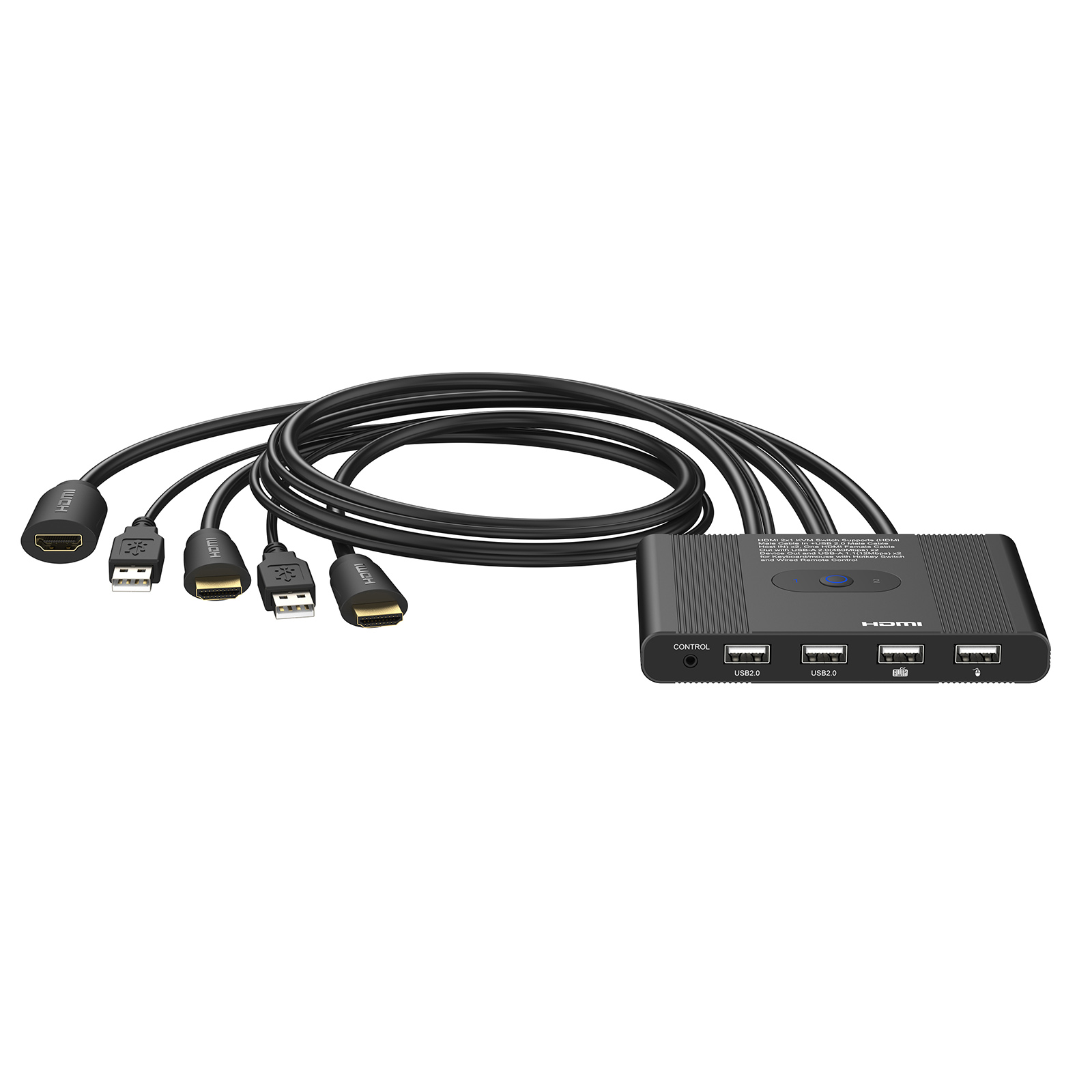

HDMI 2×1 KVM Switch Supports (HDMI 4K@60Hz Male Cable In +USB 2.0 Male Cable Host In) x2,One HDMI Female Cable Out with USB-A 2.0 x2 Device Out and USB-A 1.1 x2 for Keyboard/ Mouse, Wired Remote Control and Hotkey Switch

INTRODUCTION

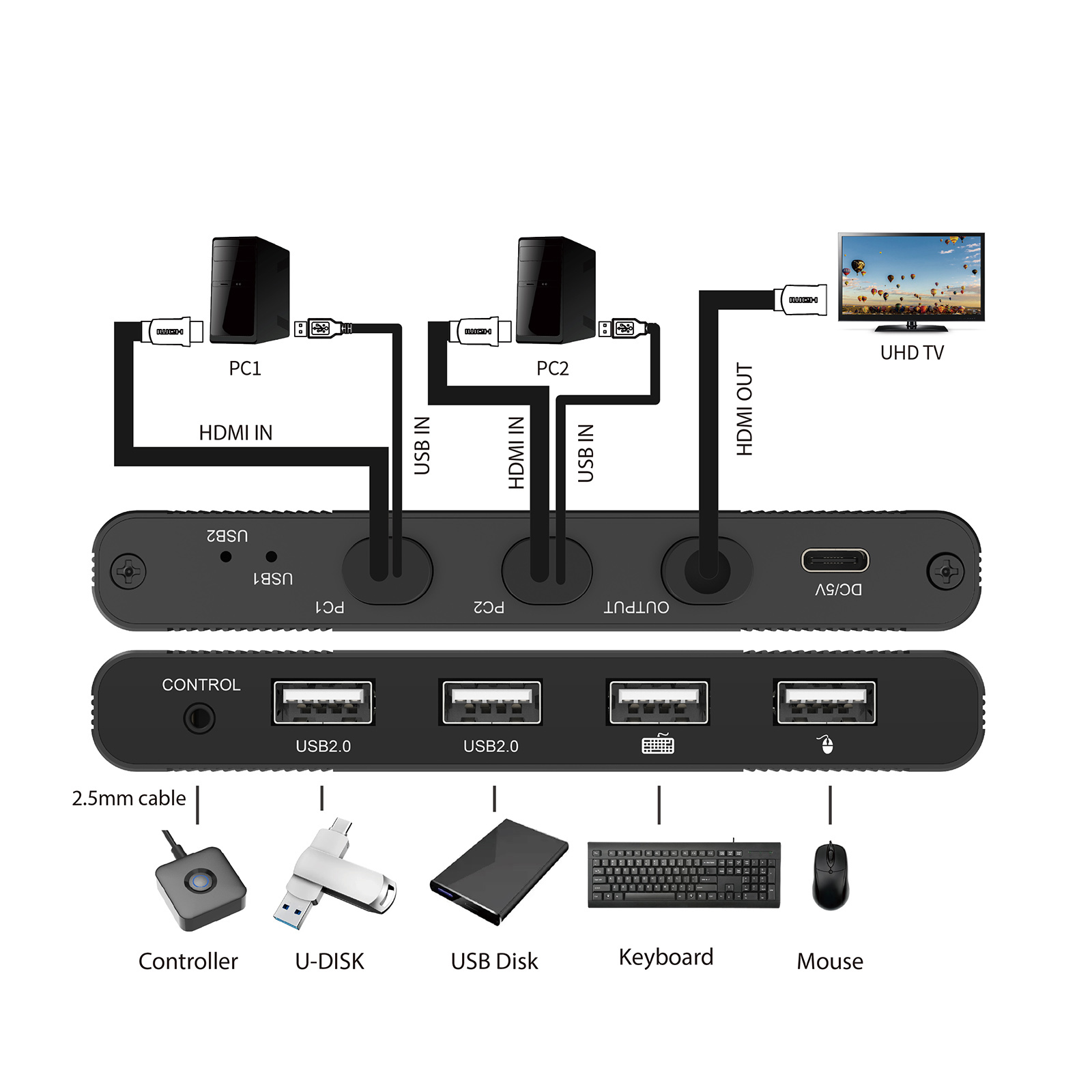

The HDMI 2×1 KVM Switch Supports (HDMI 4K60 Male Cable In +USB 2.0 Male Cable Host IN) x2, One HDMI Female Cable Out with USB-A 2.0(480Mbps) x2 Device Out and USB-A 1.1(12Mbps) x2 for Keyboard/mouse with Hotkey Switch and Wired Remote Control let a display or projector with two HDMI™-enabled video sources. The switch features two HDMI+USB-A 2.0 inputs that support 4K resolution and 7.1 surround sound audio. It features two USB-A 2.0 ports and two USB-A 1.1 ports, which makes the customers share a pair of Keyboard, mouse and other USB device between two HDMI™-enable PCs and devices. Enjoy hassle-free operation with two switching modes: Manual port switching via top panel button or Wired Remote Control.

FEATURES

• Support two HDMI male +two USB-A 2.0 male cable inputs.
• Support two USB-A 1.1 ports for Keyboard and mouse and hotkey control.
• Support two USB-A 2.0 for other USB devices up to 480Mbps.
• Support manual switching: top panel button or Wired Remote Control.
• Support full 3D video format.
• Support high resolution up to 4K@60Hz YUV 4:4:4.
• Support HDCP 2.2 and HDCP 1.4.
• Support High Dynamic Range (HDR) video.
• Support Consumer Electronics Control.
• Support highest data transfer rate up to 6.0Gbps per channel (18Gbps all channels).
• TMDS clock can be up to 600MHz.
• Support 12bit per channel (36bit all channels) deep color.
• Support uncompressed audio such as LPCM.
• Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).

SPECIFICATIONS
