HDMI to USB-C 3.0 + HDMI Loop Out Video Capture Card Supports 4K@60Hz (4:4:4) and 1080p@120/240Hz, HDR, VRR Input and 4K@60Hz (4:4:4) and 1080p@120/240Hz Capture Out with MIC In, 3.5MM Line In and Line Out

  • pethch
  • Mark:

Package Content

  • HDMI to USB3.0 Male Video Capture Card Supports 4K@60Hz (4:4:4) and 1080p@120/240Hz, HDR, VRR Input and Capture Out: x1
  • User Manual: x1
  • USB-C to USB-A Female 3.0 Extend Data Cable: x1
INTRODUCTION

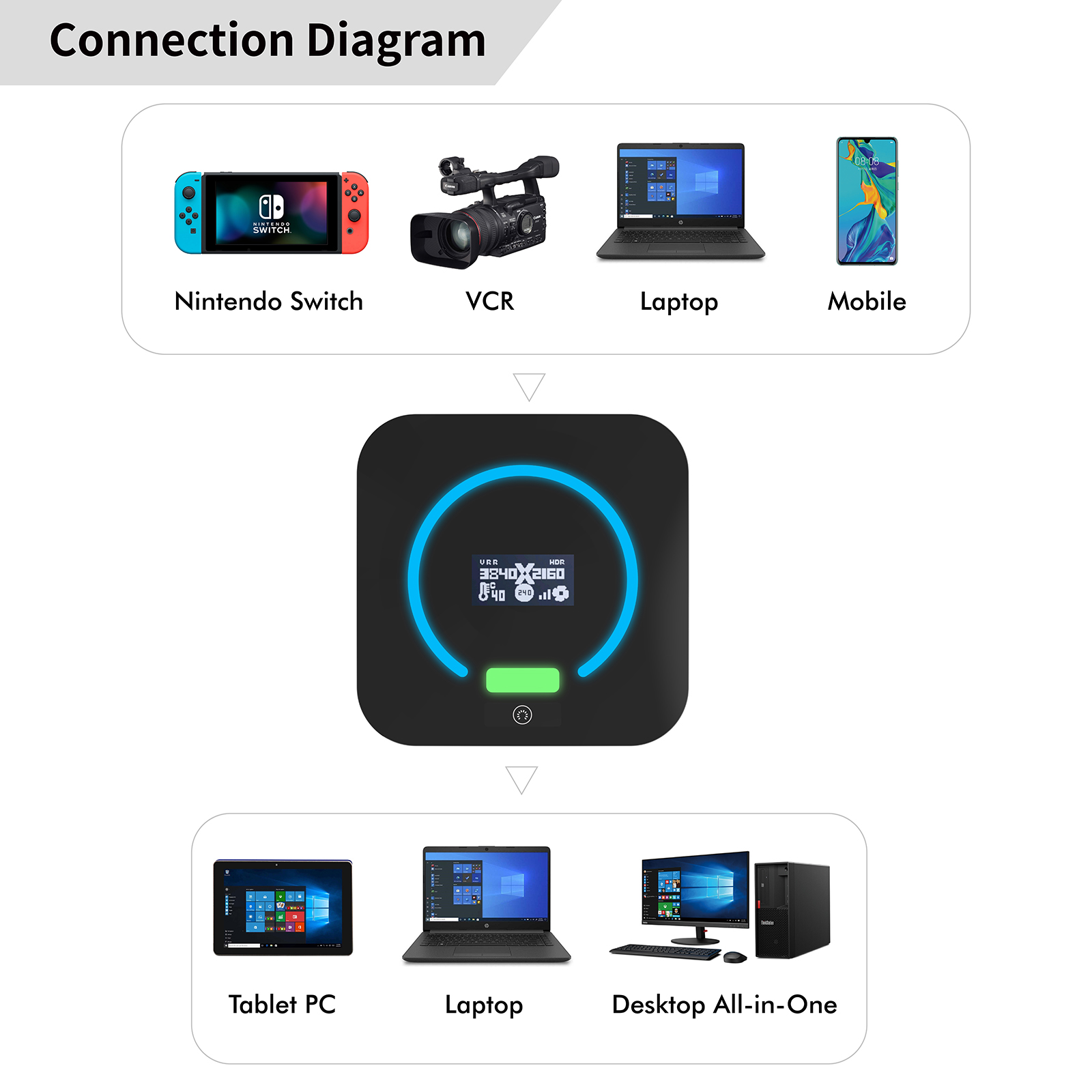

The video capture, use it to enjoy live streaming and recording. Applied to host live show/live entertainment/online games/live video streaming, etc. Capture from camera /DV camera /camcorder and other devices while recording or live streaming.
Meets your needs for mobile game live streaming/game console live streaming /network platform live streaming/Video conference video live streaming, etc.

FEATURES
  • Support full 3D video format
  • Computer powered, no external power supply required
  • No need to install driver, Plug-and-Play.
  • Support up to 1080p@120/240Hz and 4K@60Hz HDMI video signals in and loop out.
  • Support USB-C 3.0 capture output video signal highest resolution up to 4K@60Hz
  • Support one 3.5mm mic in, one 3.5mm line in and 3.5mm line out to fit different needs
  • Support High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision etc.
  • Support 1080p@120/240Hz Variable Refresh Rate (VRR) for gaming recording
  • Support 1.47 inch screen for resolution and VRR, HDR, temperature information display
  • Support fingerprint lock function
  • Compatible with UVC video capture and YUV 444 and YUV420 video output.
  • Compatible with UAC HDMI audio capture and 48 KHz PCM audio output.
  • Compatible with Windows, Linux, OS X operating systems.
  • Compatible with USB 3.0 and USB 2.0
  • Process video and audio independently and will not occupy the CPU.
  • Automatically detect the input video formats and adjust to set the output size and frame rate automatically.
  • Automatically detect the input audio formats and swift it to 48 KHz PCM audio.
  • Support multiple devices connect on one host
SPECIFICATIONS
Input Ports

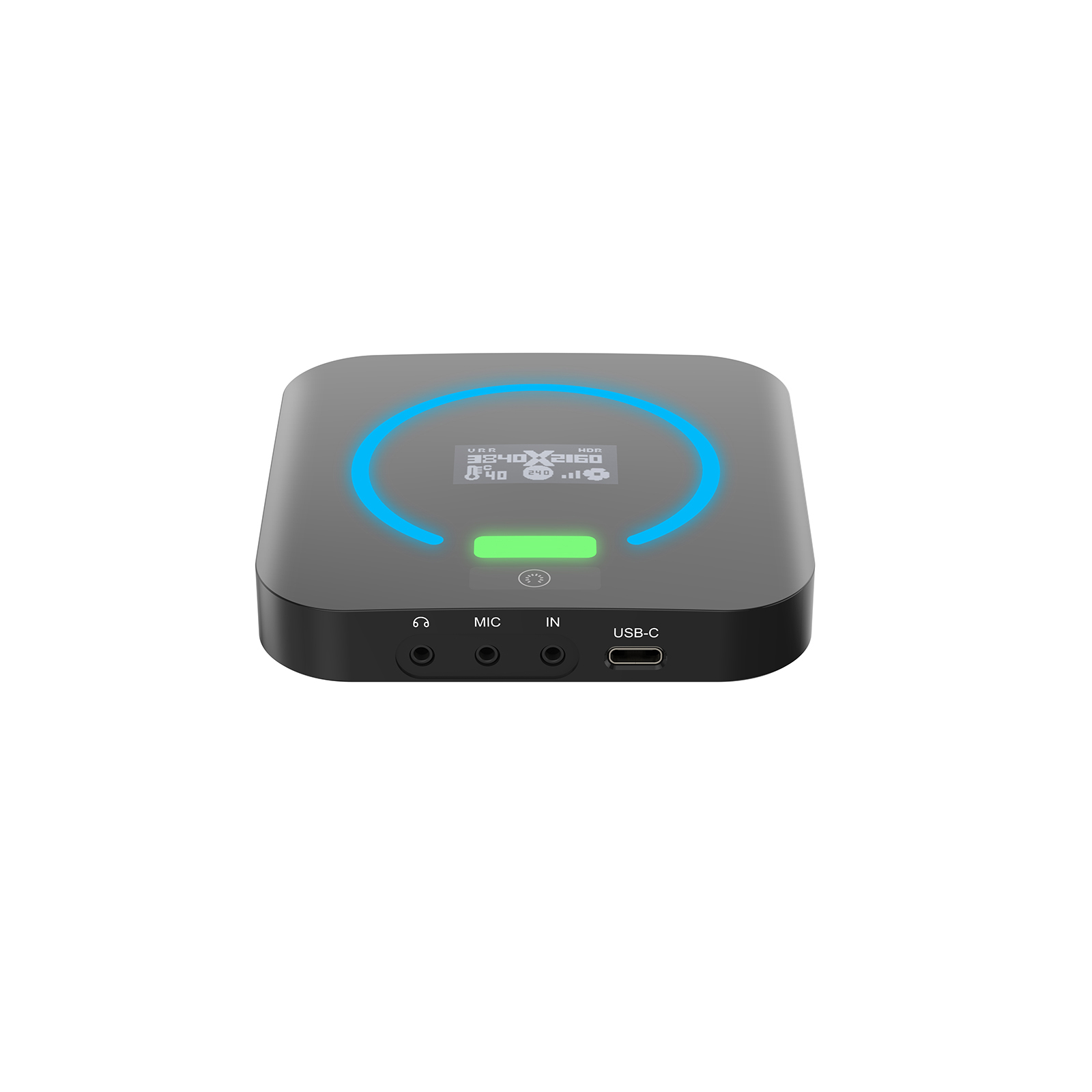

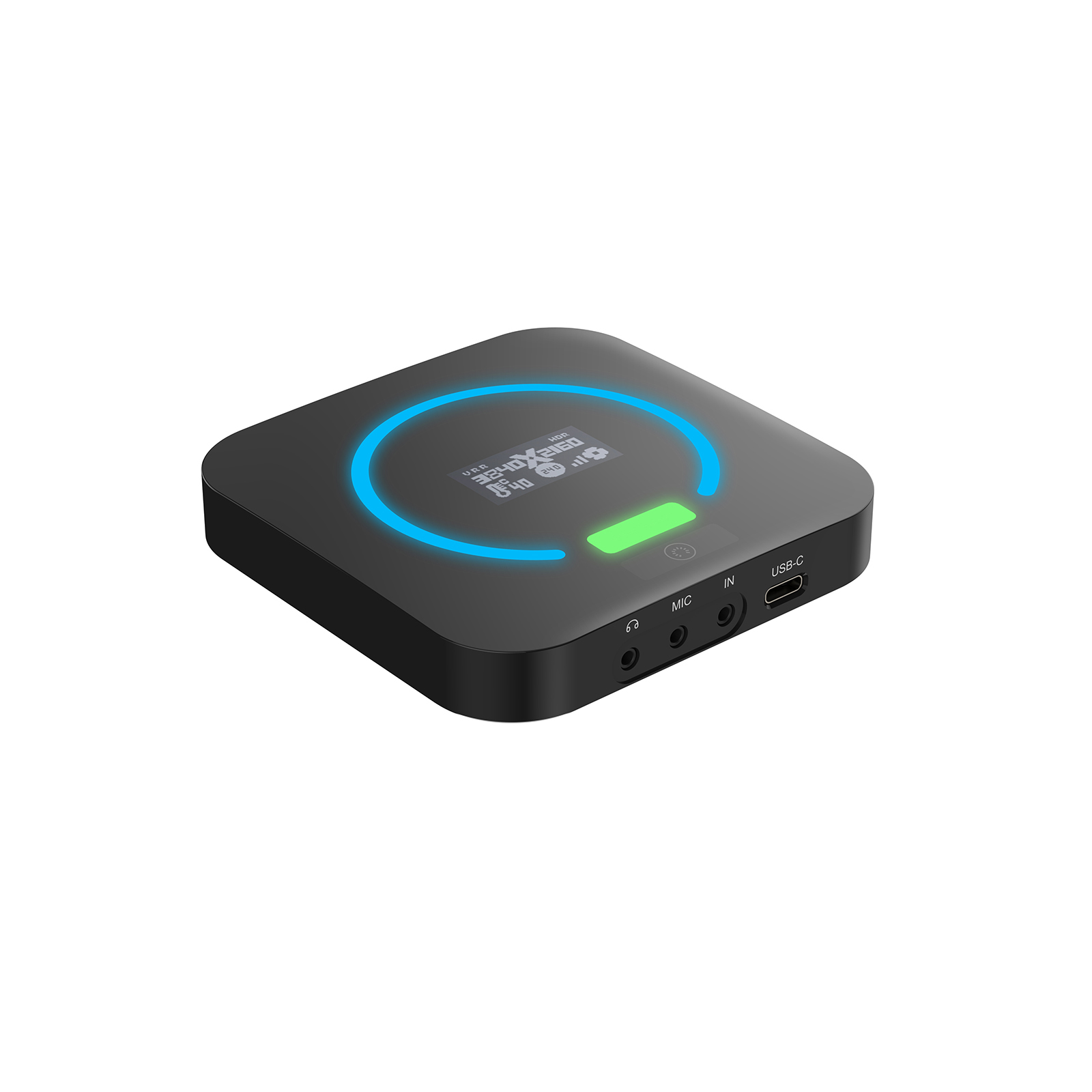

  • HDMI x 1, 3.5mm Line In x1, 3.5mm MIC In x1

Output Ports

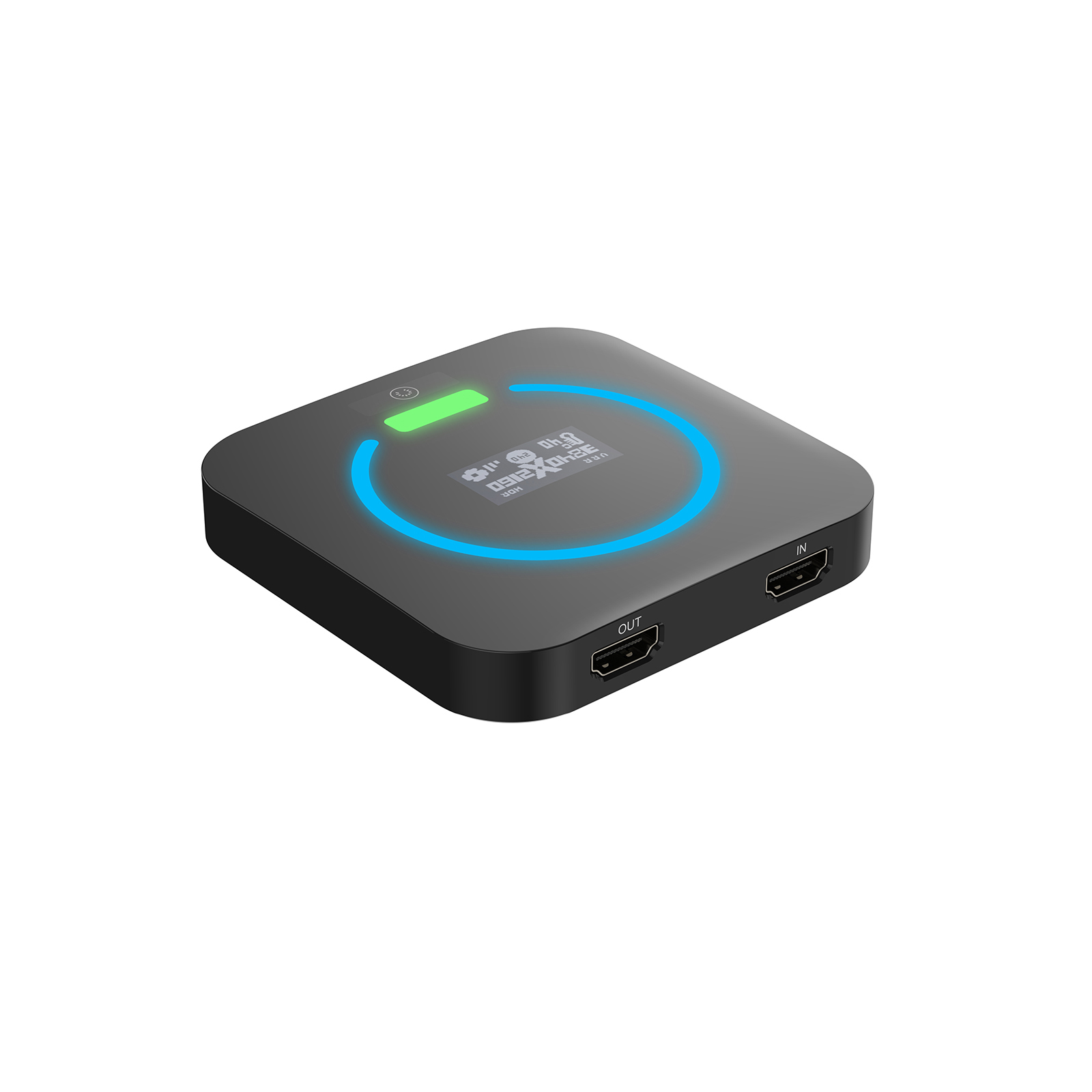

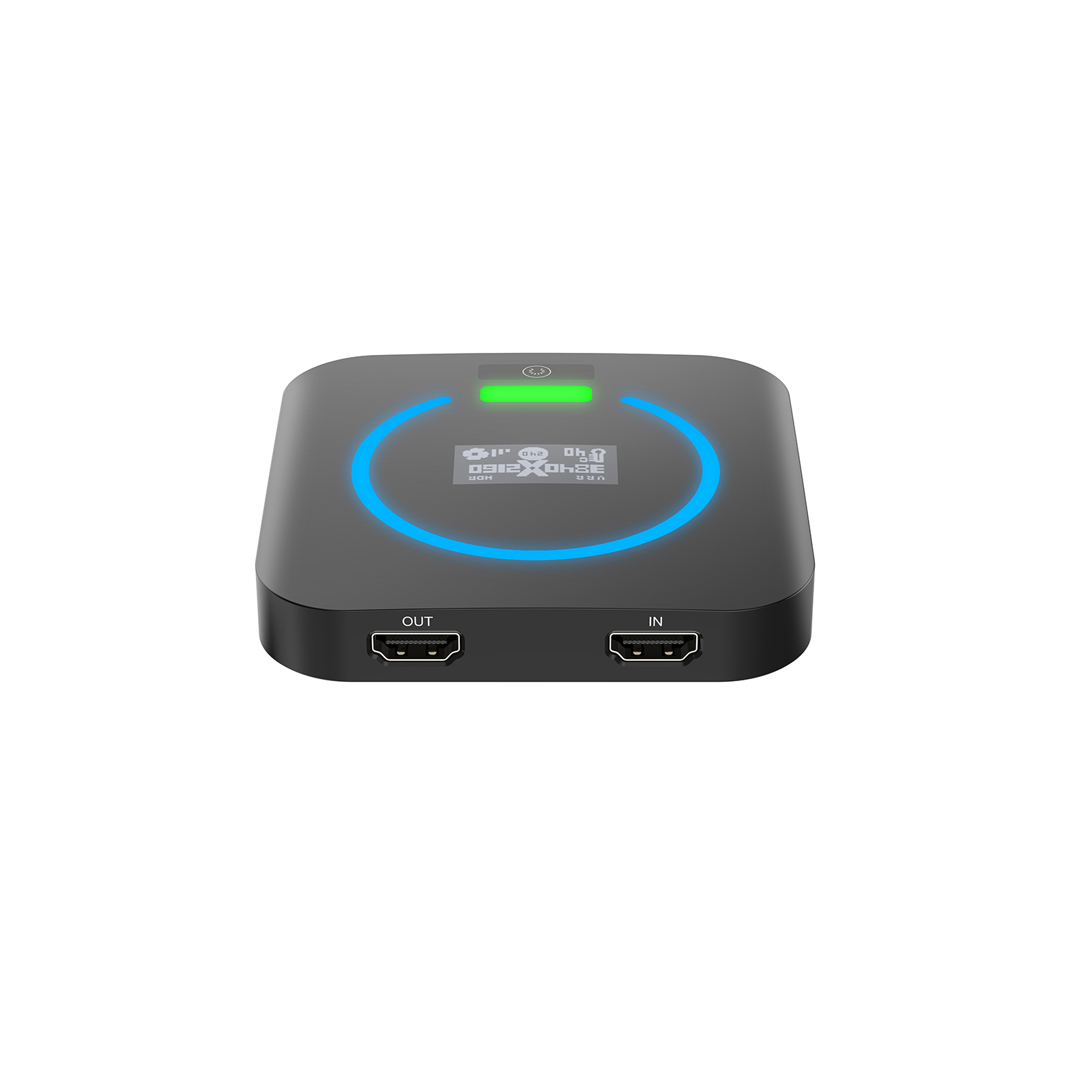

  • USB-C 3.0 x1,HDMI Loop out x1, 3.5mm Line Out x1

Vertical Frequency Range

  • 50/60Hz

Video Amplifier Bandwidth

  • 6Gbps/600MHz per channel(18Gbps all channels)

HDMI Input and Output

  • 720 x 480 (60p), 720x 576 (50p), 1280 x720p (50p)1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080(60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x1080 (30p), 1920 x 1080 (50p), 1920x 1080 (60p), 3840×2160(30p),3840×2160(60p)

USB-C 3.0 Output

  • 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p)1280 x 720p(60p), 1920 x 1080 (50i), 1920xx 1080(60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p),1920 x 1080 (120p/240p),3840×2160(30p),3840×2160(60p)

Compatible System

  • Windows7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above). etc

Software Compatibility

  • QuickTime Broadcaster (OS X);QuickTime Player (OS X); Daum Potplayer (Windows, OS X) ; XSplit Broadcaster (Windows, OS X) ;VLC (Windows, OS X, Linux) ; Wirecast (Windows, OS X) ;Cloud Video Conferencing Service; Livestream; Skype; Hangouts; OBS etc.

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 50℃

Storage Humidity

  • 5% to 90% RH non-condensation

Power Supply

  • Powered via USB-A ports

Power Consumption (Max)

  • 5W

Capture Unit Cert

  • FCC, CE, RoHS

Dimension(LxWxH)

  •

Net Weight

  •

Note: Specifications are subject to change without notice.
