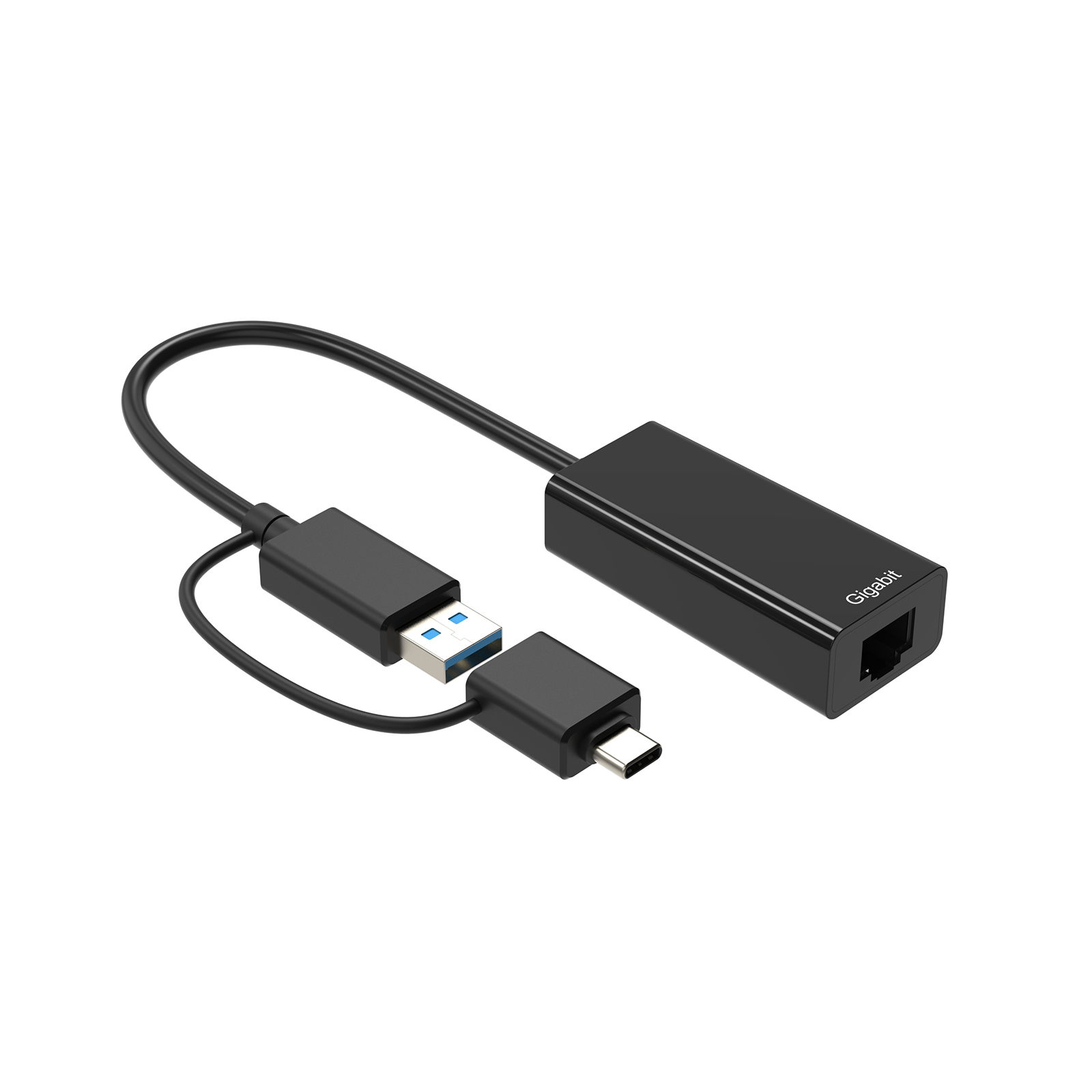

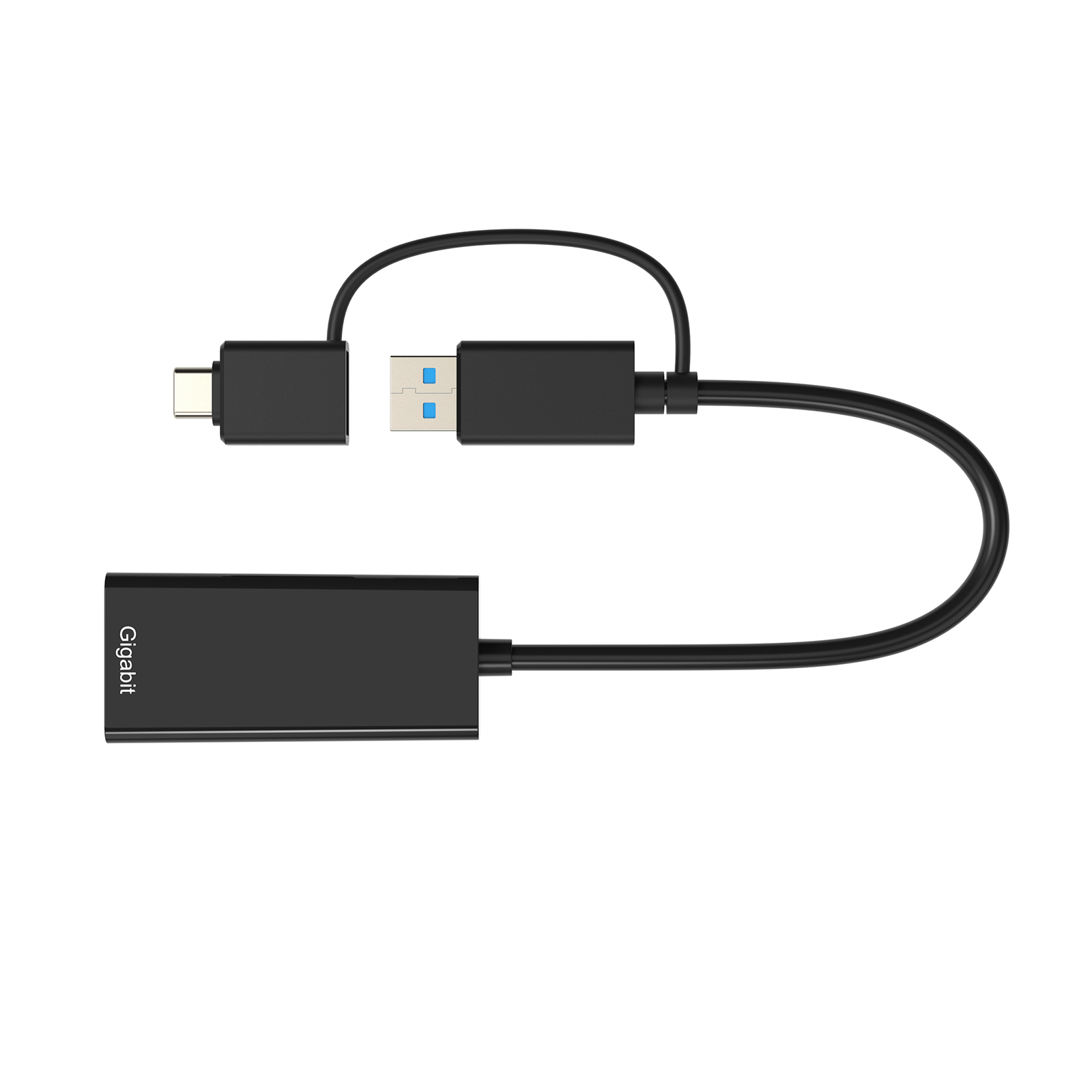

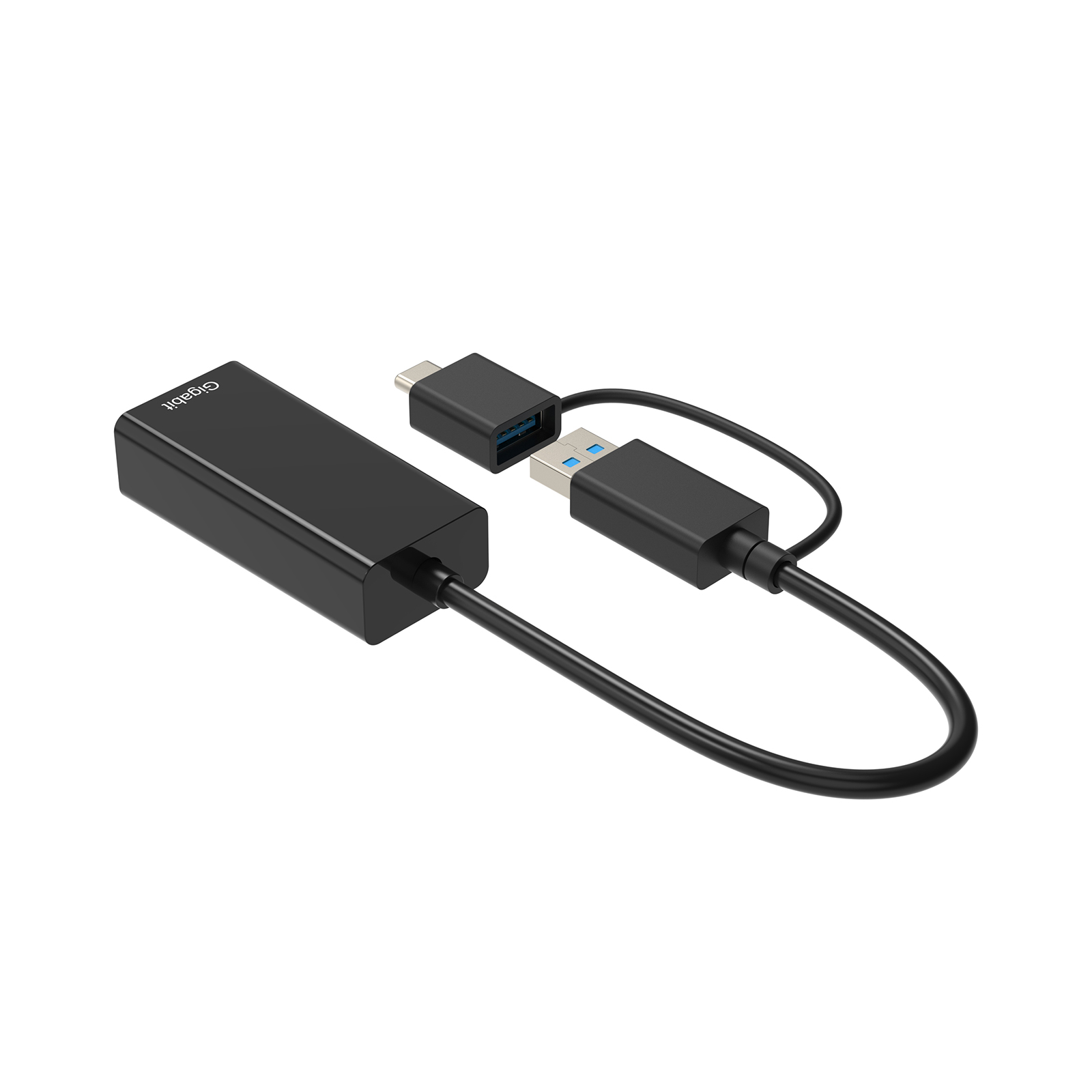

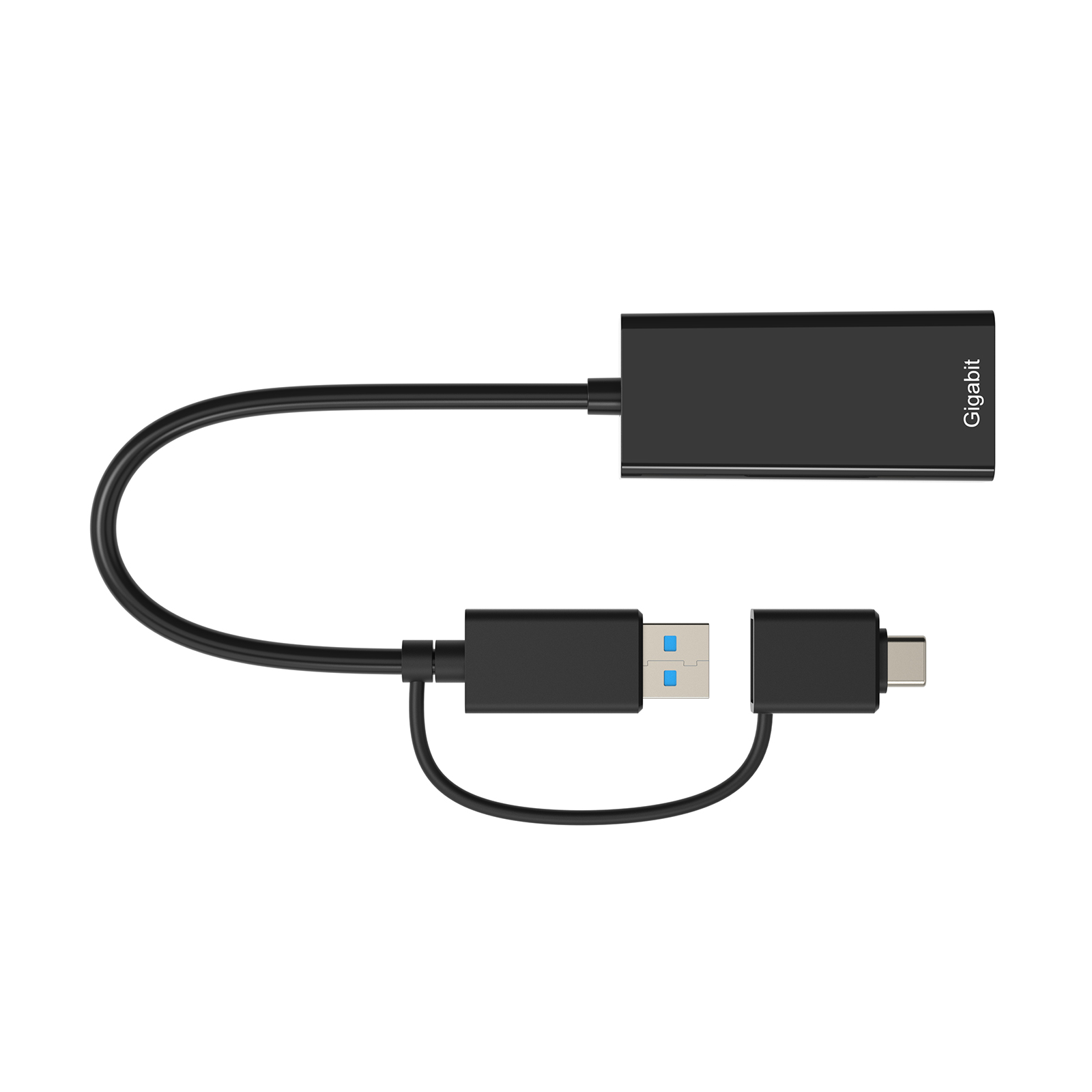

USB 3.0 or USB-C™ (with USB-C male to USB 3.0 female adapter) to RJ45 Adapter

Package Content

INTRODUCTION

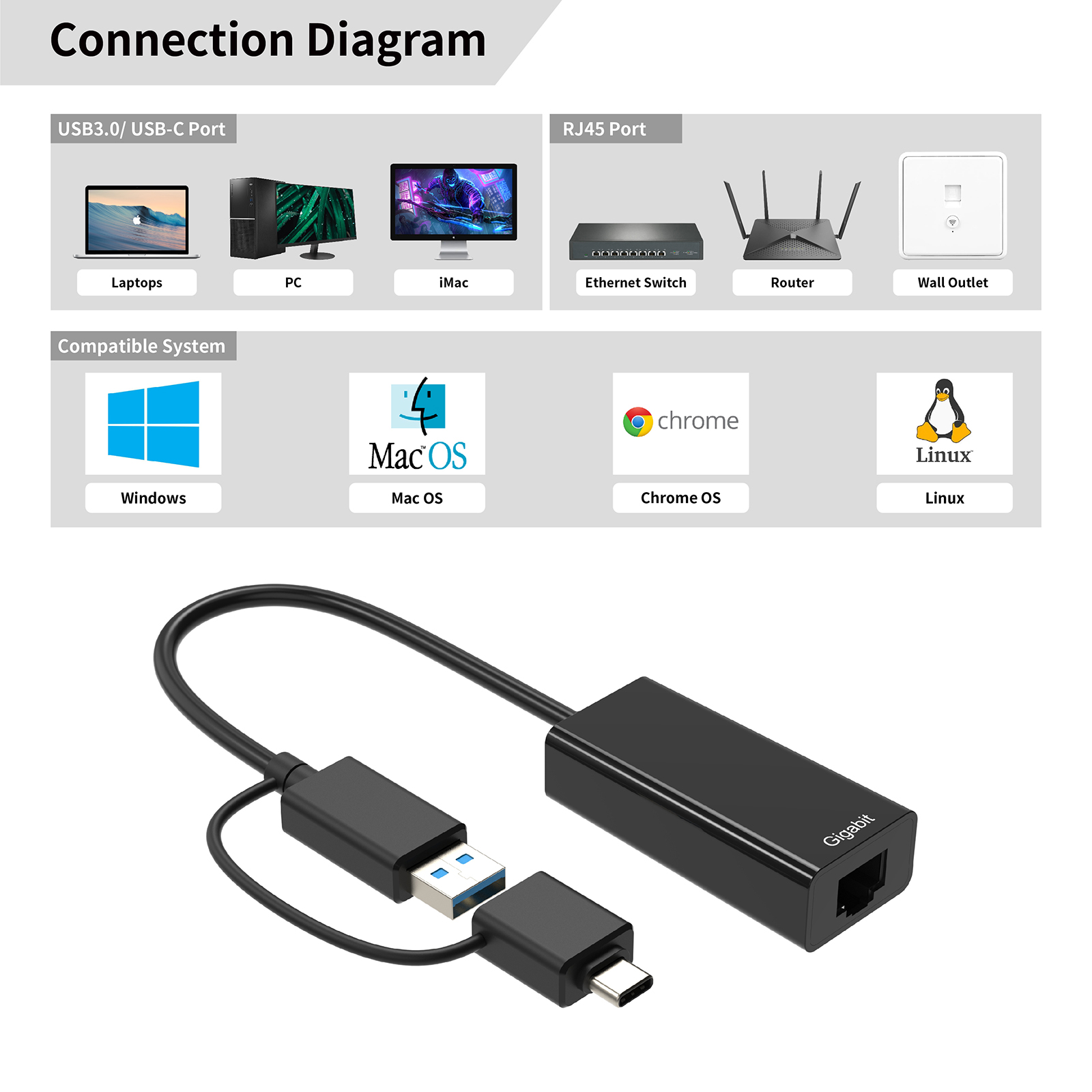

This USB 3.0 or USB-C to RJ45 Adapter plugs into your laptop’s USB 3.0 or USB-C port and connects to the wired network. Simply connect the adapter to the USB 3.0 or USB-C port on your USB 3.0 or USB-C-enabled device and then to your wired network via a UTP cable.

FEATURES
  • Support USB 3.0 or USB-C to RJ45 Adapter.
  • Support 10/100/1000Mbps auto-sensing.
  • Support twisted pair crossover detection and auto-correction (HP Auto-MDIX).
  • Supports dynamic cable length detection and dynamic power adjustment Green Ethernet (Gigabit mode only).
  • Support Plug & Play, easy to use.
  • Support Operating System:
    Mac: Mac OS X 10.6+ (For Mac OS 10.6 or below, you need to install a driver).
    Windows: Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows® 11.
SPECIFICATIONS
Input Port

  • 1 x USB3.0(Male)/1x USB-C(with adapter)

Output Port

  • 1 x RJ45(Female)

Network Bandwidth

  • 10/100/1000Mbps

Limited Warranty

  • 1 Year Parts and Labor

Operating Temperature

  • 0℃ to 70℃

Operating Humidity

  • 10% to 85% RH (no condensation)

Storage Temperature

  • -10℃ to +80℃

Storage Humidity

  • 5% to 90% RH (no condensation)

User Manual

  • English Version

Note: Specifications are subject to change without notice.
