HDMl 8×8 Matrix Supports 4K@60Hz 4:4:4, Eight-way Audio Extractor (Stereo and Coaxial),WEB GUI and RS-232 Control EDID Management,Remote Control,Front Button Control

INTRODUCTION

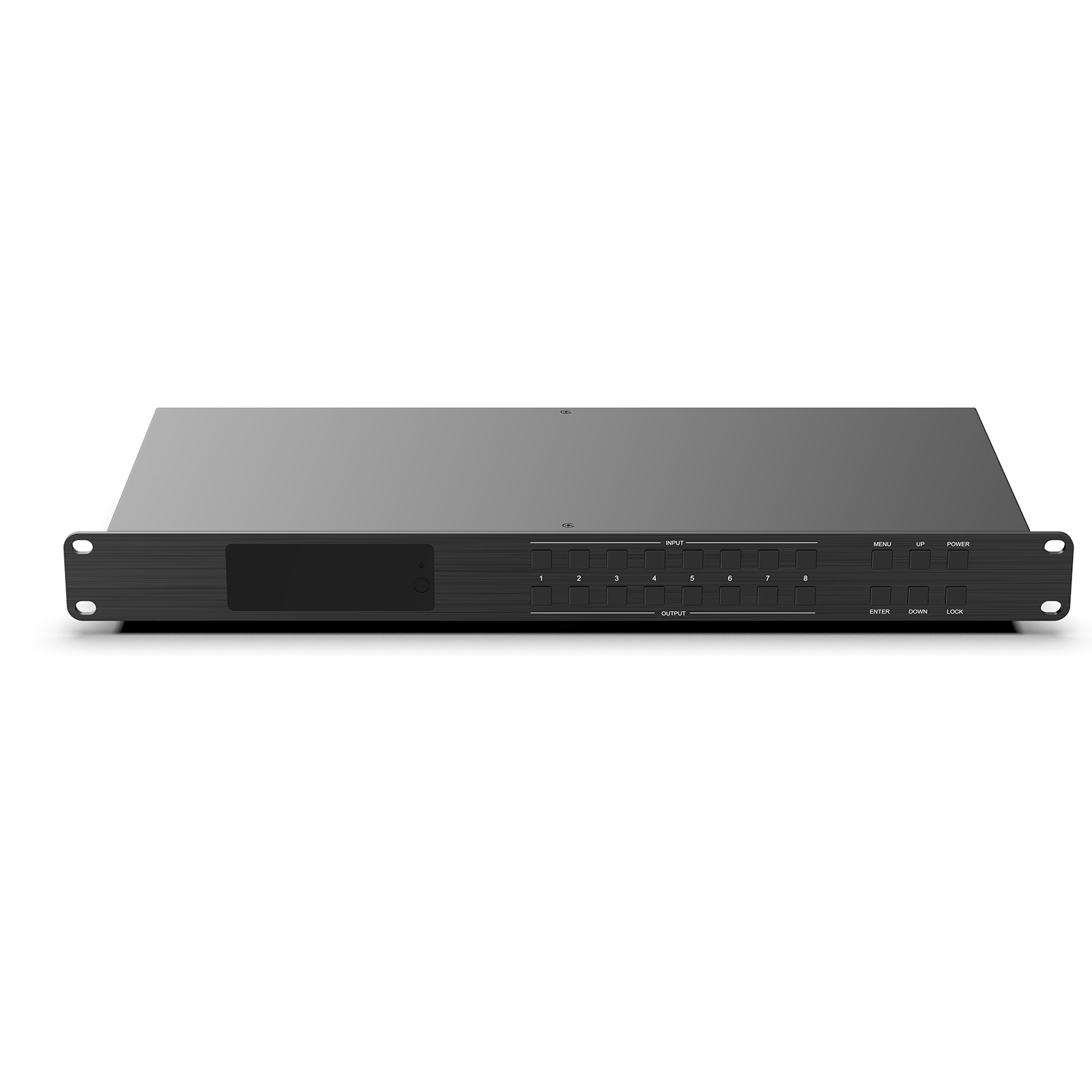

The 4K HDMI™ Matrix Switch lets you share up to 8 distinct HDMI™ or DVI inputs (using HDMI™ to DVI adapters – not included), with audio, between 8 independent displays or projectors. This matrix switch allows each input and the corresponding audio to be switched individually, meaning that different eight A/V sources can be shown on each output, or a single source can be output to eight, offering maximum flexibility. The Matrix switcher features a front panel OLED display for easy status monitoring, plus a front panel button control/IR Control/RS232 Control/WEB GUI Control for multiple control method from a distance. Ideal for connecting/switching multiple sources in data centers, help desks and video broadcasting Facilities, Perfect for digital signage applications in retail environments requiring more than one media player.

FEATURES

• Support audio output simultaneously: Stereo and Toslink (TOSLINK and R/L).
• Audio channels are select-able via remote control.
• Support downscale function means the product can downscale the input 4K resolution to 1080p by the FHD (1080p) displays and 4K resolution to the 4K displays in the 1×8 splitter mode simultaneously.
• Supports highest video resolution up to 4K@60Hz YUV 4:4:4.
• Support High Dynamic Range (HDR) video.
• Support eight-way audio extractor for output 1 – 8.
• Support Audio Return Channel (ARC), need to turn on the function on WEB GUI and RS232 Control.
• Supports 600MHz/6Gbps per channel (18Gbps all channels) bandwidth.
• Supports 12 bit per channel (36bit all channels) deep color.
• Supports uncompressed audio such as LPCM.
• Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD).
• Support Full 3D.
• Support EDID control (management), front panel button control, IR remote control, WEB GUI and RS232 Control.
