INTRODUCTION

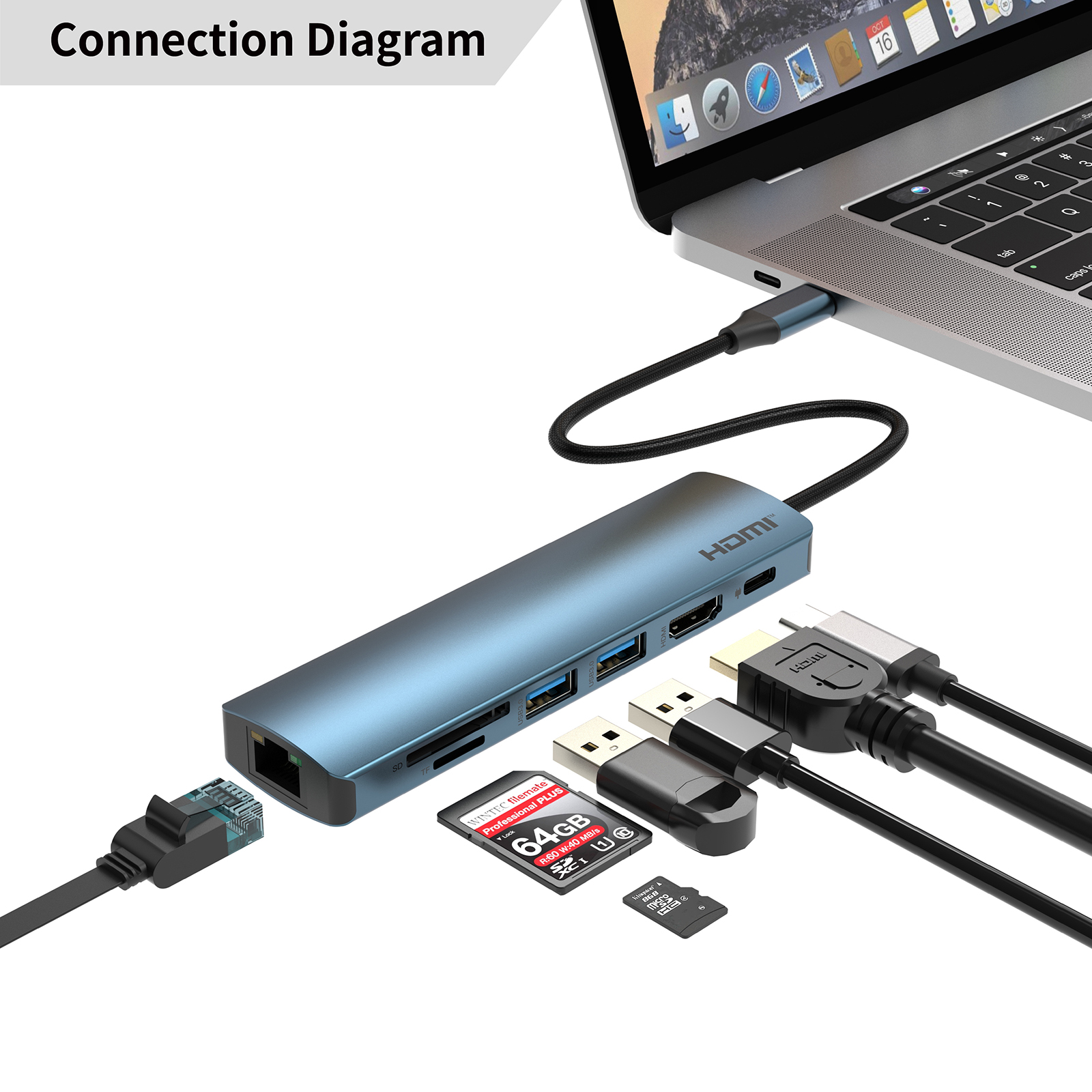

This USB 3.1 Type-C™ to HDMI™ + 2 x USB3.2 GEN1(5Gbps) +TF(Micro-SD)3.0+ SD3.0 +1000M RJ45 + PD 3.0 adapter 4K@60Hz 4:4:4 lets you output HDMI™ video and audio and connecting two USB 3.2 devices, SD and TF card, one RJ45 Gigabit(1000M) Ethernet port with power deliver function up to PD 3.0 100W from a USB 3.1 Type-C™ device such as a MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™ laptop. It lets you utilize the versatile USB 3.1 Type-C™ port on your portable device. USB 3.1 Type-C™ is a reversible connector, so it doesn’t matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of fiddling with your device when you’re trying to deliver a presentation.
The adapter lets you harness the video capabilities built into your USB 3.1 Type-C™ connection, to deliver the astonishing quality of Ultra HD to your 4K display. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
This USB 3.1 Type-C™ video adapter is highly portable with lightweight design, perfect accessory for your MacBook, MacBook Pro, Lenovo YOGA or ChromeBook Pixel™, fitting easily into your laptop bag or carrying case.
FEATURES
- Supports UHD video resolutions up to 4K@60Hz 4:4:4 for single display.
- Supports two USB3.2 Gen1 port up to 5Gbps data transmission with 5V 0.9A power supply capacity.
- Supports power deliver function up to 100W with PD 3.0 standard.
- Support 10/100/1000Mbps for Gigabit (1000M) Ethernet port.
- Support SD and TF card data transfer rates up to 104MB/s and follow the SD3.0 standard.
- Built-in USB Type C cable to be connected directly to your source device.
- Compatible with Thunderbolt 3.
- Compatible with DP1.4 alt mode.
- Compact design with aluminium alloy + ABS.
- Plug and play with no driver or software installation at all.
SPECIFICATIONS
Input Ports
- USB-C Male, USB-C Female x 1 (PD)
Output Ports
- HDMI x 1, USB3.2 Gen1 x 2, RJ45 x 1
Data Transmission Rate (Max)
- 5Gbps
Data Transmission Standard
- USB3.2 Gen1/USB3.1 Gen1/USB3.0
Vertical Frequency Range
- 50/60Hz
Video Amplifier Bandwidth
- 6.0Gbps/600MHz per channel(18Gbps all channels)
Interlaced(50&60Hz)
- 480i, 576i, 1080i
Progressive(50&60Hz)
- 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 60℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- N/A
Power Consumption (Max)
- 5W
Unit Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- 127.5x34x15mm
Net Weight
- 65g
Material
- Aluminium Alloy + ABS
User Manual
- English Version
