INTRODUCTION

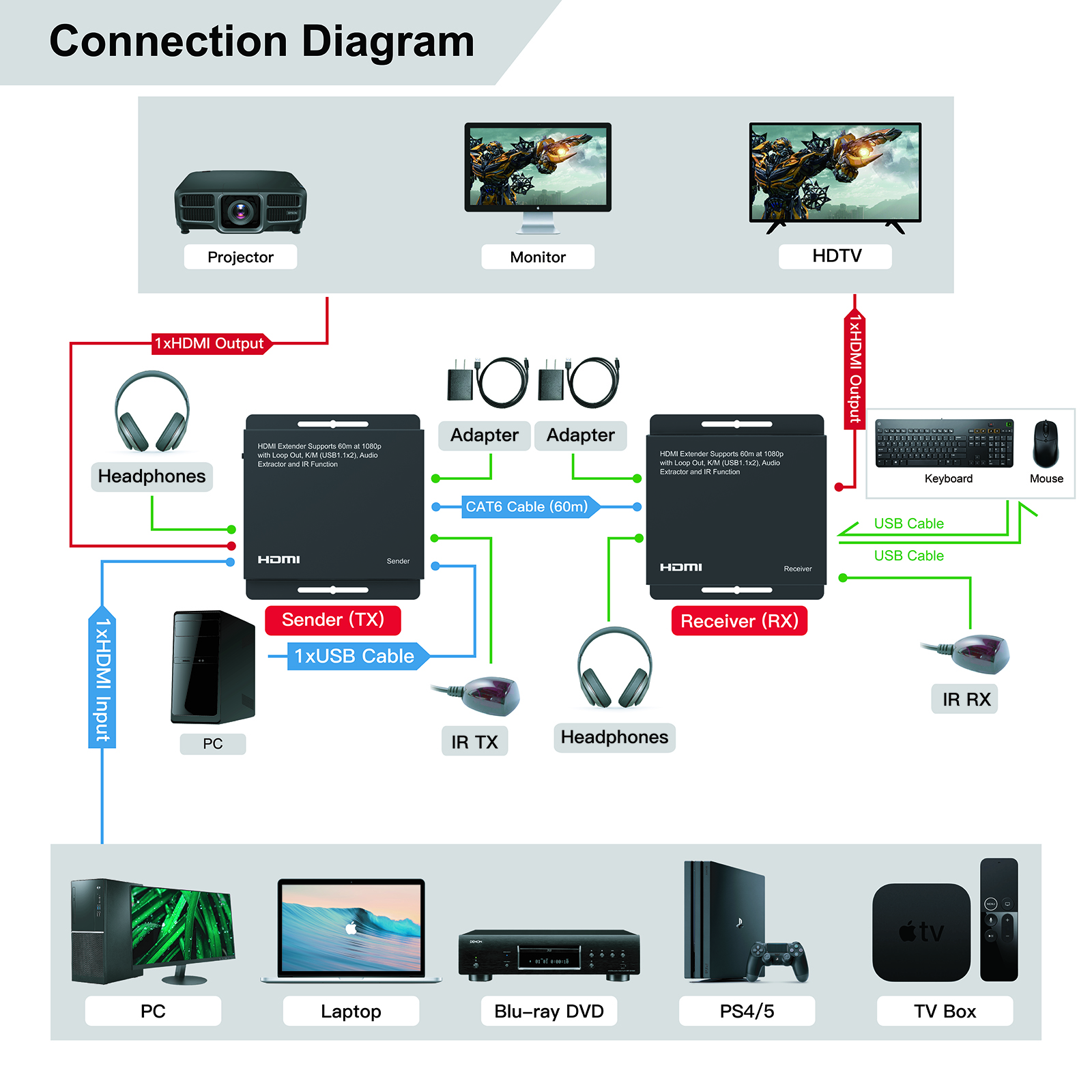

The HDM™ video Extender lets you extend HDMI™ signal or DVI Signal (using HDMI™-DVI adapter, not included) by up to 60m (2362.2ft) over single Cat6 cable. An ideal solution for sharing a display or projector over an LAN network so that even the video source lacking digital video output can still connect,it also transmit the USB1.1 control signals at the same time, perfect for controlling your video source from your video destination.
FEATURES
- Following TCP standard
- Supports resolution up to 480p/720p/1080i/1080p
- Supports switching between 720P and 1080P resolutions via a button
- CAT5e/6 cable follows the standard of IEEE-568B
- Supports remote USB mouse and keyboard connection (up to 2 ports at receiver)
- Supports HDMI loop-out
- Supports stereo output via 3.5mm jack
SPECIFICATIONS
Input Port

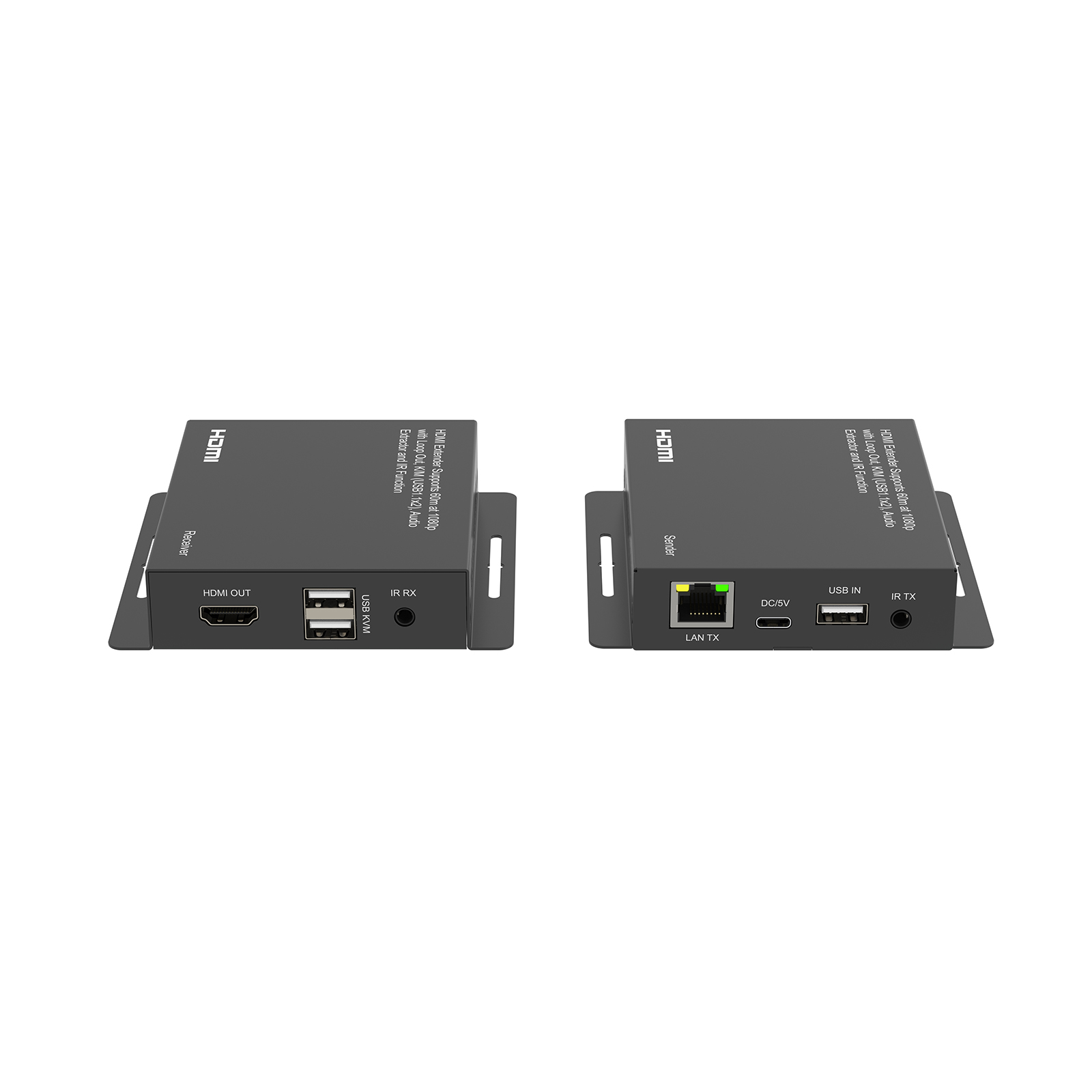

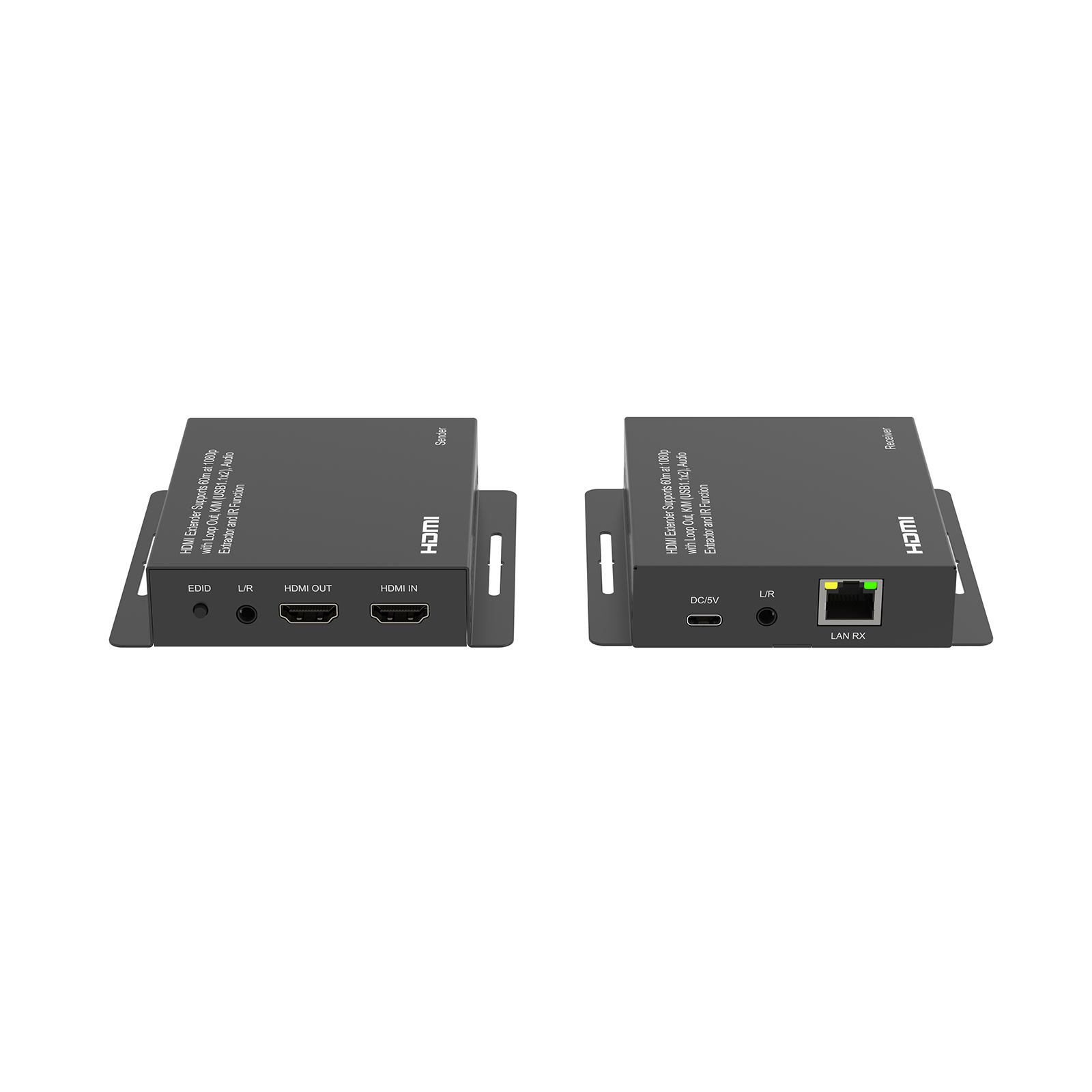

- HDMI Male x 1, USB 1.1 Type A x 1, HDBaseT(RJ45) IN x 1, IR RX(3.5MM) x 1
Output Port
- HDMI Male x 2, USB 1.1 Type A x 2, HDBaseT(RJ45) OUT x 1, IR TX(3.5MM) x 1, L/R(3.5MM) x 1
Extensions Distance
- 60M 1080P@60Hz
USB transmission rate
- 12Mbps
USB Standard
- USB 1.1
Vertical Frequency Range
- 50/60Hz
Interlaced Resolutions(50&60Hz)
- 1080i
Progressive Resolutions(50&60Hz)
- 480p,576p,720p,1080p
Limited Warranty
- 1 Year Parts and Labor
Operating Temperature
- 0℃ to 50℃
Storage Humidity
- 5% to 90% RH non-condensation
Power Supply
- DC 5V 1A x 2pcs
Power Consumption (Max)
- TX: 2W, RX: 2W
Extender Unit Cert
- FCC, CE, RoHS
Power Supply Cert
- FCC, CE, RoHS
Dimension(LxWxH)
- TX/RX: 100 x 104 x 24mm
Net Weight
- TX:198.3g, RX:194.2g
Material
- Metal
User Manual
- English Version
Note: Specifications are subject to change without notice.
